Twin RG59B/U 75 Ohms Foam Filled Coaxial Cable - Copper Braid

Black 100m

808.163UK

Twin 75 Ohms RG59 coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, copper foil screen, oxygen free copper braid and PVC sheath. The overall screen… more

  • Solid OFC conductor
  • Foam filled PE dielectric
  • Copper foil screen
DESCRIPTION VERSION PACKED
808.163UK

Twin SAT/CCTV Foamed PE Coaxial Cable with Cu Braid - 100m Black

Black 100m Reel

Twin RG59B/U 75 Ohms Foam Filled Coaxial Cable - Copper Braid

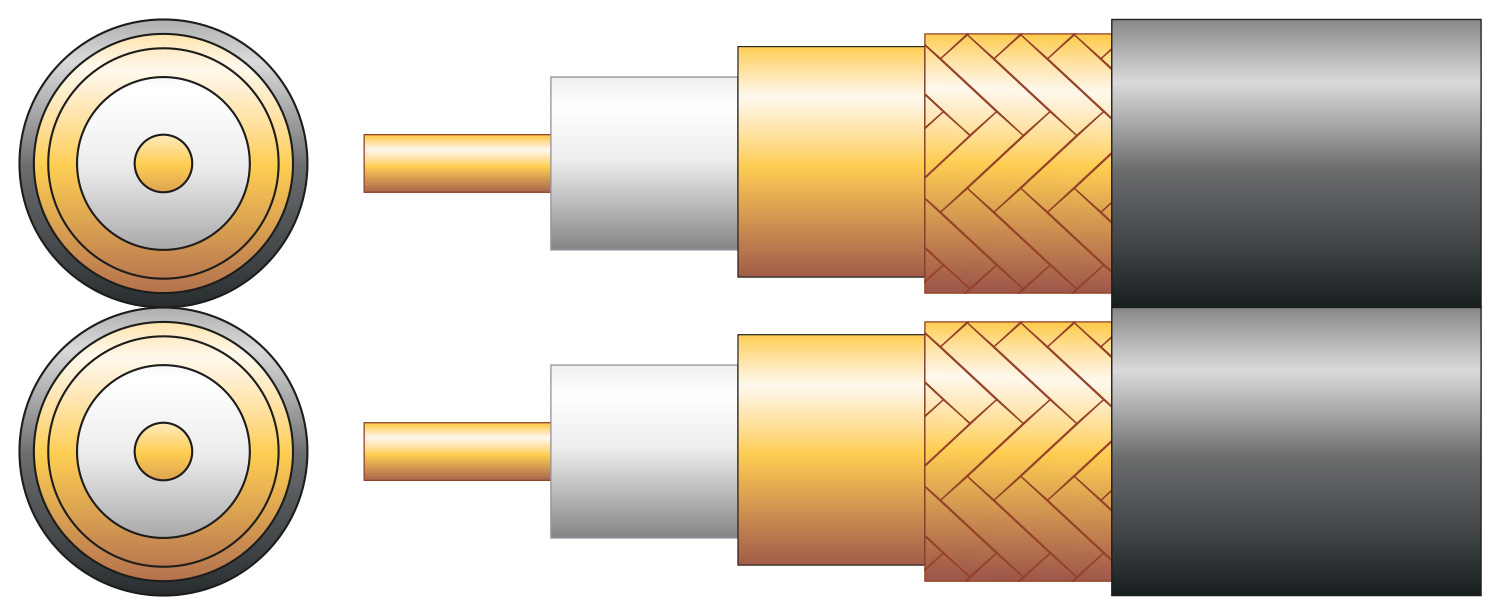

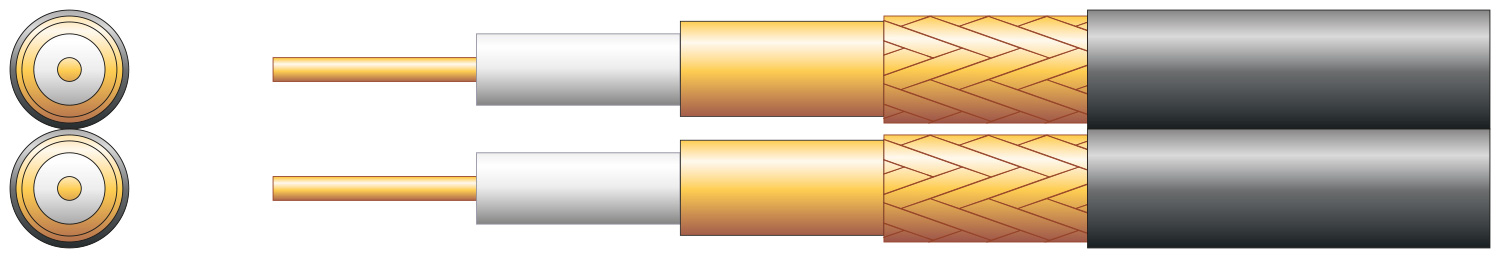

Twin 75 Ohms RG59 coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, copper foil screen, oxygen free copper braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for satellite dish installation with dual or quad LNB or for CCTV signal transmission.

  • Solid OFC conductor
  • Foam filled PE dielectric
  • Copper foil screen
  • OFC braid
  • Supplied in 100m reel with metric cut markers
  • CSA 2 x 0.33mm²
  • Conductor diameter 2 x 0.65mmØ
  • Conductor material Solid OFC
  • Braid 2 x 48/0.14mmØ
  • Braid material OFC
  • Screen Copper foil
  • Dielectric 3mmØ foam PE
  • Cable : diameter 2 x 5mmØ
  • Impedance 75 Ohms
  • Capacitance 67pF/m
  • Velocity factor 83%
  • Return loss 5-400MHz 30dB min./100m
  • Return loss 450-1000MHz 22dB min./100m
  • Return loss 1000-2150MHz 18dB min./100m
  • Attenuation @ 50MHz 6.5dB max./100m
  • Attenuation @ 100MHz 8.9dB max./100m
  • Attenuation @ 200MHz 12.3dB max./100m
  • Attenuation @ 400MHz 17.6dB max./100m
  • Attenuation @ 860MHz 24.7dB max./100m
  • Attenuation @ 1000MHz 26.9dB max./100m
  • Attenuation @ 1750MHz 35.7dB max./100m
  • Attenuation @ 2150MHz 42.2dB max./100m
  • Colour Black
  • Length 100m
  • Weight 5.7kg
