Economy RG6 75 Ohms Air Spaced Coaxial Cable - Aluminium Braid

Black 100m

808.117UK

75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, air spaced polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid… more

  • Solid CCS conductor
  • Air spaced PE dielectric
  • Binded aluminium screen
DESCRIPTION VERSION PACKED
808.117UK

Eco RG6 Air Spaced PE Coaxial Cable with Aluminum Braid - 100m Black

Black 100m Reel
808.119UK

Eco RG6 Air Spaced PE Coaxial Cable with Aluminum Braid - 100m White

White 100m Reel

Economy RG6 75 Ohms Air Spaced Coaxial Cable - Aluminium Braid

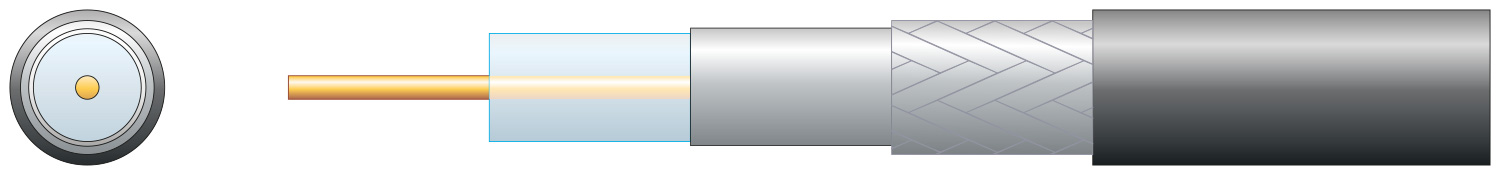

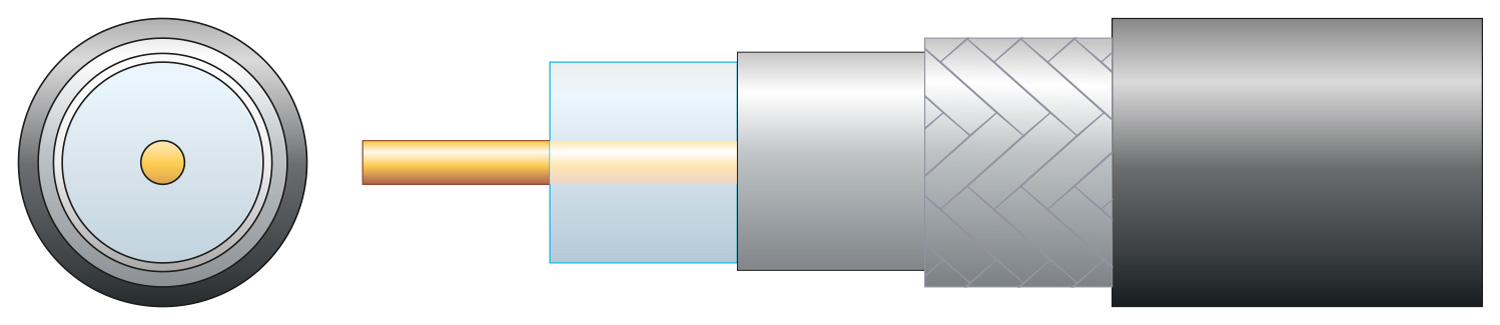

75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, air spaced polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.

  • Solid CCS conductor
  • Air spaced PE dielectric
  • Binded aluminium screen
  • Aluminium braid
  • Supplied in 100m reel with metric cut markers
  • Colour Black
  • CSA 0.79mm²
  • Conductor diameter 1mmØ
  • Conductor material Solid CCS
  • Braid 48 x 0.12mmØ
  • Braid material Aluminium
  • Dielectric 4.6mmØ air spaced PE
  • Screen Aluminium / PET foil
  • Cable : diameter 6.6mmØ
  • Impedance 75 Ohms
  • Capacitance 54pF/m
  • Velocity factor 83%
  • Return loss 5-400MHz 24dB min./100m
  • Return loss 450-1000MHz 20dB min./100m
  • Return loss 1000-2150MHz 16dB min./100m
  • Attenuation @ 5MHz 2.9 dB max./100m
  • Attenuation @ 50MHz 5.2 dB max./100m
  • Attenuation @ 100MHz 6.9 dB max./100m
  • Attenuation @ 200MHz 10.2 dB max./100m
  • Attenuation @ 400MHz 14.9 dB max./100m
  • Attenuation @ 860MHz 20.3 dB max./100m
  • Attenuation @ 1000MHz 22.5 dB max./100m
  • Attenuation @ 1750MHz 29.8 dB max./100m
  • Attenuation @ 2150MHz 33.6 dB max./100m
  • Length 100m
  • Weight 4.1kg
