100U 75 Ohms Foam Filled Coaxial Cable - Copper Braid

Black 100m

808.147UK

75 Ohms 100U coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, copper foil screen, oxygen free copper braid and PVC sheath. The overall screen and… more

  • Solid OFC conductor
  • Foam filled PE dielectric
  • Copper foil screen
DESCRIPTION VERSION PACKED
808.147UK

100U Foamed PE Coaxial Cable with Cu Braid - 100m Black

Black 100m Reel

100U 75 Ohms Foam Filled Coaxial Cable - Copper Braid

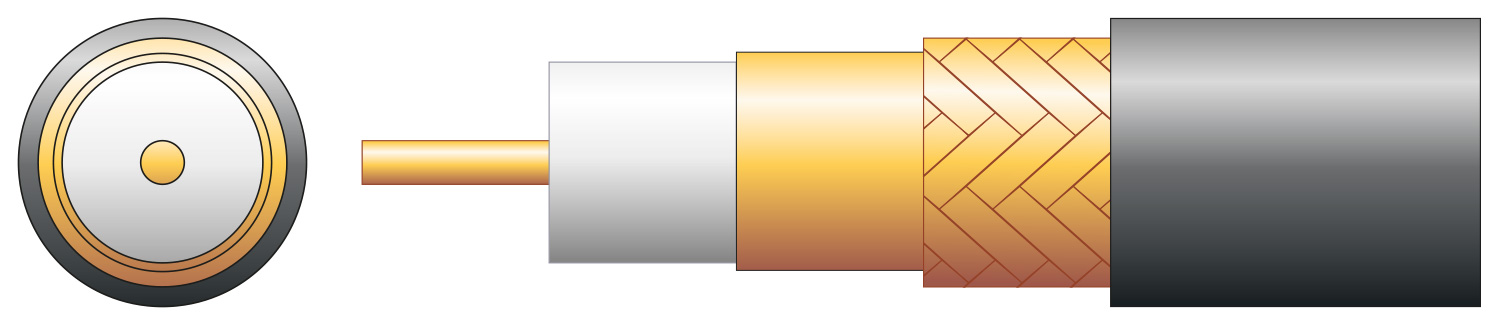

75 Ohms 100U coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, copper foil screen, oxygen free copper braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.

  • Solid OFC conductor
  • Foam filled PE dielectric
  • Copper foil screen
  • OFC braid
  • Supplied in 100m or 250m reel with metric cut markers
  • Weight 4.2kg
  • Length 100m
  • Colour Black
  • CSA 0.79mm²
  • Conductor diameter 1mmØ
  • Conductor material Solid OFC
  • Braid 64 x 0.12mmØ
  • Braid material OFC
  • Screen Copper foil
  • Dielectric 4.6mmØ foam PE
  • Cable : diameter 6.6mmØ
  • Impedance 75 Ohms
  • Capacitance 54pF/m
  • Velocity factor 83%
  • Return loss 5-400MHz 30dB min./100m
  • Return loss 450-1000MHz 24dB min./100m
  • Return loss 1000-2150MHz 18dB min./100m
  • Attenuation @ 5MHz 1.8dB max./100m
  • Attenuation @ 50MHz 4.7dB max./100m
  • Attenuation @ 100MHz 6.6dB max./100m
  • Attenuation @ 200MHz 9.7dB max./100m
  • Attenuation @ 400MHz 14.6dB max./100m
  • Attenuation @ 860MHz 19.6dB max./100m
  • Attenuation @ 1000MHz 21.6dB max./100m
  • Attenuation @ 1750MHz 29.1dB max./100m
  • Attenuation @ 2150MHz 32.7dB max./100m
