RG59B/U 75 Ohms Foam Filled Coaxial Cable - Copper Braid
Black 100m
808.101UK
75 Ohms RG59 coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, aluminium foil screen, oxygen free copper braid and PVC sheath. Ideal for video… more
- Solid OFC conductor
- Foam filled PE dielectric
- Binded aluminium foil screen
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
808.101UK
RG59B/U Foam PE with Copper Braid - 100m Black |
Black 100m | Reel |
RG59B/U 75 Ohms Foam Filled Coaxial Cable - Copper Braid

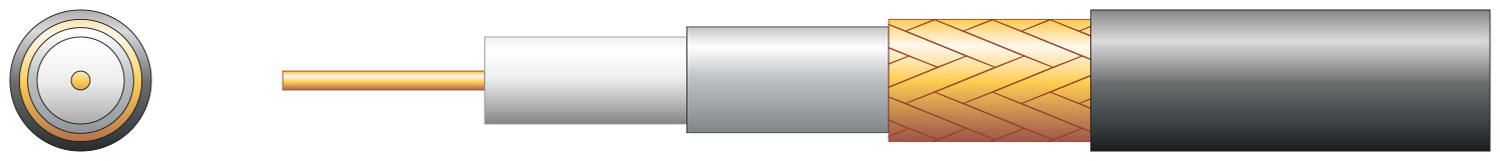

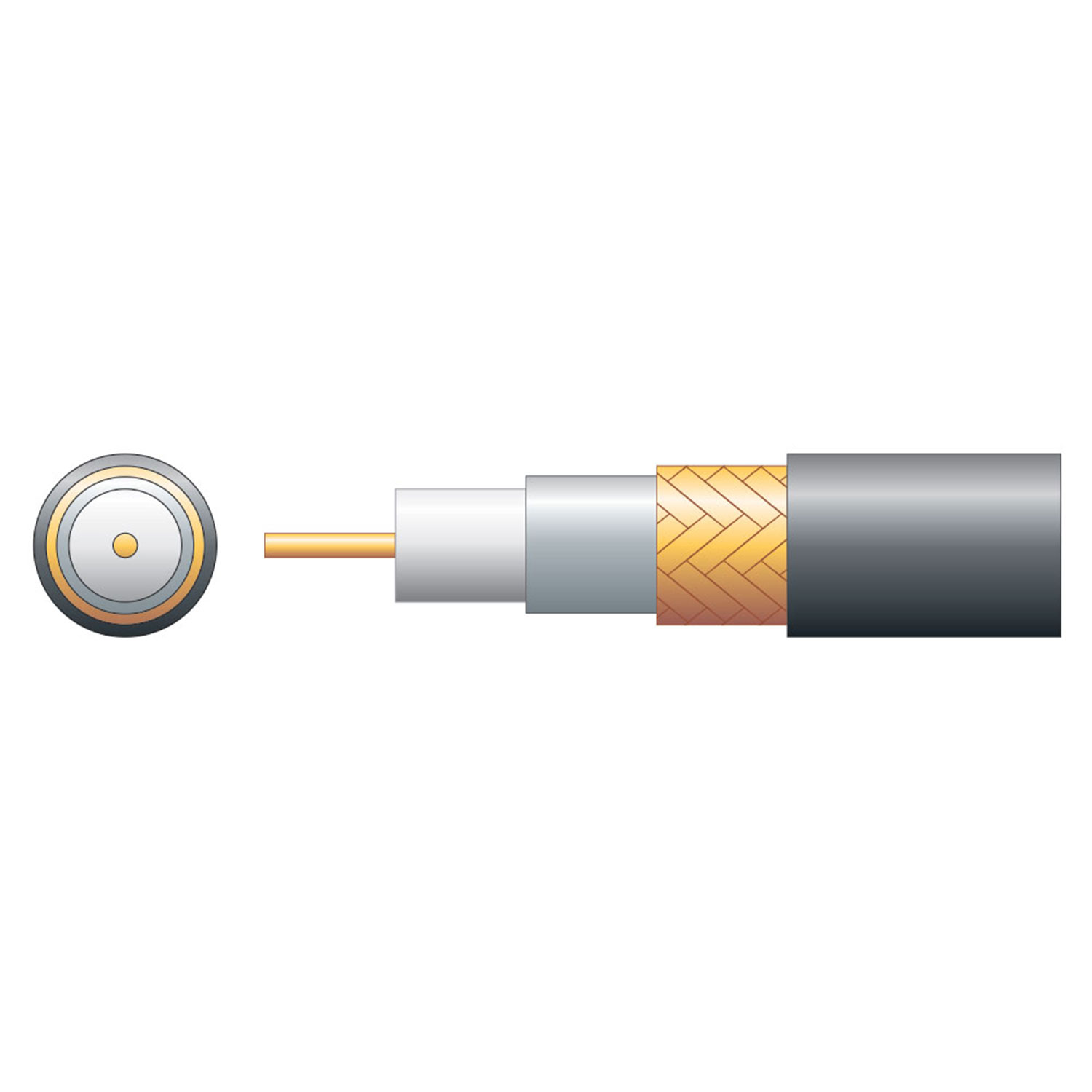

75 Ohms RG59 coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, aluminium foil screen, oxygen free copper braid and PVC sheath. Ideal for video signal transmission such as CCTV.
- Solid OFC conductor
- Foam filled PE dielectric
- Binded aluminium foil screen
- OFC braid
- Supplied in 100m reel with metric cut markers
- CSA 0.5mm²
- Conductor diameter 0.8mmØ
- Conductor material Solid OFC
- Braid 48 x 0.12mmØ
- Braid material OFC
- Screen Aluminium / PET foil
- Dielectric 3.7mmØ foam PE
- Cable : diameter 6mmØ
- Impedance 75 Ohms
- Capacitance 67pF/m
- Velocity factor 83%
- Return loss 5-400MHz 24dB min./100m
- Return loss 450-1000MHz 20dB min./100m
- Return loss 1000-2150MHz 16dB min./100m
- Attenuation @ 5MHz 2.8dB max./100m
- Attenuation @ 50MHz 5.1dB max./100m
- Attenuation @ 100MHz 7.3dB max./100m
- Attenuation @ 200MHz 10.1dB max./100m
- Attenuation @ 400MHz 14.9dB max./100m
- Attenuation @ 860MHz 22.1dB max./100m
- Attenuation @ 1000MHz 24.7dB max./100m
- Attenuation @ 1750MHz 34.1dB max./100m
- Attenuation @ 2150MHz 38.1dB max./100m
- Colour Black
- Length 100m
- Weight 3.5kg
