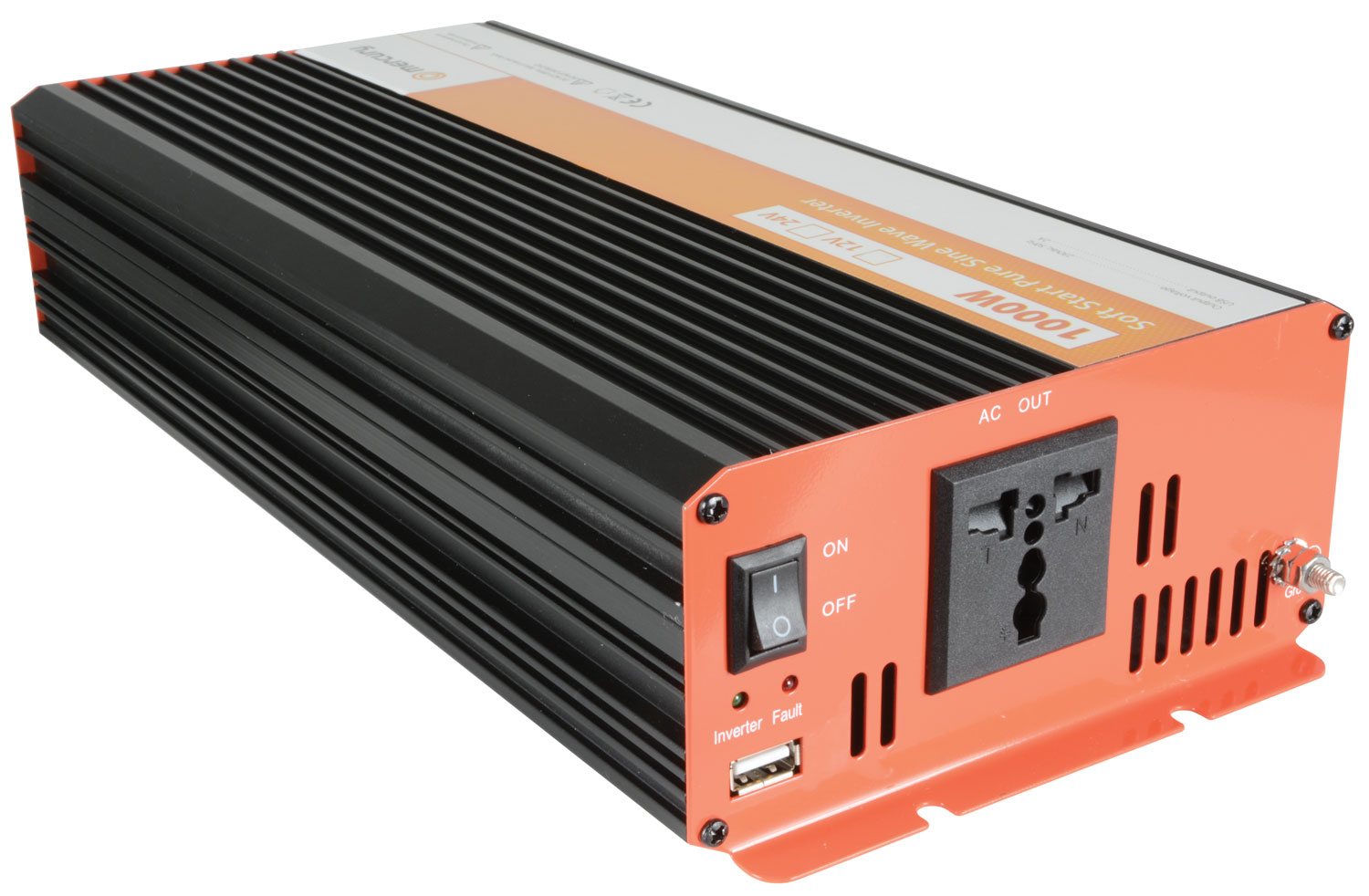

Soft Start Pure Sine Wave Inverters
12Vdc 1000W
652.104UK
IPS1000-12
These high efficiency power inverters produce a pure sine wave to power 230V mains equipment from a 12V or 24V battery or DC power supply. Perfect for use while camping, in commercial vans/lorries, or… more
- Over 90% efficiency
- Soft start minimises inverter shutdown when using large inductive loads
- High accuracy output wave form with less than 4% THD
Soft Start Pure Sine Wave Inverters
These high efficiency power inverters produce a pure sine wave to power 230V mains equipment from a 12V or 24V battery or DC power supply. Perfect for use while camping, in commercial vans/lorries, or as a means to convert charged batteries for back-up power in case of a blackout. Ideal for use with TVs, computers, kettles and other everyday appliances.
- Over 90% efficiency
- Soft start minimises inverter shutdown when using large inductive loads
- High accuracy output wave form with less than 4% THD

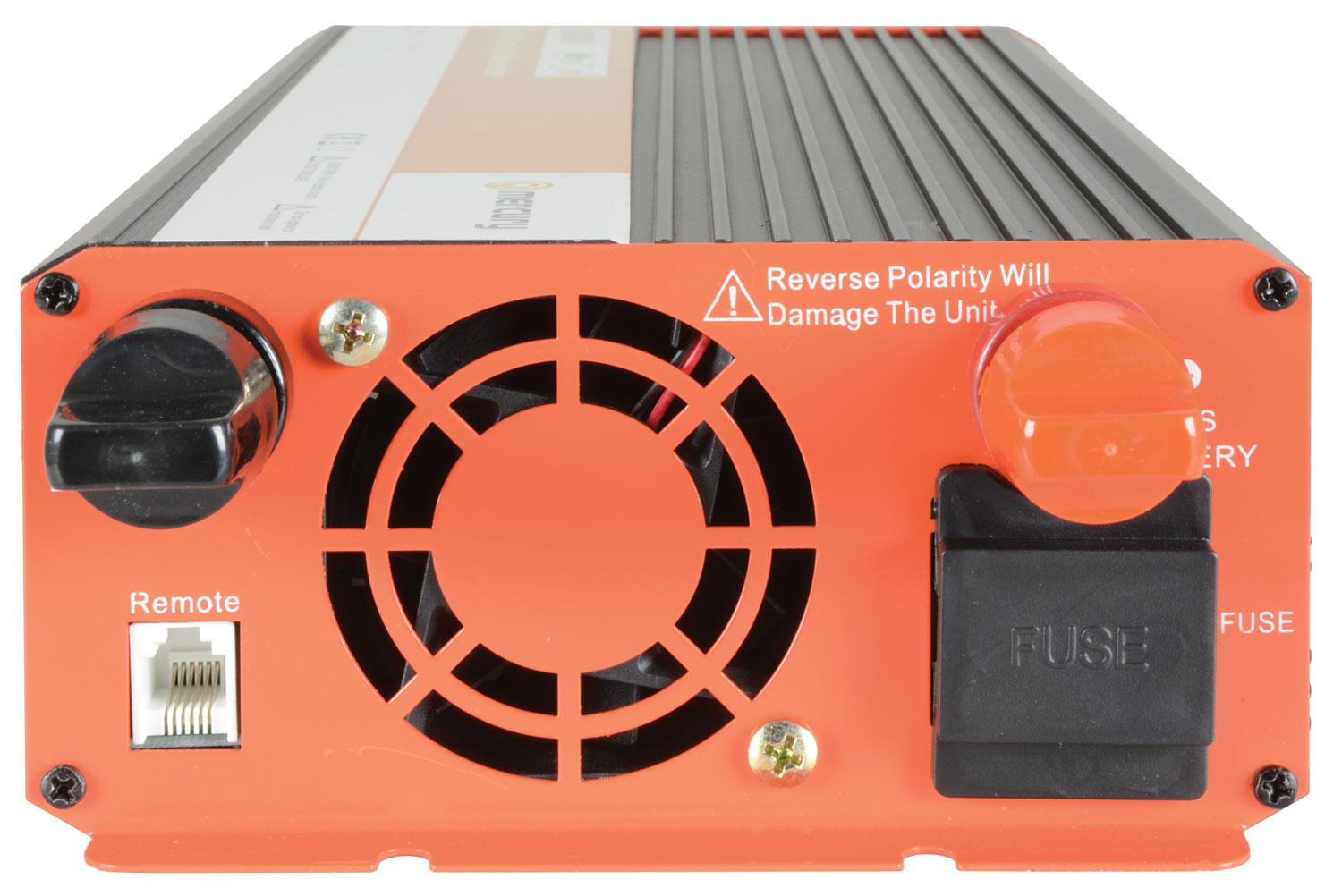

- Reverse polarity protection
- Low/over voltage input protection
- Short circuit, overload and overheat protection
- Built in 1000mA USB socket on the 600W & 1000W versions

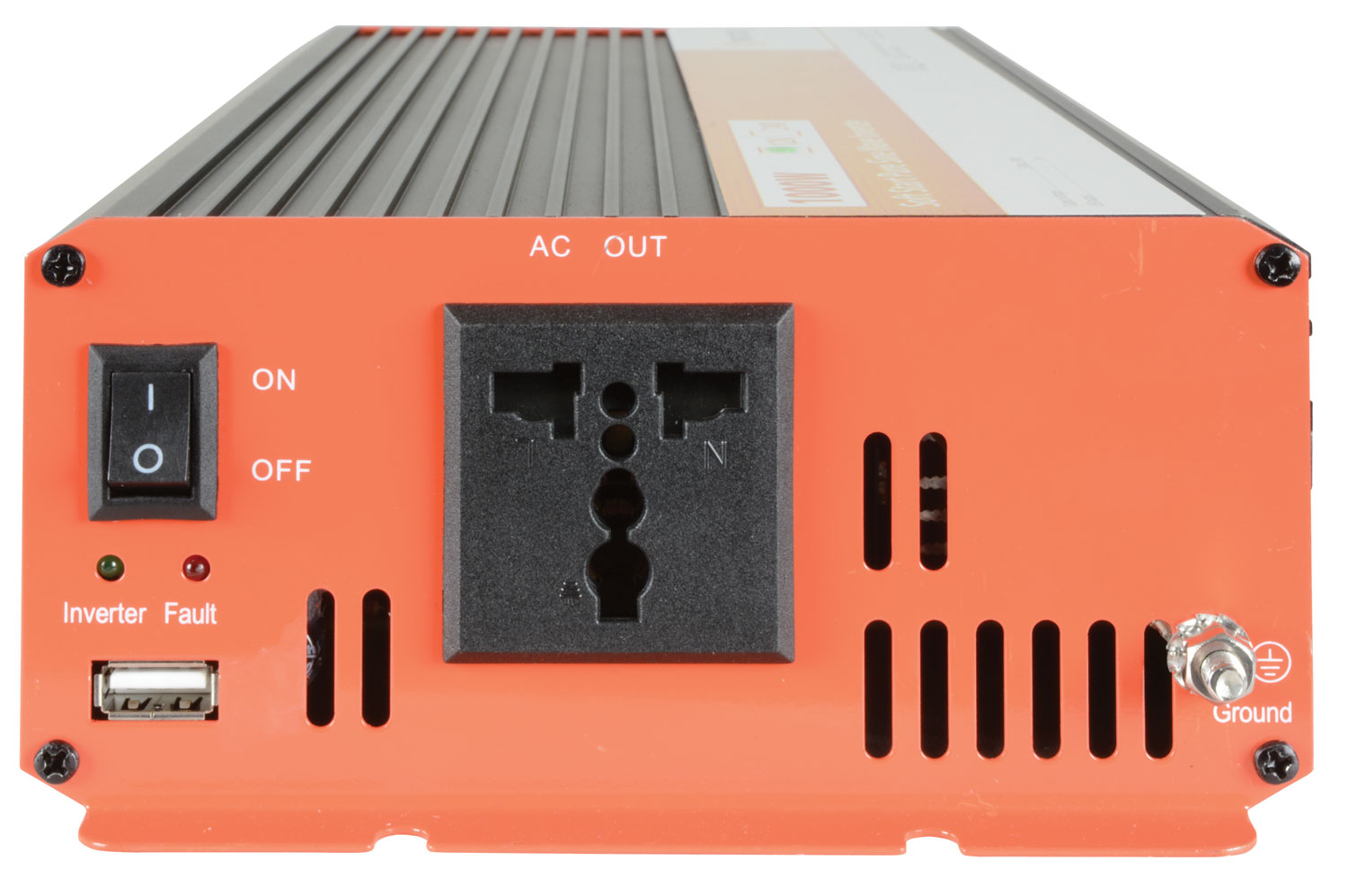

- LED and audible fault indicator

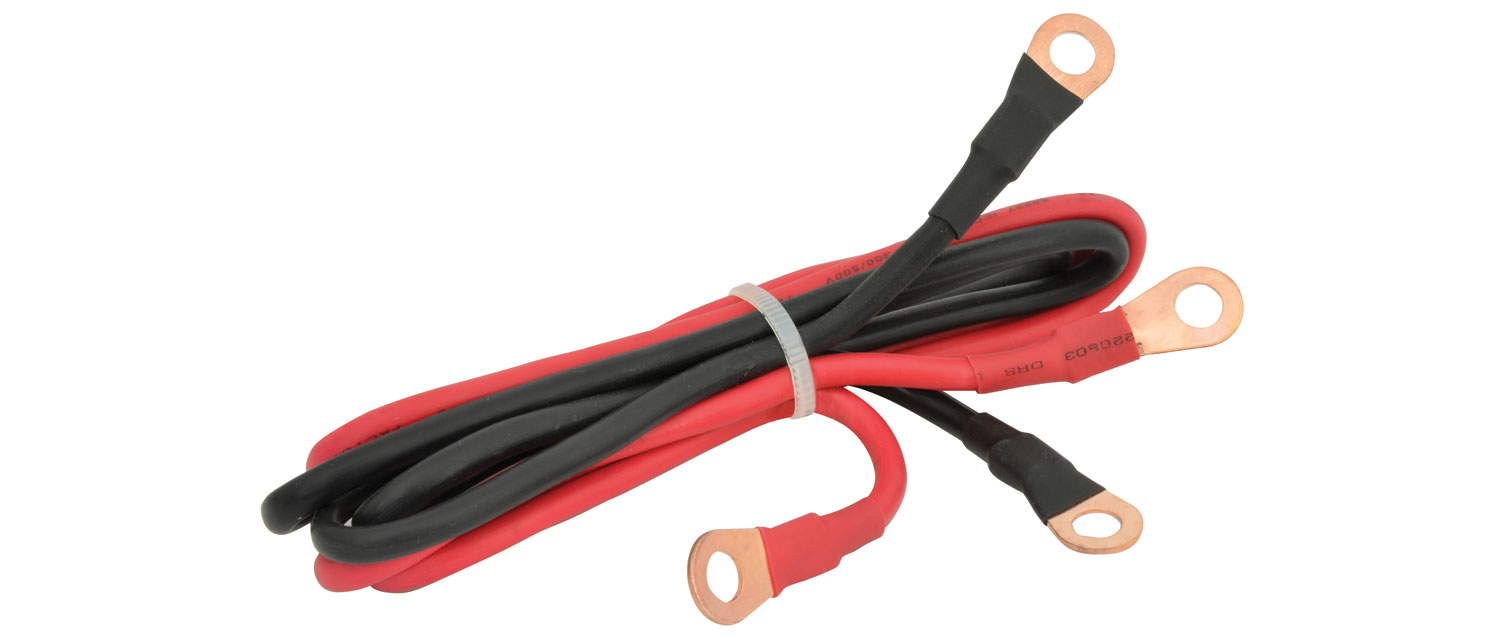

- Supplied with 1 pair of 800mm DC power cables and a spare blade fuse
- 12V or 24V input versions available, please ensure the correct version is selected for the input power to be used
- Please note: Ensure the device is well within the inverter output power rating. We recommend using an inverter capable of supplying a minimum of 3 times the device's rated power to avoid damage to the inverter by any current surge (especially for fridges and freezers which can surge up to 7 times the rated power)
- Weight 2.74kg
- Dimensions 365 x 150 x 70mm
- USB output current 1A
- Inverter terminals M8 screws
- Cable terminals 8.5/16.5mm Ring
- Cable type Ring terminal
- Standby no load current 0.8A
- Input voltage 10.8 - 15.5Vdc
- Voltage 12V
- Continuous power 1000W
- Power : output 230Vac, 50Hz
