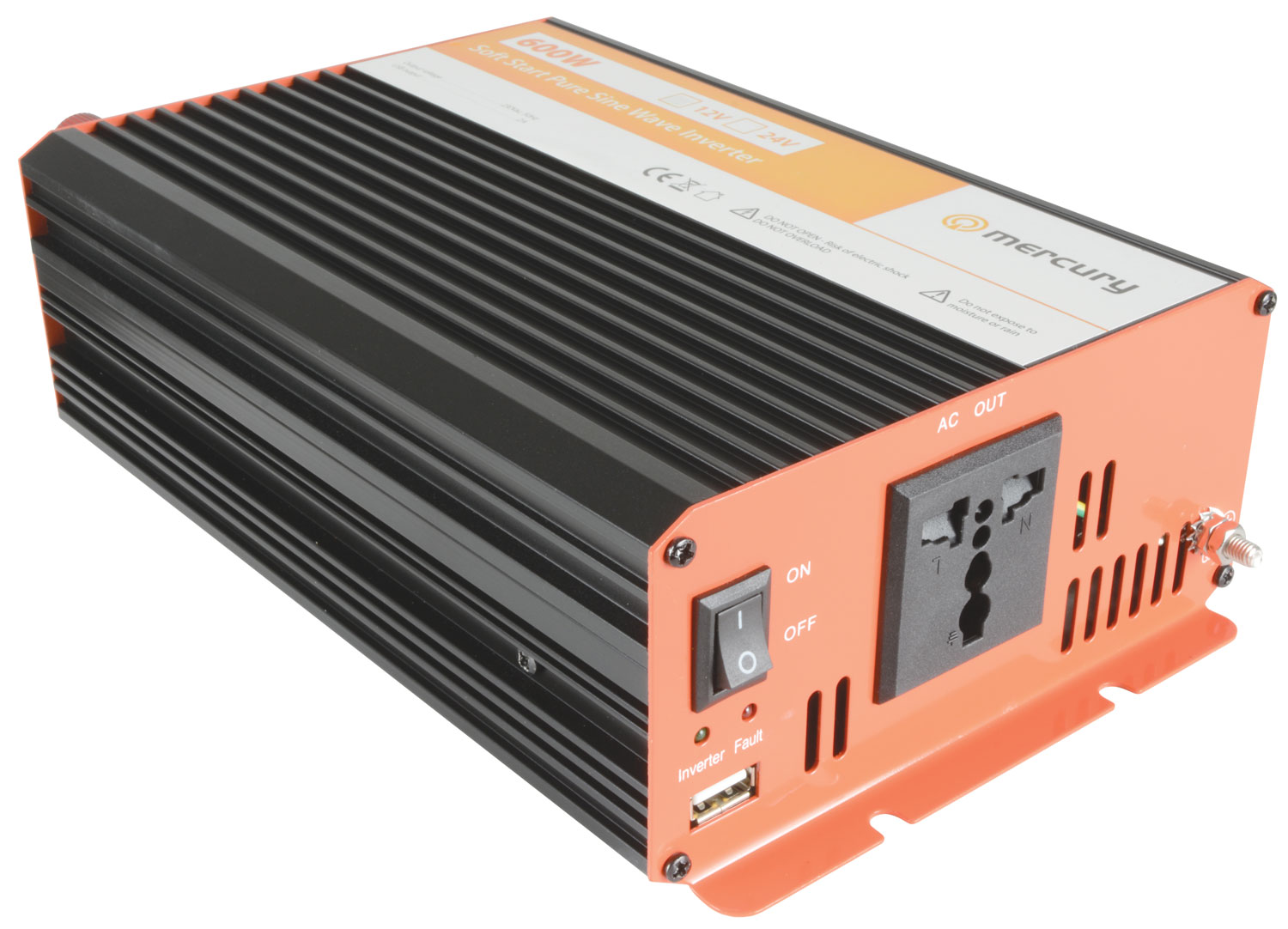

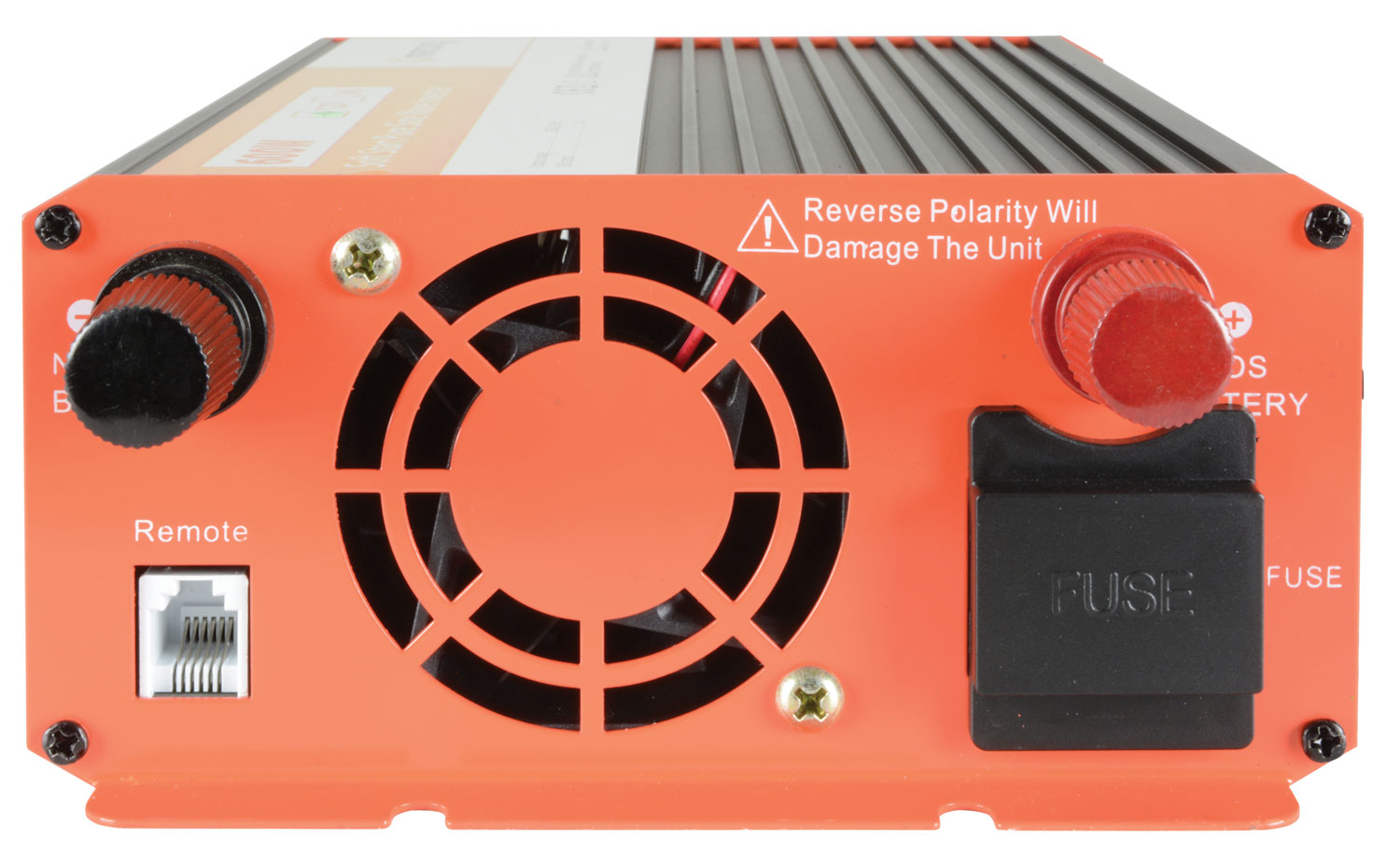

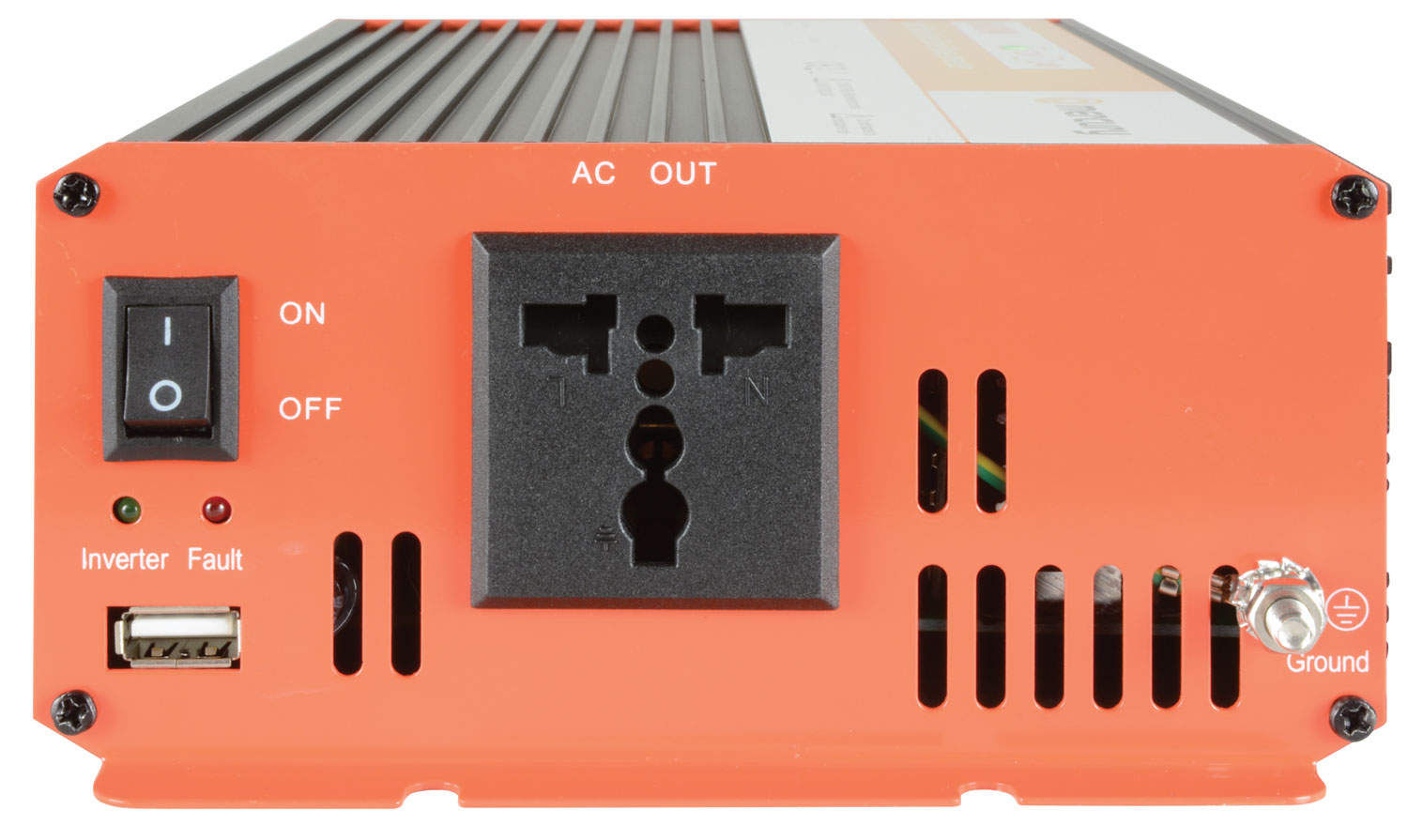

Soft Start Pure Sine Wave Inverters

12Vdc 600W

652.102UK
IPS600-12

These high efficiency power inverters produce a pure sine wave to power 230V mains equipment from a 12V or 24V battery or DC power supply. Perfect for use while camping, in commercial vans/lorries, or… more

  • Over 90% efficiency
  • Soft start minimises inverter shutdown when using large inductive loads
  • High accuracy output wave form with less than 4% THD
DESCRIPTION VERSION PACKED
652.100UK

12Vdc Pure Sine Wave Inverter 300W

12Vdc 300W Box Label
652.102UK

12Vdc Pure Sine Wave Inverter 600W

12Vdc 600W Box Label
652.104UK

12Vdc Pure Sine Wave Inverter 1000W

12Vdc 1000W Box Label
652.101UK

24Vdc Pure Sine Wave Inverter 300W

24Vdc 300W Box Label

Soft Start Pure Sine Wave Inverters

These high efficiency power inverters produce a pure sine wave to power 230V mains equipment from a 12V or 24V battery or DC power supply. Perfect for use while camping, in commercial vans/lorries, or as a means to convert charged batteries for back-up power in case of a blackout. Ideal for use with TVs, computers, kettles and other everyday appliances.

  • Over 90% efficiency
  • Soft start minimises inverter shutdown when using large inductive loads
  • High accuracy output wave form with less than 4% THD
  • Reverse polarity protection
  • Low/over voltage input protection
  • Short circuit, overload and overheat protection
  • Built in 1000mA USB socket on the 600W & 1000W versions
  • LED and audible fault indicator

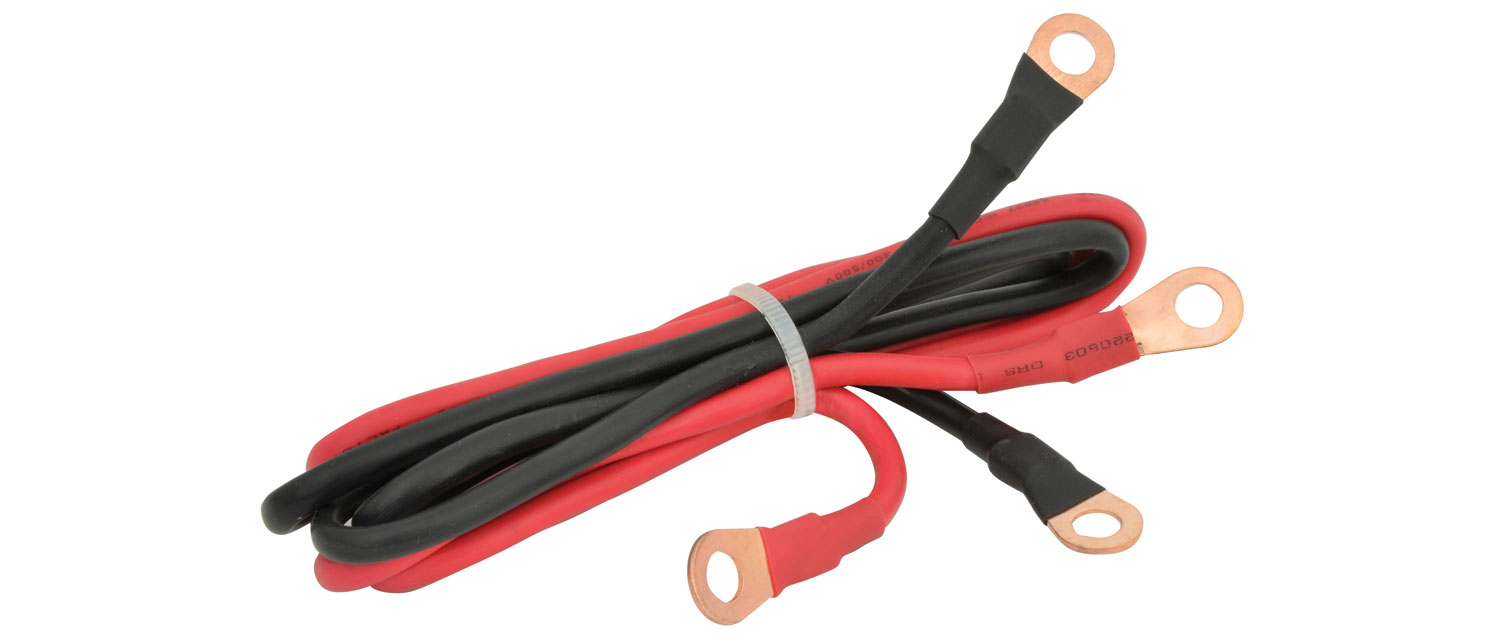

  • Supplied with 1 pair of 800mm DC power cables and a spare blade fuse
  • 12V or 24V input versions available, please ensure the correct version is selected for the input power to be used
  • Please note: Ensure the device is well within the inverter output power rating. We recommend using an inverter capable of supplying a minimum of 3 times the device's rated power to avoid damage to the inverter by any current surge (especially for fridges and freezers which can surge up to 7 times the rated power)
  • Weight 1.8kg
  • Dimensions 255 x 150 x 70mm
  • USB output current 1A
  • Inverter terminals M6 screws
  • Cable terminals 6.4/12mm Ring
  • Cable type Ring terminal
  • Standby no load current 0.8A
  • Input voltage 10.8 - 15.5Vdc
  • Voltage 12V
  • Continuous power 600W
  • Power : output 230Vac, 50Hz
