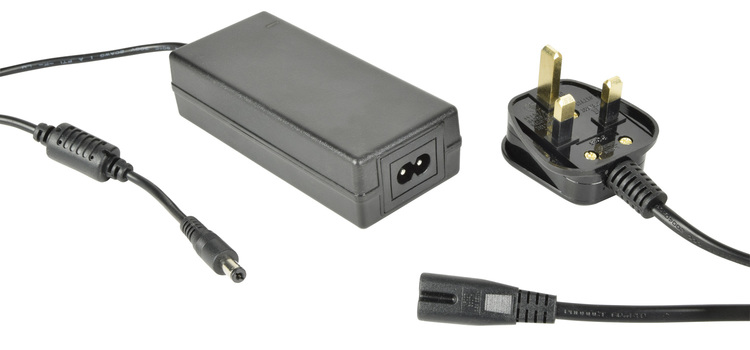

12Vdc In-line Power Adaptor / LED Driver
3A
660.452UK
DC1236UK
12Vdc power supplies built into a sealed in-line housing. Mains power input is via a 2-pin fig.8 socket (UK mains lead supplied) and output is on a hard-wired lead terminated with a 5.5 x 2.1mm DC… more
- 1.2m output lead with DC5521 plug
- Supplied with UK fig.8 mains lead
12Vdc In-line Power Adaptor / LED Driver
12Vdc power supplies built into a sealed in-line housing. Mains power input is via a 2-pin fig.8 socket (UK mains lead supplied) and output is on a hard-wired lead terminated with a 5.5 x 2.1mm DC plug. Stable and reliable power supplies for LED tape, CCTV and other equipment.
- 1.2m output lead with DC5521 plug
- Supplied with UK fig.8 mains lead
- Current max. 3A
- Dimensions 118 x 50 x 32mm
- Weight 208g
- Input 100-240Vac, 47/63Hz
- DC output 5.5 x 2.1mm DC plug
- Lead length 1.2m
- Voltage 12Vdc
- IP rating IP20
- Polarity Centre positive
In the Box
- In-line 12Vdc power adaptor
- UK fig.8 mains lead
Downloads
