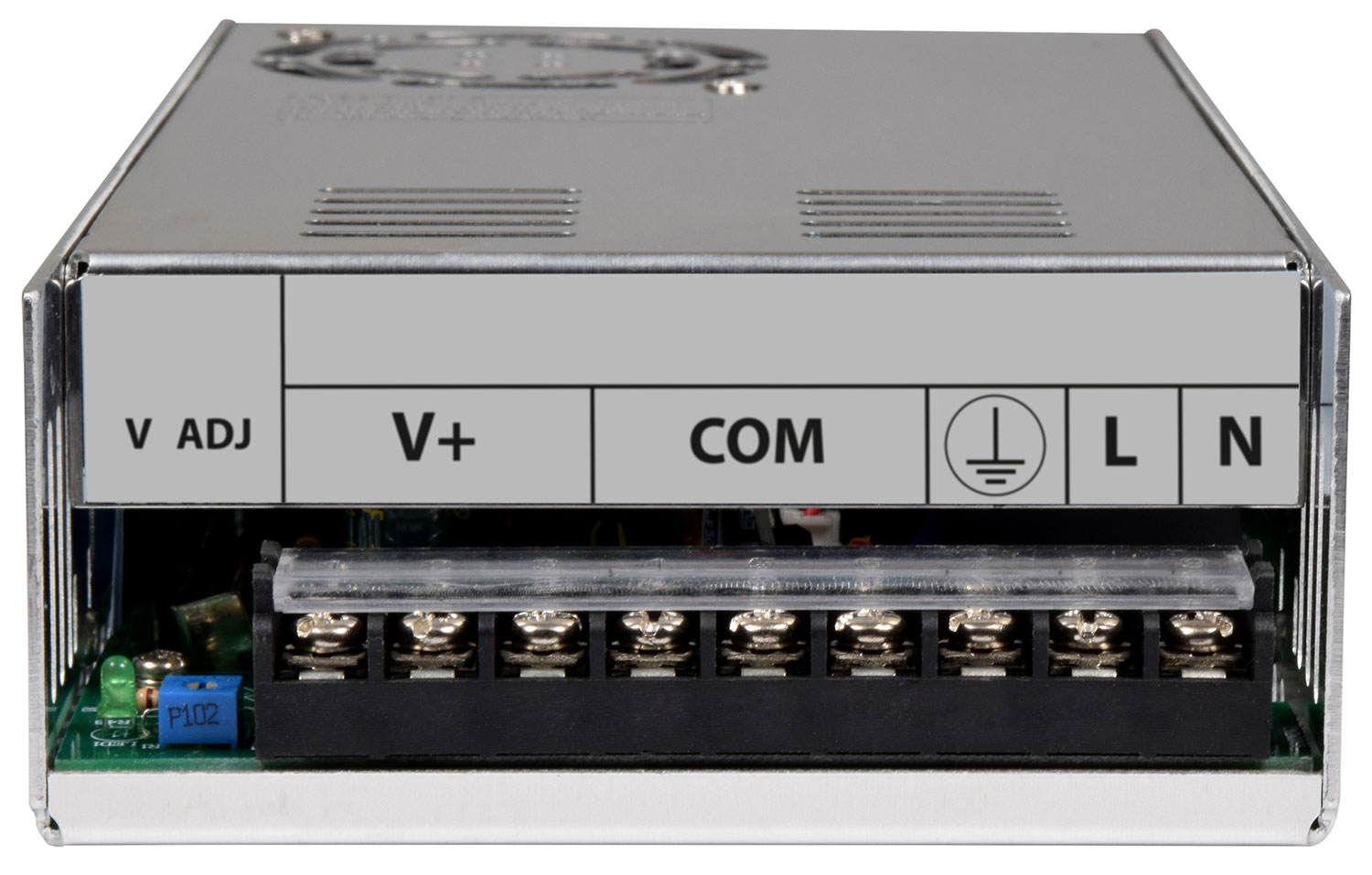

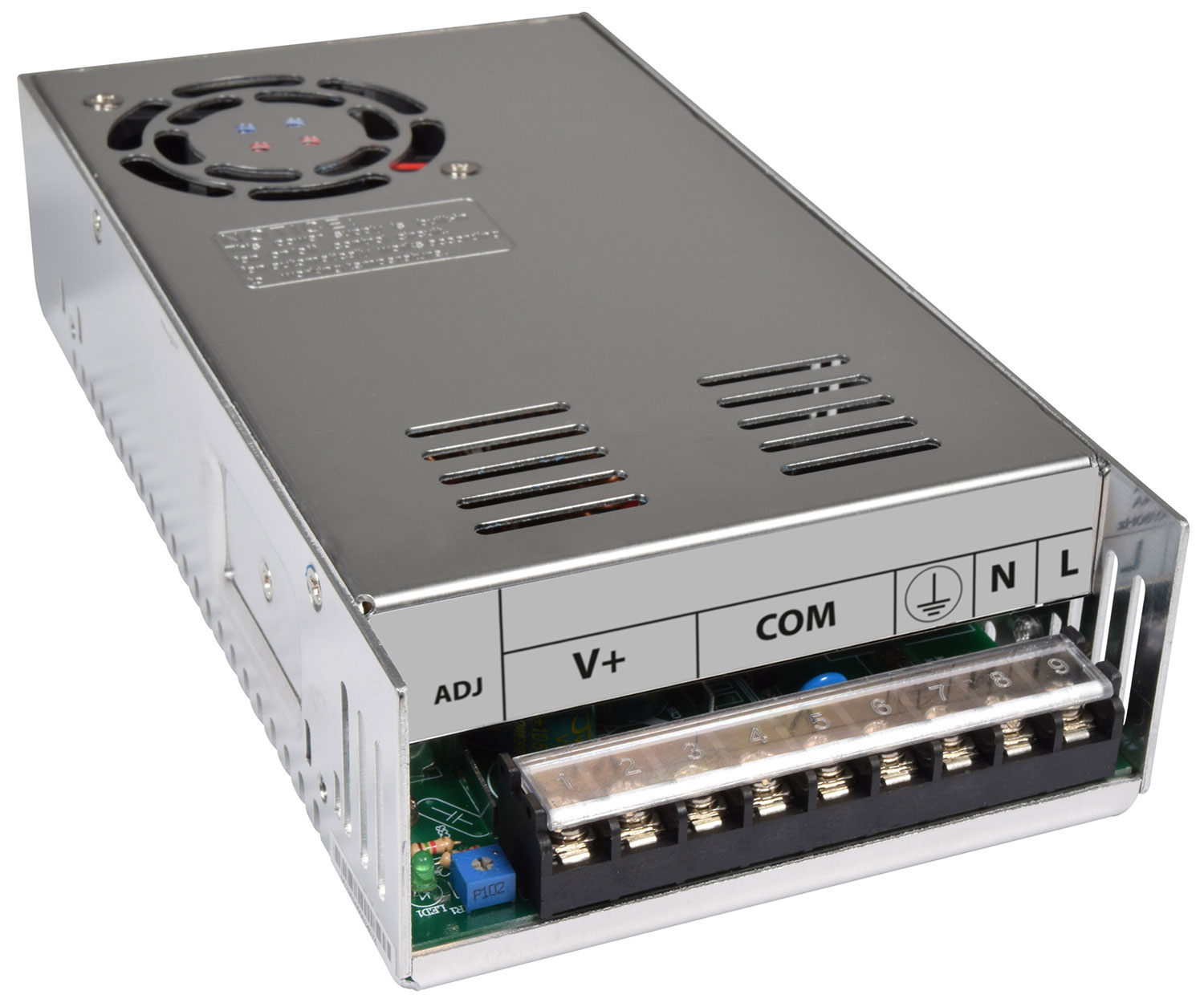

13.8Vdc Switch Mode Power Supplies

30A

650.762UK

Series of 13.8Vdc switching power supplies, suitable for applications that require a stable and regulated DC voltage output. The specific voltage of 13.8V is commonly used because it aligns with the… more

  • Short circuit protection
  • Overload protection
  • Auto reset
DESCRIPTION VERSION PACKED
650.755UK

13.8V 3.6A Switch Mode PSU

3.6A Box Label
650.756UK

13.8V 5.4A Switch Mode PSU

5.4A Box Label
650.759UK

13.8V 15A Switch Mode PSU

15A Box Label
650.761UK

13.8V 25A Switch Mode PSU

25A Box Label
650.762UK

13.8V 30A Switch Mode PSU

30A Box Label
650.764UK

13.8V 43.5A Switch Mode PSU

43.5A Box Label

13.8Vdc Switch Mode Power Supplies

Series of 13.8Vdc switching power supplies, suitable for applications that require a stable and regulated DC voltage output. The specific voltage of 13.8V is commonly used because it aligns with the nominal voltage of a 12V lead-acid battery when it is fully charged. This makes these power supplies compatible with systems that are normally battery-powered allows them to provide a stable power source even when the battery voltage fluctuates. Ideal use for radio equipment, security systems, alarm systems, access control systems, 12Vdc LED Lighting systems and central monitoring systems. For indoor use only.

  • Short circuit protection
  • Overload protection
  • Auto reset
  • Easy installation, screw terminals
  • Fan cooling for higher power models
  • Higher power models with 3 channels to spread load
  • Power supply 240Vac/4A 50Hz
  • Power : max. 414W
  • Output current 30A
  • Dimensions 220x50x115mm
  • Weight 0.85kg
  • Output channels 3
  • Output voltage 13.8Vdc
  • IP rating IP20
  • Voltage range 12.42V-15.18V
  • Working temperature -10~40℃
