13.8Vdc Switch Mode Power Supplies
15A
Series of 13.8Vdc switching power supplies, suitable for applications that require a stable and regulated DC voltage output. The specific voltage of 13.8V is commonly used because it aligns with the… more
- Short circuit protection
- Overload protection
- Auto reset
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
650.755UK
13.8V 3.6A Switch Mode PSU |
3.6A | Box Label |
|
650.756UK
13.8V 5.4A Switch Mode PSU |
5.4A | Box Label |
|
650.759UK
13.8V 15A Switch Mode PSU |
15A | Box Label |
|
650.761UK
13.8V 25A Switch Mode PSU |
25A | Box Label |
|
650.762UK
13.8V 30A Switch Mode PSU |
30A | Box Label |
|
650.764UK
13.8V 43.5A Switch Mode PSU |
43.5A | Box Label |

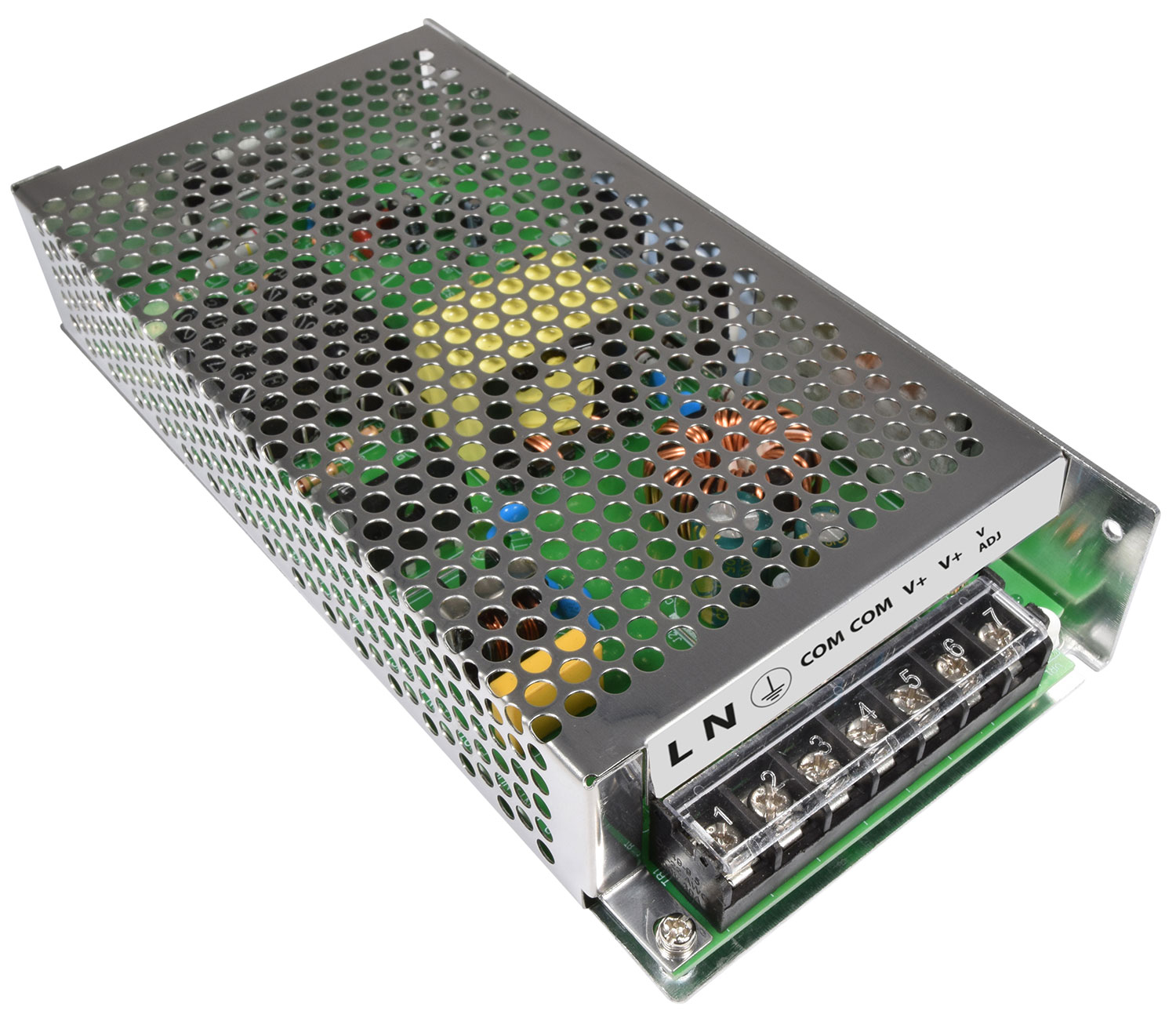

13.8Vdc Switch Mode Power Supplies
Series of 13.8Vdc switching power supplies, suitable for applications that require a stable and regulated DC voltage output. The specific voltage of 13.8V is commonly used because it aligns with the nominal voltage of a 12V lead-acid battery when it is fully charged. This makes these power supplies compatible with systems that are normally battery-powered allows them to provide a stable power source even when the battery voltage fluctuates. Ideal use for radio equipment, security systems, alarm systems, access control systems, 12Vdc LED Lighting systems and central monitoring systems. For indoor use only.
- Short circuit protection
- Overload protection
- Auto reset

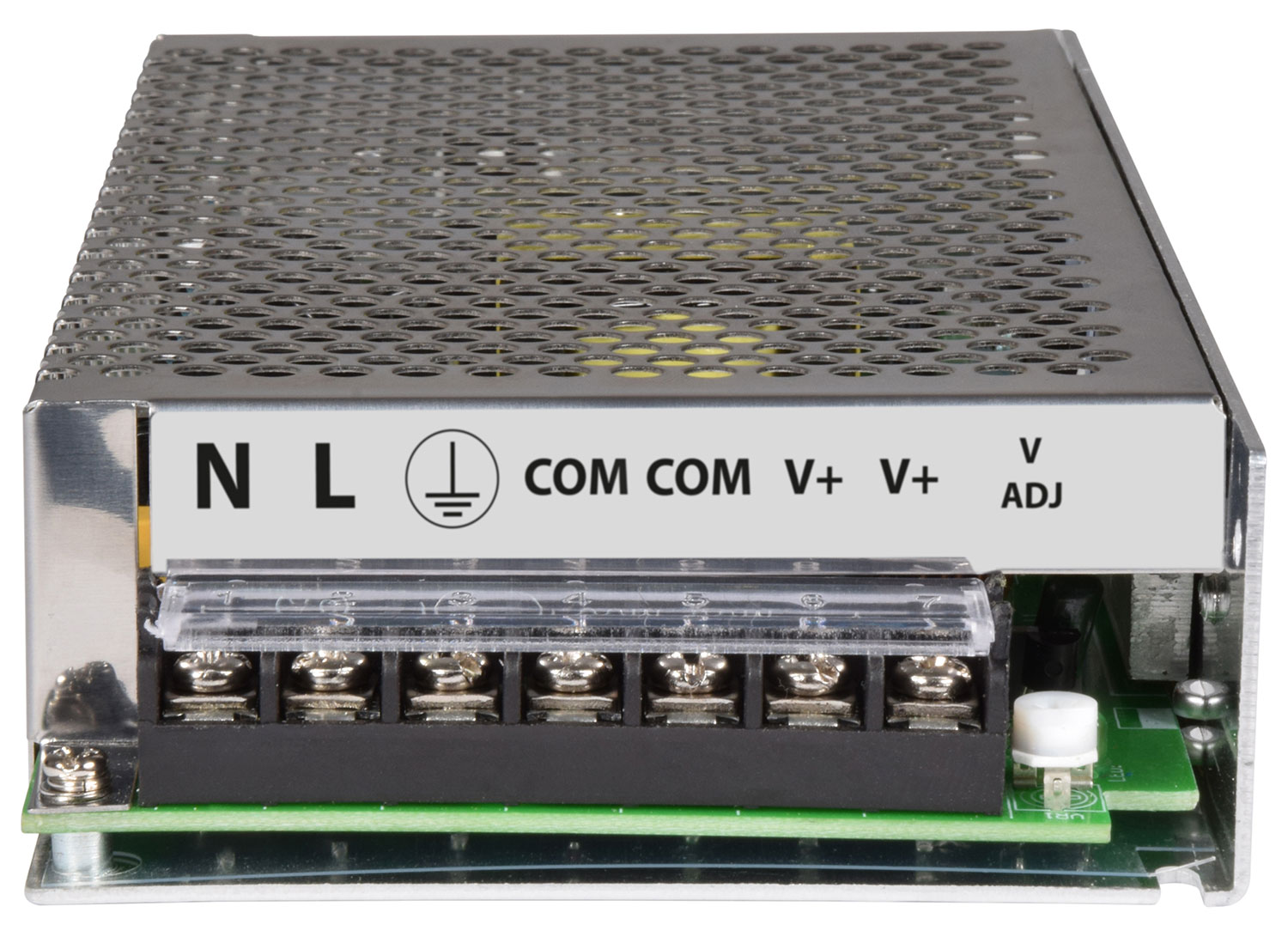

- Easy installation, screw terminals
- Fan cooling for higher power models
- Higher power models with 3 channels to spread load
- Power supply 240Vac/2.5A 50Hz
- Power : max. 207W
- Output current 15A
- Dimensions 200x38x100mm
- Weight 0.54kg
- Output channels 2
- Output voltage 13.8Vdc
- IP rating IP20
- Voltage range 12.42V-15.18V
- Working temperature -10~40℃
In the Box
- 1pcs 13.8Vdc power supply
