LOSUB Low Profile Active Subwoofer

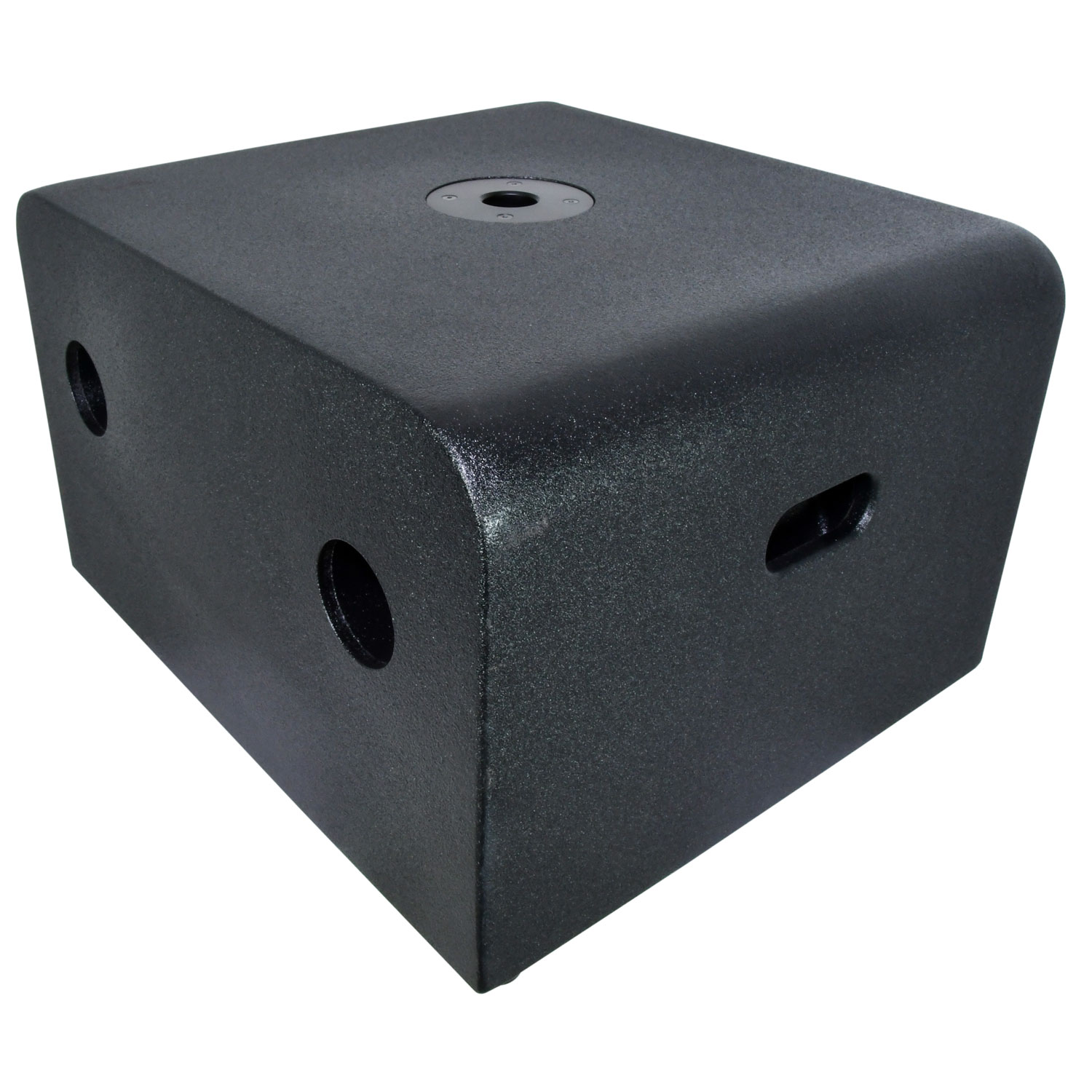

LOSUB is designed to offer a high power subwoofer unit with compact dimensions compared with traditional subs. Employing a downward angled baffle, the LOSUB creates a pressure zone at ground level and ports this forward, meaning that the driver is positioned to operate in a smaller enclosure. Sitting on the ground, the cabinet is just 36cm high and has a 35mm pole mount for adding a satellite full-range speaker. This low profile also enables the cabinet to fit under or beside furnishings and in narrow spaces for installation. The input section has 2 independent inputs and outputs for stereo link to a pair of active tops in a 2.1 configuration and there is an adjustable low pass filter and boost function to provide the right amount of sub output as needed. Whether is it for space-saving during transit or storage or for building into discreet spaces for installation, the LOSUB provides hefty power without eating up all your room.

• Semi-directional ported design
• Compact dimensions
• Stereo in/out for 2.1 operation

• Power supply 230Vac, 50Hz (IEC)
• Construction MDF enclosure with polyurea finish

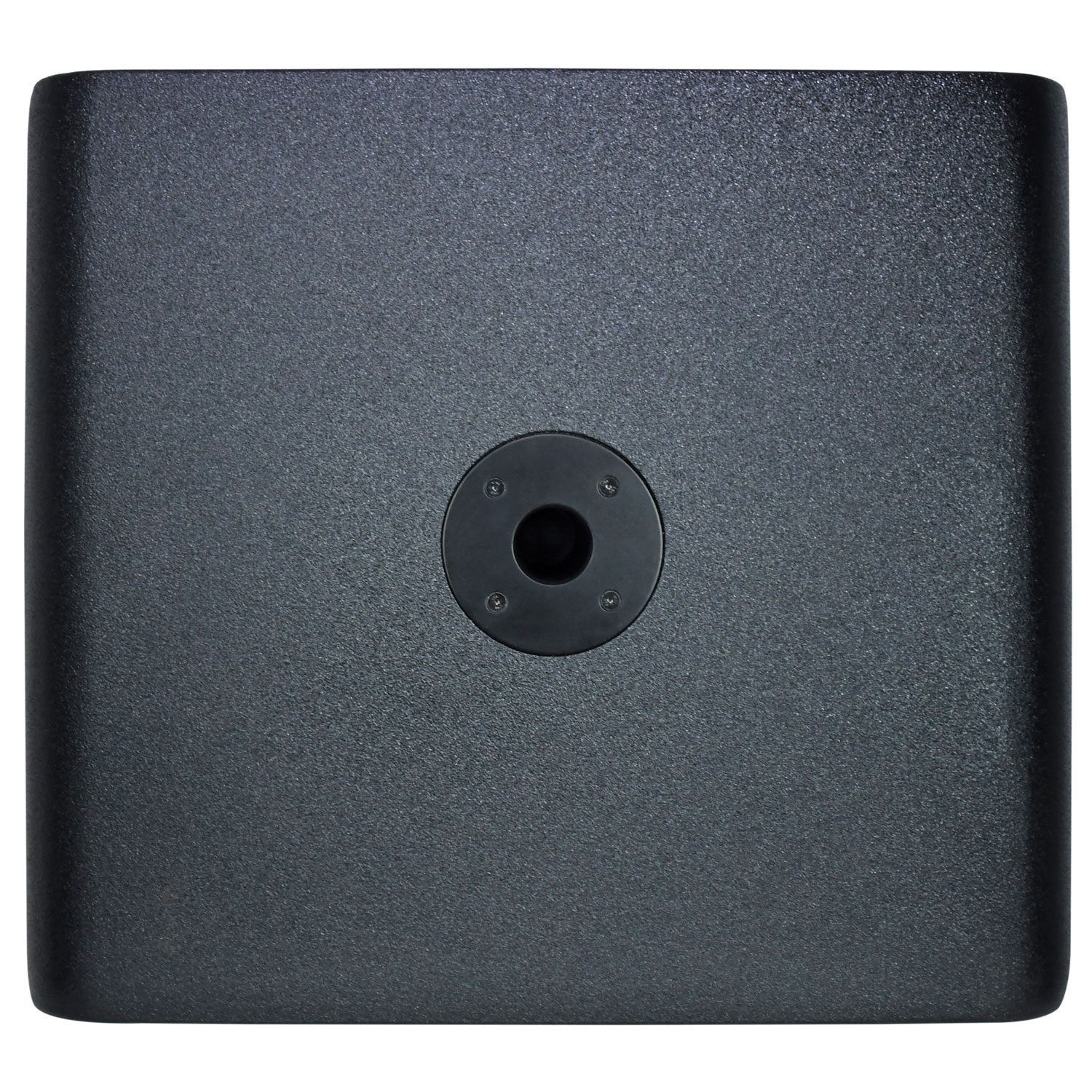

• Hardware Routed handles & 35mm pole mount socket

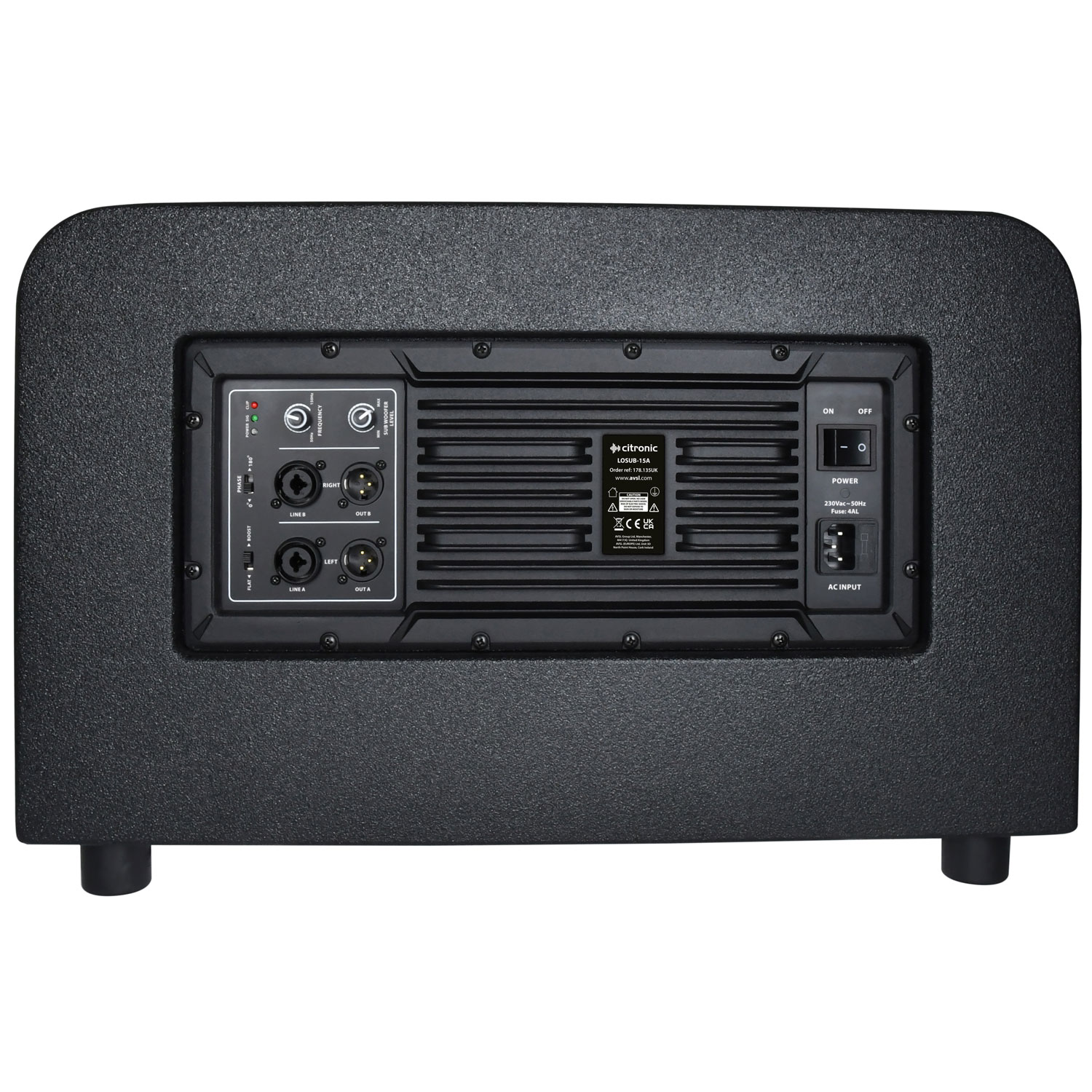

• Amplifier : construction Class-D (fixed DSP)
• Inputs 2 x balanced XLR / 6.3mm jack
• Outputs 2 x balanced XLR
• Controls Flat/boost, phase switch, frequency, subwoofer level
• Driver 380mmØ (15") sub woofer
• Voice coil 75mmØ (3")
• Magnet 2.835kg (100oz)
• Output power rms 600W
• Output power max. 1200W
• Frequency response 40 - 120Hz
• Sensitivity @ 1W/1m 96dB
• SPL max. 127dB
• Dimensions 550 x 480 x 360mm
• Weight 24kg
