CASA Active Sub Cabinets

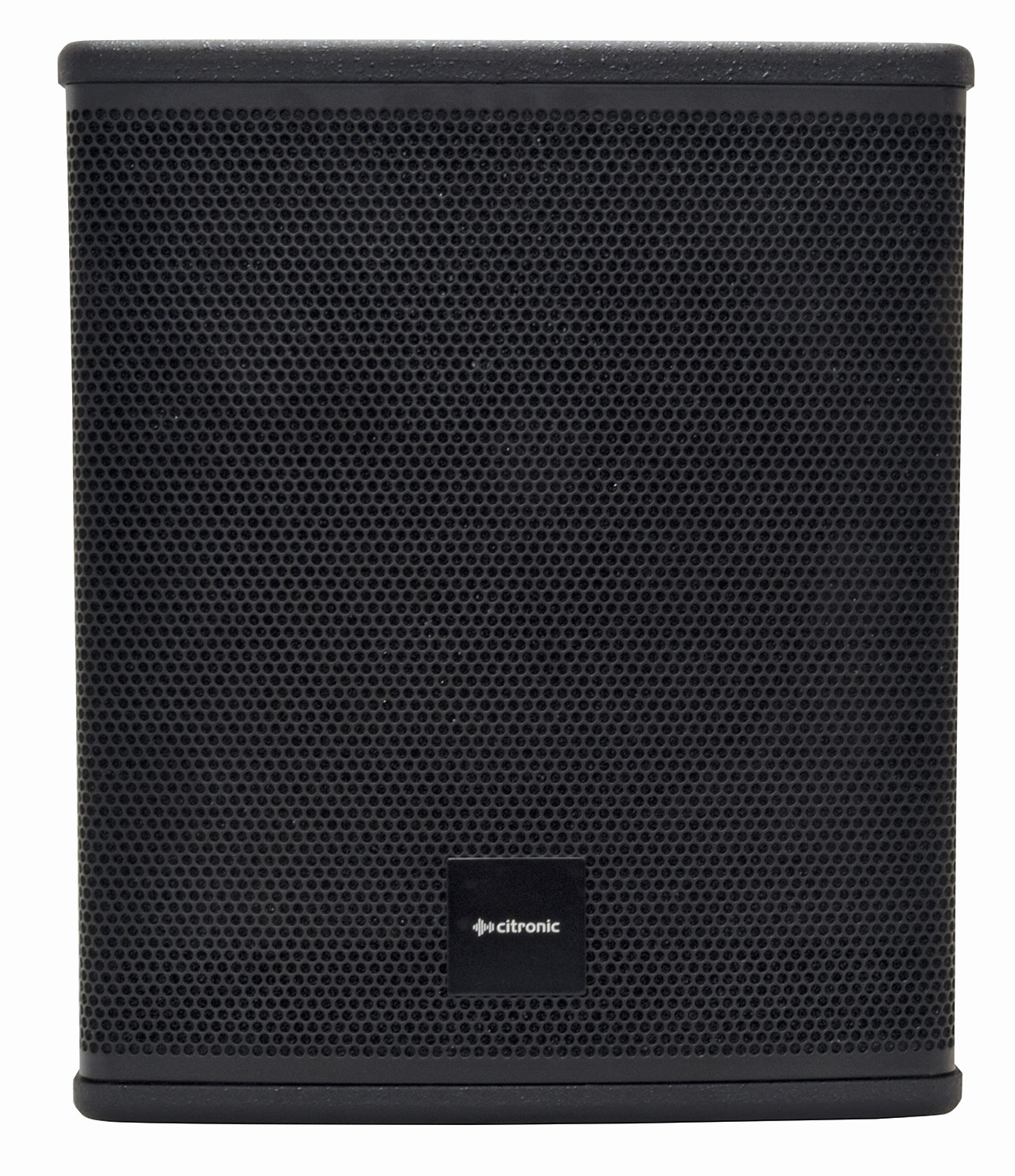

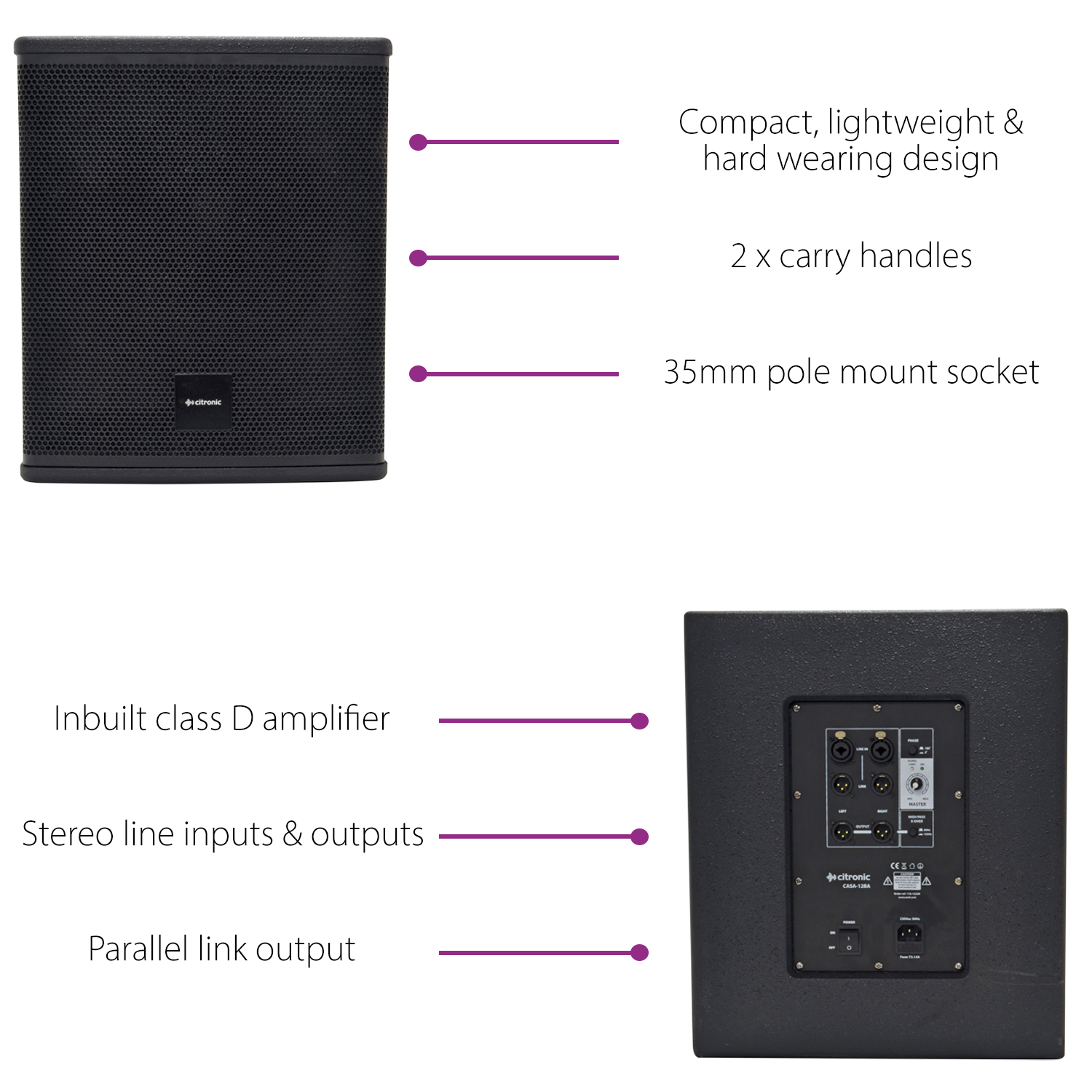

Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-align multiple speaker setups. Designed as a perfect match for the CASA series speakers and equally at home with other active full range cabinets.

• Compact and lightweight design
• 15mm MDF cabinet with polyurea finish

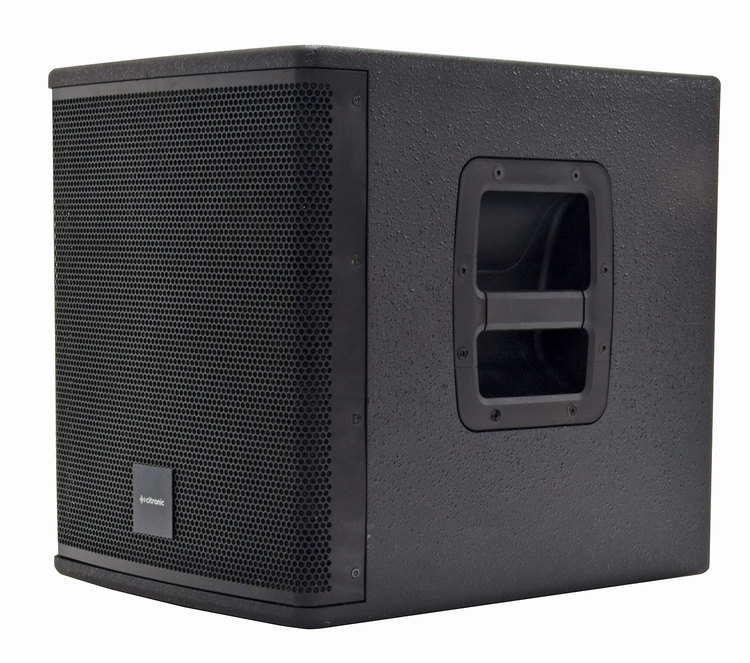

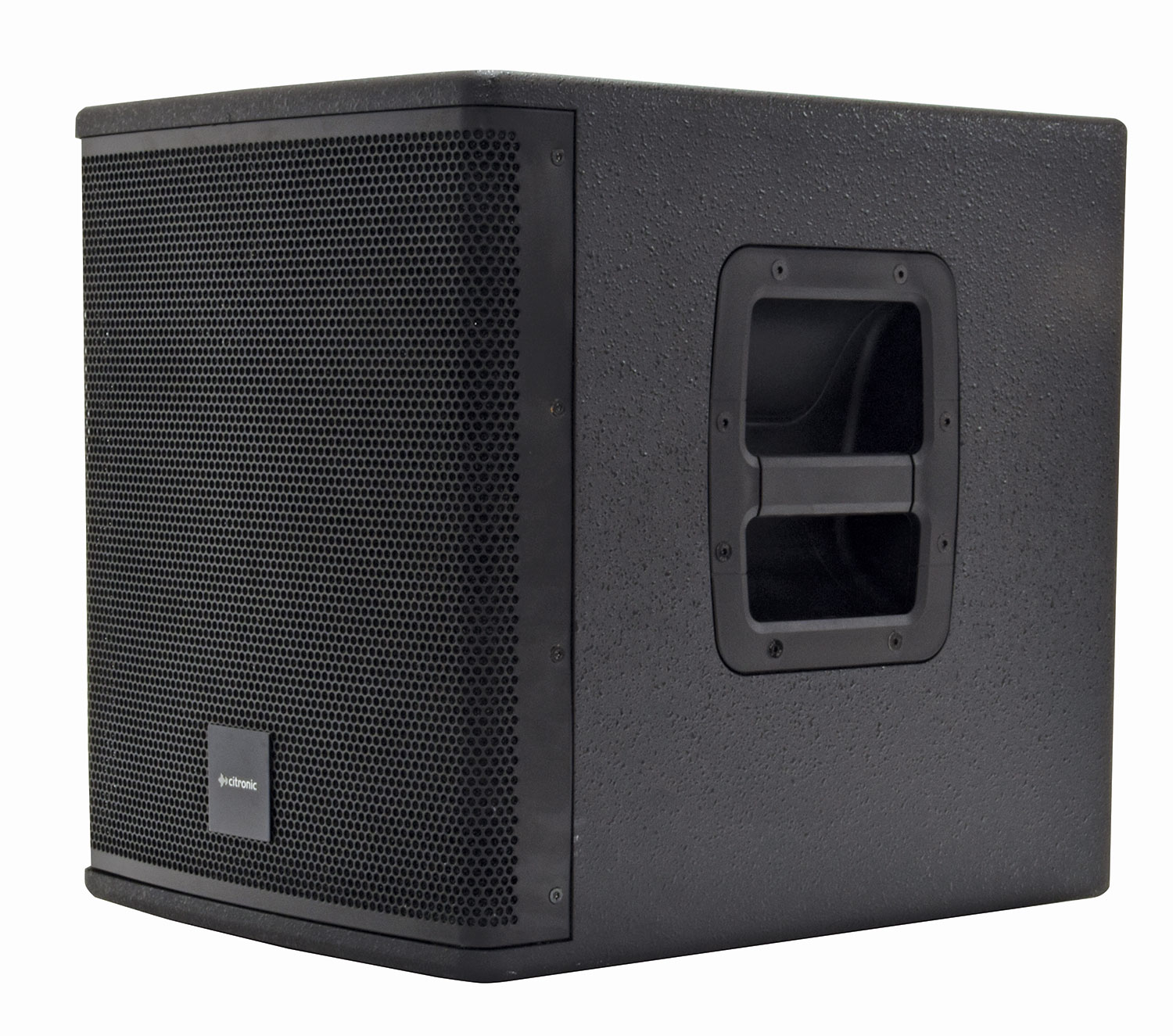

• 2 x side carry handles

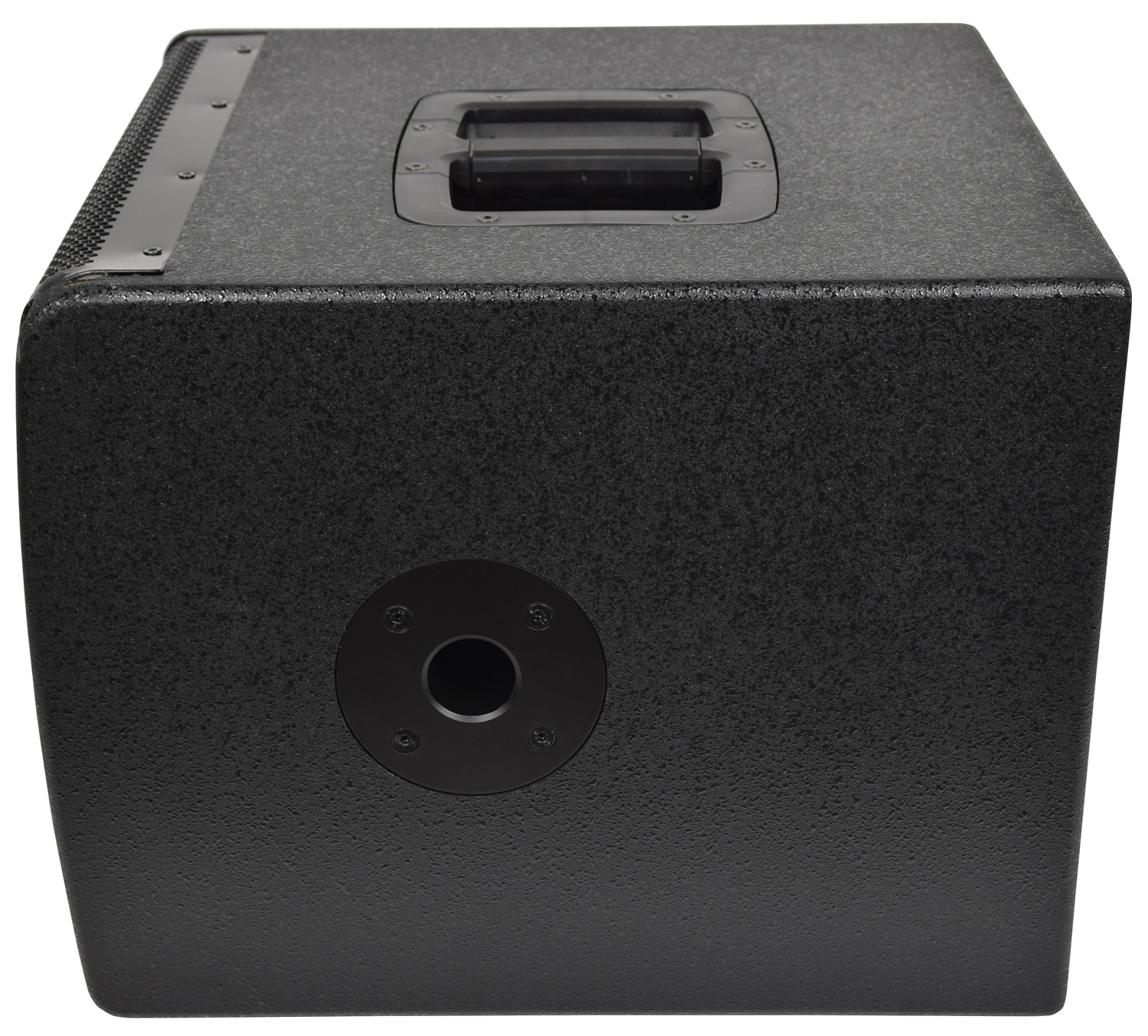

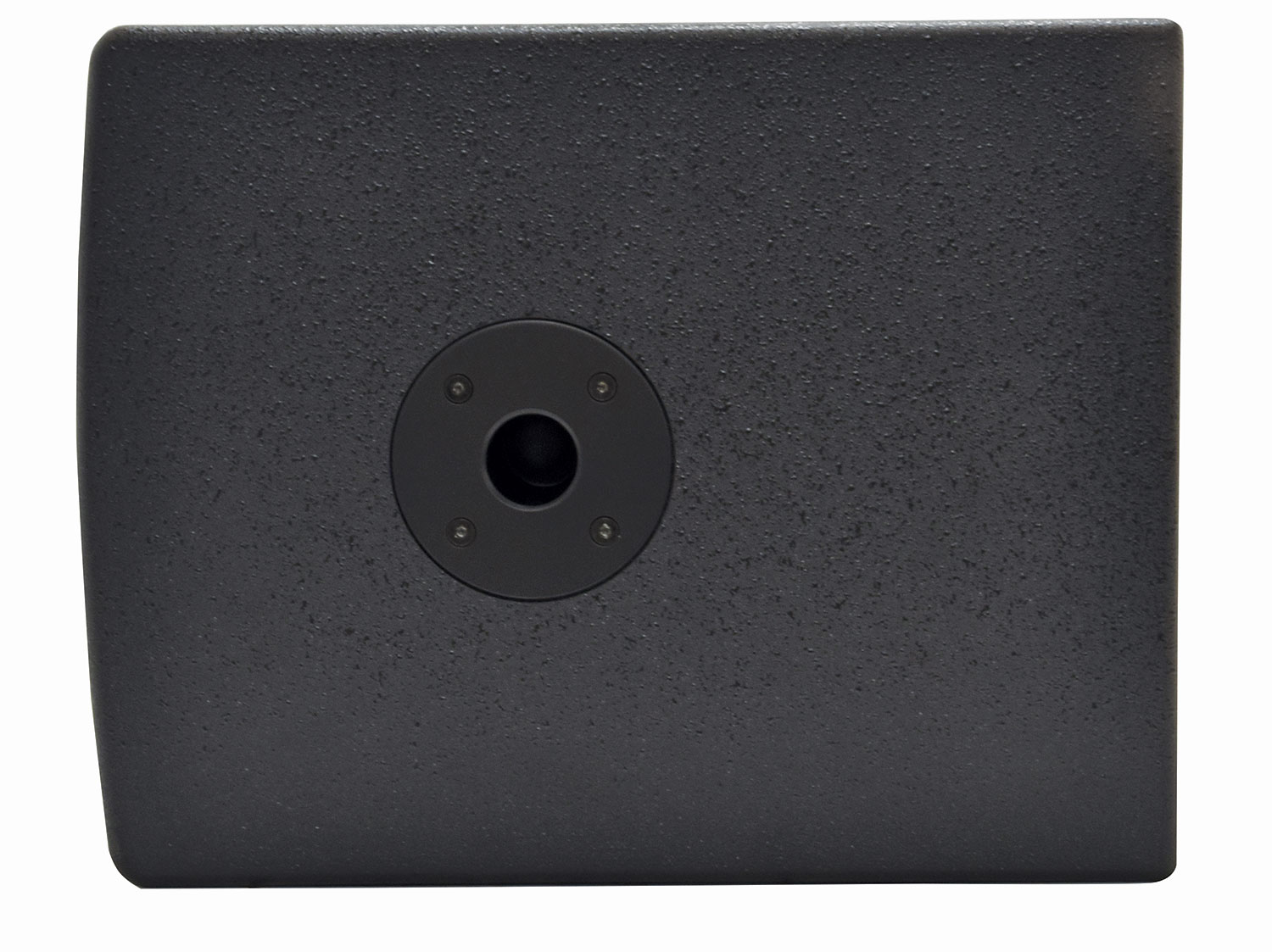

• 35mm pole mount socket

• Weight 16.23kg
• Dimensions 431 x 407 x 338mm
• Frequency response 60 - 150Hz
• SPL max. 120.0dB
• Peak output 1000W
• Output power : max. 500W
• Output power : rms 300W
• Voice coil 50mmØ (2")
• Sub driver 250mmØ (10")
• Power supply 230Vac, 50Hz (IEC)
• Construction 15mm MDF with durable texture paint finish
• Hardware 2 x side carry handles + 35mm pole mount socket
• Amplifier : construction Class D

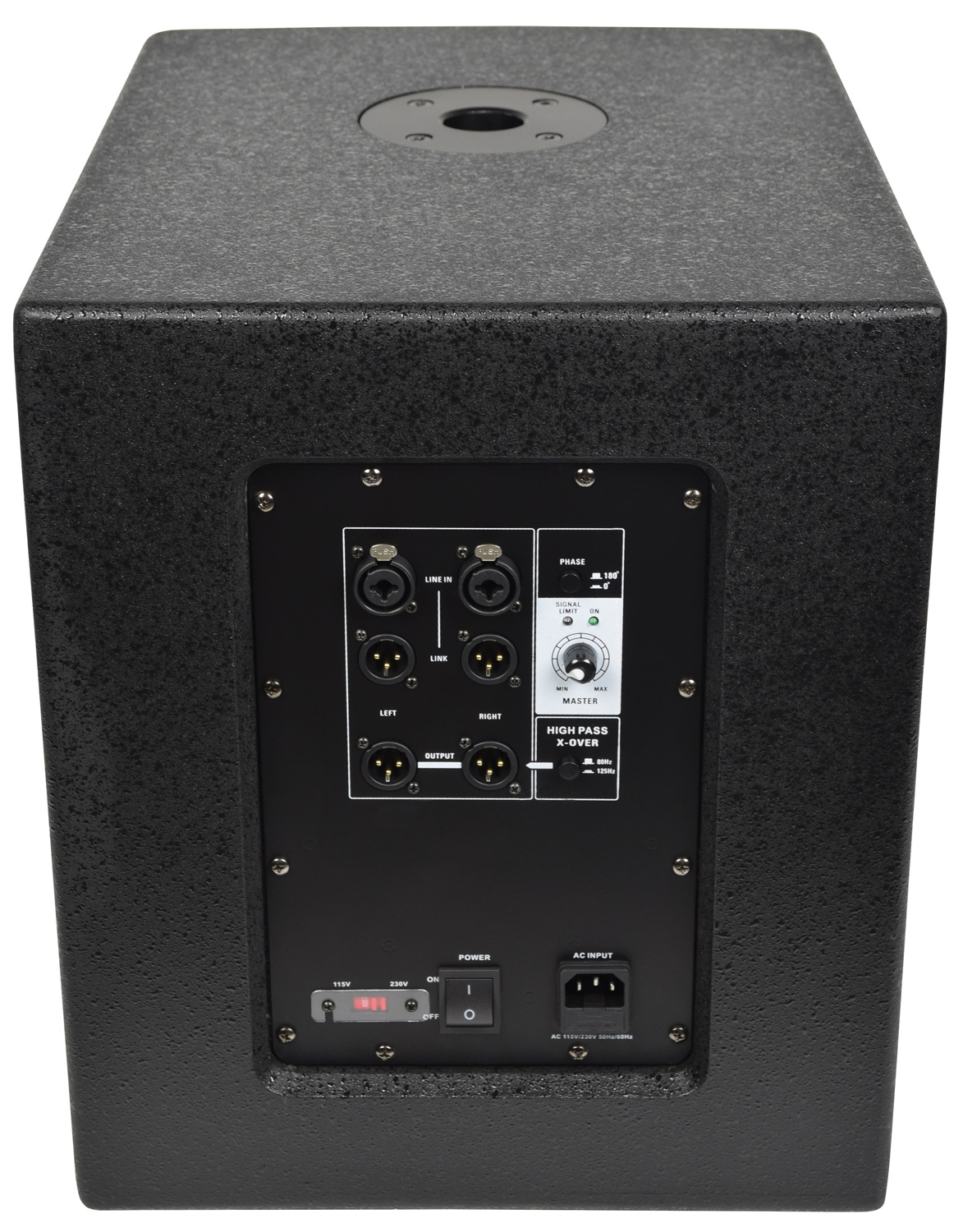

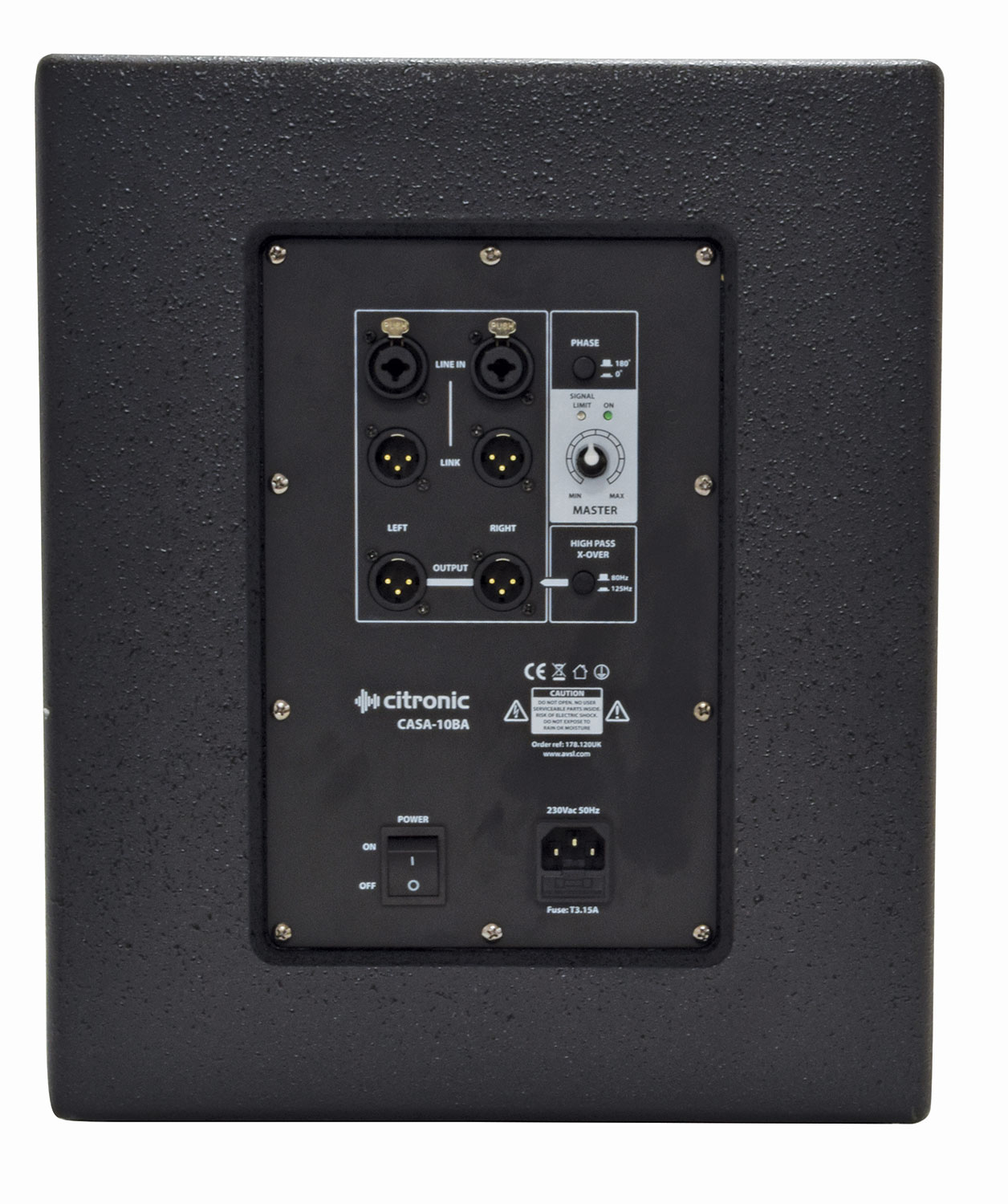

• Line inputs L+R balanced XLR
• Line outputs L+R balanced XLR & L+R link XLR
• Controls Output level, phase switch, high pass x-over (output)
