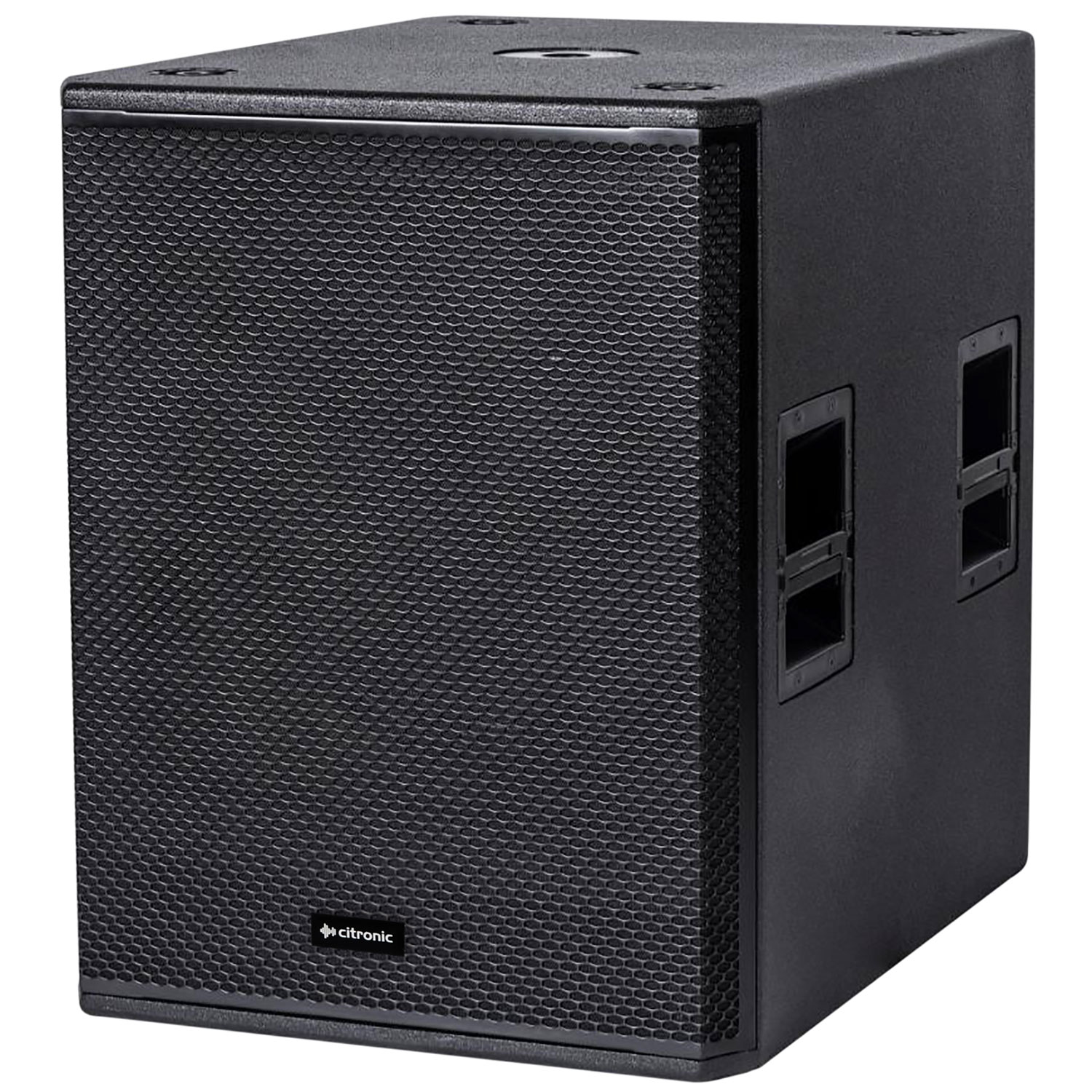

CORVA High Power Active Subwoofers

CORVA active subwoofers are designed to address the demand for high energy sub content needed to create a complete system with the CORVA series full-range cabinets, developing the high SPLs needed to balance the power and projection of the full range models. Each plywood enclosure is reinforced and loaded with a custom-designed heavy-duty sub driver with exceptional power handling to provide low frequency content with strong depth and dynamics. A powerful class-D amplifier section is DSP controlled with a menu-driven colour display for setting EQ profiles, dynamics and gain. In-depth editing is enabled via a USB interface to connect a PC and accurately adjust, test and save custom DSP settings. For larger sound reinforcement applications, CORVA active subwoofers are the recommended choice for professional installers and sound technicians.

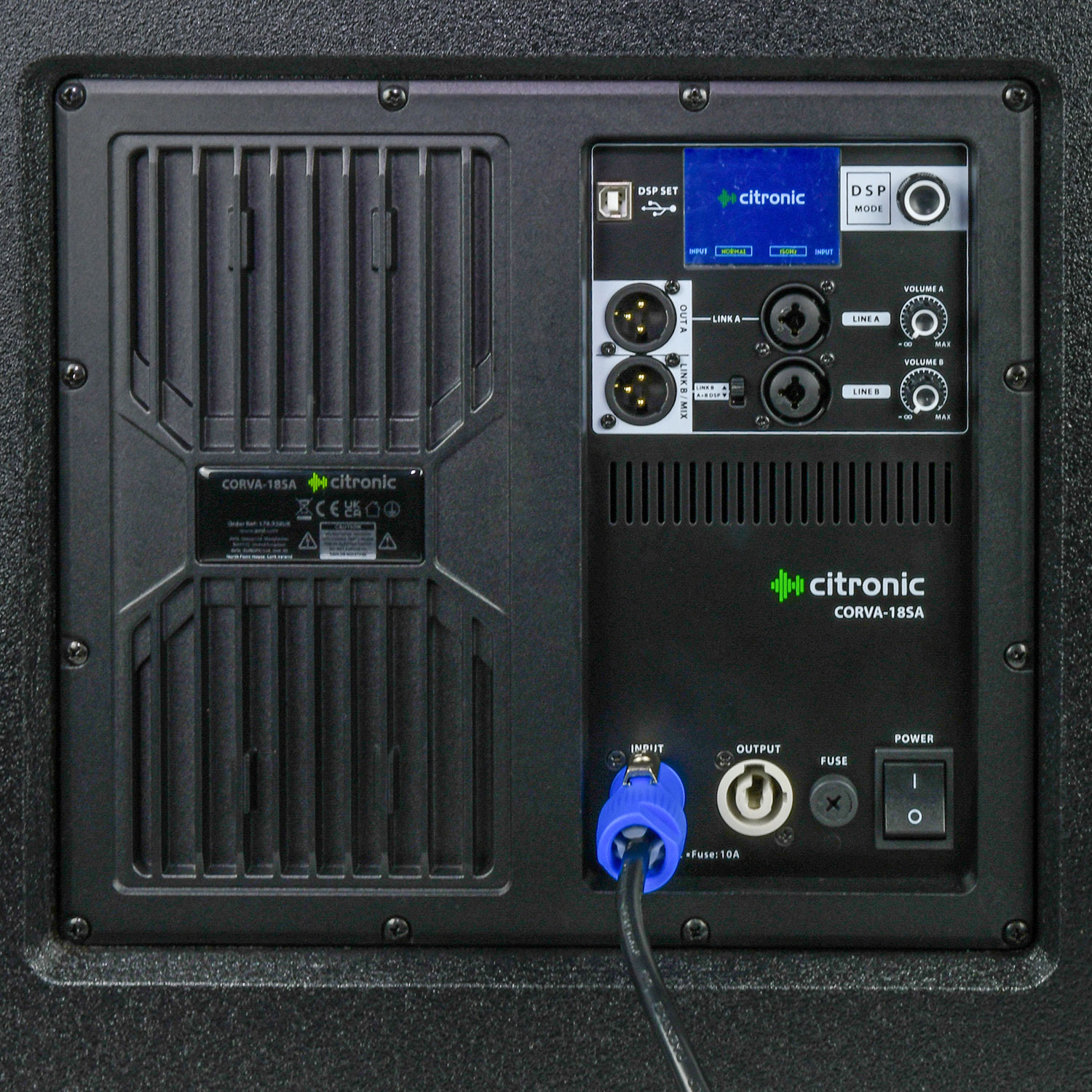

• Colour display DSP menu with USB interface
• Double carry handles each side
• Ported 18mm plywood cabinet
• 35mm pole mount socket on top.

• Power supply 230Vac, 50Hz (Powercon)
• Sub driver 450mmØ (18")
• Voice coil 115mmØ (4.5")
• Magnet 5.24kg (185oz)
• Frequency response 40-150Hz
• Sensitivity @ 1W/1m 100dB
• Max. SPL 135dB
• Output power : rms 2000W
• Output power : max. 4000W
• Dimensions 745 x 700 x 565mm
• Weight 58kg
• Construction 18mm ply - polyurea coated, steel grille - powder coated
• Amplifier : construction Class-D with DSP control
• Impedance 8 Ohms
