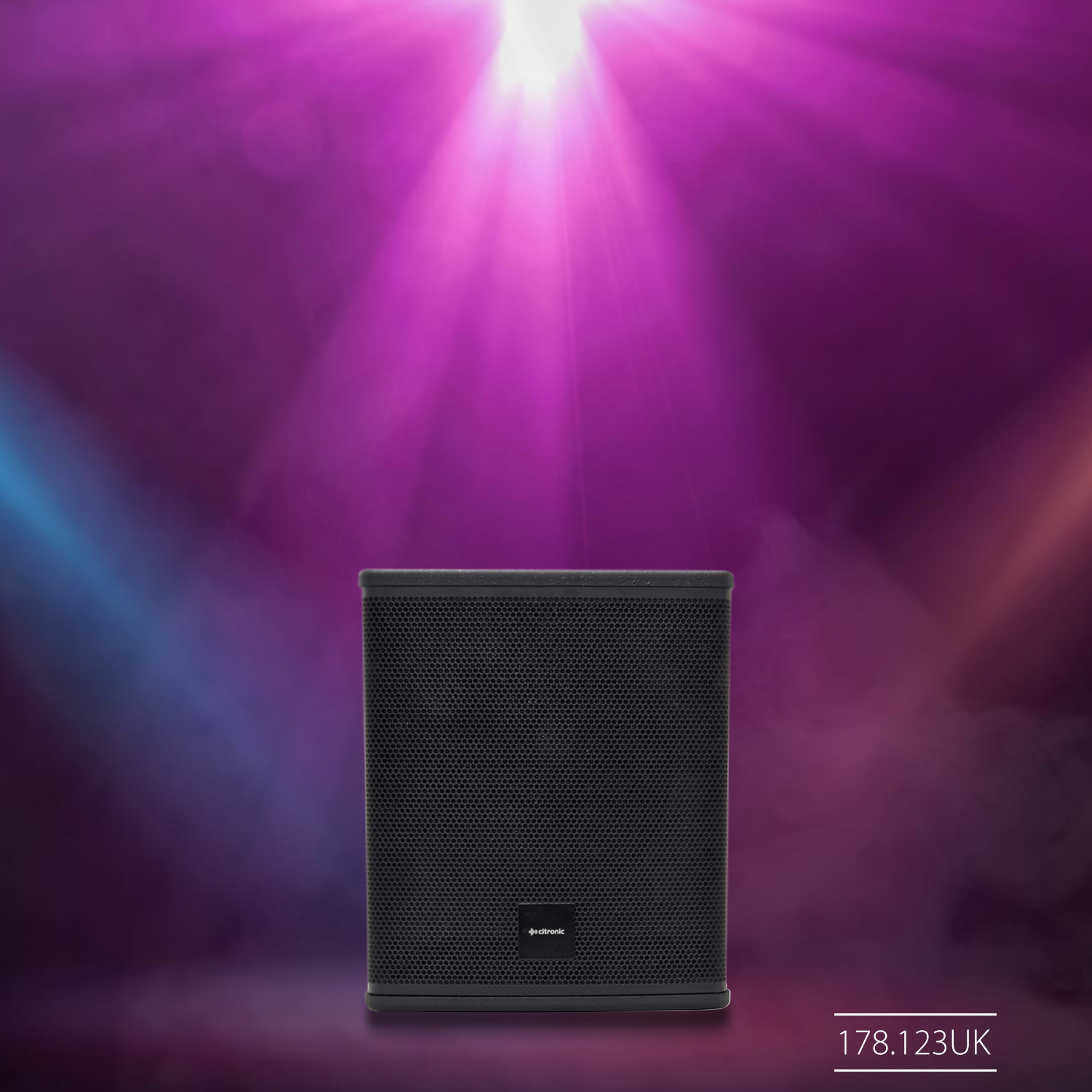

CASA Passive Sub Cabinets

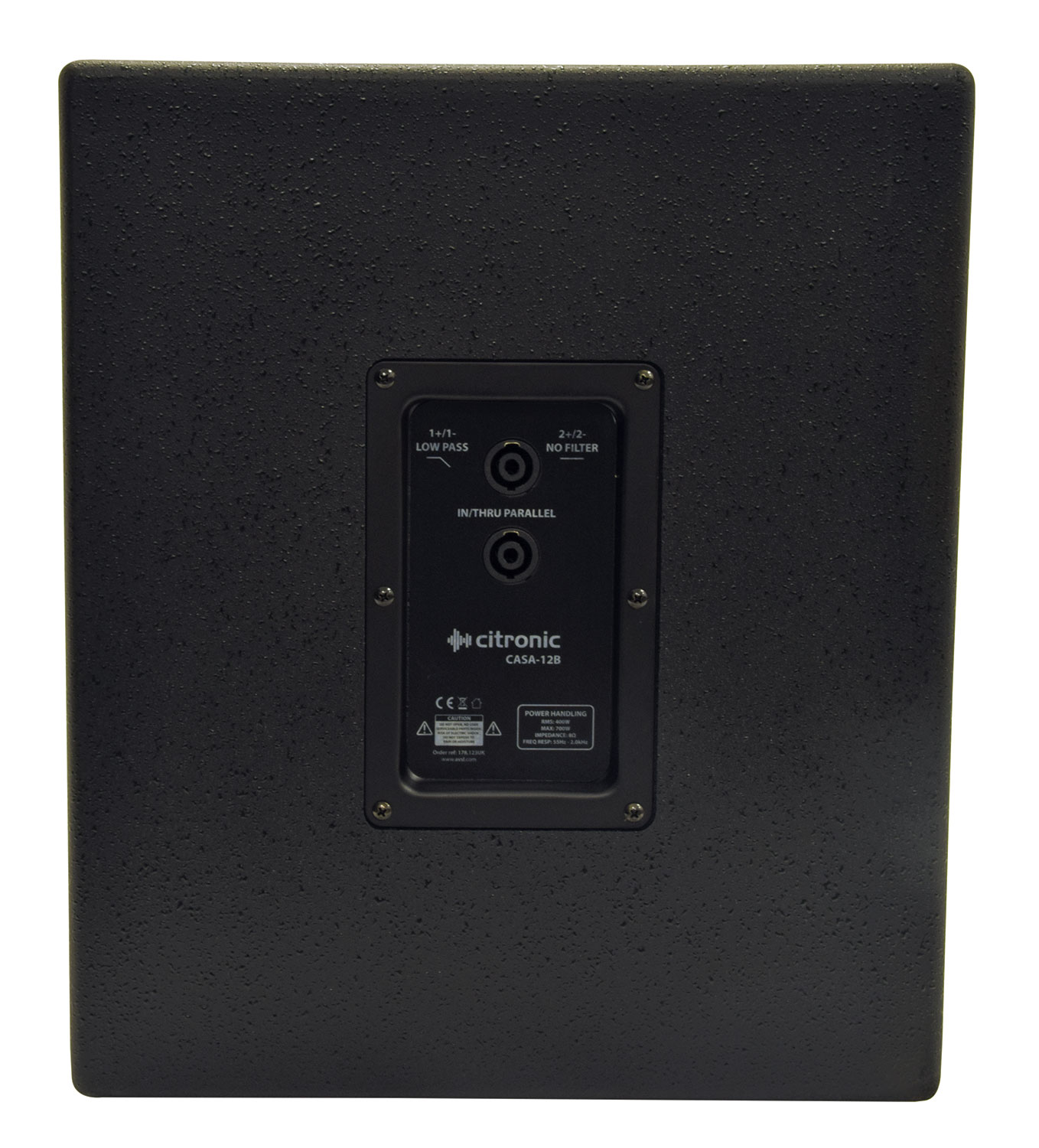

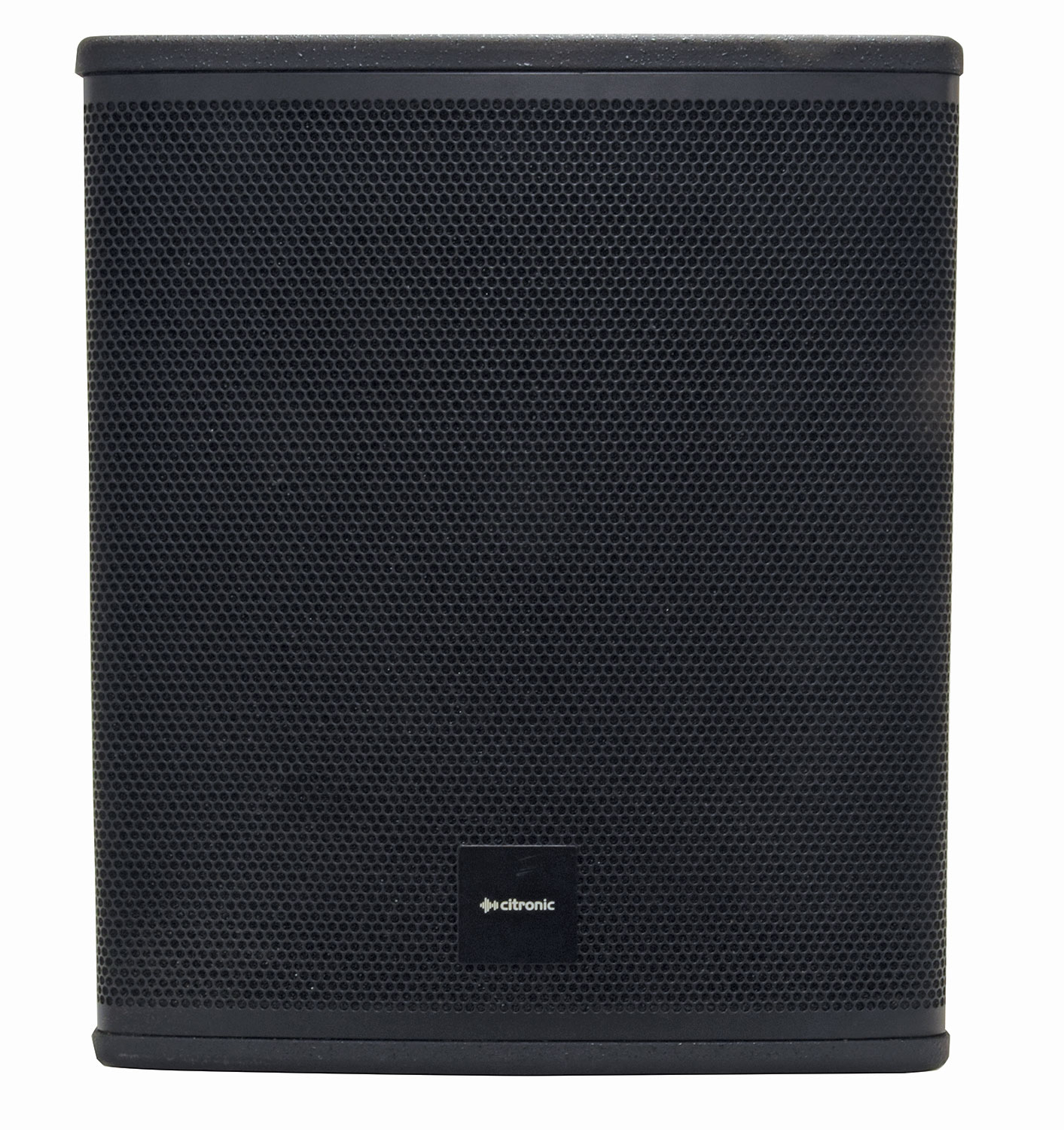

Lightweight subwoofer cabinets with minimal footprint and very capable power handling. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. Output from a power amplifier is via Speakon leads to sockets on the rear panel. Designed as a perfect match for the CASA range of PA cabinets and equally at home as part of any high energy sound reinforcement setup.

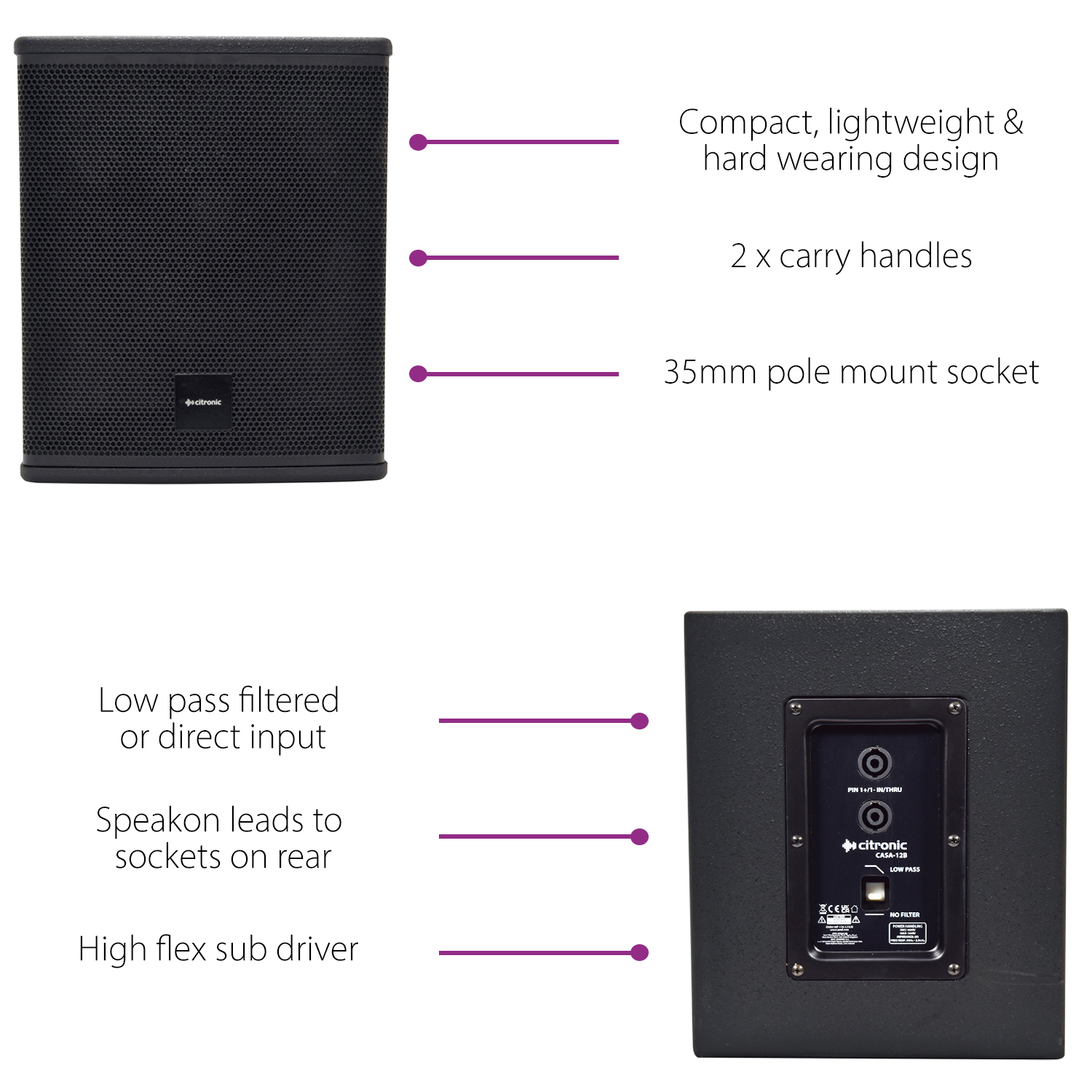

• Compact and lightweight design
• 15mm MDF cabinets with hard-wearing paint finish

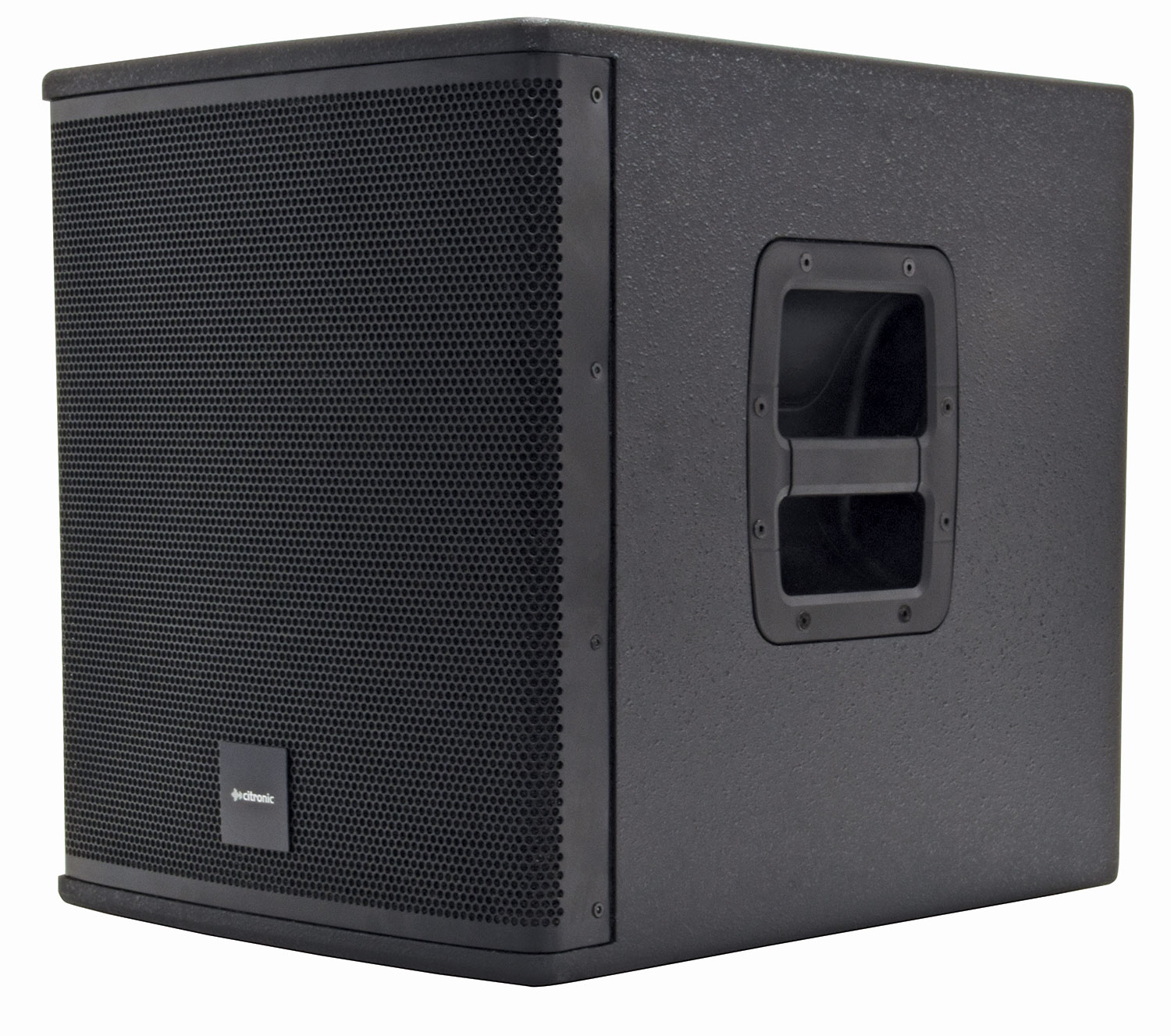

• 2 x side carry handles
• Low pass filtered or direct input

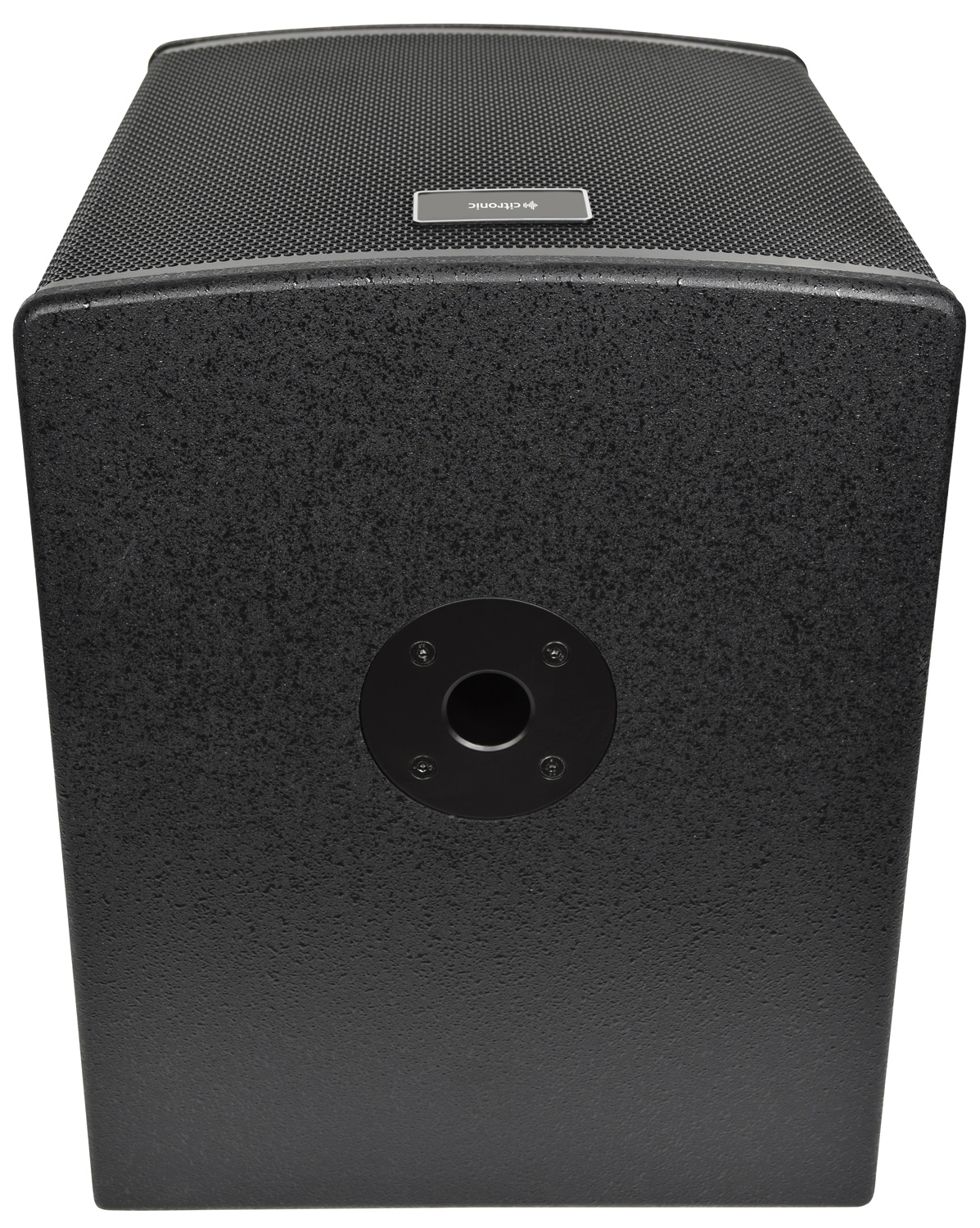

• 35mm pole mount socket

• Weight 14kg
• Dimensions 480 x 450 x 380mm
• Frequency response 55Hz - 2.0kHz
• SPL max. 122.0dB
• Power handling : max 700W
• Power handling : rms 400W
• Voice coil 62mmØ (2.5")
• Sub driver 300mmØ (12")
• Construction 15mm MDF with durable texture paint finish
• Hardware 2 x side carry handles + 35mm pole mount socket
• Connection 2 x SPK socket
• Impedance 8 Ohms
• Filter type 120Hz low pass 12dB/oct
