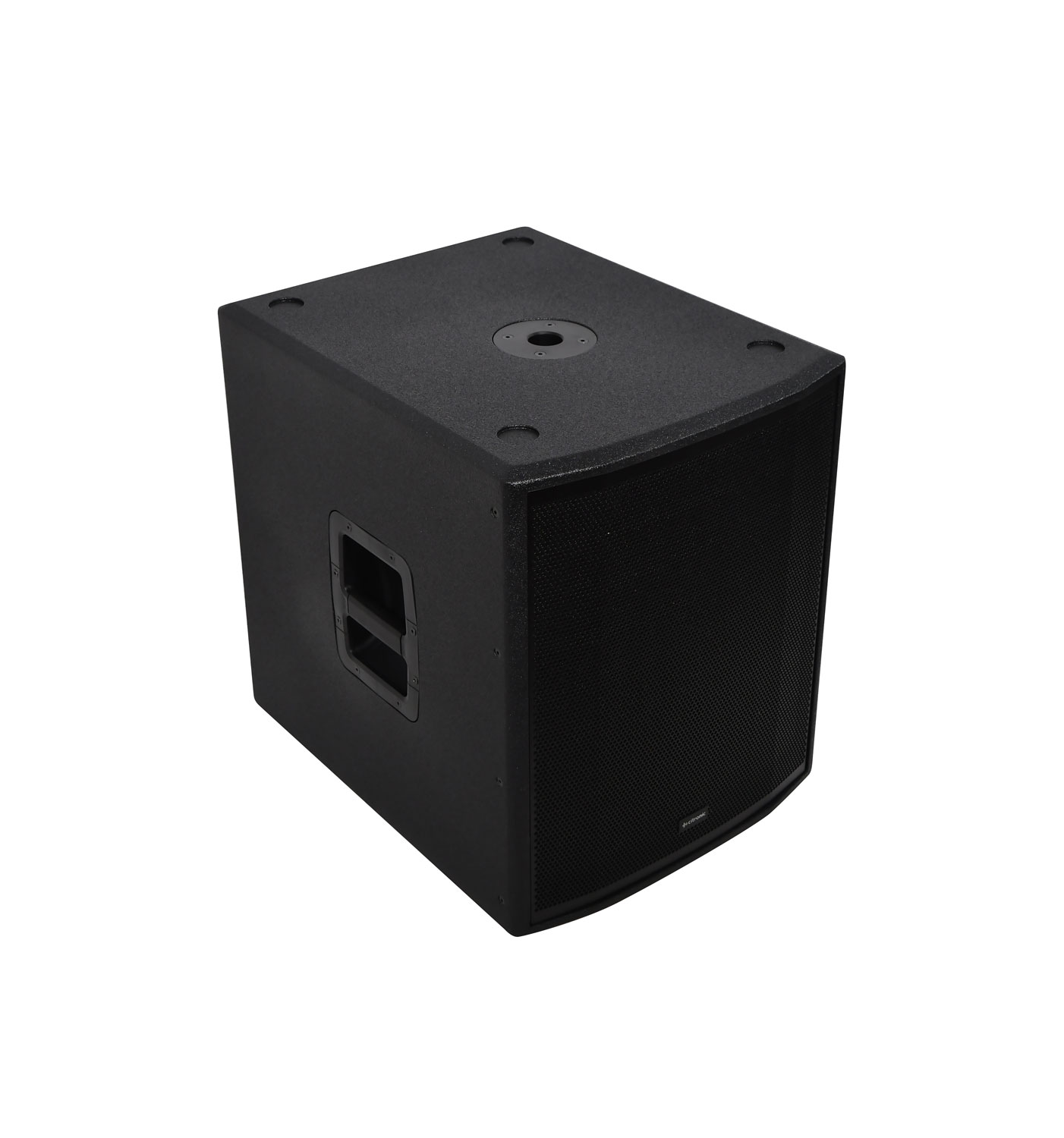

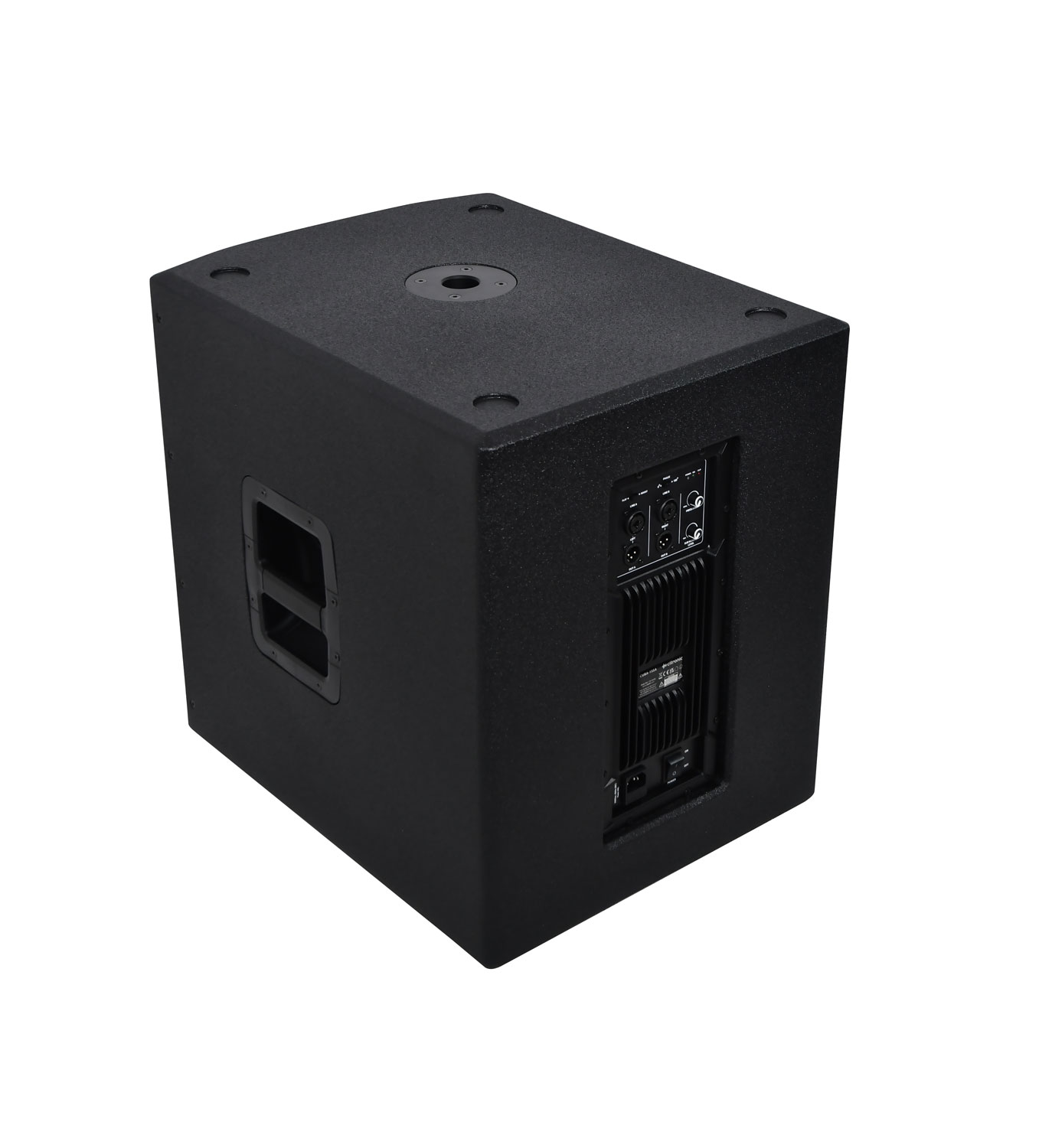

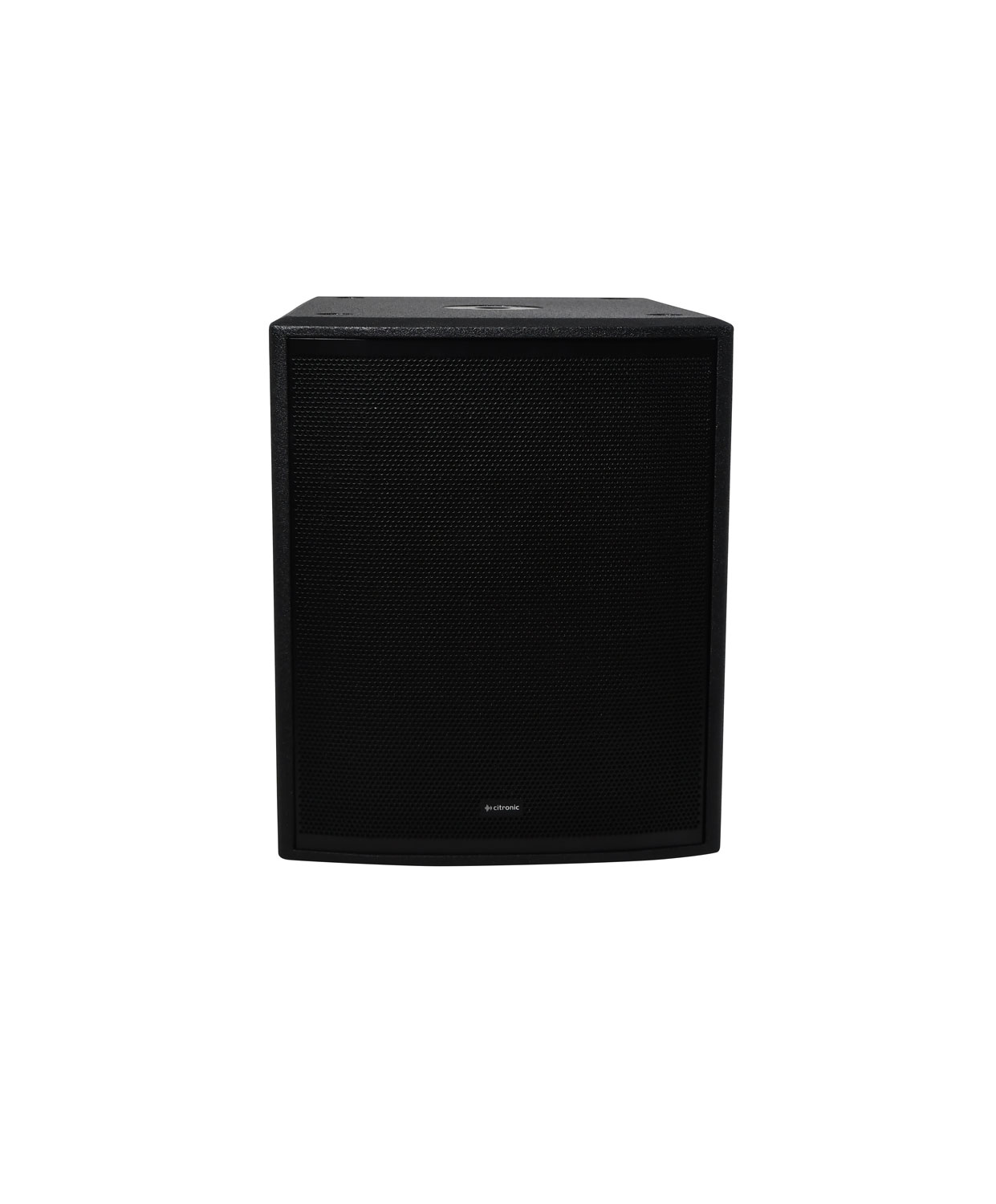

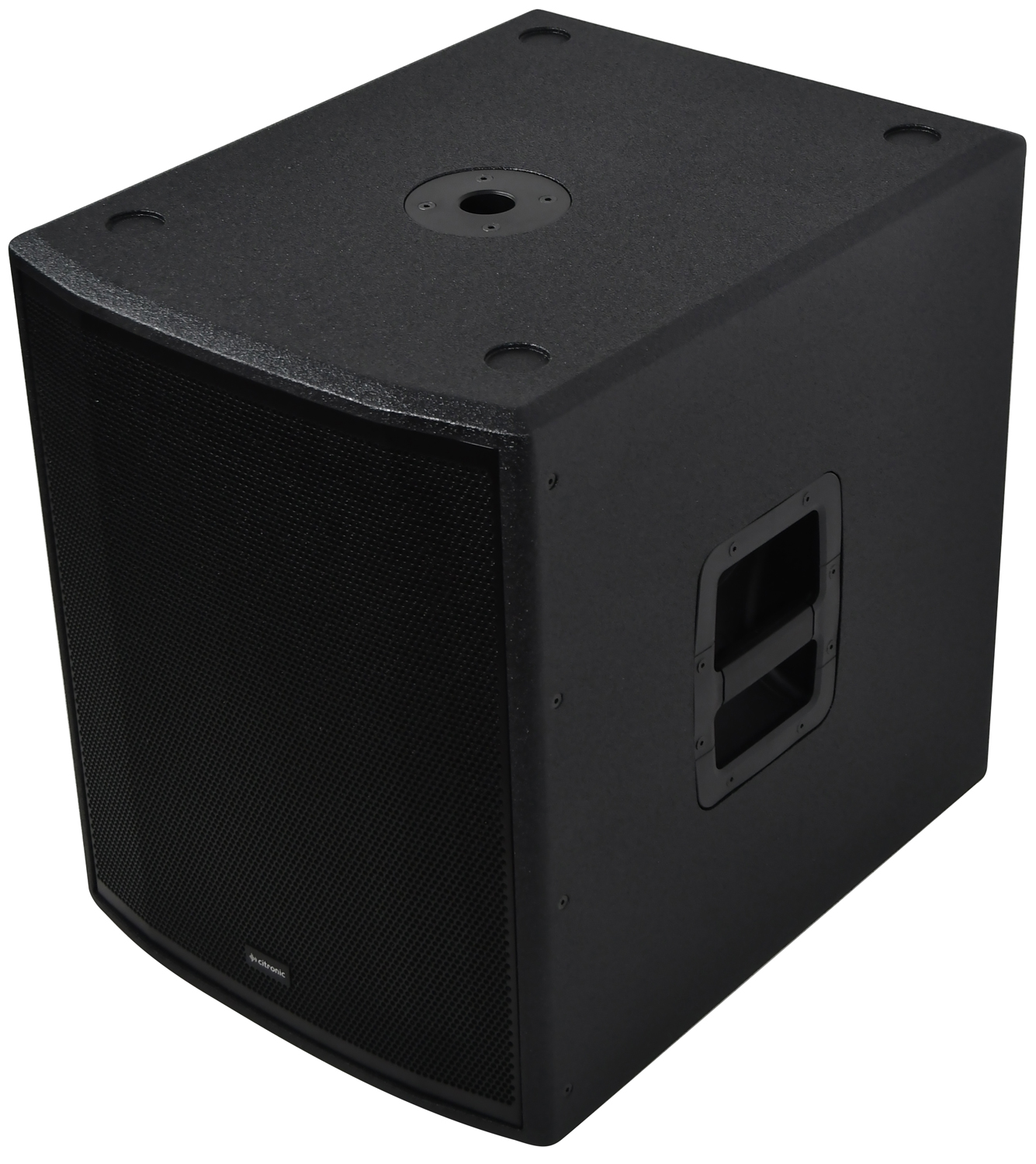

CUBA High Power Active Sub Cabinets

CUBA-series high output active subwoofer cabinets with internal amplifier. Each cabinet is constructed from 15mm MDF and coated in a durable textured polyurea material with a powder coated steel grille. Carrying handles are built into each side of the cabinet with a top mounted 35mm socket for pole mounting a top cabinet. A single high energy sub frequency driver is driven by a fixed DSP controlled class-D amplifier to develop high sound pressure output, accurately reproducing heavy dynamics and giving body to a full range system. Designed to match with higher output full range cabinets in the Citronic range or as part of any PA system that needs powerful and fast attacking sub content.

• High power output subwoofers
• MDF cabinet with polyurea coating
• 2 x side carry handles
• 35mm pole mount socket

• Weight 30.5kg
• Dimensions 570 x 550 x 445mm
• SPL max. 129.5dB
• Frequency response 37-113Hz
• Sensitivity 98dB (1W/1m)
• Magnet 2.85kg (100oz)
• Voice coil 75mmØ
• Driver 380mmØ (15")
• Output power max. 1600W
• Output power RMS 800W
• Power supply 100-240Vac, 50/60Hz (IEC)
• Construction Polyurea-coated MDF + steel grille
• Impedance 8 ohms

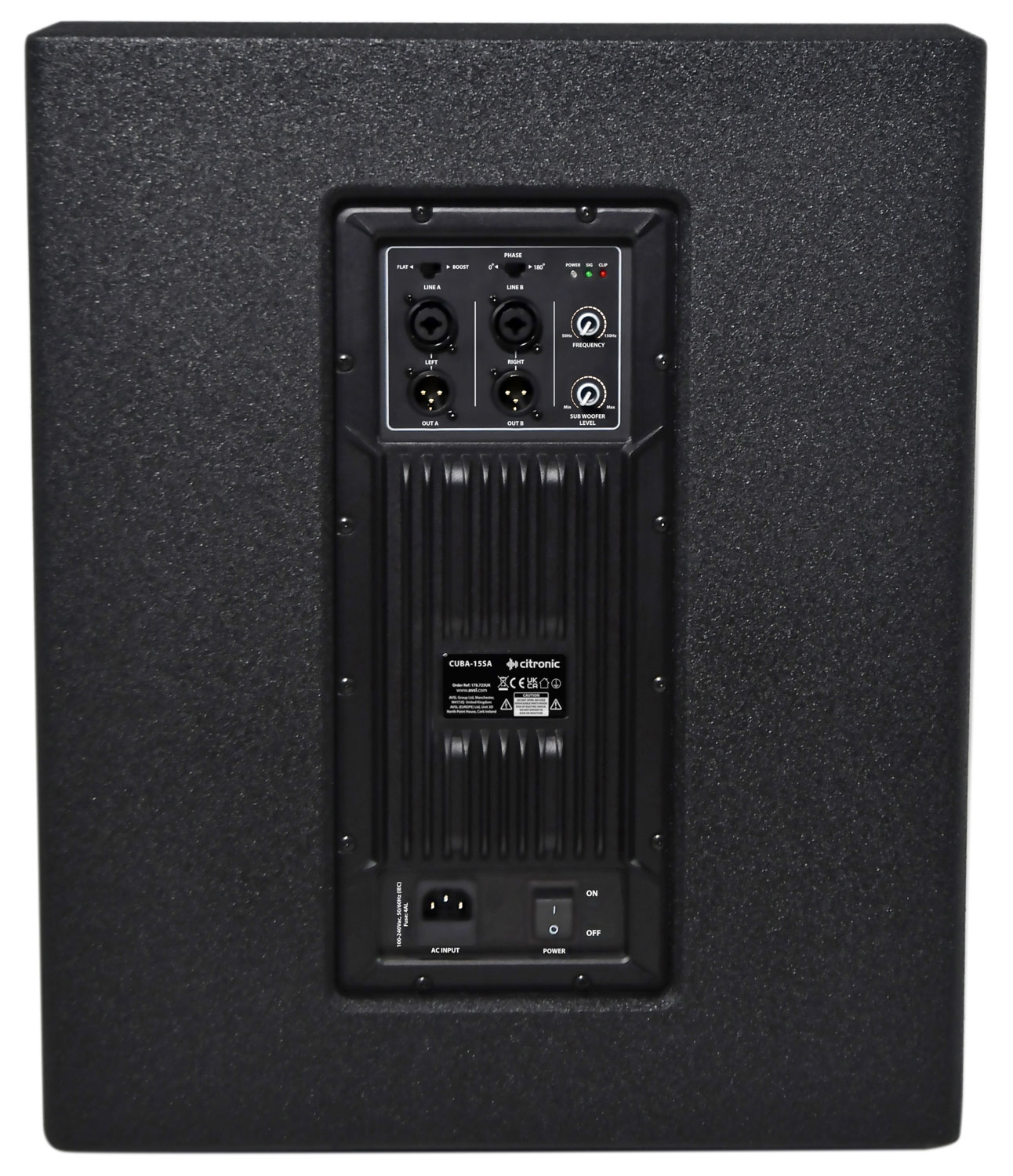

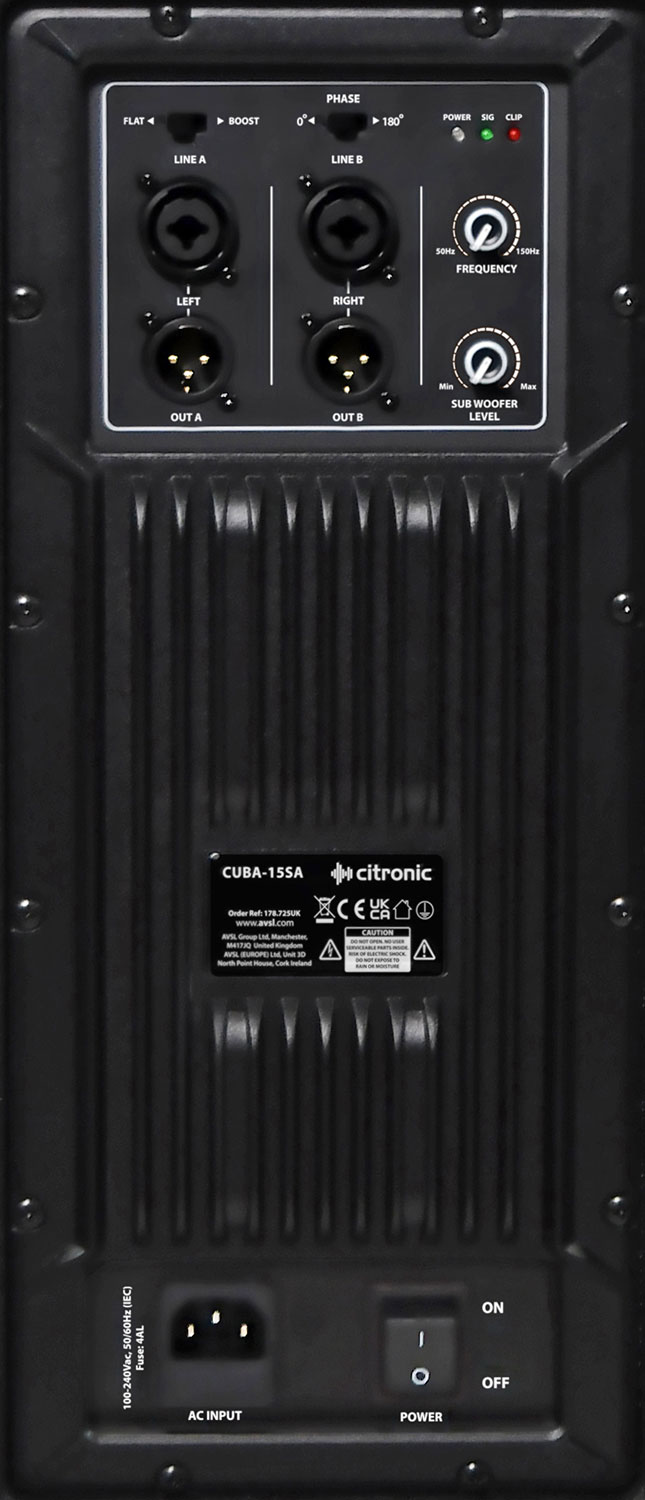

• Amplifier construction Class-D (DSP controlled)
