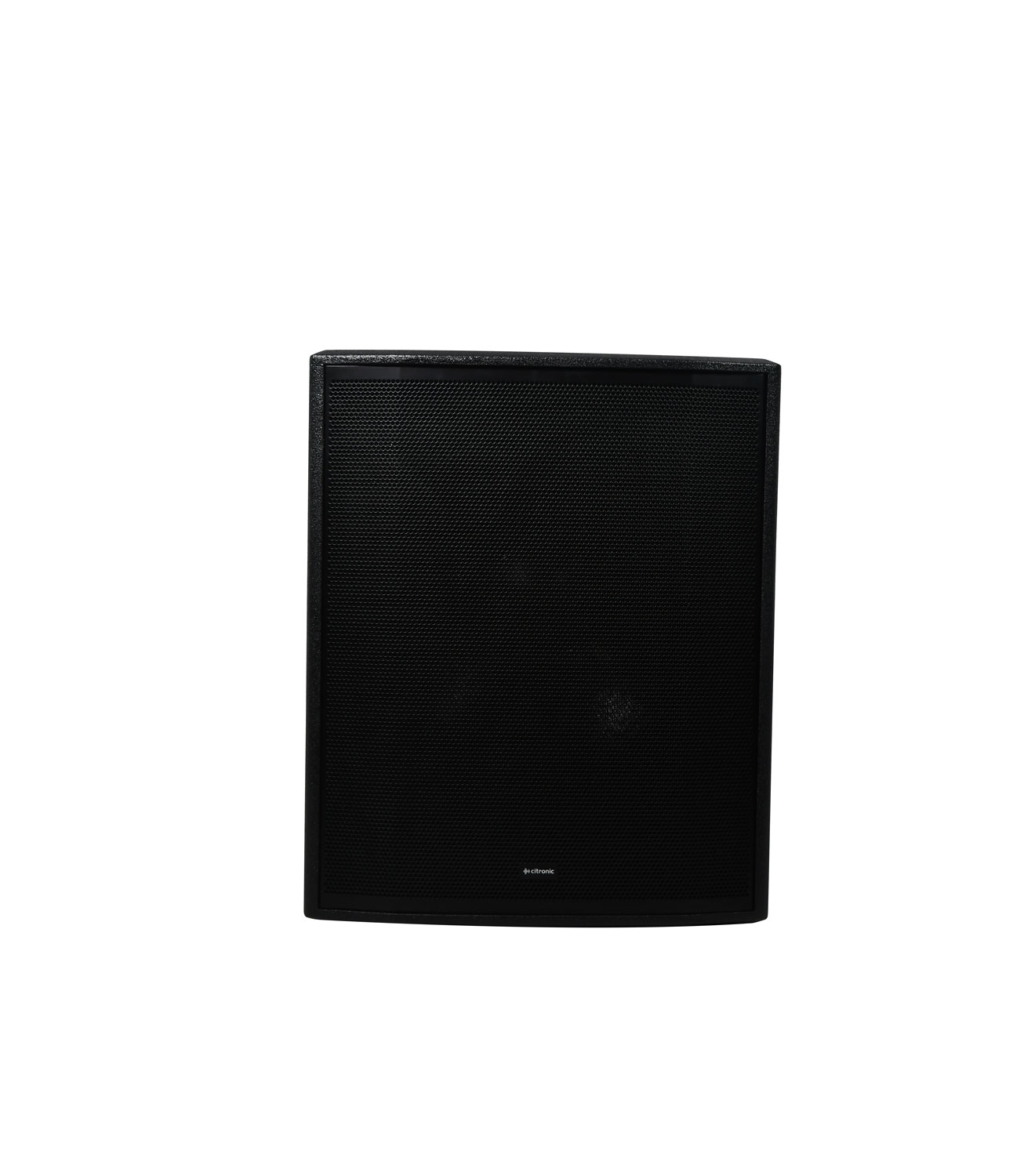

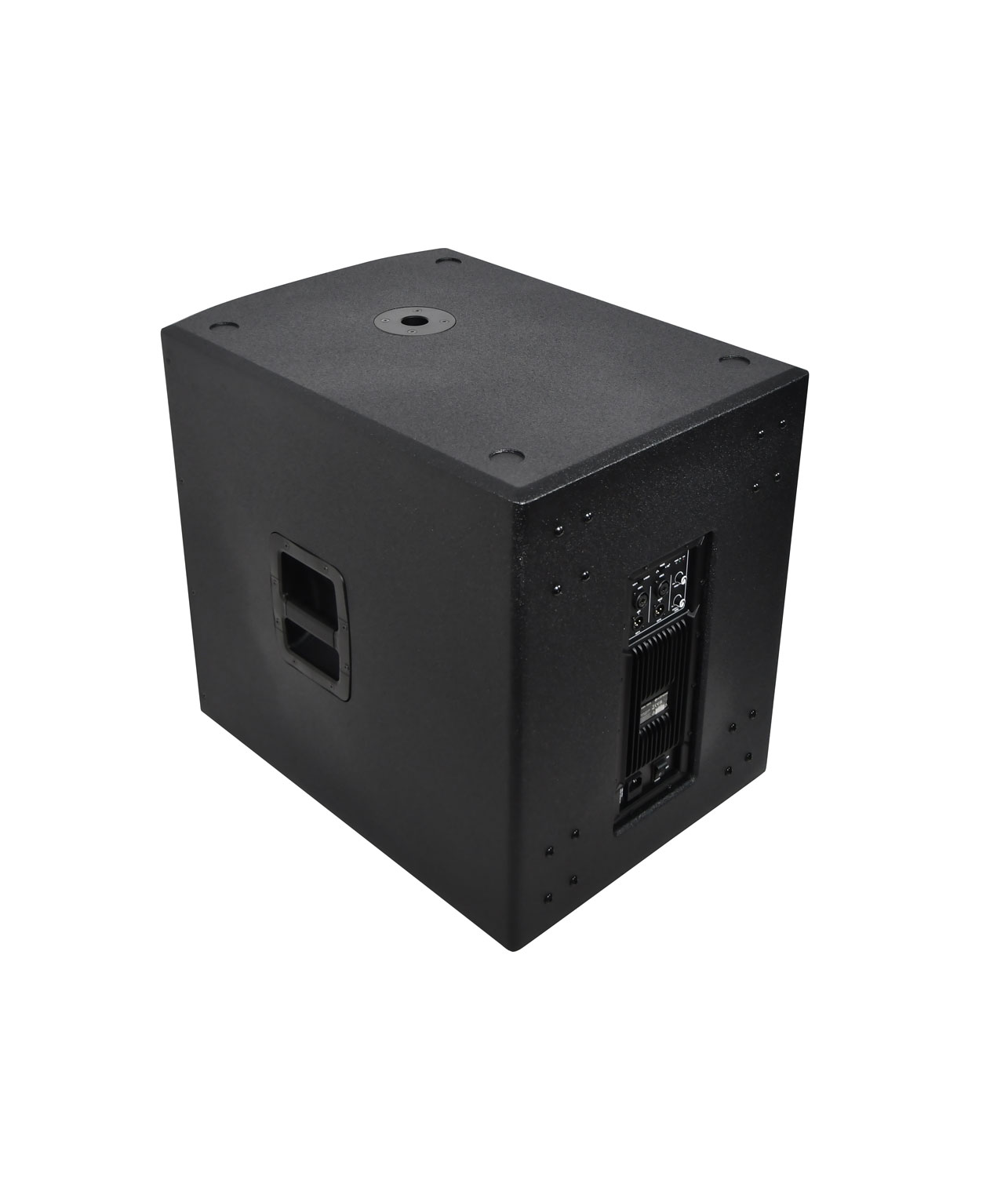

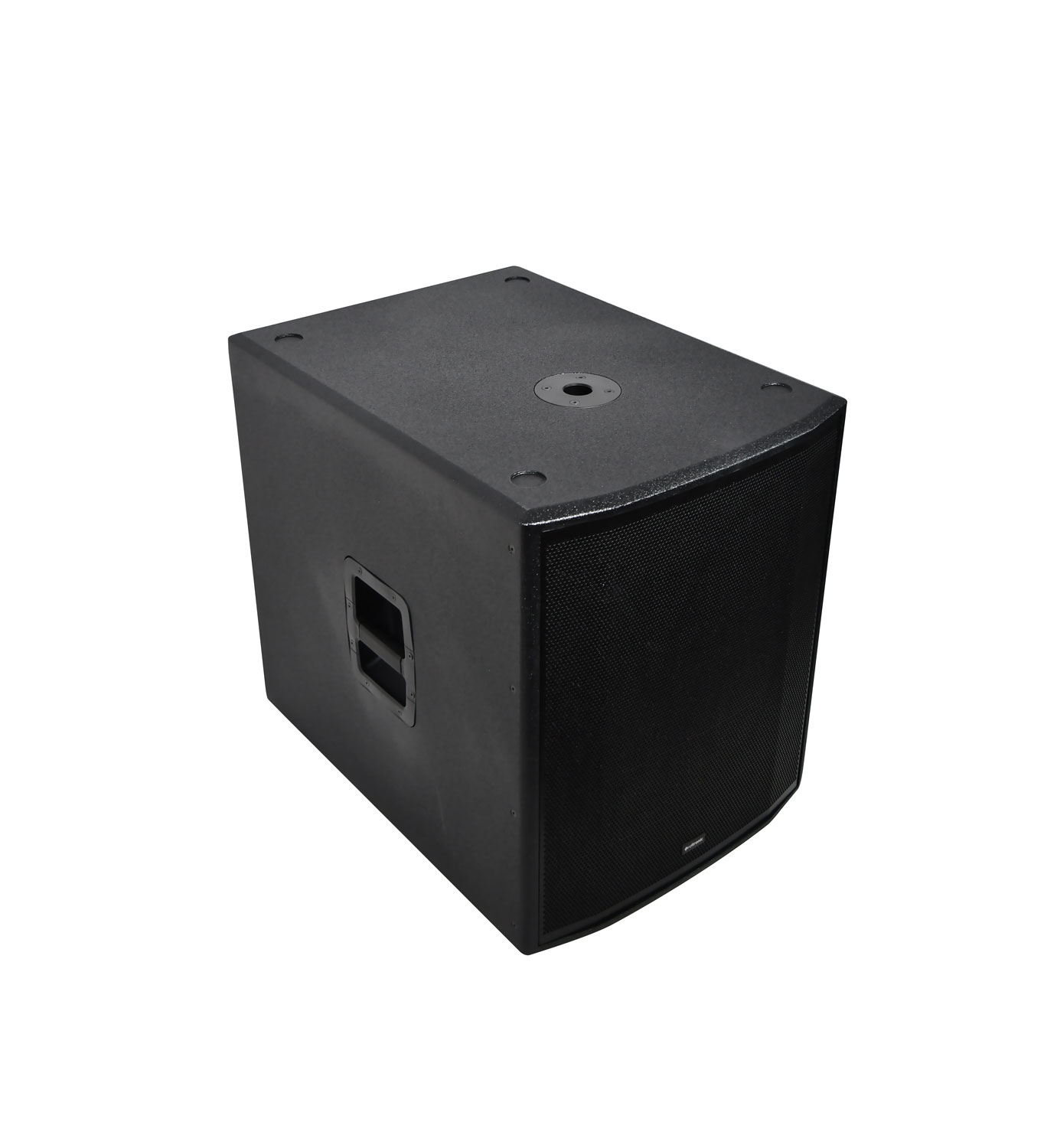

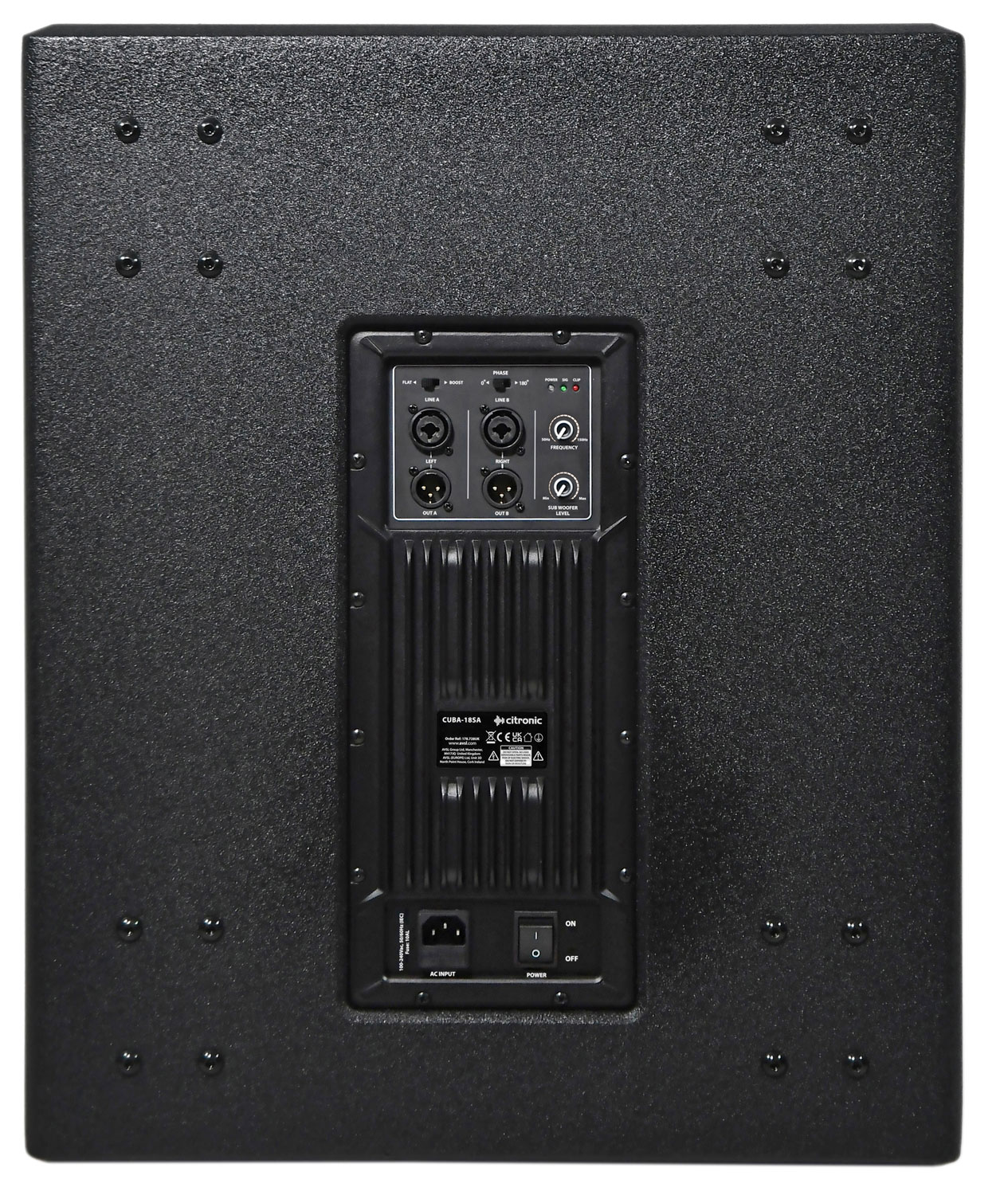

CUBA High Power Active Sub Cabinets

CUBA-series high output active subwoofer cabinets with internal amplifier. Each cabinet is constructed from 15mm MDF and coated in a durable textured polyurea material with a powder coated steel grille. Carrying handles are built into each side of the cabinet with a top mounted 35mm socket for pole mounting a top cabinet. A single high energy sub frequency driver is driven by a fixed DSP controlled class-D amplifier to develop high sound pressure output, accurately reproducing heavy dynamics and giving body to a full range system. Deisgned to match with higher output full range cabinets in the Citronic range or as part of any PA system that needs powerful and fast attacking sub content.

• High power output subwoofers
• MDF cabinet with polyurea coating
• 2 x side carry handles
• 35mm pole mount socket

• Output power : rms 1200W
• Output power : max. 2400W
• Driver 450mmØ (18")
• Voice coil 100mmØ
• Magnet 4.25kg (150oz)
• Sensitivity @ 1W/1m 99dB
• Frequency response 30 - 103Hz
• Dimensions 725 x 640 x 520mm
• Weight 45.0kg
• Power supply 100-240Vac, 50/60Hz (IEC)
• Construction Polyurea-coated MDF + steel grille
• Impedance 8 Ohms

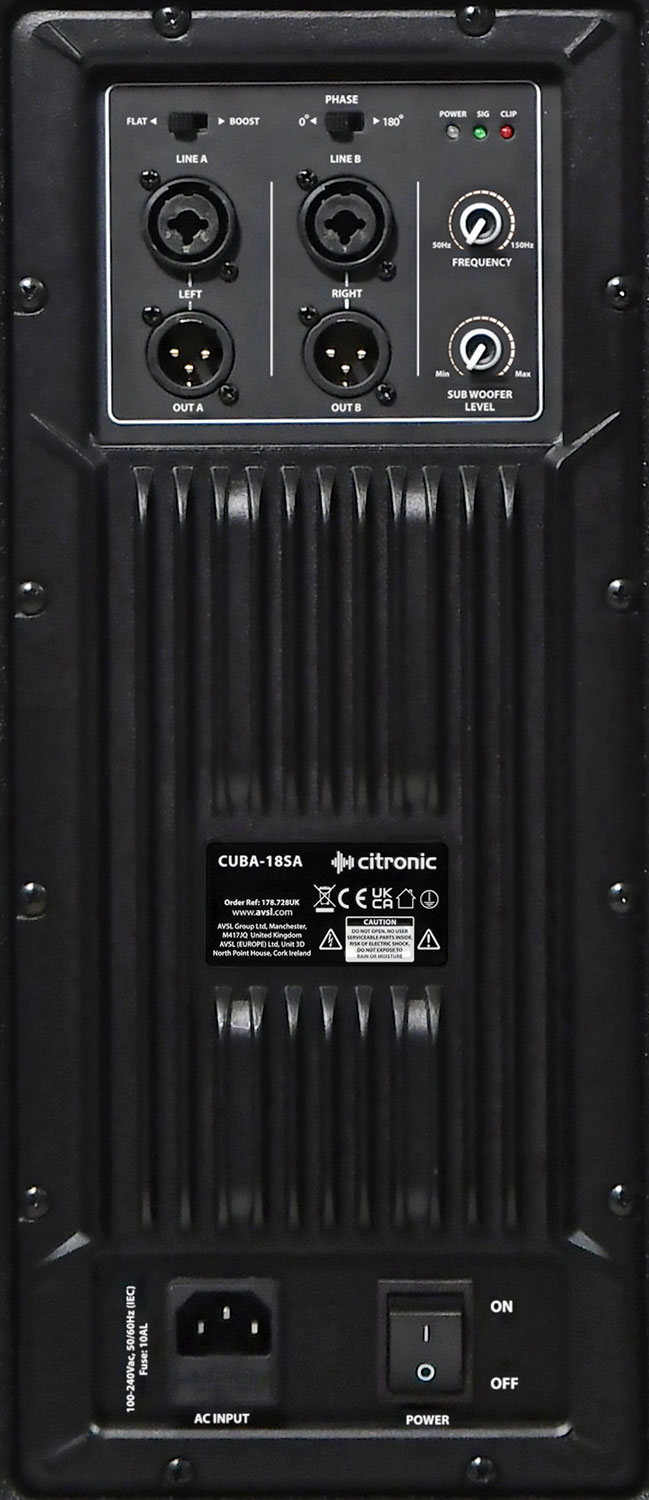

• Amplifier : construction Class-D (DSP controlled)
