USB Audio Interface - 2 Microphone + 1 Instrument

USB2+1

173.650UK
USB2+1

Desktop USB soundcard for a computer-based recording studio. Featuring 2 independent microphone inputs on XLR/jack sockets and a separate 6.3mm instrument input. Each input has a gain control and… more

  • 2 XLR/jack microphone inputs with gain and mute control
  • Separate instrument 6.3mm jack input
  • 48kHz sample rate
DESCRIPTION VERSION PACKED
173.650UK

USB Audio Interface - 2 Microphone + 1 Instrument

USB2+1 Box Label

USB Audio Interface - 2 Microphone + 1 Instrument

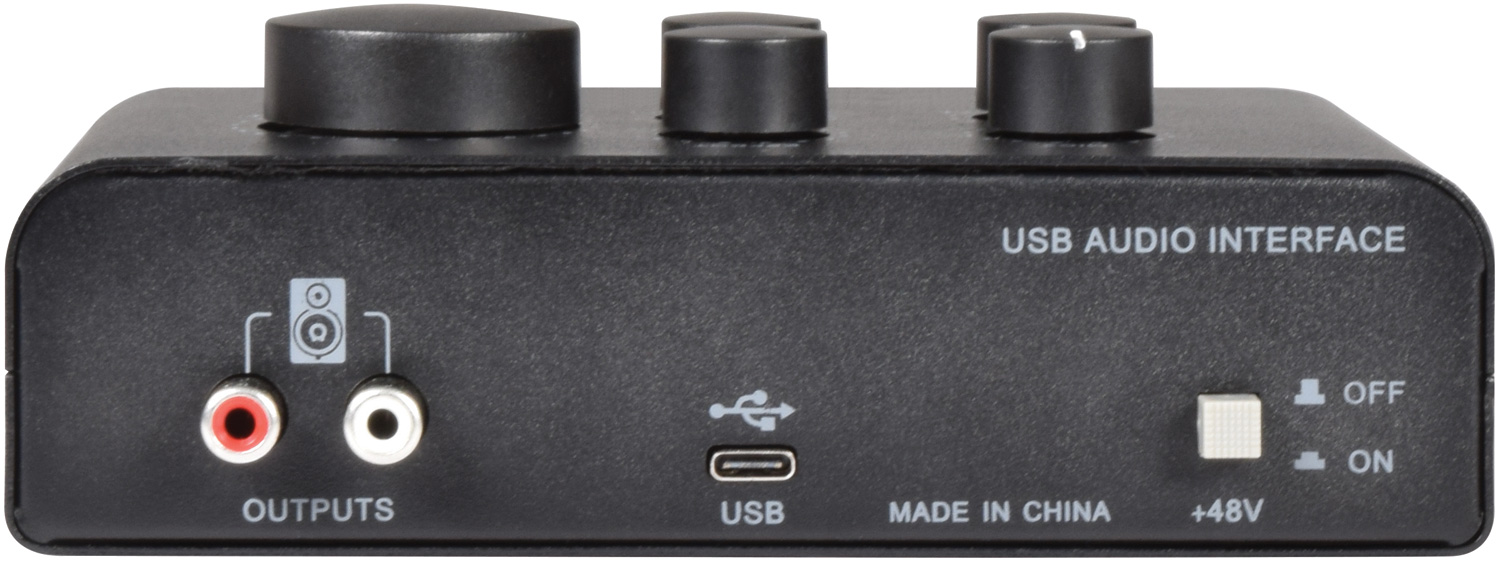

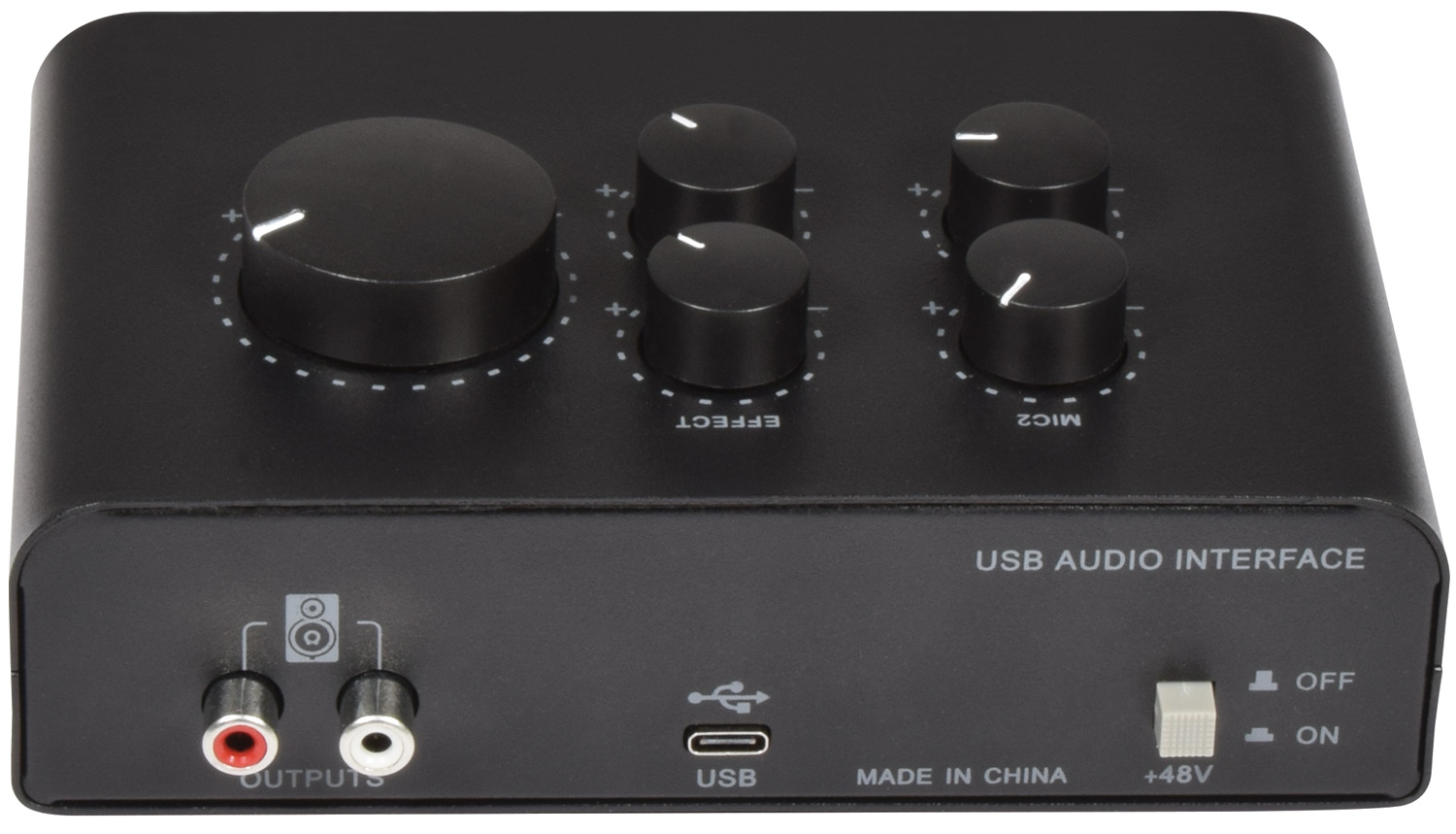

Desktop USB soundcard for a computer-based recording studio. Featuring 2 independent microphone inputs on XLR/jack sockets and a separate 6.3mm instrument input. Each input has a gain control and there is an optional echo effect with deparate control. Monitoring is via a stereo 6.3mm headphone jack or L+R RCA line output on the rear of the unit for connecting monitor speakers. Power to the interface and two-way digital audio is connected via a USB type-C socket at the rear. Simple yet versatile operation for project studios and DAW recording setups.

  • 2 XLR/jack microphone inputs with gain and mute control
  • Separate instrument 6.3mm jack input
  • 48kHz sample rate
  • Inbuilt echo effect

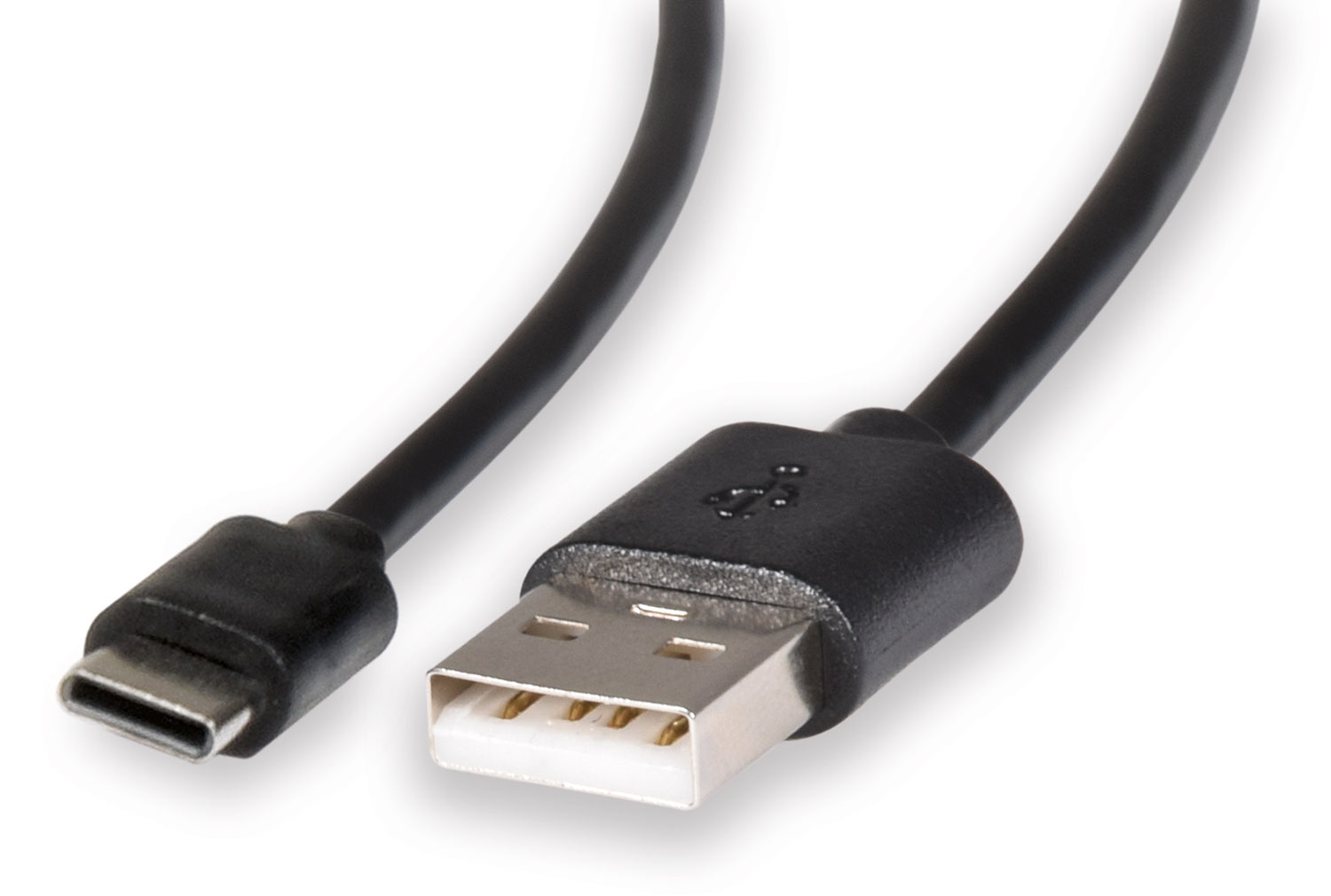

  • 1.5m USB type C to A lead supplied
  • Power supply 5Vdc (from USB)
  • Connection USB type-C

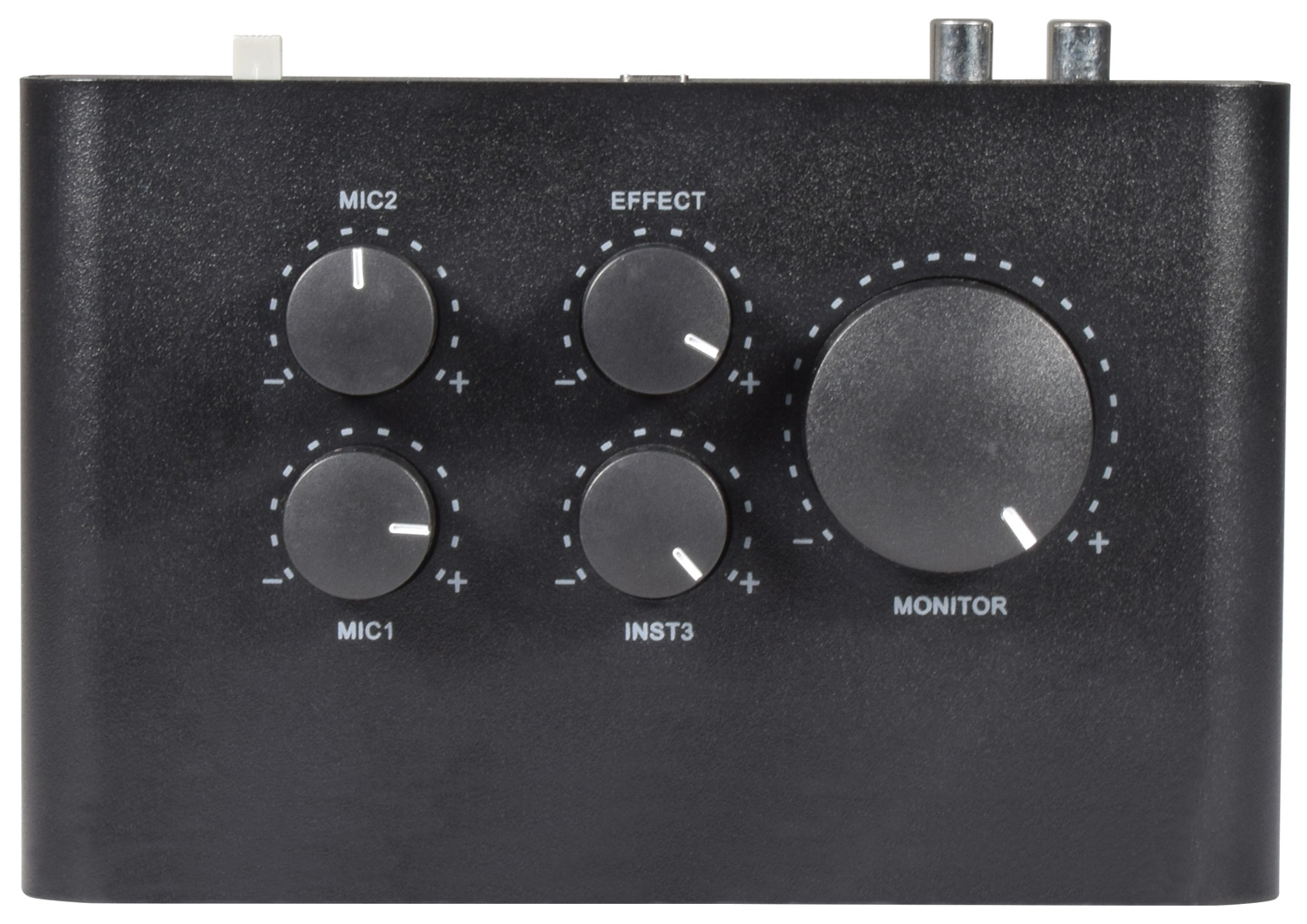

  • Controls Mic1, Mic2, Inst3, Effect, Monitor

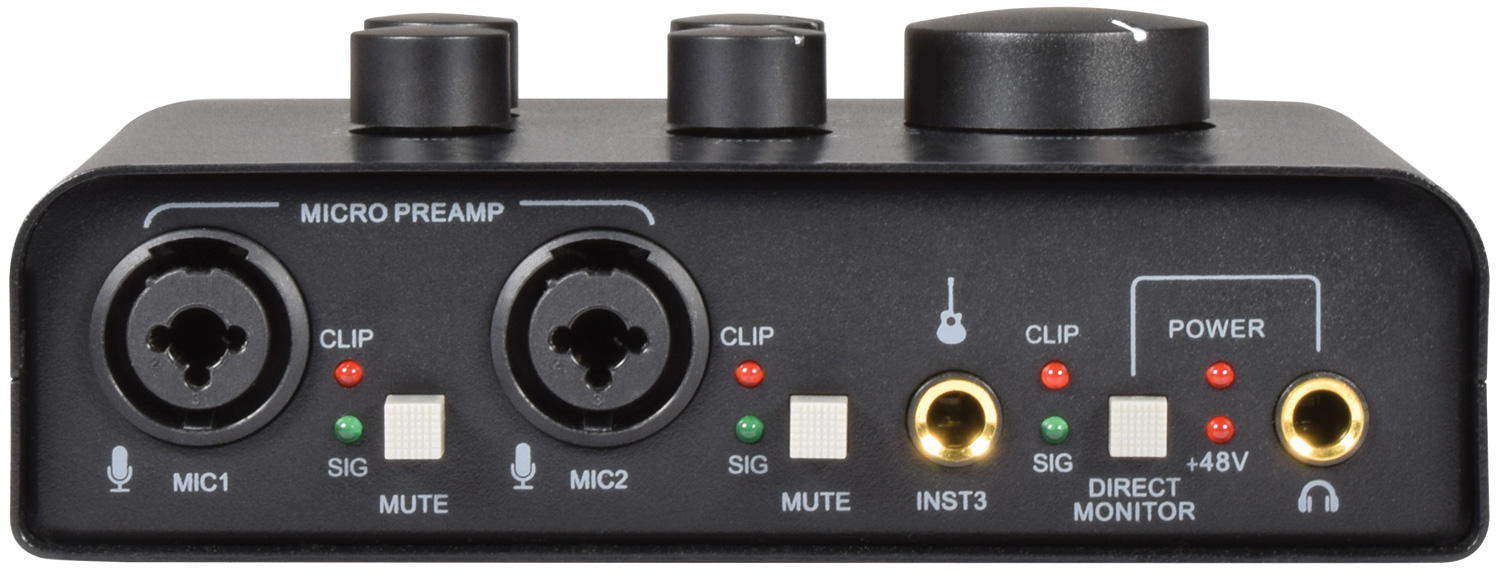

  • Input connections 2 x mic XLR/Jack, 1 x 6.3mm instrument jack
  • Phantom power +48V switchable to XLR inputs
  • Frequency response 10Hz - 30kHz (-0.5dB)
  • Input impedance : instrument 1M Ohm
  • Input impedance : mic 3k Ohm
  • Max. input sound level Mic or Instrument +2dBu, Line +22dBu
  • Dynamic range 100dB (A-weighted)
  • Sampling format 48kHz, 16-bit
  • Monitor outputs Headphones (stereo 6.3mm jack), Line out (L+R RCA)
  • Dimensions 160 x 110 x 57mm
  • Weight 529g
