CSR-63 Rack-mountable Mixer 9 Channel with DSP+BT

6 mono + 3 stereo

170.809UK
CSR-63

The Citronic CSR-63 rack-mountable mixing console is built to offer full-size mixer features in a slim profile format. Equipped with 6 mic/line channels and 3 stereo line channels, each has individual… more

  • 4U rack-mountable with adjustable depth
  • 16-preset 24-bit DSP effects section
  • 60mm level fader for each channel
DESCRIPTION VERSION PACKED
170.809UK

CSR-63 Rack-mountable Mixer 9 Channel with DSP+BT

6 mono + 3 stereo Box Label

CSR-63 Rack-mountable Mixer 9 Channel with DSP+BT

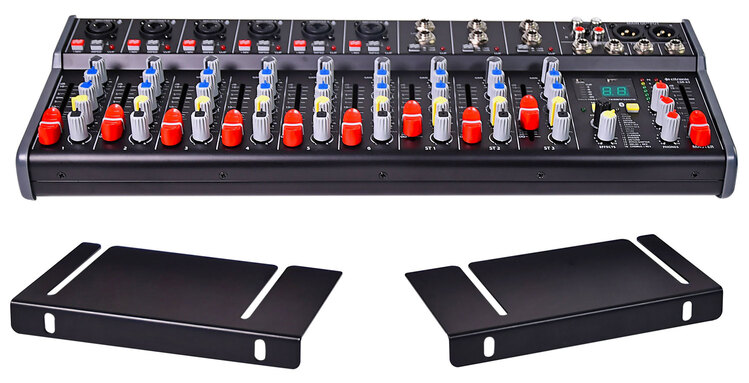

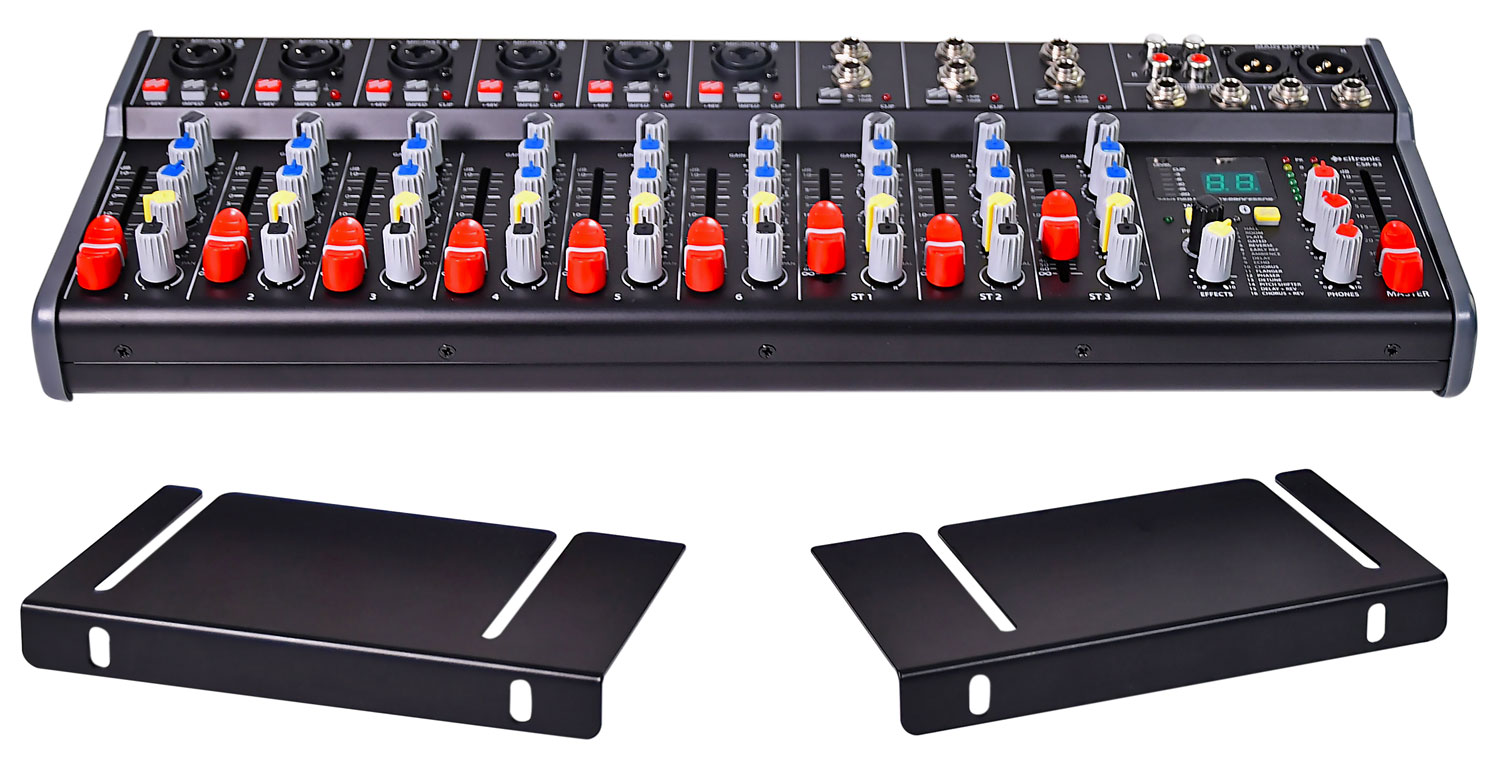

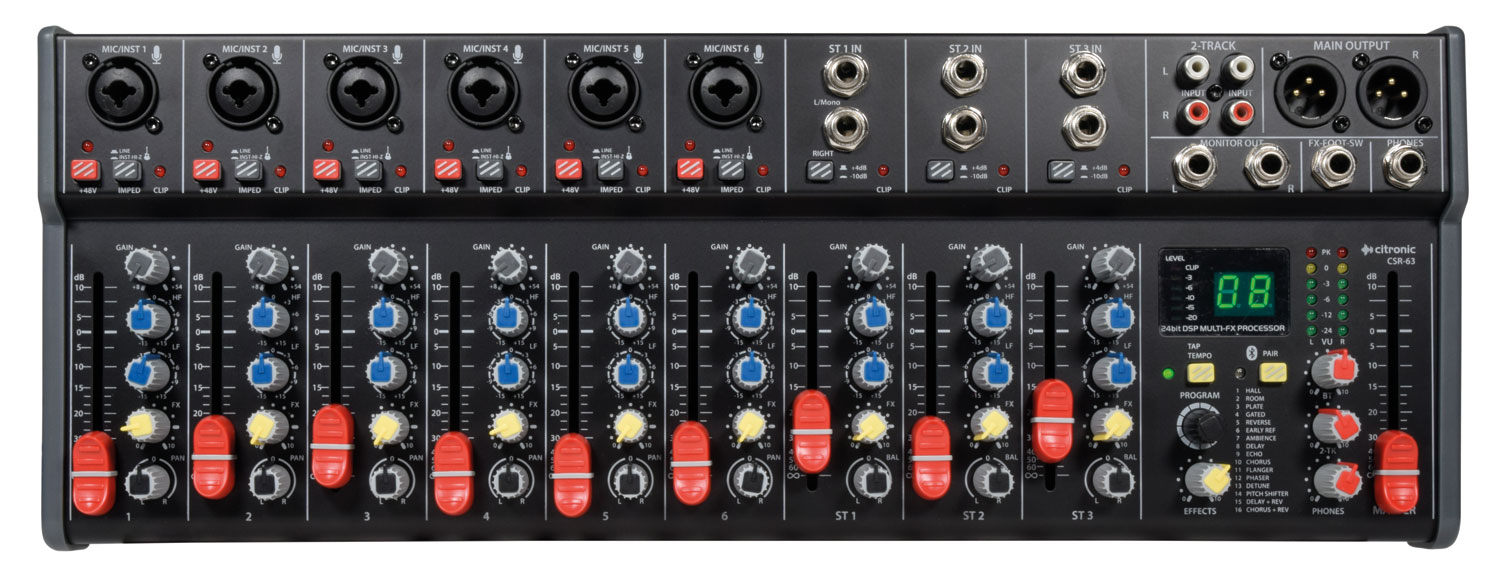

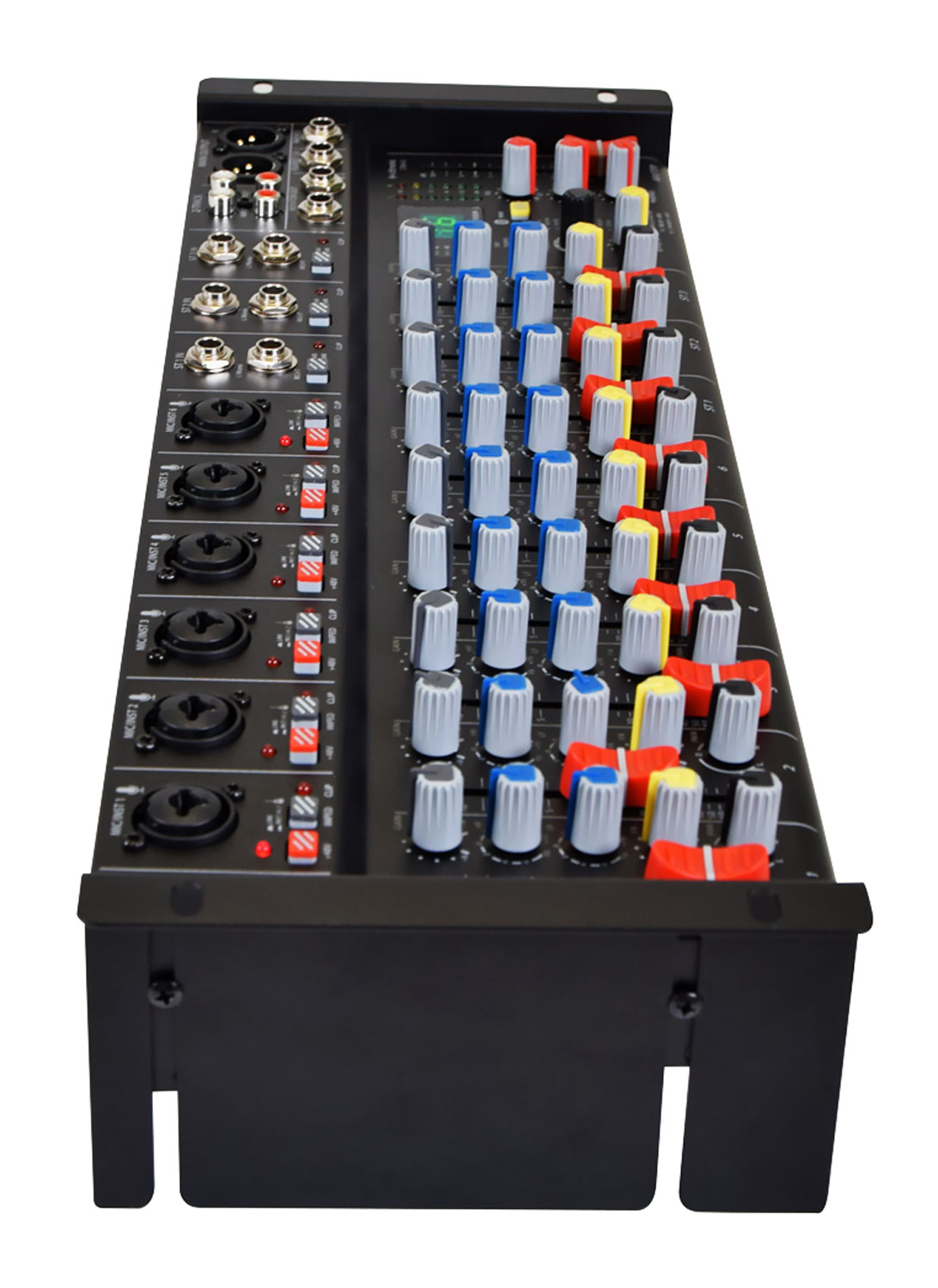

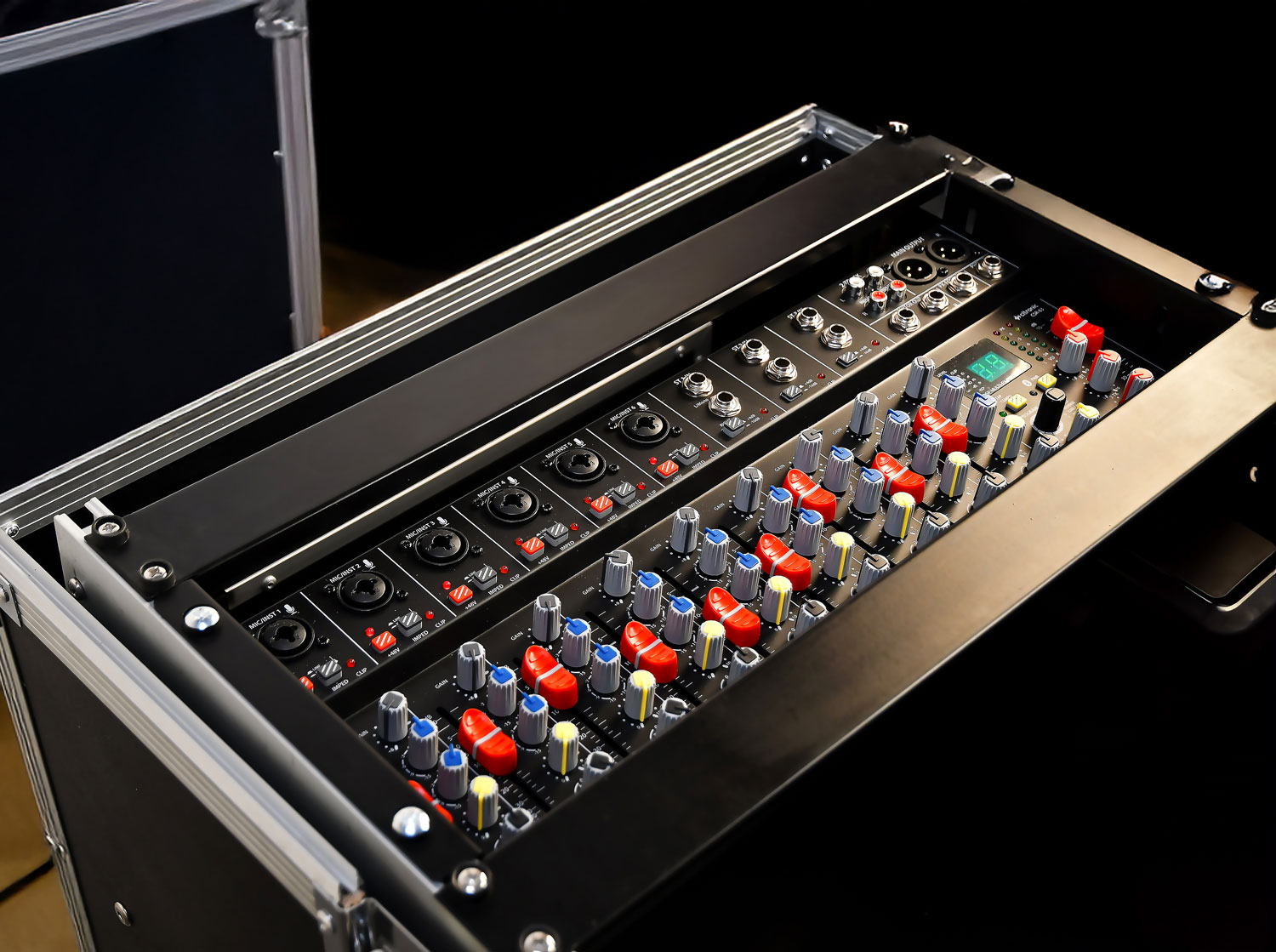

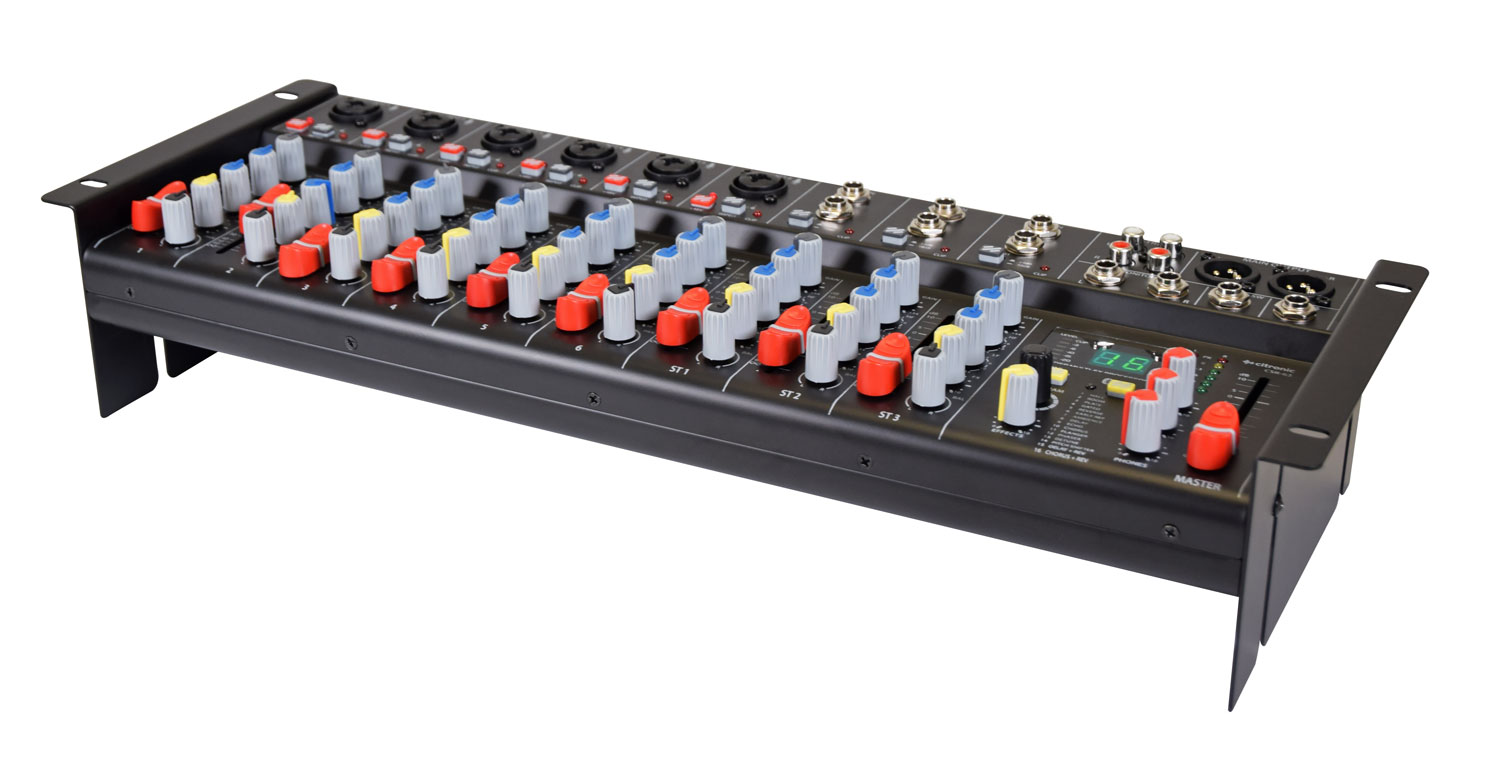

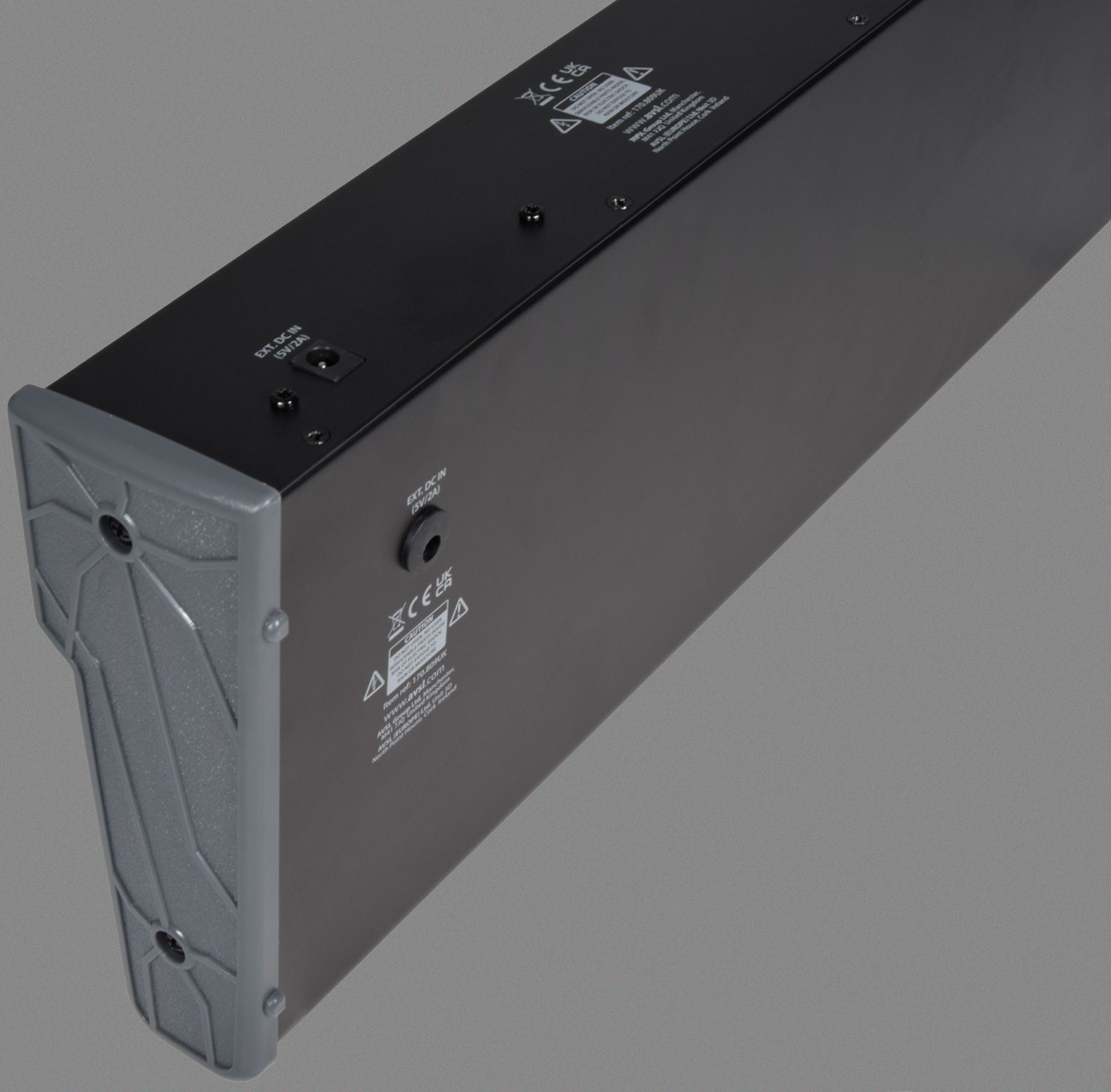

The Citronic CSR-63 rack-mountable mixing console is built to offer full-size mixer features in a slim profile format. Equipped with 6 mic/line channels and 3 stereo line channels, each has individual Gain, 2-band EQ, FX and PAN control with a 60mm Level fader. Mono channels also have individually switchable +48V phantom power and can accept a mic, line or instrument input. For live performers, a DSP effects section has 16 editable presets and can be activated remotely via a foot switch if needed. Balanced main outputs are joined by 2-track in and out, monitor out, headphones out and a Bluetooth receiver for wireless music playback. Uniquely designed end panels enable installation into a 19" rack or serve as feet for free-standing operation. When rack-mounted, the CSR-63 occupies a little less than 4U height, allowing space to feed cables through the rear of the rack frame from the top-mounted connectors. The end panels also have adjustable depth fixing, enabling controls to stand proud of the rack for easy access or deeper behind the frame for protection. Unlike most rack mixers, tis mixer has a shallow housing depth to allow back-to-back mounting with other equipment in racks with rear mounting strips. Overall, the CSR-63 can find its home in numerous different audio setups and provides a problem-solver for both installed and mobile PA systems.

  • 4U rack-mountable with adjustable depth
  • 16-preset 24-bit DSP effects section
  • 60mm level fader for each channel
  • Internal Bluetooth receiver
  • Individually switchable +48V phantom power
  • Power supply 5Vdc, 2A (in-line PSU included)
  • Output Left + Right balanced XLR
  • Effects 16 program DSP (24-bit sigma-delta, 40kHz)
  • Power consumption max. 10W
  • Inputs 6 x combo XLR/jack + 3 x L(mono)+R jack
  • EQ: low ±15dB @ 80Hz
  • EQ: high ±15dB @ 12kHz
  • Phantom power +48V individually switchable (XLR inputs only)
  • Input impedance : mic 2k Ohms
  • Input impedance : instrument 1M Ohms
  • Input impedance : line 20k Ohms
  • Audio source Bluetooth receiver
  • Frequency response 20Hz - 20kHz (±0.5B)
  • THD +N <0.03% @ 1kHz
  • Dynamic range 102dB
  • Crosstalk : stereo 92dB
  • Output impedance 120 Ohms
  • Max. output level 3Vrms
  • Dimensions 482 x 160 x 90mm
  • Weight 2.745kg

In the Box

  • CSR63 rack-mountable mixer
  • In-line 5Vdc power supply
