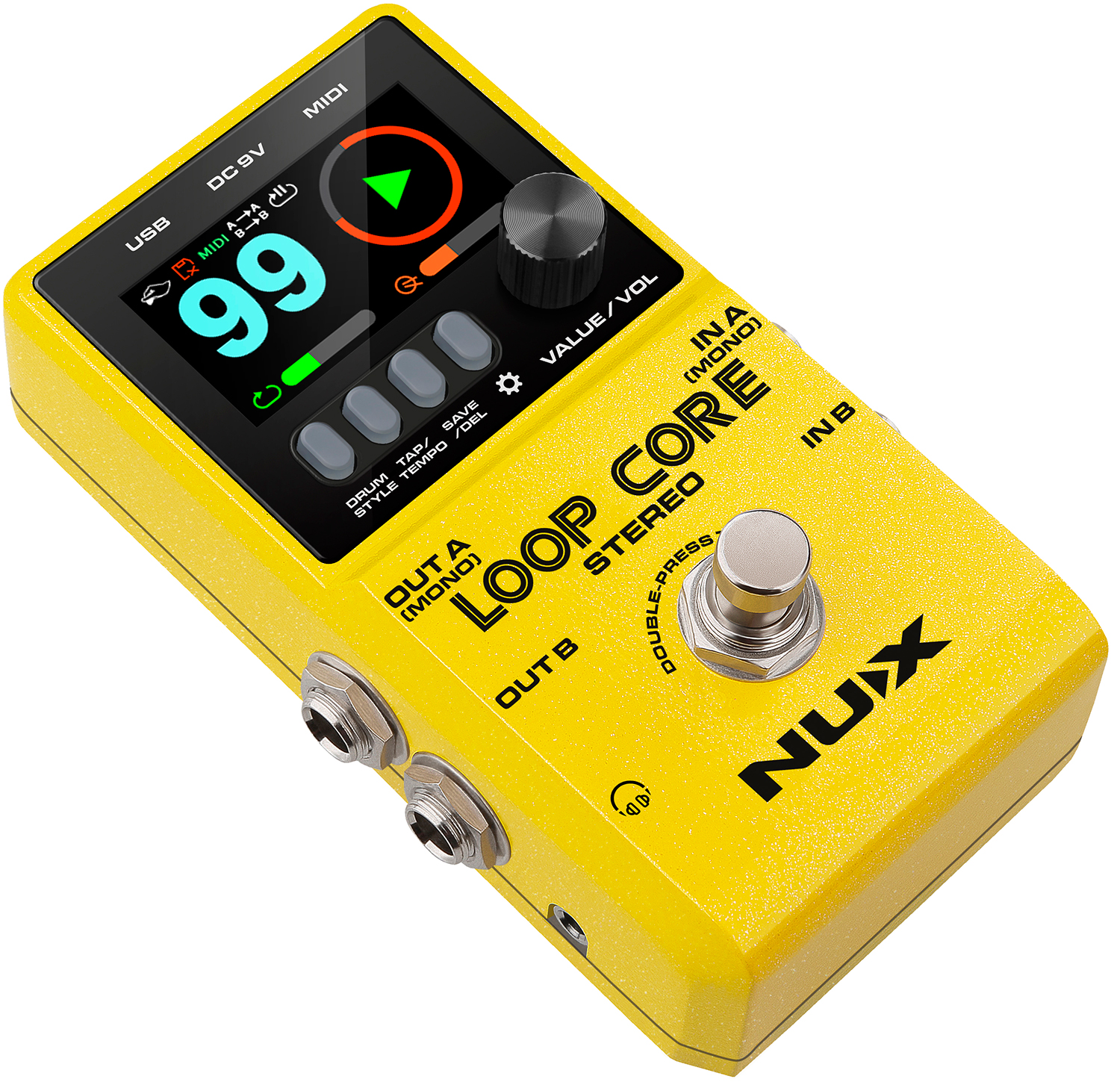

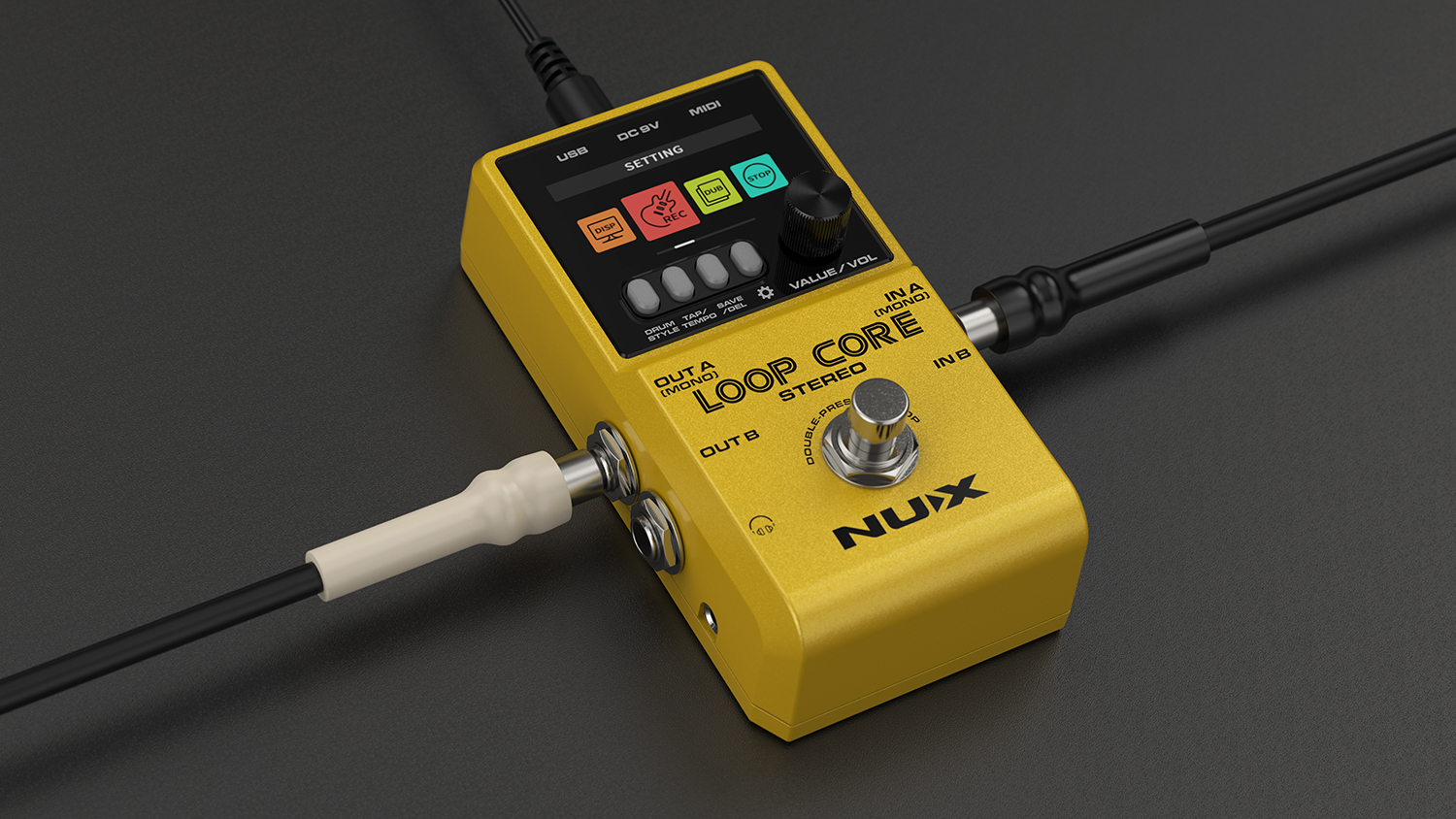

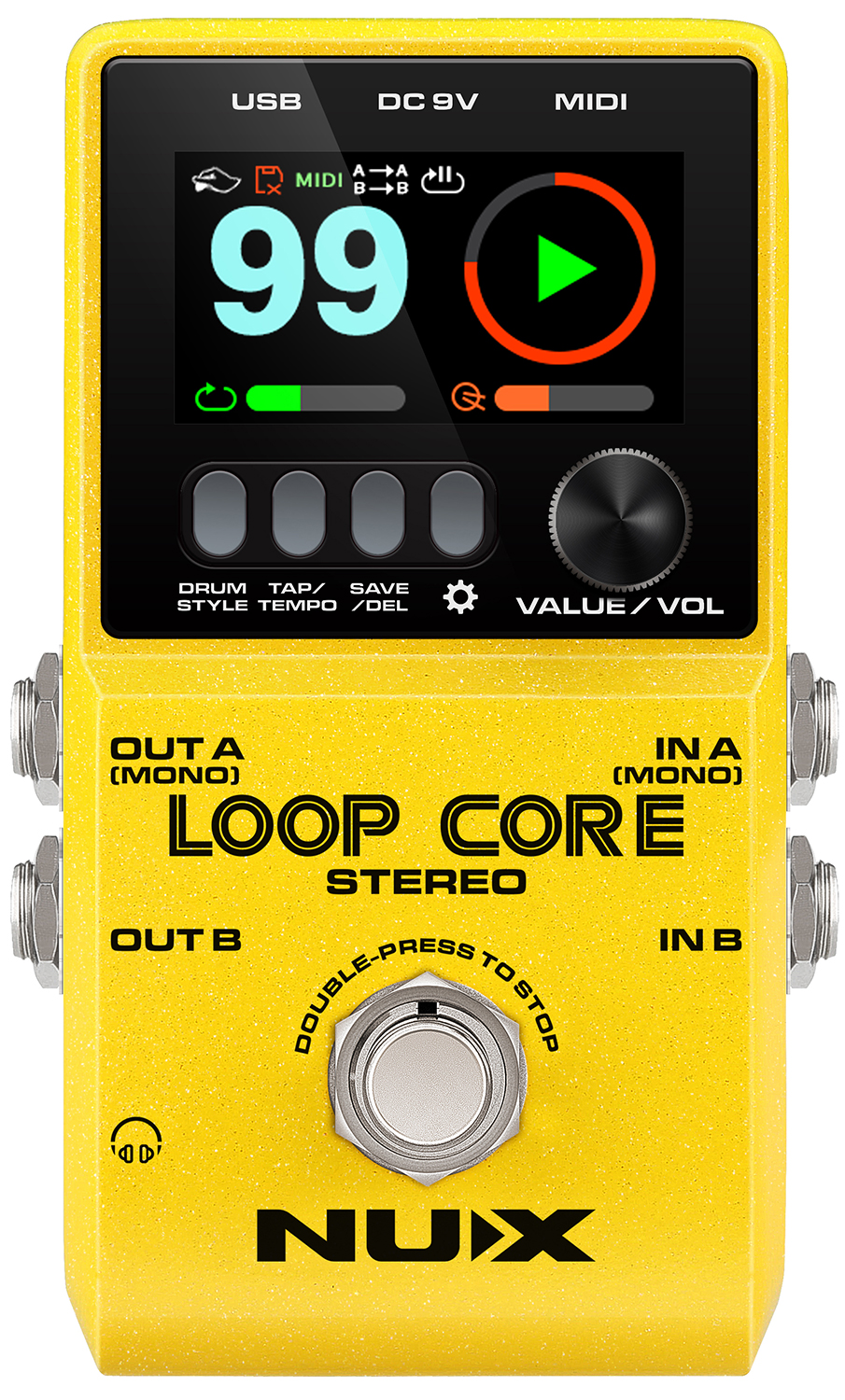

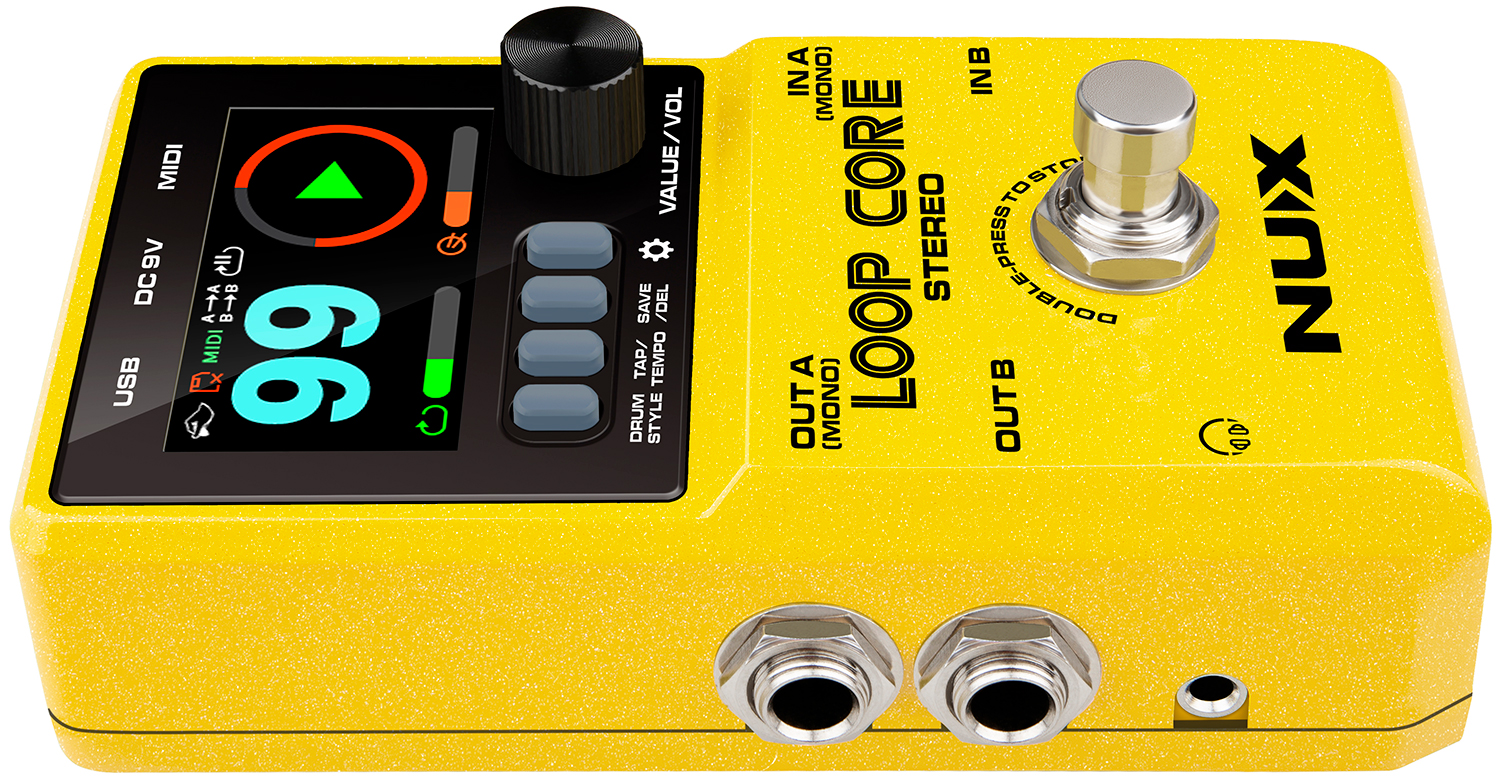

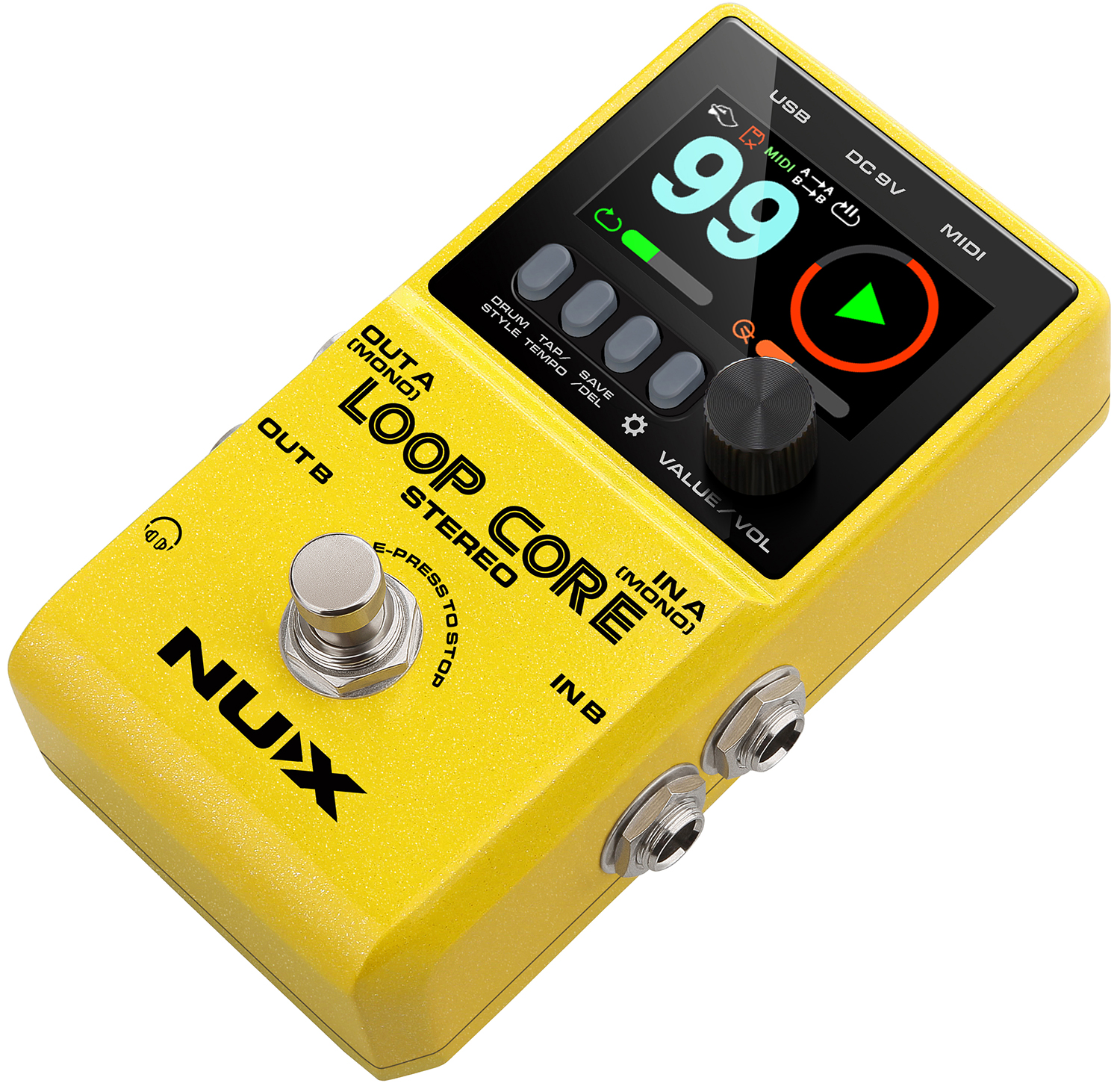

Loop Core Stereo Pedal

Next generation looper pedal with a high-definition colour LCD display, stereo inputs/outputs, and optional MIDI control. Loop Core Stereo allows you to create up to 6 hours of music phrases, save them in one of 99 provided memory slots, and play back as stereo loops or even backing tracks. 50 internal drum patterns can also be selected from for rhythm backing. Signal path can be mono, true stereo, split stereo (loop / drum machine) or direct to mixer (with cabinet simulation). A headphones output completes the package for silent loop practice or personal monitoring. A comprehensive looping machine in a standard compact pedal format.

• Built-in drum machine with 50 patterns
• Up to 6 hours recording time
• 99 loop storage slots
• Built-in cabinet simulator
• 3.5mm MIDI control input
• Full stereo signal path with headphones output
• USB-C port for firmware updates
• Requires suitable 9Vdc power adaptor (e.g. 173.290UK)

• Power supply 9Vdc power adaptor required
• DC input connection DC5521 jack (for required adaptor - pin-negative)
• Current consumption <120mA

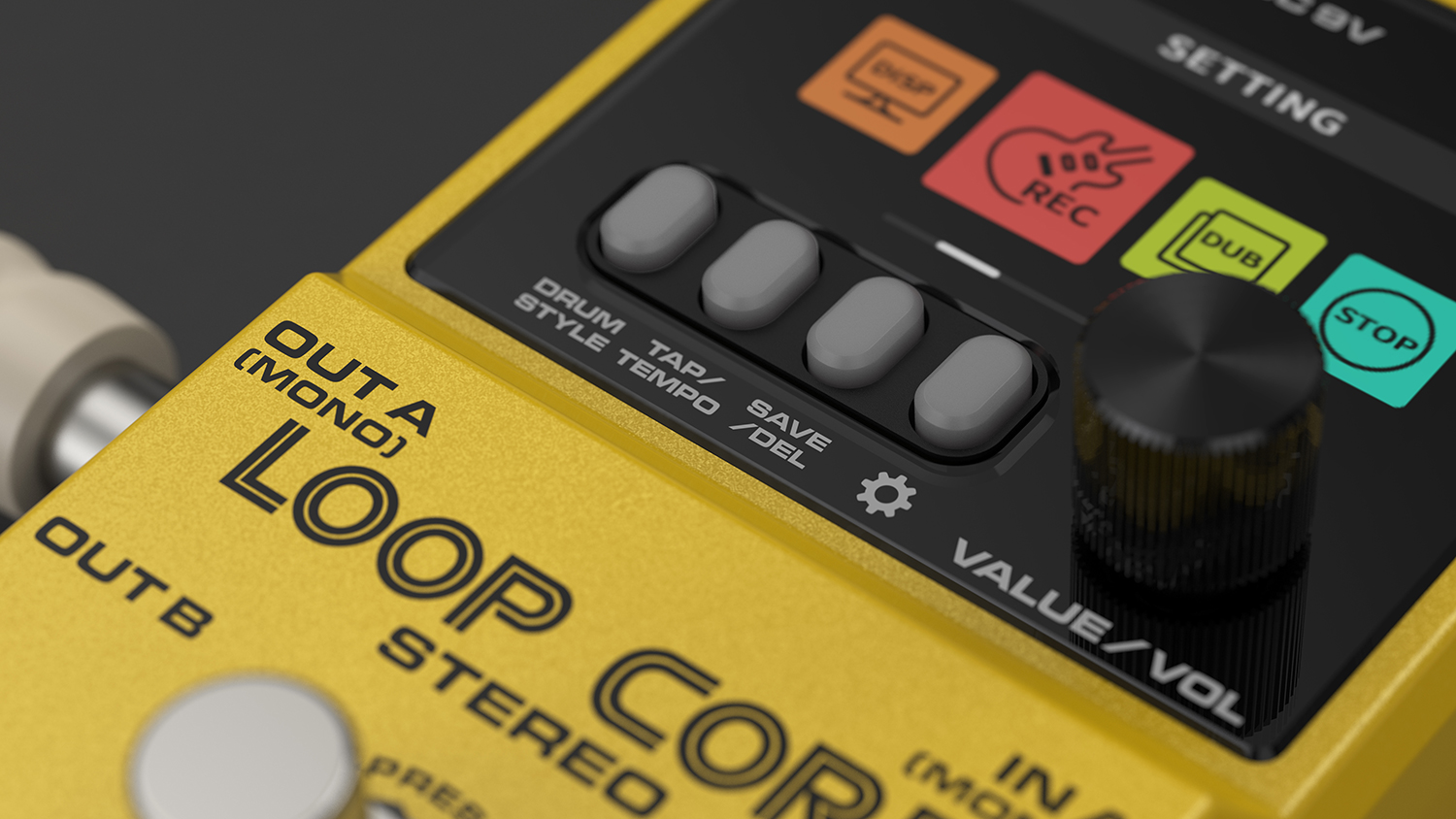

• Controls Drum, Tap, Save, Settings buttons & rotary Value control
• Inputs L+R 6.3mm mono jack (instrument or line), 3.5mm MIDI jack
• Outputs L+R 6.3mm jack outputs, 3.5mm headphones output
• Recording Up to 6 hours
• Sampling format 44.1kHz, 24-bit
• Frequency response 20Hz - 20kHz
• Memories 99
• Noise -100dBu
• Dynamic range 108dB
• Dimensions 122 x 72 x 48mm
• Weight 264g
