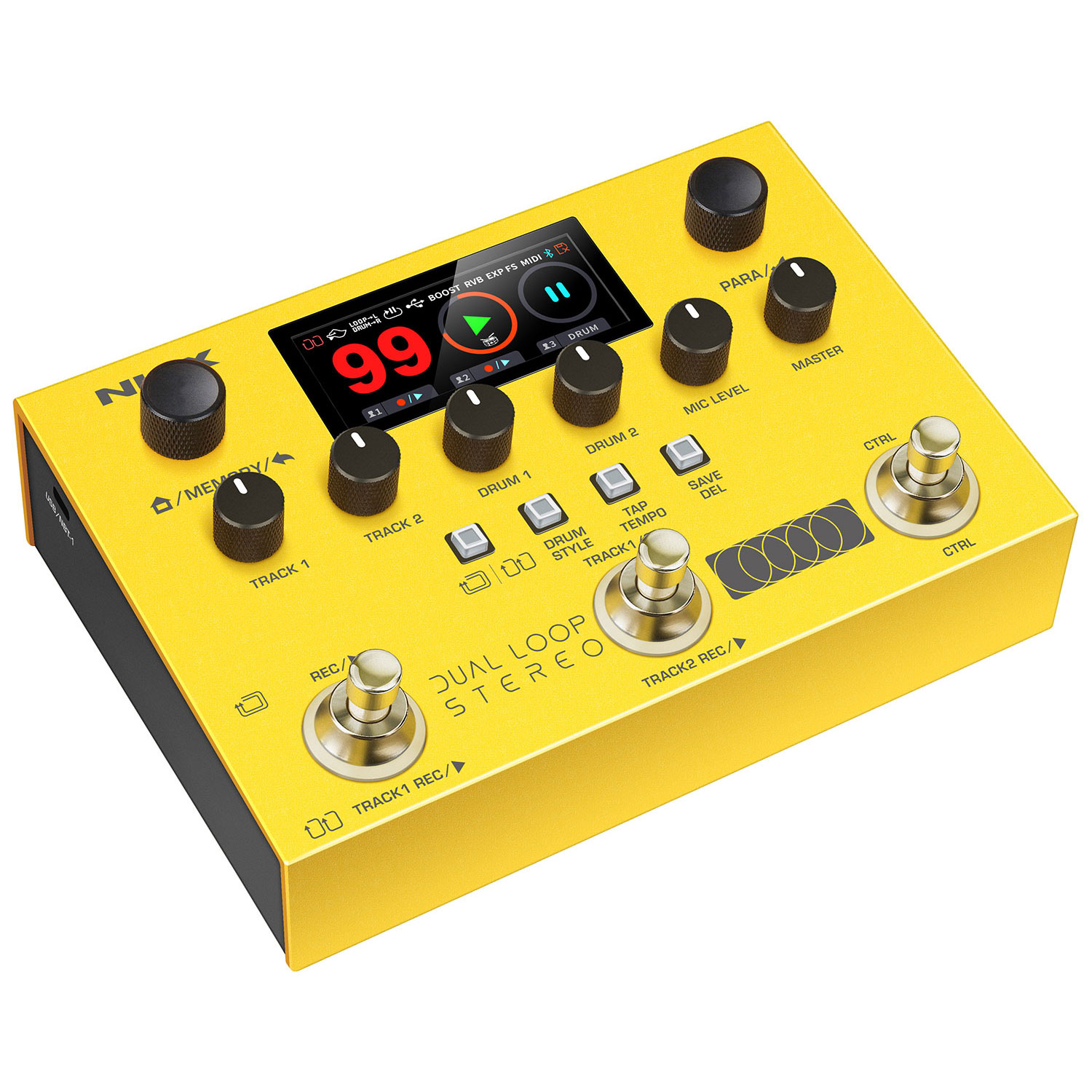

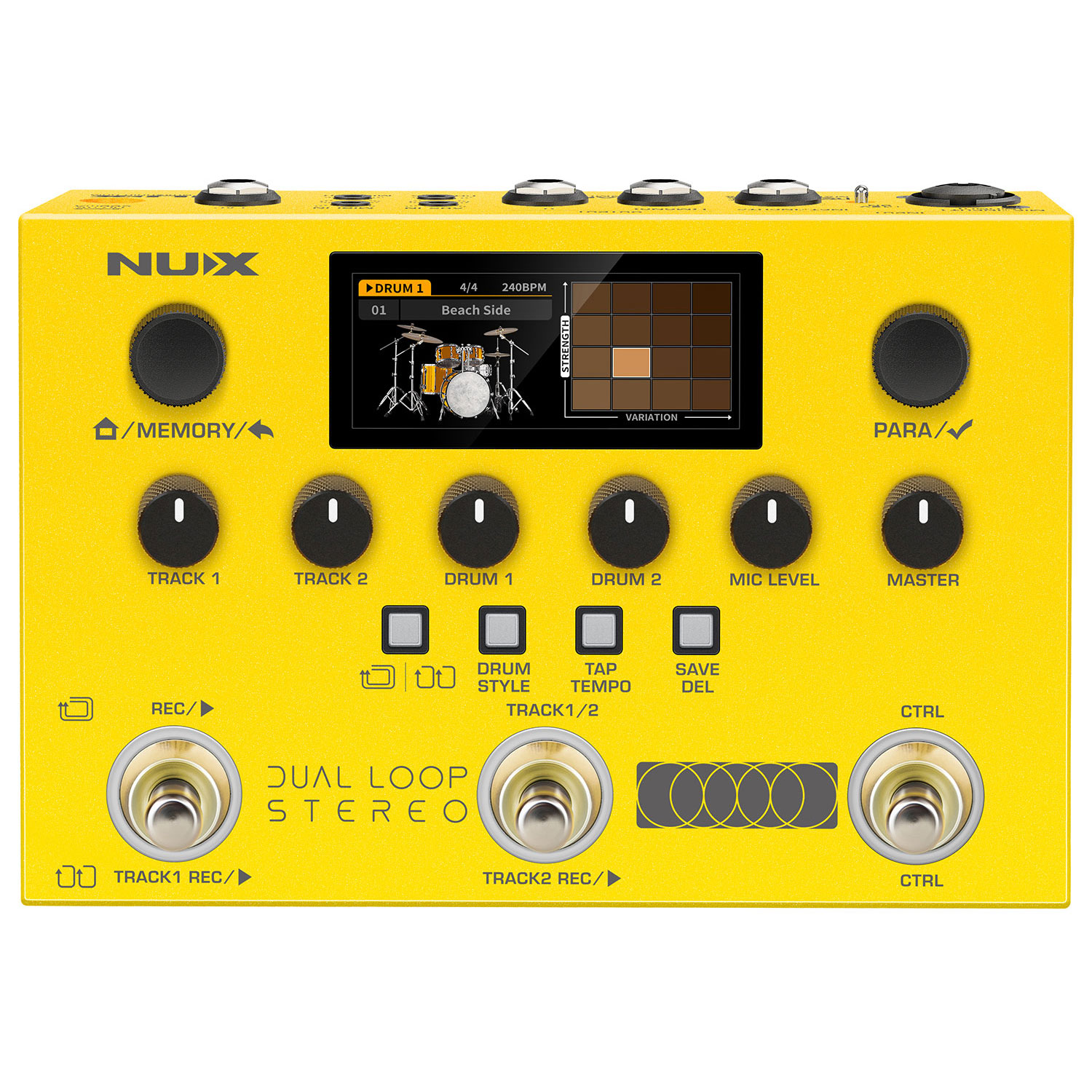

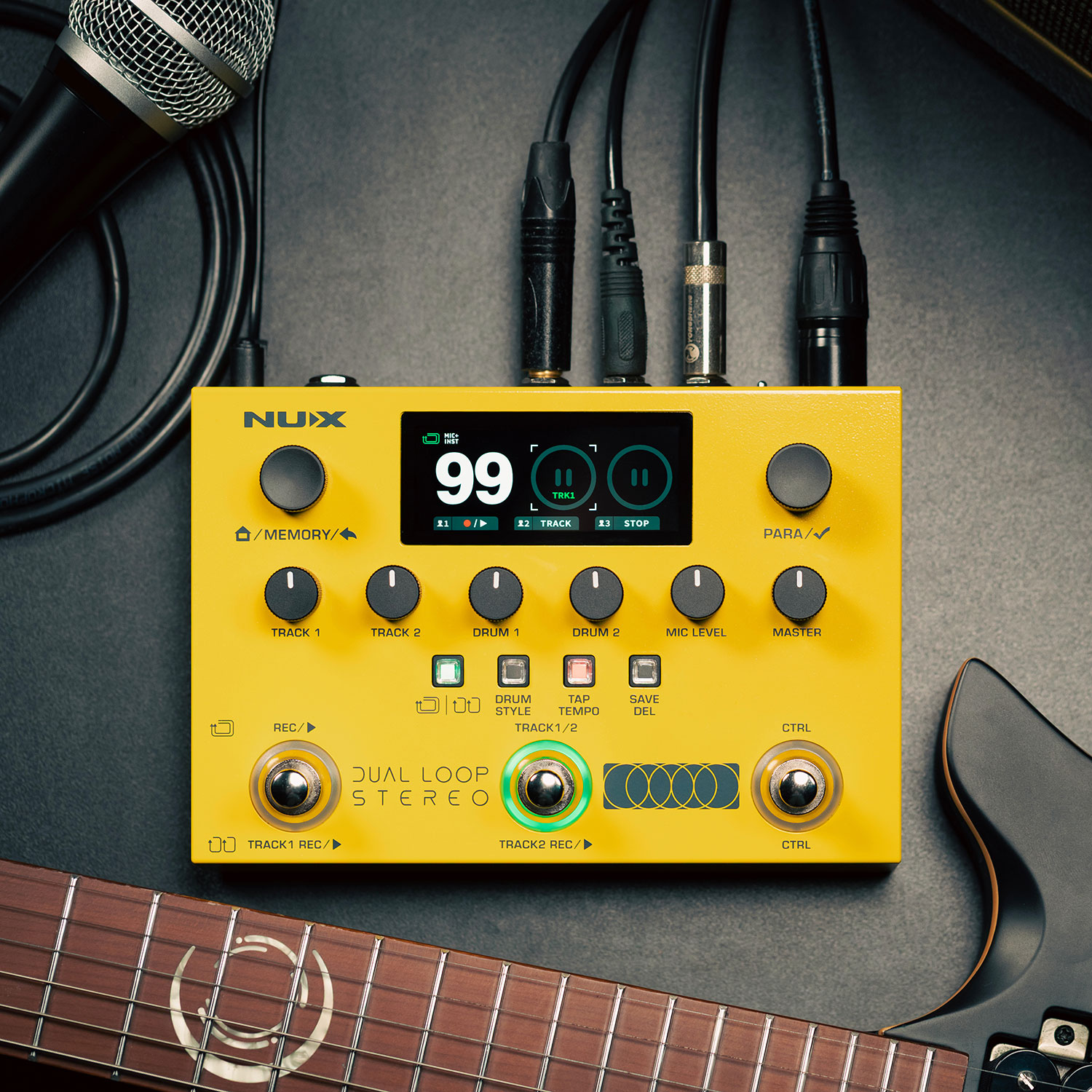

Dual Loop Stereo Pedal

Dual Loop Stereo is a complete self-accompaniment workbench for soloists and guitar/vocalists to build and manipulate rhythmic layers into complete backing tracks. Two completely independent loop tracks enable 2 separate sections of a song to be recorded, dubbed and played back at will for real dynamic song structure. A mic/line input may be used for looping vocals along with the guitar or can serve as one side of a stereo input, feeding the stereo outputs. A comprehensive drum machine has various styles available and 2 discreet selectable patterns per memory slot. A digital reverb can also be applied to rhythm tracks. An octave effect is available for creating bass lines on-the-fly and boost and amp simulation can also be used for electric guitar tones. An external footswitch or expression pedal can be connected for additional control. MIDI integration allows for further external control or for selecting patches on external equipment. Connection to a computer via USB enables the recorded loops to be saved into a DAW or loaded into the pedal at will. In total, the Dual Loop Stereo can record up to 13 hours of audio shared across 99 memories. Dual Loop Stereo has the power and flexibility to be the foundation of a live solo show or rhythmic sketchpad for songwriting.

• 99 phrase memories
• Dual independent loop tracks per memory
• 2 drum tracks per memory selectable from 640 patterns
• External pedal and MIDI connection for additional control
• Up to 13 hours total recording
• Octave, Booster and Amp simulation effects

• Power supply 9Vdc 500mA pin negative (ACD-006A recommended)
• Sampling format 44.1kHz 32-bit
• Recording Up to 13 hours (max 1.5h per track)
• Memories 99
• Accompaniment Drums: 40 groups, 640 patterns
• Effects Octave, Booster, Amp Simulation (+ Reverb for Rhythm section)
• Input level 6dBu max. (mic), 8dBu max. (line/instrument)
• Input gain 5.4dB to 63dB (mic input)
• Input impedance 2.4k Ohms (mic), 1M Ohm (line/instrument)
• Output impedance 1k Ohm (main out), 3.3 Ohm (phones)
• Display 73mm colour LCD

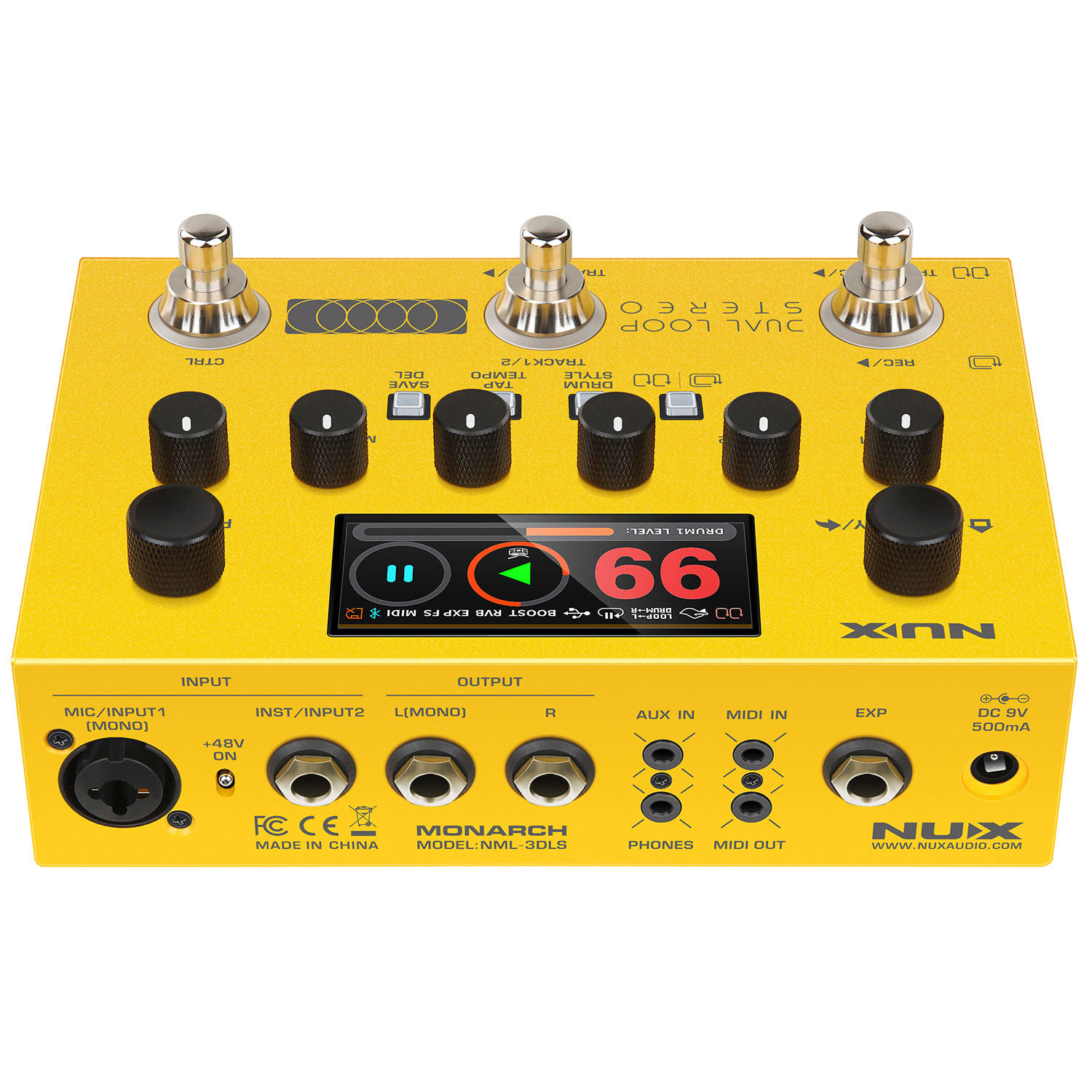

• Input connections Mic/Input 1 (XLR/6.3mm), Inst/input 2 (6.3mm)
• Output connections L/mono + R (6.3mm), Phones (3.5mm)
• Connection MIDI in/out (3.5mm), Expression (6.3mm), USB (type-C), DC (5.5x2.1mm)
• Dimensions 184 x 123 x 51mm
• Weight 912g
