MG-30 Multi-Effects Modeller Pedal
MG-30
MG-30 is a top flight modelling effect processor from the NU-X range. Dual high speed processing offers accurate modelling of 30 different amplifier options, including bias tweaking for an extra… more
- 4" colour LCD display
- Multi-function rotary & navigation controls
- High definition amplifier models
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
173.370UK
MG-30 Multi-Effect Modeler |
MG-30 | Gift Box |
MG-30 Multi-Effects Modeller Pedal
MG-30 is a top flight modelling effect processor from the NU-X range. Dual high speed processing offers accurate modelling of 30 different amplifier options, including bias tweaking for an extra dimension of response adjustment, all using the proprietary NU-X TSAC-HD algorithm. Impulse response programming presents a choice of 8 guitar cabinets, 8 bass cabinets, 8 microphones in 3 different axis positions and even 3 acoustic guitar emulation profiles. Once the main guitar tone is programmed, there are 8 effects blocks which can be assigned to different positions in the signal chain, including WAH, CMP, GATE, EFX, EQ, MOD, DLY & RVB. An expression pedal covers wah and swell effects among other possibilities. Each has modes and/or parameters which can be adjusted and saved within the patch as needed. Real-time editing uses rotary encoders and switches, making for a natural and organic process and all parameters and graphics are displayed on a vibrant 4" colour display. Add to this a fully functioning USB audio interface, phrase looper, PC/Mac editor/librarian/updater, aux input, effects loop, drum machine and NMP-2 foot-switch control and the MG-30 covers practically all bases. This unit provides all the processing power and audio quality that could be asked from any professional guitar processor at a fraction of the price of its component features.
- 4" colour LCD display
- Multi-function rotary & navigation controls
- High definition amplifier models
- Impulse response models for cabinets, microphones and acoustic emulation
- 8 distinct effect blocks with editable signal chain positions
- Built-in USB audio interface, editor/librarian and updater
- Built-in drum machine and phrase looper (up to 60secs)
- Assignable and adjustable expression pedal
- Ultra-low latency from dual NXP RT processors
- NMP-2 footswitch included for remote control
- 9Vdc power adaptor included
- Power supply 9Vdc, 400mA pin-negative (adaptor included)

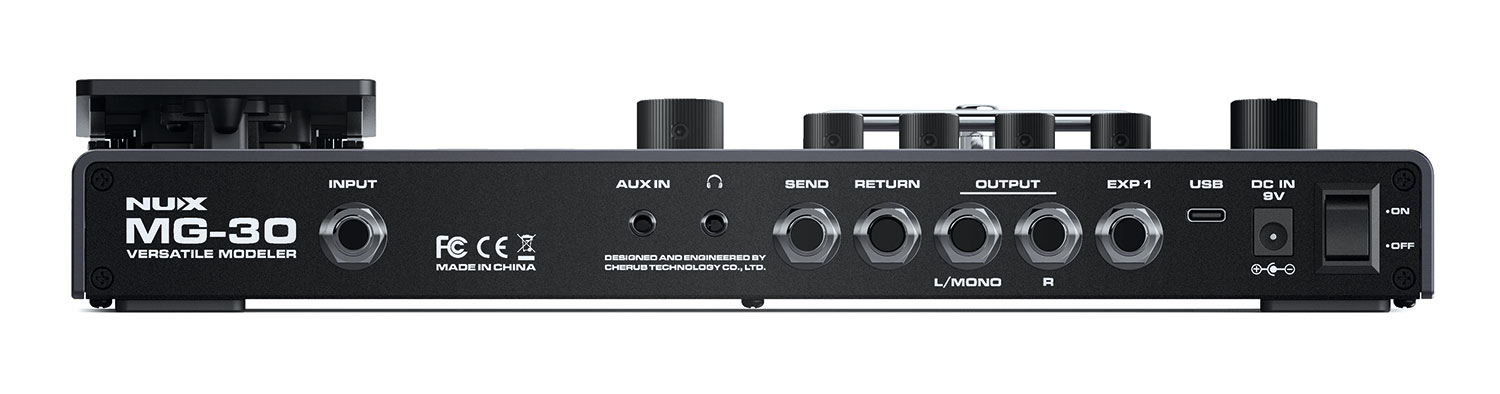

- Inputs 6.3mm jack (guitar), 3.5mm jack (aux input)
- Outputs 2 x 6.3mm jack (L/mono + R) to amp or mixer
- Sends : returns 6.3mm jack send (1k ohm) & return (220k ohm)
- Headphone output 3.5mm stereo jack
- USB port USB type-C for audio interface, PC/Mac editing & updating
- Remote control connection EXP1 TRS 6.3mm jack
- Sampling format 48kHz, 32-bit
- Frequency response 20Hz - 20kHz (±1dB)
- Input impedance 1M ohm
- Output impedance 1k ohm
- Dynamic range 110dB
- Dimensions 313 x 166 x 54mm
- Weight 1.5kg
In the Box
- MG-30 multi-effects modeler pedal
- 1 x 9Vdc power adaptor (UK)
- 1 x NMP-2 dual footswitch (173.352UK)
- 1 x patch cable
- 1 x USB cable
Manuals
Downloads
