CSD Compact Mixers with BT wireless and DSP Effects

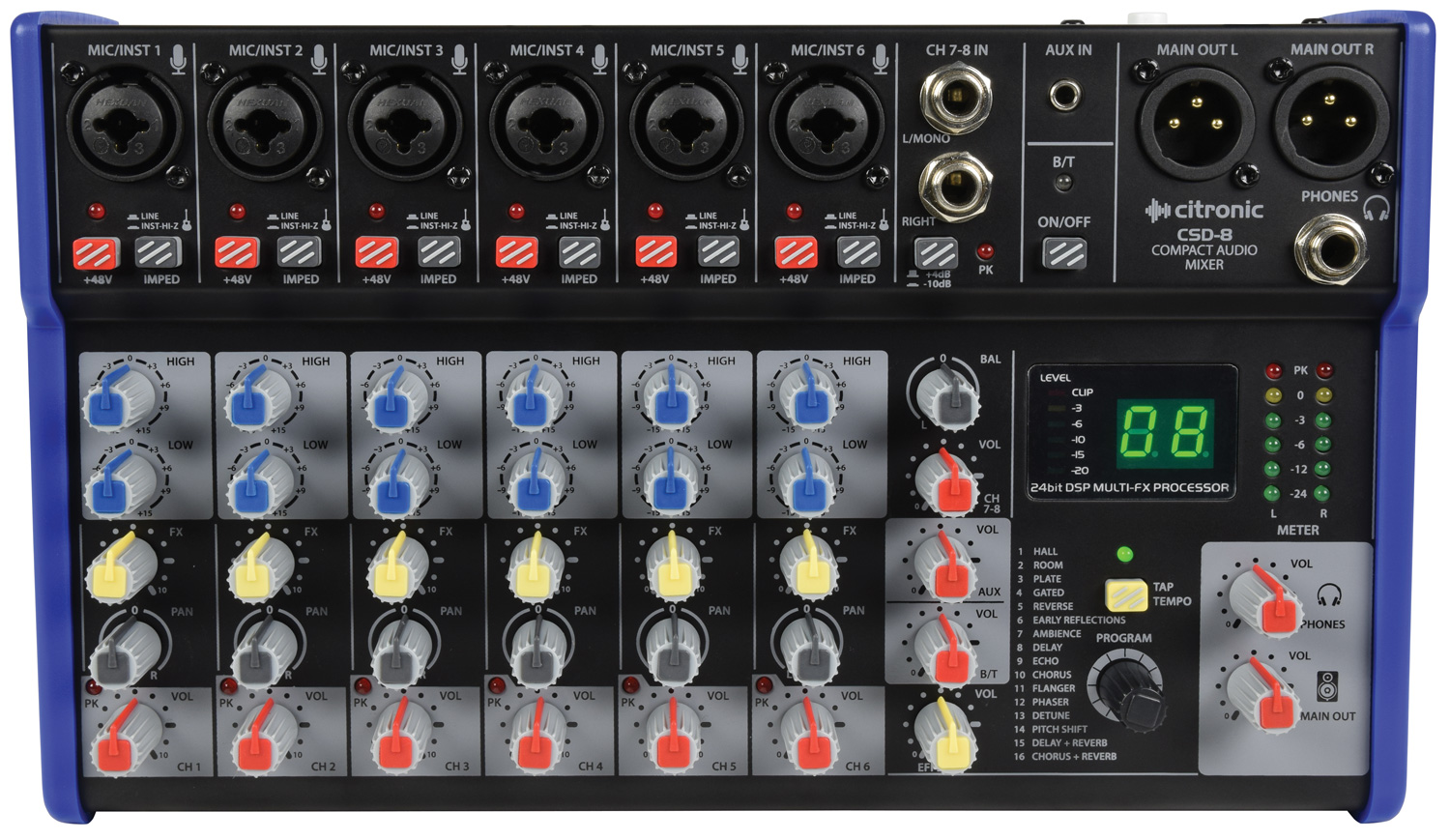

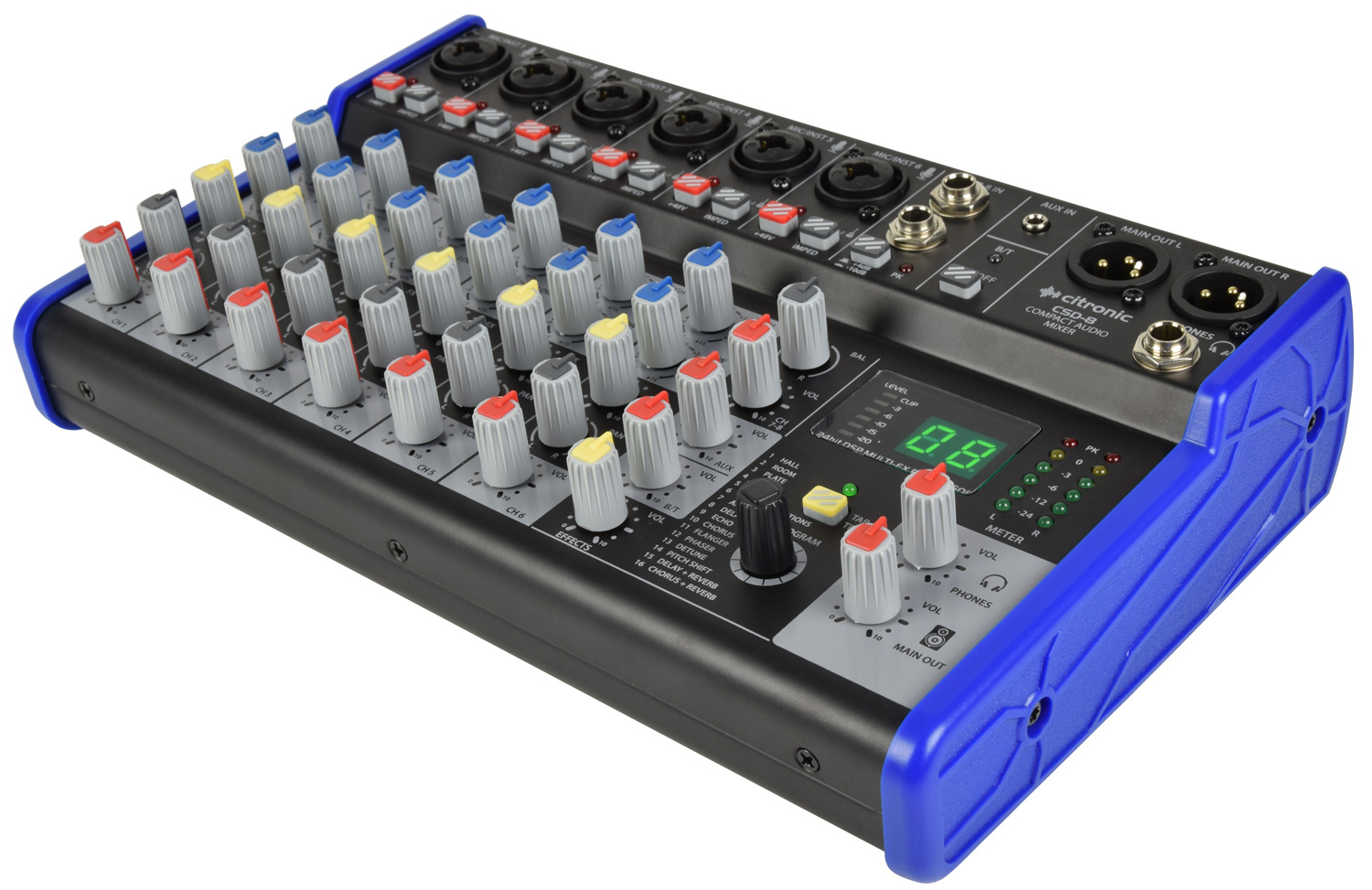

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls. The Bluetooth pairing button enables wireless connection to a smart phone or tablet for playback. All CSD mixers feature a 16 program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

• Bluetooth pairing for smartphone or tablet
• 16 program, 24-bit DSP effects engine
• Individually switchable +48V phantom power

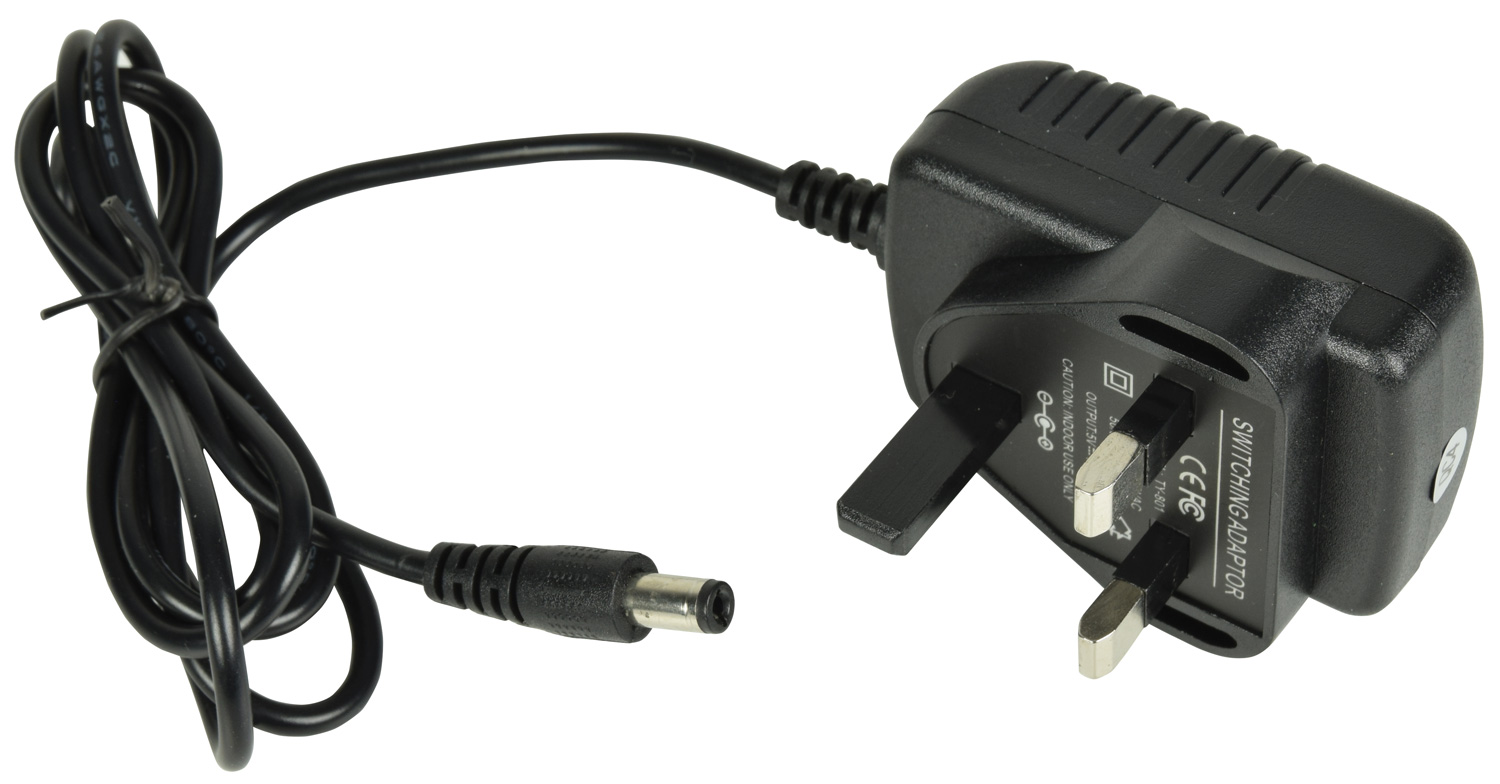

• Supplied with DC power adaptor

• Weight 1.46kg

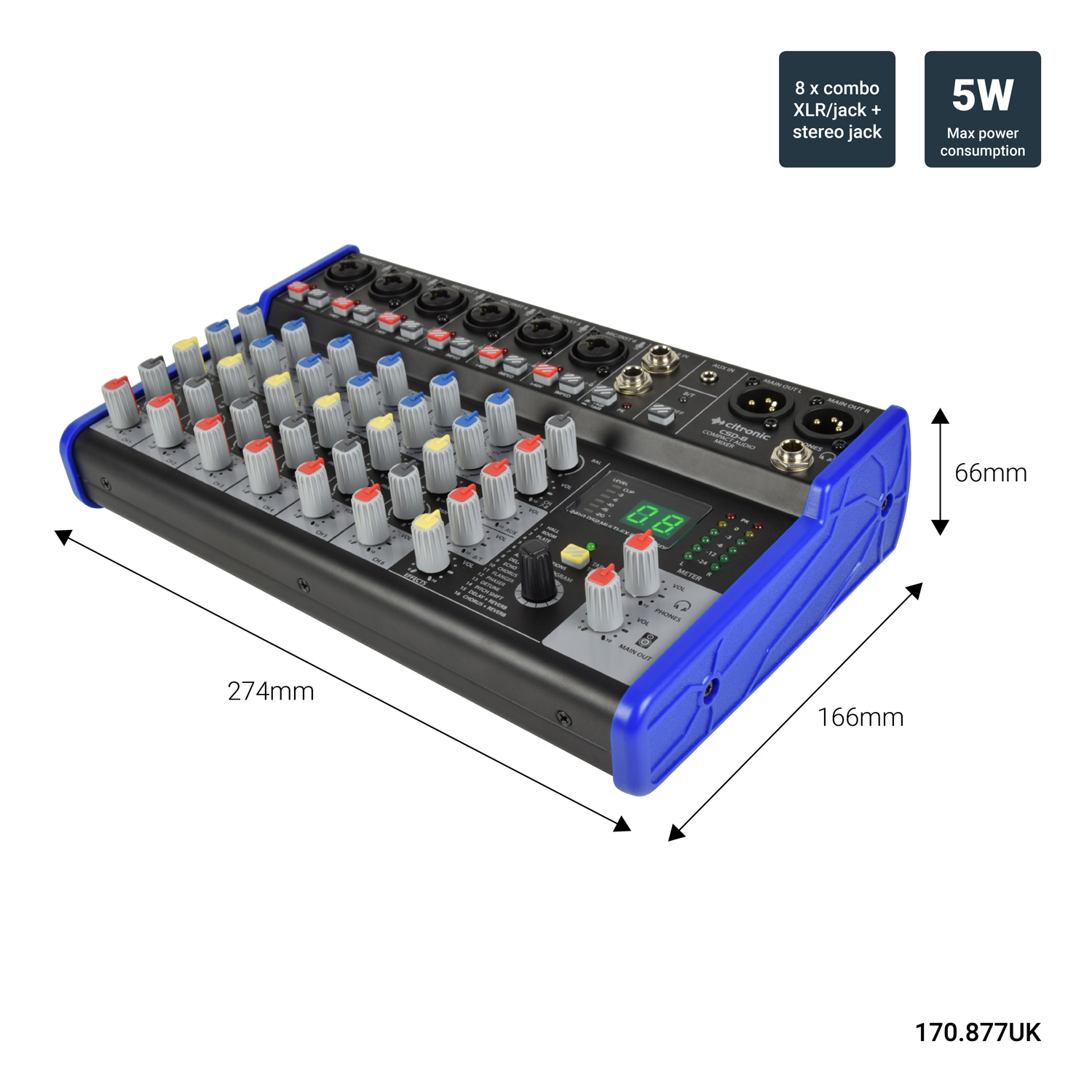

• Dimensions 274 x 166 x 66mm
• Inputs 6 x combo XLR/jack + stereo jack

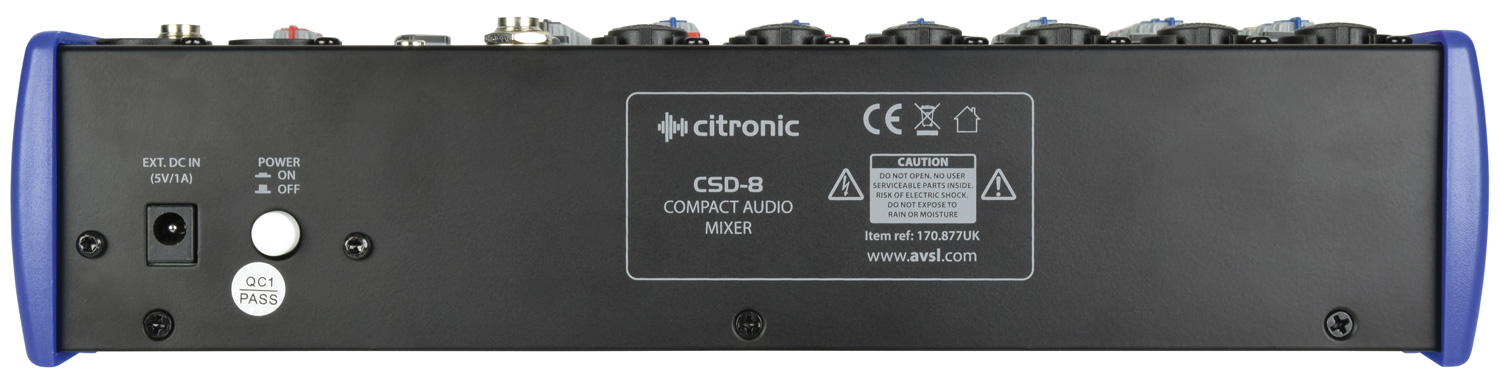

• Power supply 5Vdc 1A (adaptor included)
• Output Left + Right balanced XLR
• Effects 16 program DSP (24-bit sigma-delta, 40kHz)
• Audio source Bluetooth receiver
• Bluetooth version 2.1 + EDR
• Power consumption max. 5W
• EQ: low ±15dB @ 80Hz
• EQ: high ±15dB @ 12kHz
• Phantom power +48V individually switchable (XLR inputs only)
• Input impedance : mic 2k Ohms
• Input impedance : instrument 1M Ohms
• Input impedance : line 20k Ohms
• Frequency response 20Hz - 20kHz (±0.5B)
• THD +N <0.03% @ 1kHz
• Dynamic range 102dB
• Crosstalk : stereo 92dB
• Output impedance 120 Ohms
• Max. output level 3Vrms
