Q-PAD Mini Mixer with USB/BT and Audio Interface
Q-PAD
A multi-functional mixer in a compact format for live or studio applications. Powered from the rear USB Type-C connection, this port also acts as a USB audio interface for direct recording and… more
- USB Type-C power supply and integrated PC audio interface
- USB mp3/wma digital audio player
- Bluetooth receiver for wireless audio streaming
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
170.814UK
Q-PAD Compact Mixer + USB/BT/mp3 |
Q-PAD | Gift Box |
Q-PAD Mini Mixer with USB/BT and Audio Interface
A multi-functional mixer in a compact format for live or studio applications. Powered from the rear USB Type-C connection, this port also acts as a USB audio interface for direct recording and playback from a PC without an additional power supply. 2 mono channels can accept an XLR input for microphone or 6.3mm plug for line or instrument (selectable) with switchable 48V phantom power for condenser microphones. These can be routed to the internal delay effect section for echo effects if desired. An additional stereo line channel can accept 6.3mm plugs or a single plug for mono operation. Each channel has a Gain control with Bass and Treble EQ controls. A USB type-A connector is provided for playback of mp3 files from a pen drive and the media player even has a built-in Bluetooth receiver for wireless playback from a smart phone or tablet. Outputs include main outs, recording and headphone connections. Comprehensive features make this a useful tool for live performance, project studios, laptop DJs and podcasting.
- USB Type-C power supply and integrated PC audio interface
- USB mp3/wma digital audio player
- Bluetooth receiver for wireless audio streaming
- Individually switchable +48V phantom power
- Power supply 5Vdc 2A (USB type-C adaptor included)

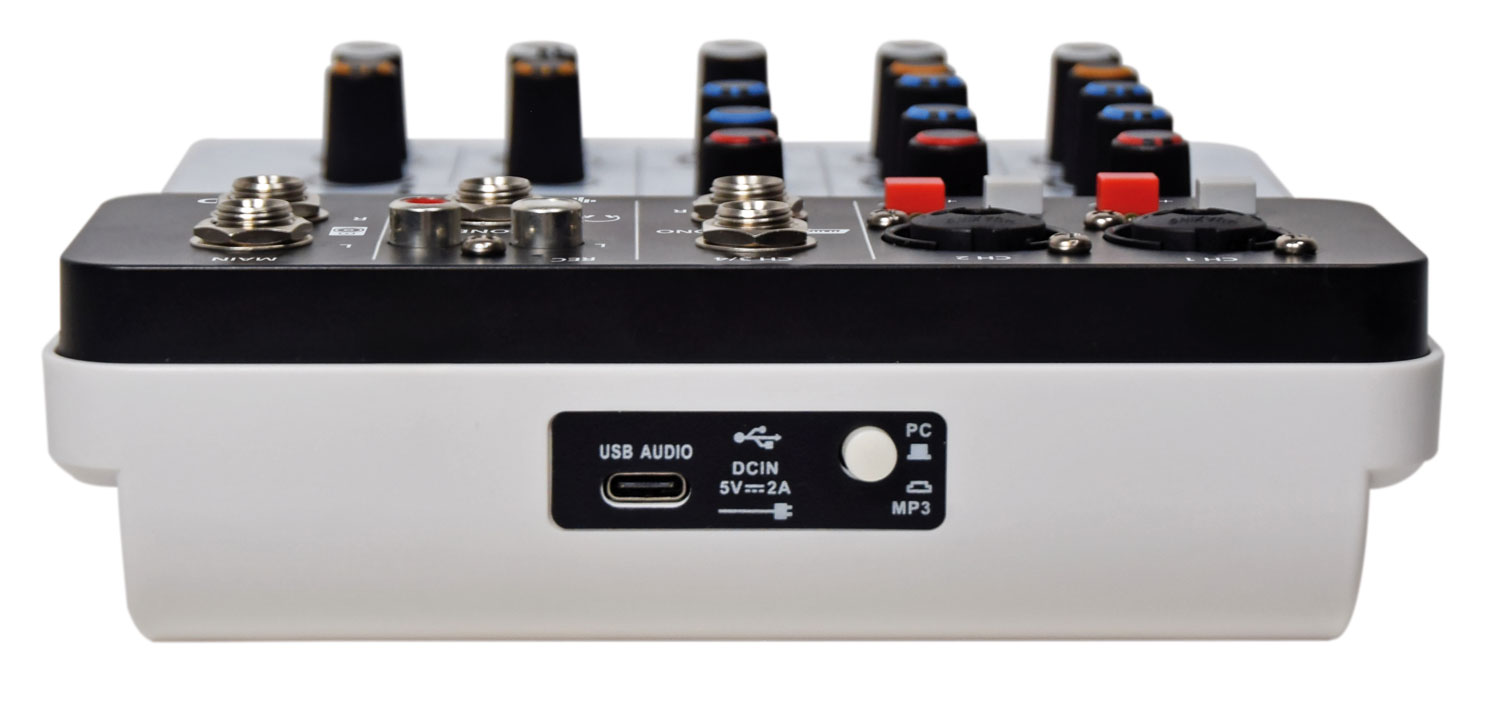

- USB computer interface Type-C (with power connection) for PC
- Audio source USB audio player, Bluetooth receiver

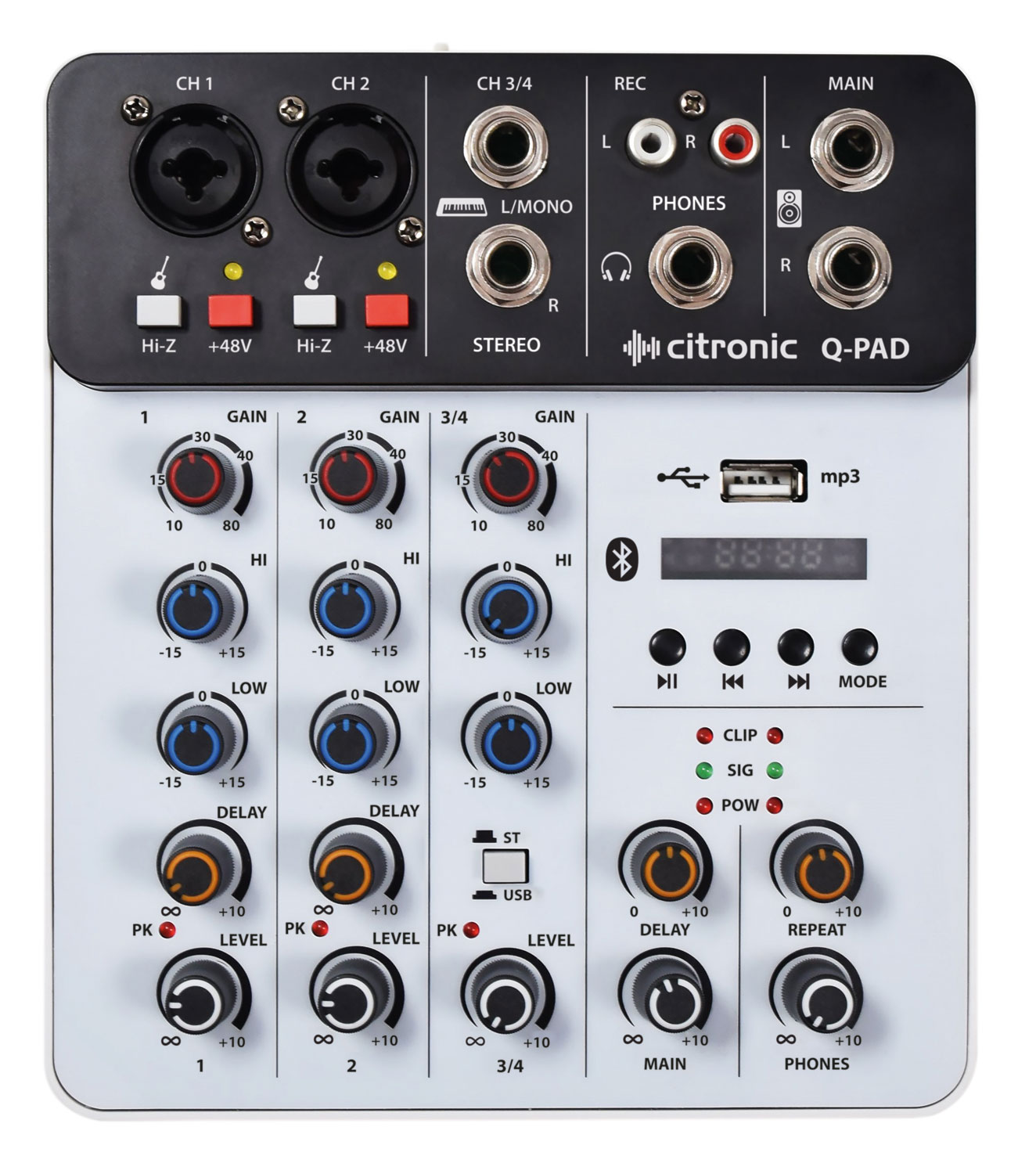

- Inputs 2 x mono XLR/jack, Stereo L+R jack
- Outputs Main out L+R jack, Phones out stereo jack, REC out L+R RCA
- Effects Adjustable delay effect
- Phantom power +48V (switchable)
- Dimensions 182 x 160 x 50mm
- Weight 453g
In the Box
- Q-PAD Mini Mixer
- USB-C power adaptor
