IP20 24V Seamless COB LED Strip 5m
IP20 WW
Lyyt Seamless COB LED Strip provides a continuous 'no spot' linear lighting solution. The COB (chip on board) technology consists of 528 tightly packed LEDs per metre and a phosphor layer coating… more
- Seamless 'no spot' finish
- 528 LED's/m
- Self-adhesive backing for easy installation
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
156.665UK
IP20 24V COB LED Strip 5m - CW |
IP20 CW | Poly Bag |
|
156.666UK
IP20 24V COB LED Strip 5m - WW |
IP20 WW | Poly Bag |
|
156.668UK
IP20 24V COB Strip 5m - Very WW |
IP20 VWW | Poly Bag |
Recommended Accessories |
|||
|
153.759UK
Power Supply 24Vdc 2.50A 60W |
24Vdc 2.50A 60W | Box Label |
|
153.760UK
Power Supply 24Vdc 4.16A 100W |
24Vdc 4.16A 100W | Box Label |
|
153.761UK
Power Supply 24Vdc 6.25A 150W |
24Vdc 6.25A 150W | Box Label |
|
153.762UK
Power Supply 24Vdc 8.33A 200W |
24Vdc 8.33A 200W | Box Label |
|
153.763UK
Power Supply 24Vdc 10.4A 250W |
24Vdc 10.4A 250W | Box Label |
|
153.764UK
Power Supply 24Vdc 12.5A 300W |
24Vdc 12.5A 300W | Box Label |
|
153.793UK
RF 1-Colour LED Controller |
Box Label | |
|
156.649UK
1 Colour COB Connector X 5pk |
10mm X | Poly Bag |
|
156.651UK
1 Colour COB Connector T 5pk |
10mm T | Poly Bag |
|
156.653UK
1 Colour COB Connector L 5pk |
10mm L | Poly Bag |
|
156.655UK
Single Colour COB Connector |
10mm Tape to Tape | Poly Bag |
|
156.658UK
Single Colour COB Flexible Link - 5 Pack |
1-Colour 10mm | Poly Bag |
IP20 24V Seamless COB LED Strip 5m
Lyyt Seamless COB LED Strip provides a continuous 'no spot' linear lighting solution. The COB (chip on board) technology consists of 528 tightly packed LEDs per metre and a phosphor layer coating which diffuses the LED's into a seamless array of light. The flexible COB strip is supplied on a 5m reel and can be cut to desired length along the designated cutting points, the strip is equipped with an adhesive backing for easy installation. The 24Vdc COB strip has a high CRI of 90 making it suitable for a wide variety of applications, such as in hospitality, retail, offices, displays, exhibitions and more. IP20 versions are for indoor use only.
- Seamless 'no spot' finish
- 528 LED's/m
- Self-adhesive backing for easy installation
- Low voltage (24Vdc) and power consumption
- Flexible and lightweight
- IP20
- Colour temperature 3000K
- Colour Warm White
- IP rating IP20
- Voltage 24Vdc
- Number of LEDs 528/m
- Beam angle 180°

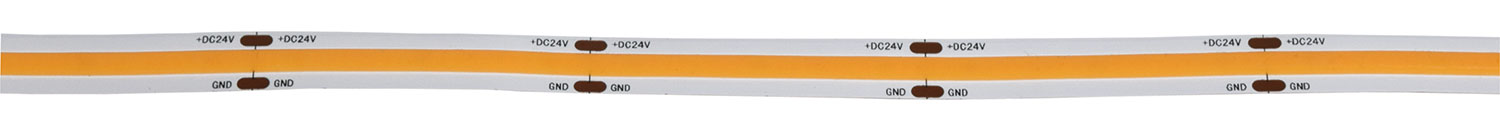

- Cut intervals 45.45mm
- Reel length 5m
- LED : type Sanan
- LED : spacing 2mm
- Current 500mA per metre
- Power consumption per metre 12W/m
- Colour rendering index (CRI, Ra) Ra>90
- Cross-section 10 x 2mm
- Weight 0.126Kg
- IP rating IP20
In the Box

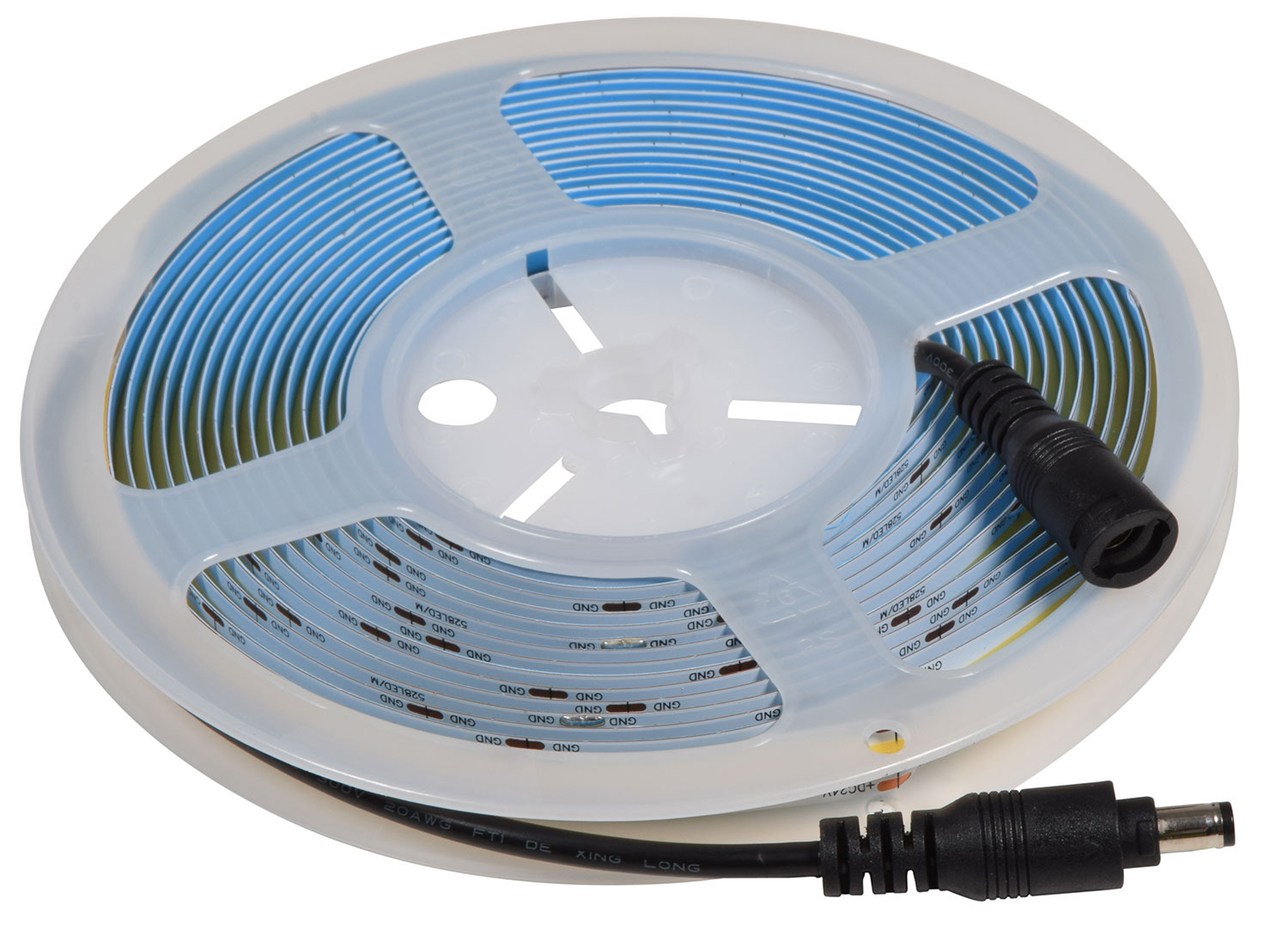

- 1 x 5m COB LED Strip
