RF 1-Colour LED Controller / Dimmer
153.793UK
In-line controller for low voltage 12-24Vdc single colour LED tape with DC jack input and output. Controlled via the supplied handheld RF 14-key remote control with access to dimming and built-in… more
- Compatible with single colour LED tape 12-24Vdc
- Discreet, miniature design
- 4 pre-set brightness modes
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
153.793UK
RF 1-Colour LED Controller |
Box Label |

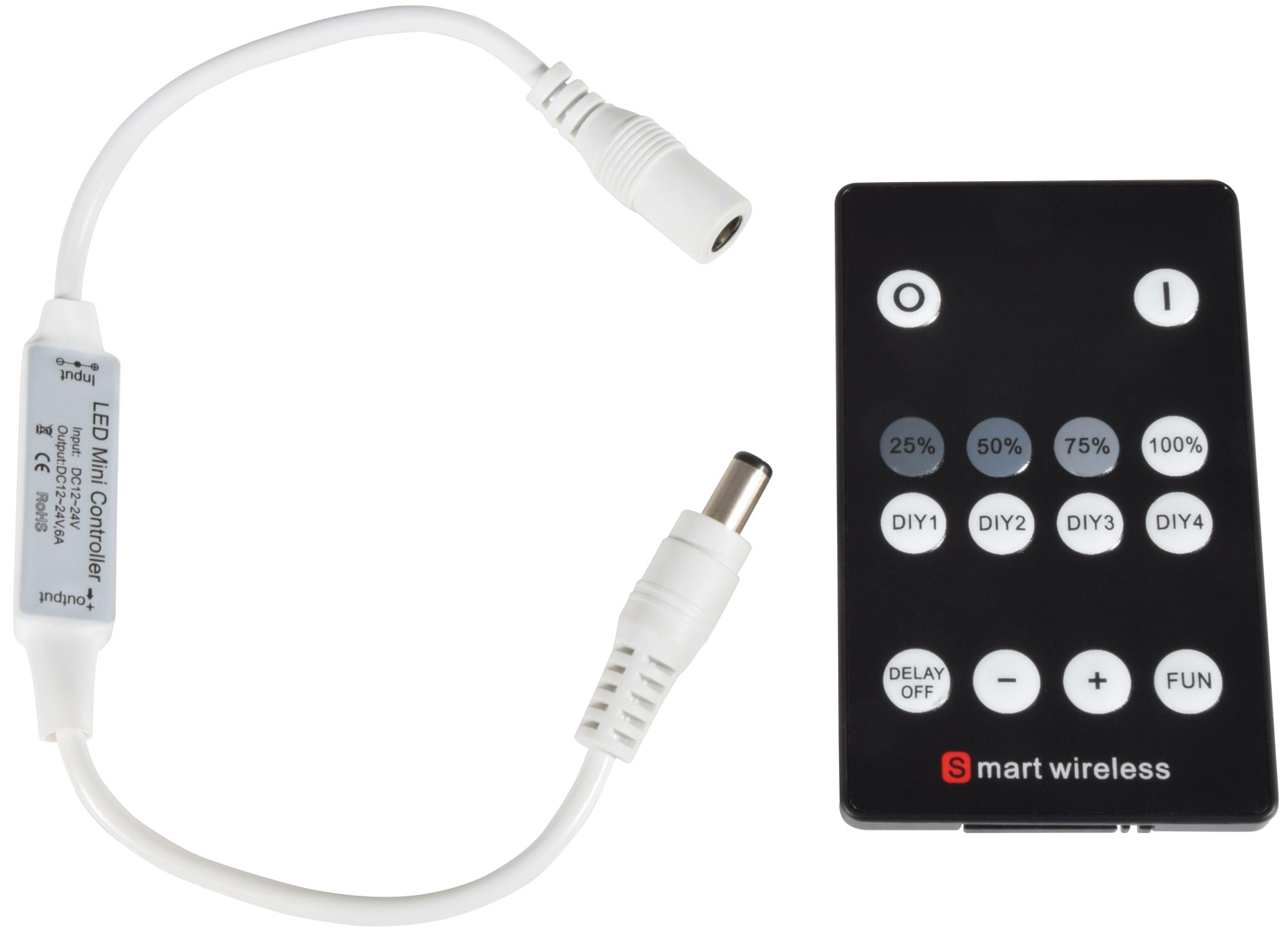

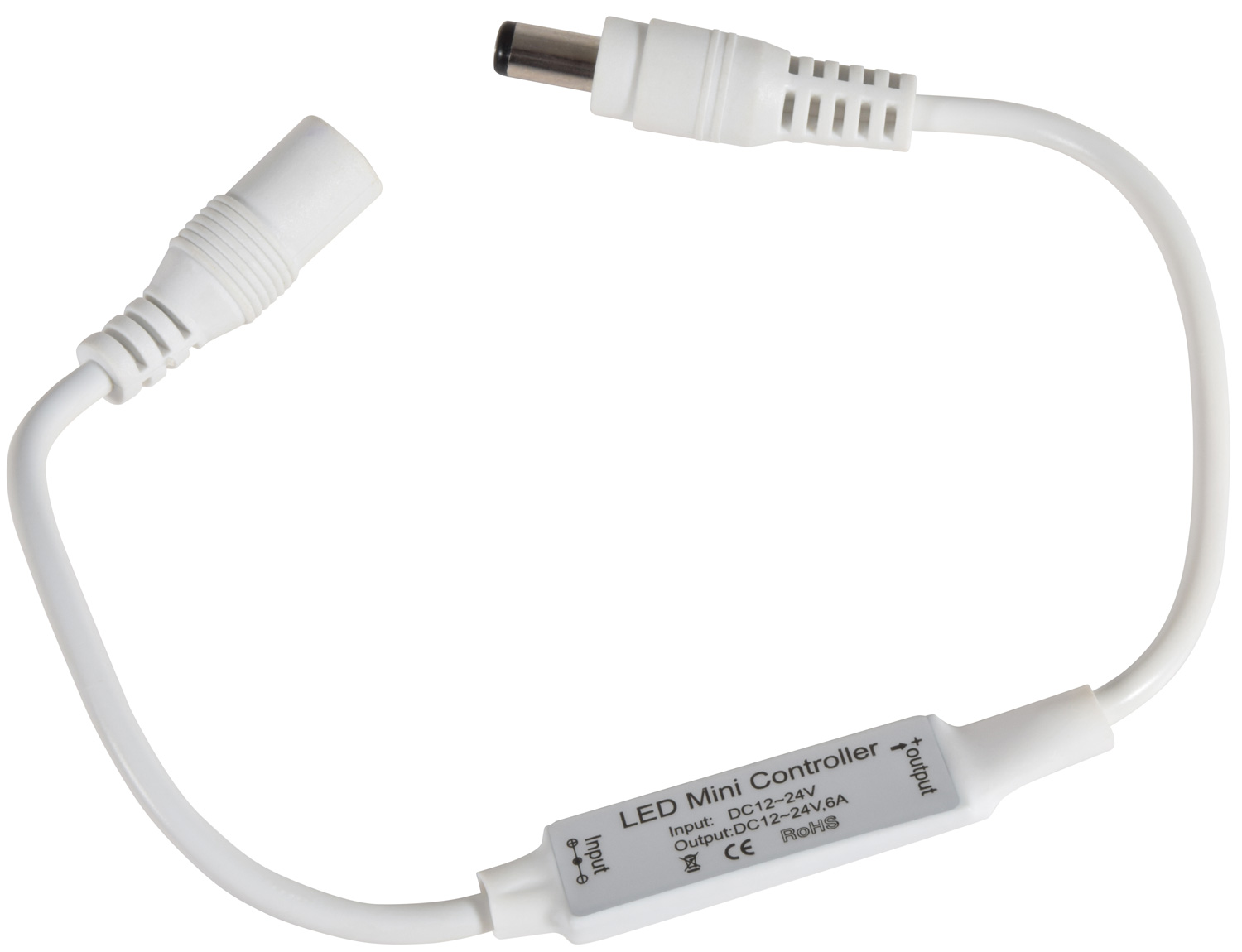

RF 1-Colour LED Controller / Dimmer

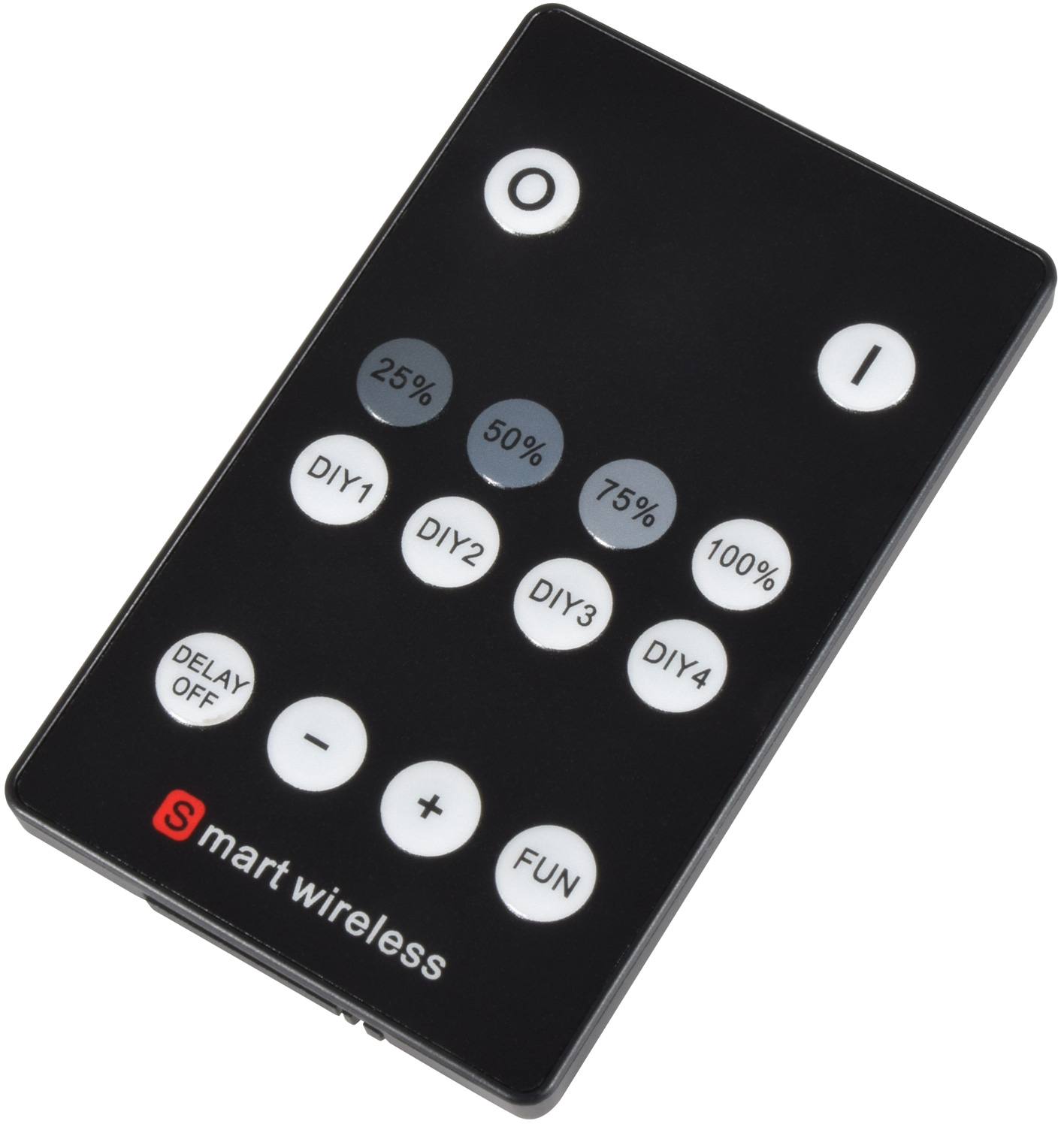

In-line controller for low voltage 12-24Vdc single colour LED tape with DC jack input and output. Controlled via the supplied handheld RF 14-key remote control with access to dimming and built-in pattern programs for dynamic displays and mood lighting applications.
- Compatible with single colour LED tape 12-24Vdc
- Discreet, miniature design
- 4 pre-set brightness modes
- 2 dynamic modes
- 4 DIY brightness modes
- Delay off mode
- Power supply 12-24Vdc
- Controls Off/on, speed+/-, bright+/-, 25/50/75/100%, delay off, 'fun' mode, DIY1-4
- Input 2.1/5.5 DC jack socket
- Output 2.1/5.5 DC jack plug
- Current max. 6A
- Carrier frequency 433.92MHz
- Remote battery 1 x CR2025
- Dimensions : controller 300x20x20mm
- Dimensions : remote 85x50x5mm
- Weight 36g
In the Box
- RF 1-Colour LED Controller
Manuals
Downloads
