Seamless Single Colour COB Tape Connectors
10mm 9-way
156.647UK

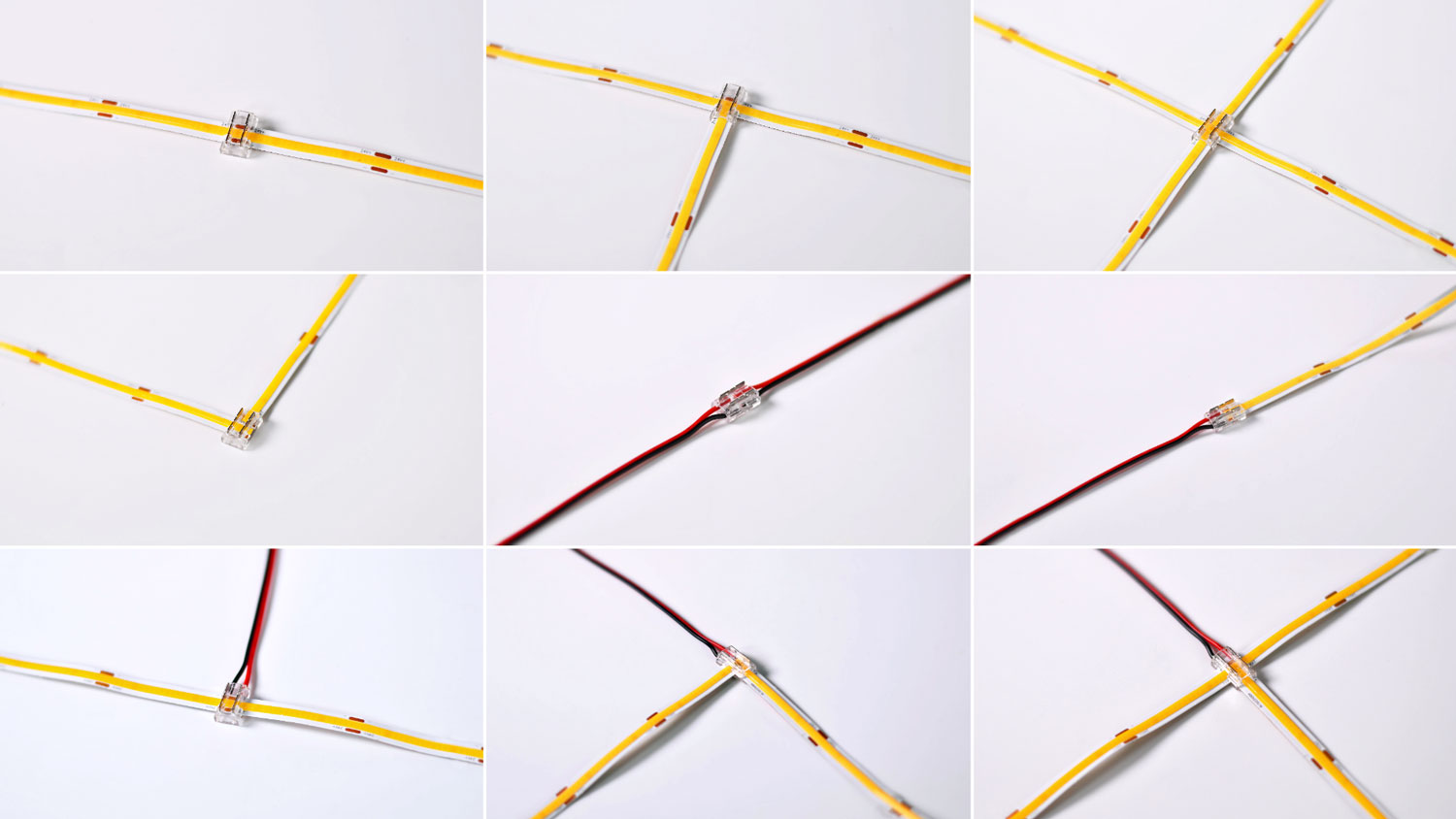

Transparent COB tape connectors for a seamless installation. Connect your tape together in multiple configurations and then crimp with pliers to ensure a gap free professional look. No need for… more
- Insert the LED Tape into the connector in the desired configuration and crimp with a pair of pliers.
- For use with 8mm and 10mm wide IP20 COB LED Tape
- 10mm version compatible with cool white (156.665UK) warm white (156.666UK) and very warm white (156.668UK) COB LED Strip
Seamless Single Colour COB Tape Connectors
Transparent COB tape connectors for a seamless installation. Connect your tape together in multiple configurations and then crimp with pliers to ensure a gap free professional look. No need for soldering!
- Insert the LED Tape into the connector in the desired configuration and crimp with a pair of pliers.
- For use with 8mm and 10mm wide IP20 COB LED Tape
- 10mm version compatible with cool white (156.665UK) warm white (156.666UK) and very warm white (156.668UK) COB LED Strip
- 8mm version compatible with COB DIY Kits cool white (153.808UK) warm white (153.806UK) and natural white (153.807UK)
- Take care that the polarity is in the correct orientation before crimping on the connectors. The + sides are marked on the connectors. Diagrams are provided in the instruction manual.
- Tape version 10mm Single Colour COB
- Dimensions 5.3 x 11.6 x 17.4mm
- Voltage 0-36V
- Current max. 5A
- Tape version Single Colour COB
- Gauge 0.35-0.5mm2 AWG20-22
- IP rating IP20
In the Box

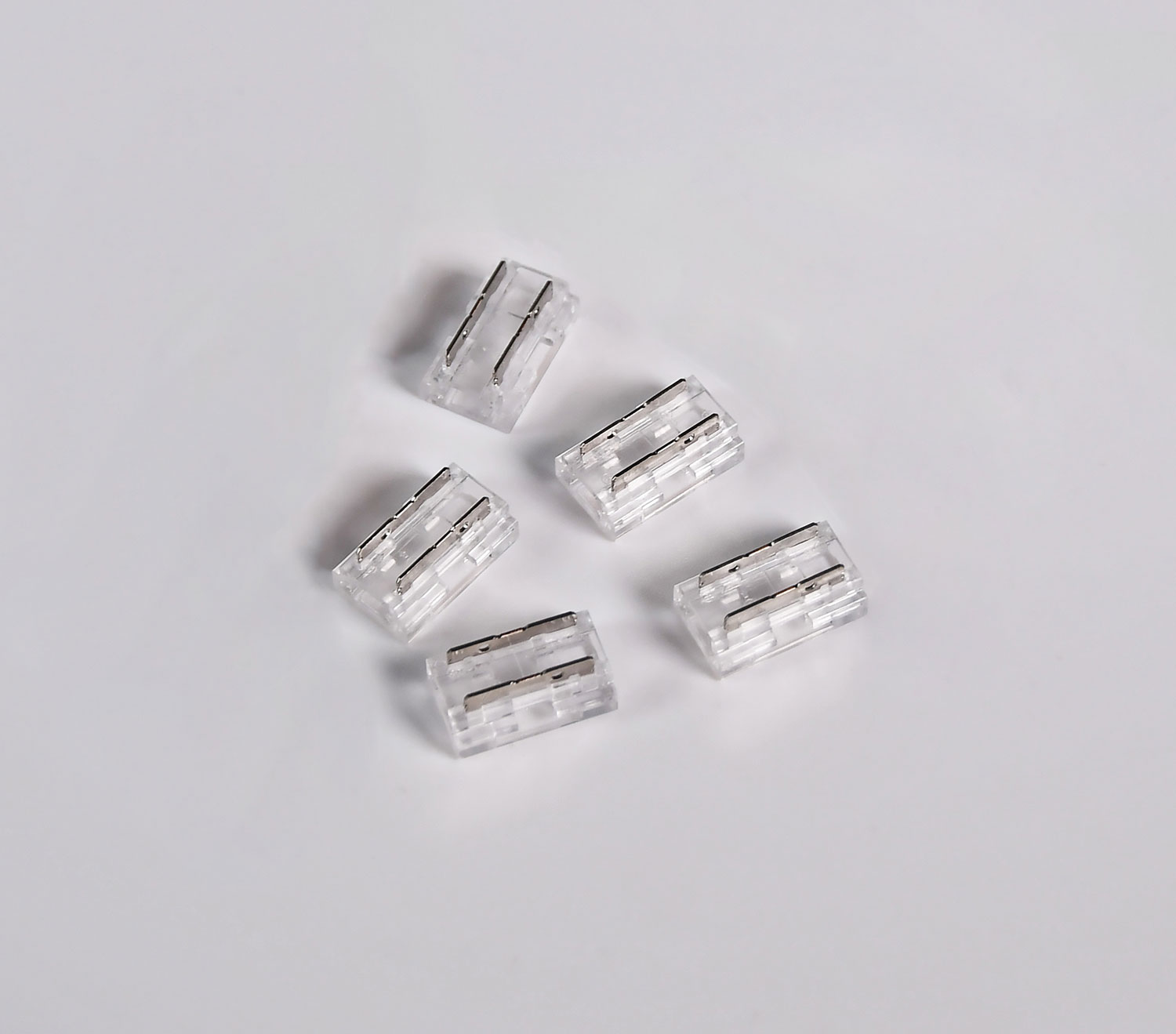

- Bag of 5 connectors
