Slim Heavy Duty Full Motion TV Wall Bracket 47" to 90"
129.569UK
SFMXL800
Ideal for larger screens with 800 x 600 VESA mounts and up to 90" in screen size, this full motion bracket has a heavy duty twin arm design providing both strength and flexibility. Easy to assemble… more
- Suitable for larger LED/LCD screen sizes 47" to 90" and up to 70kg in weight
- Compatible with VESA hole patterns up to 800 x 600
- -5° to 10° tilt mechanism
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
129.569UK
Slim Full Motion XL TV Bracket |
Gift Box |
Slim Heavy Duty Full Motion TV Wall Bracket 47" to 90"
Ideal for larger screens with 800 x 600 VESA mounts and up to 90" in screen size, this full motion bracket has a heavy duty twin arm design providing both strength and flexibility. Easy to assemble and install this bracket is perfect for both domestic and business applications where viewing from different angles is required.
- Suitable for larger LED/LCD screen sizes 47" to 90" and up to 70kg in weight
- Compatible with VESA hole patterns up to 800 x 600
- -5° to 10° tilt mechanism
- 90° Swivel range
- Installation hardware included

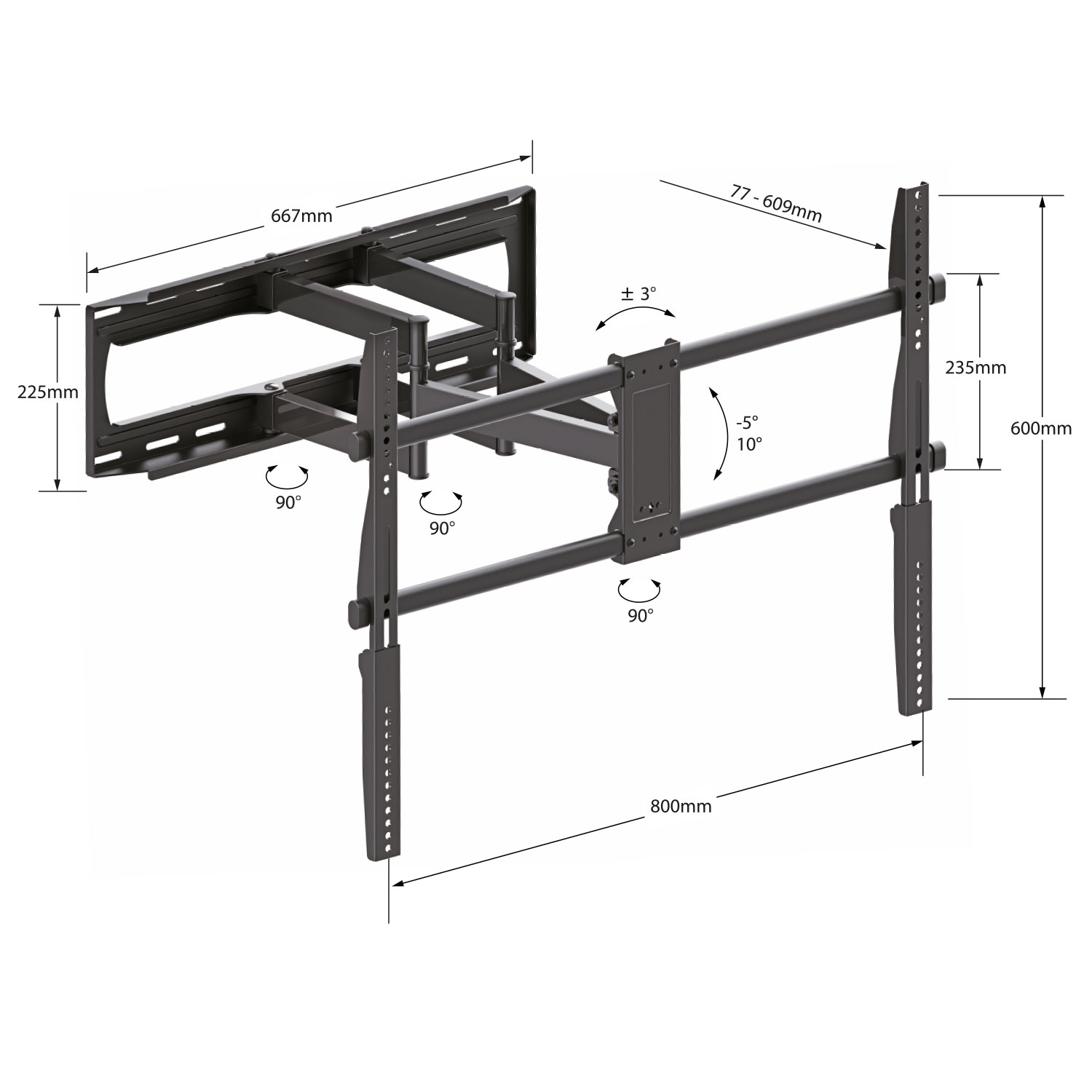

- Screen size 47" to 90"
- Max. VESA 800 x 600
- Max. weight load 70kg
- Distance from wall 77-609mm
- Tilt range -5° to 10°
- Swivel +45° to -45°
- Wall plate dimensions 667 x 225mm
- Weight 10kg
In the Box
- TV Bracket
- Assembly spanner
- Bubble level
- 4pcs M8 x 50mm
- 4pcs M8 x 35mm
- 4pcs M8 x 15mm
- 4pcs M6 x 35mm
- 4pcs M6 x 15mm
- 4pcs L22m spacer
- 4pcs L10mm spacer
- 8pcs L2.5mm spacer
- 4pcs 8mm washer
- 4pcs Wall studs
- 4pcs Wall plugs
- 4pcs Wall washer
