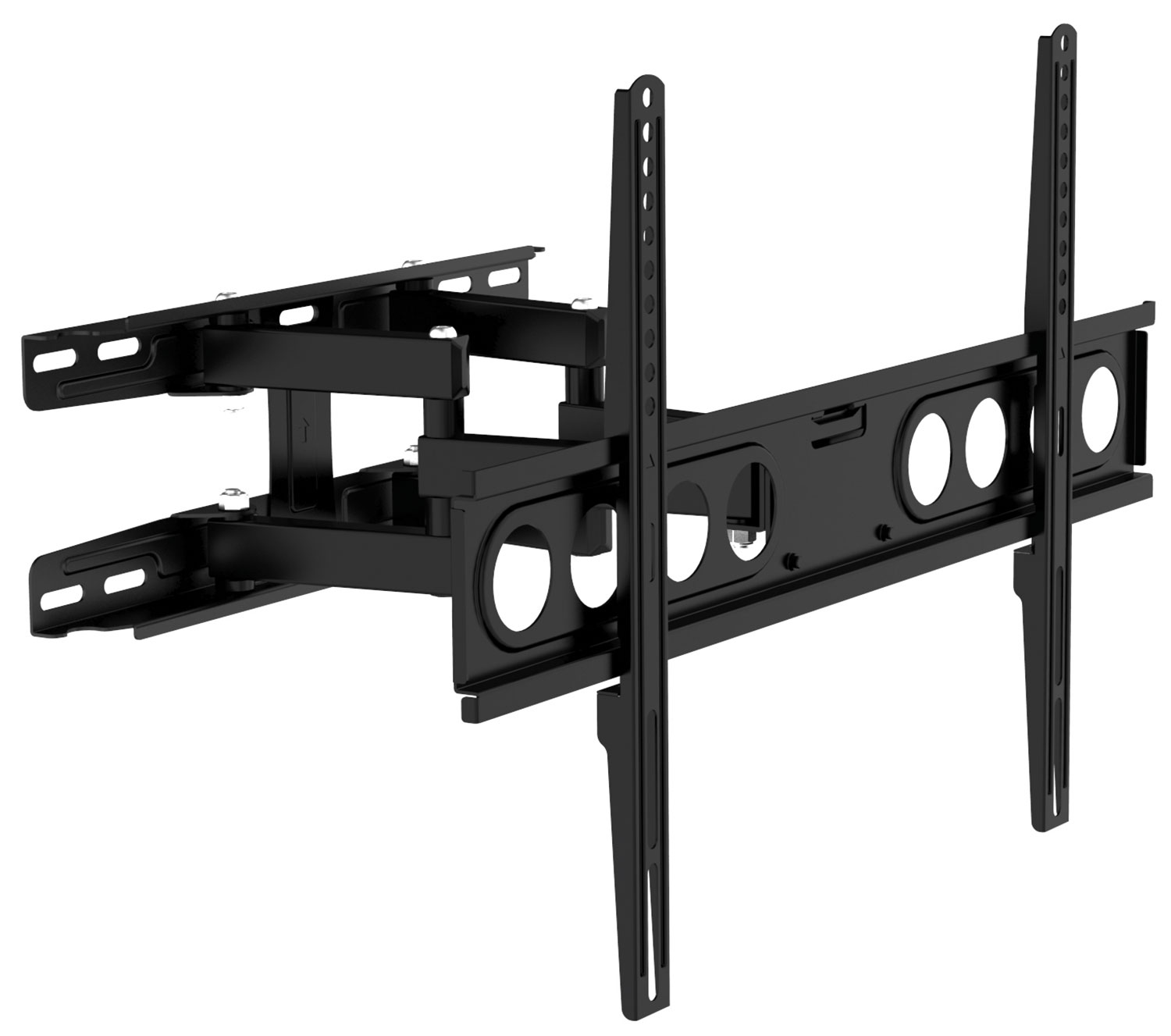

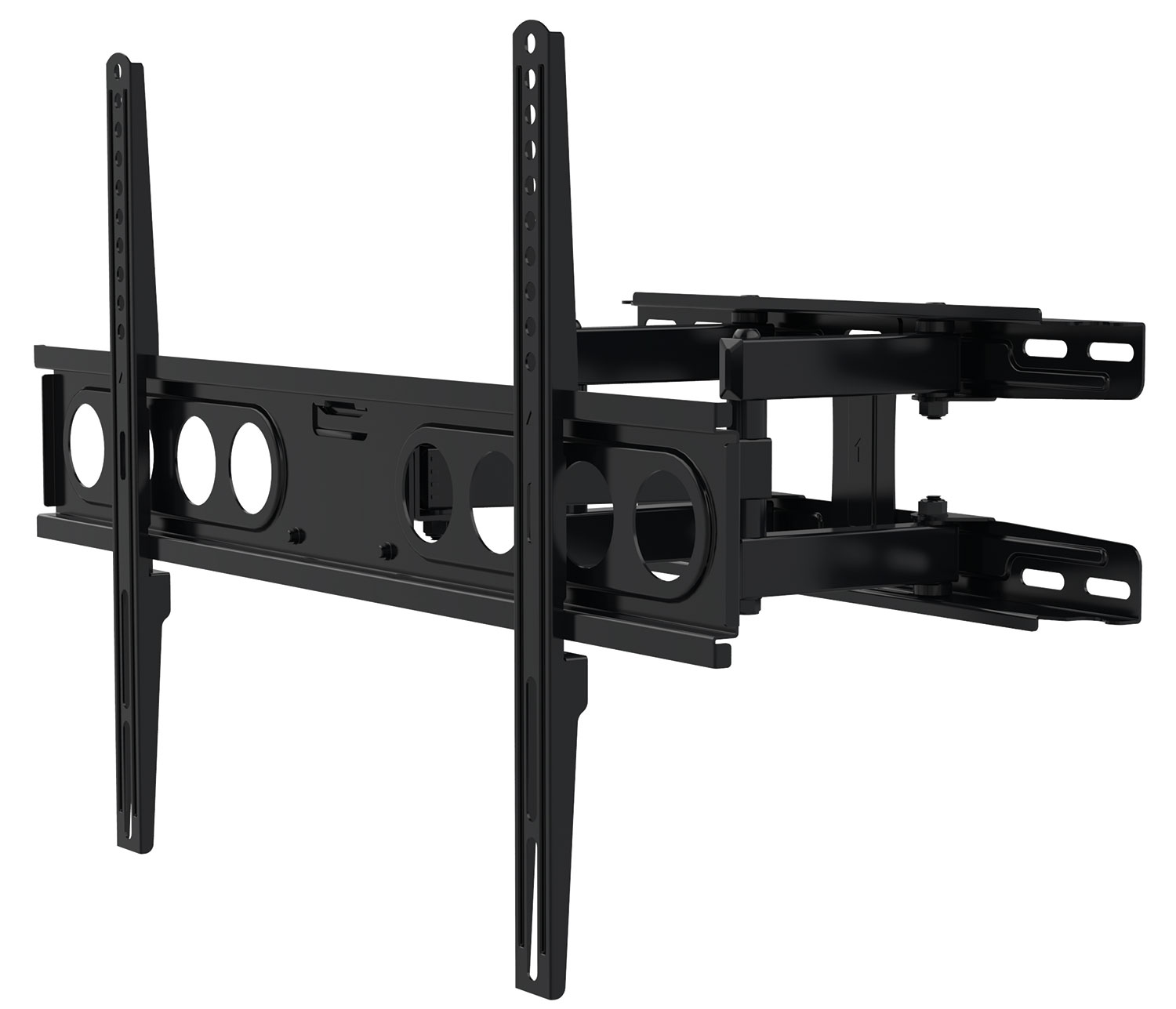

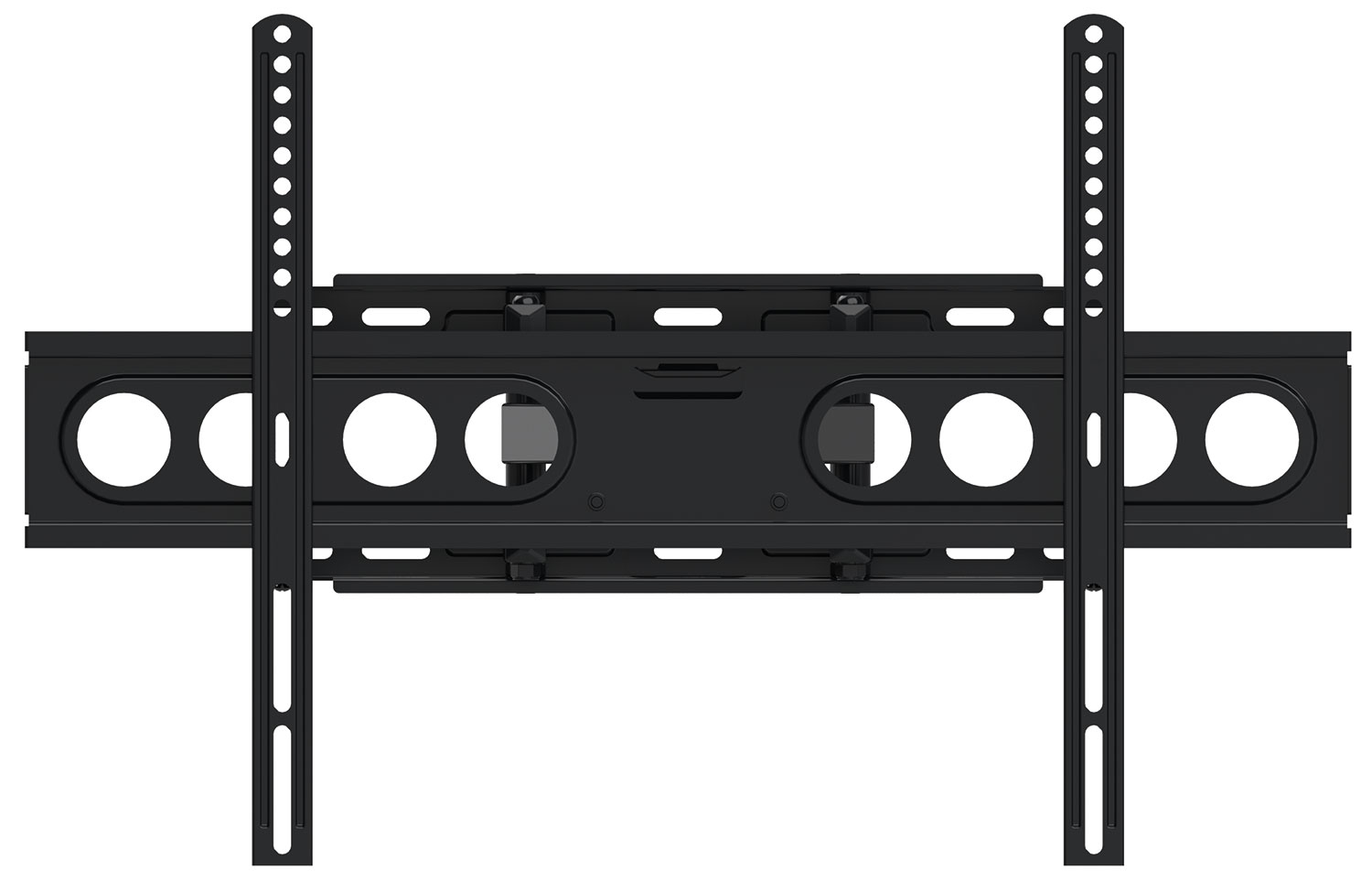

Full Motion TV Bracket 32-75"
129.568UK
FML600
Full motion double arm design with a larger wall fixing plate for more secure installations on studded and concrete walls and compatible with TV's up to 35kg in weight and with VESA hole patterns up… more
- Larger wall fixing plate for more secure installations on studded and concrete walls
- Compatible with VESA hole patterns up to 600 x 400mm
- Maximum weight load 35kg
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
129.568UK
Full Motion TV Bracket 32-70" |
Gift Box |
Full Motion TV Bracket 32-75"
Full motion double arm design with a larger wall fixing plate for more secure installations on studded and concrete walls and compatible with TV's up to 35kg in weight and with VESA hole patterns up to 600 x 400. Easy to extend, tilt and swivel this versatile bracket provides the optimum viewing angle from any seat in the room and comes supplied with a wide range of fixings for many applications.
- Larger wall fixing plate for more secure installations on studded and concrete walls
- Compatible with VESA hole patterns up to 600 x 400mm
- Maximum weight load 35kg
- -5° to 15° tilt mechanism
- 90° Swivel range
- Wide range of fixings supplied
- Screen size 32" to 75"
- Max. VESA 600 x 400mm
- Max. weight load 35kg
- Distance from wall 68-340mm
- Tilt range -5° to 15°
- Swivel 45° to -45°
- Wall plate dimensions 430 x 158mm (W x H)
- Dimensions 654 x 420mm (W x H)
- Weight 3.66kg
In the Box
- 1pc TV bracket
- 4pcs M4 x 20mm
- 4pcs M5 x 20mm
- 4pcs M6 x 20mm
- 4pcs M8 x 30mm
- 4pcs Spacer
- 4pcs Plate
- 4pcs Wall screw
- 4pcs Wall plug
- 4pcs Washer
- 1pc Magnetic spirit level (removable)
- 1pc Allen key
- 1pc Hexagonal wrench
- 1pc User guide
