Open 19" Rack Frames
12U
953.572UK
RF-12U
Self-assembly rack frames that can accommodate 19" rack equipment up to 500mm depth. Rear sections have keyhole and round punchings for wall-mounting. Four heavy duty threaded feet are provided for… more
- Easy self-assembly kit
- Free standing or wall mounted frame
- Fully accessible and open for ventilation
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
953.572UK
12U Wall or Desktop Rack Frame |
12U | Box Label |
Open 19" Rack Frames

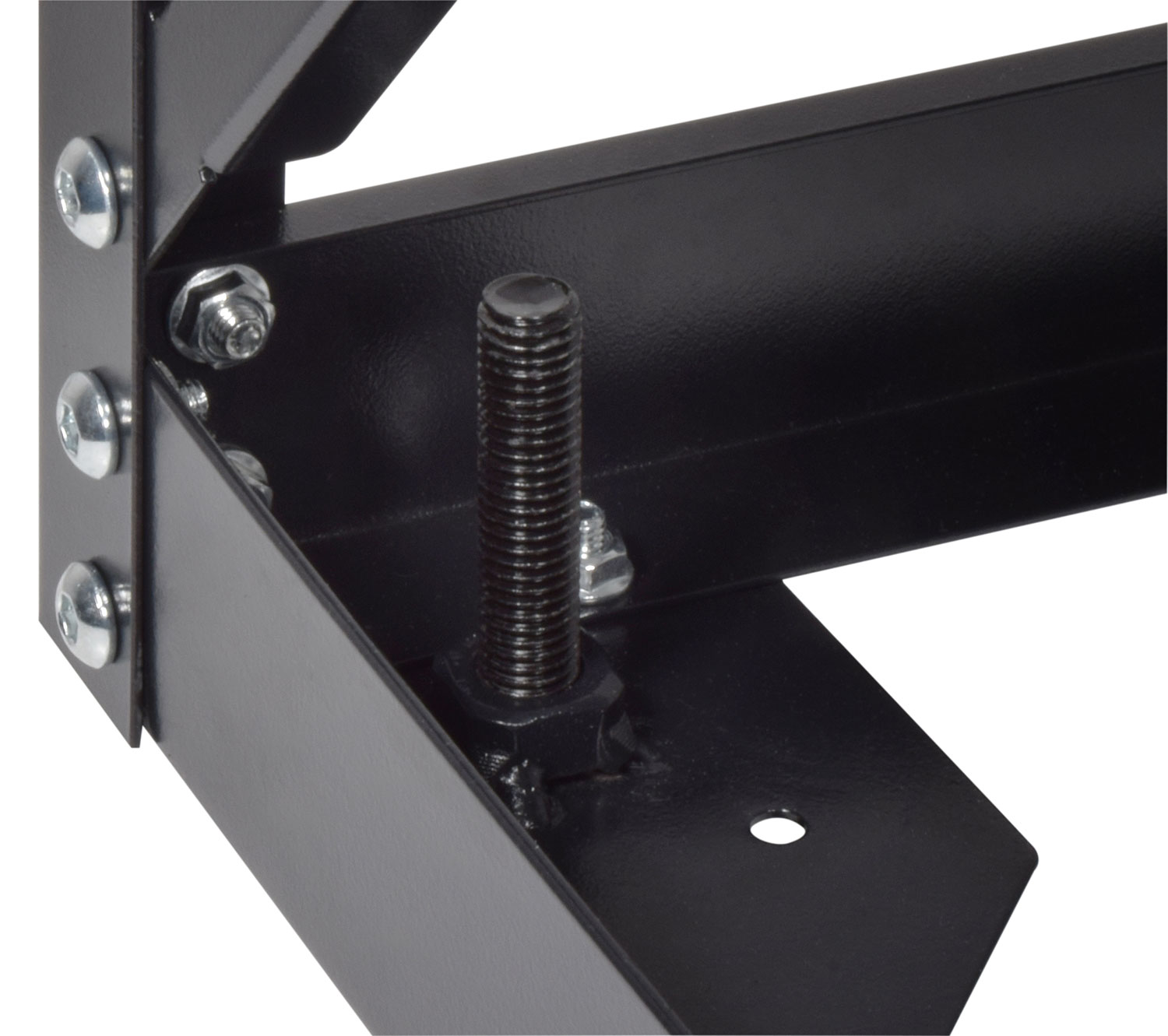

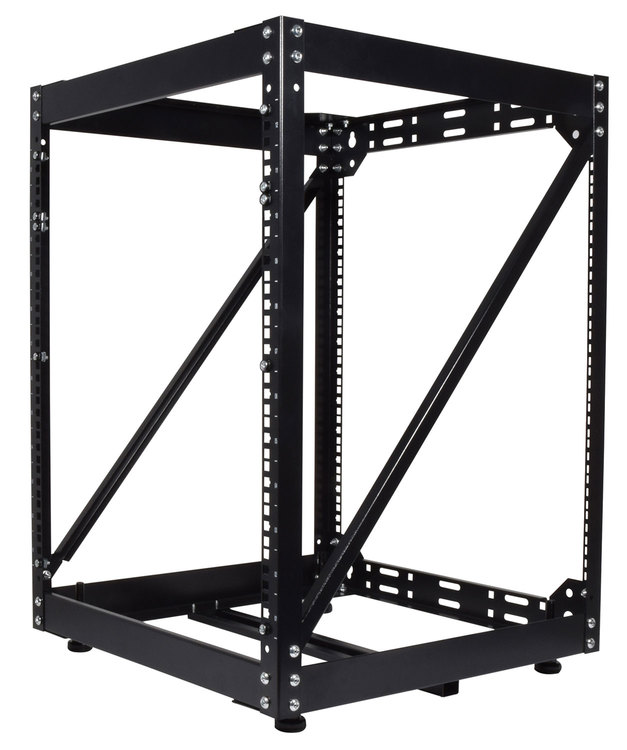

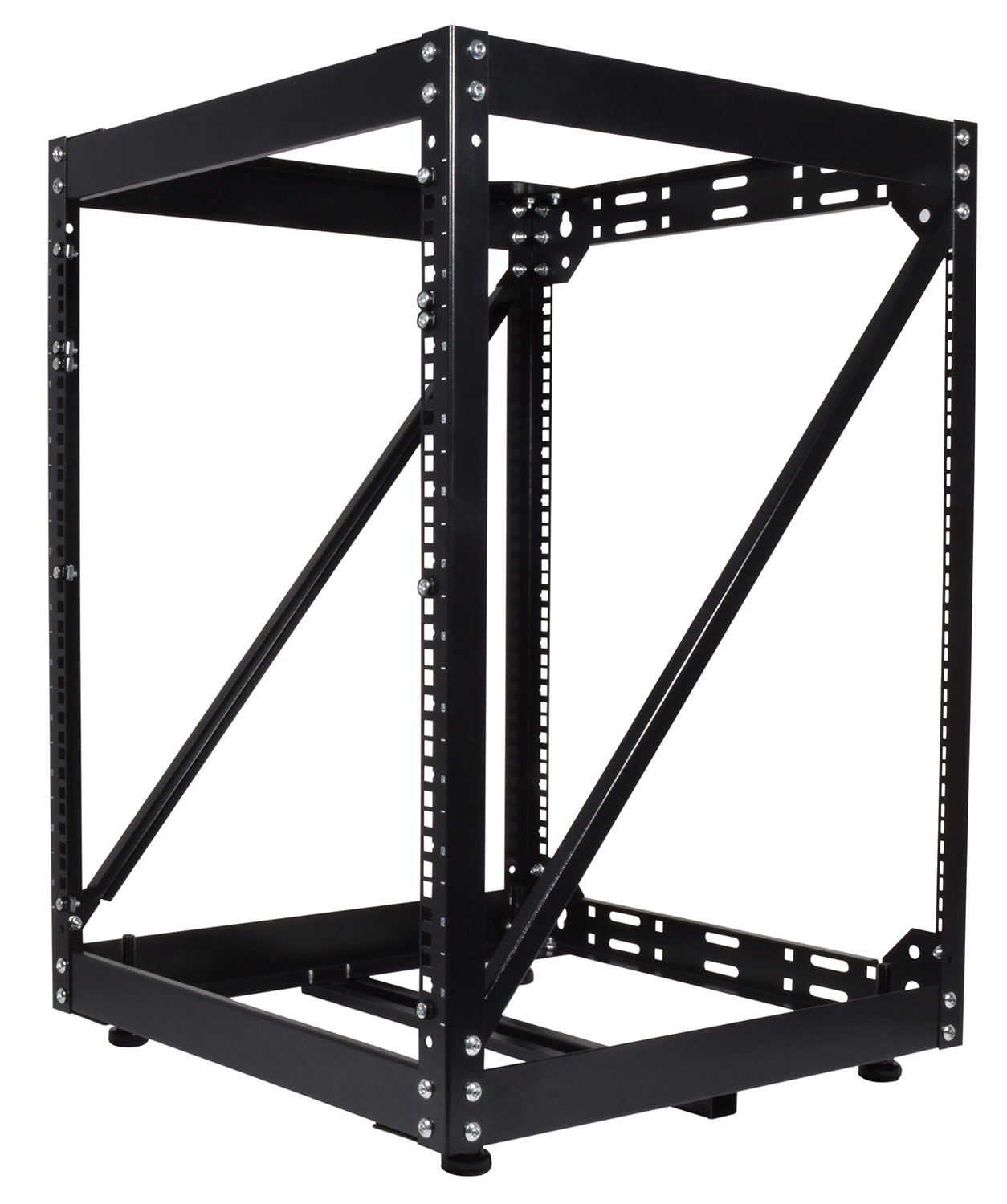

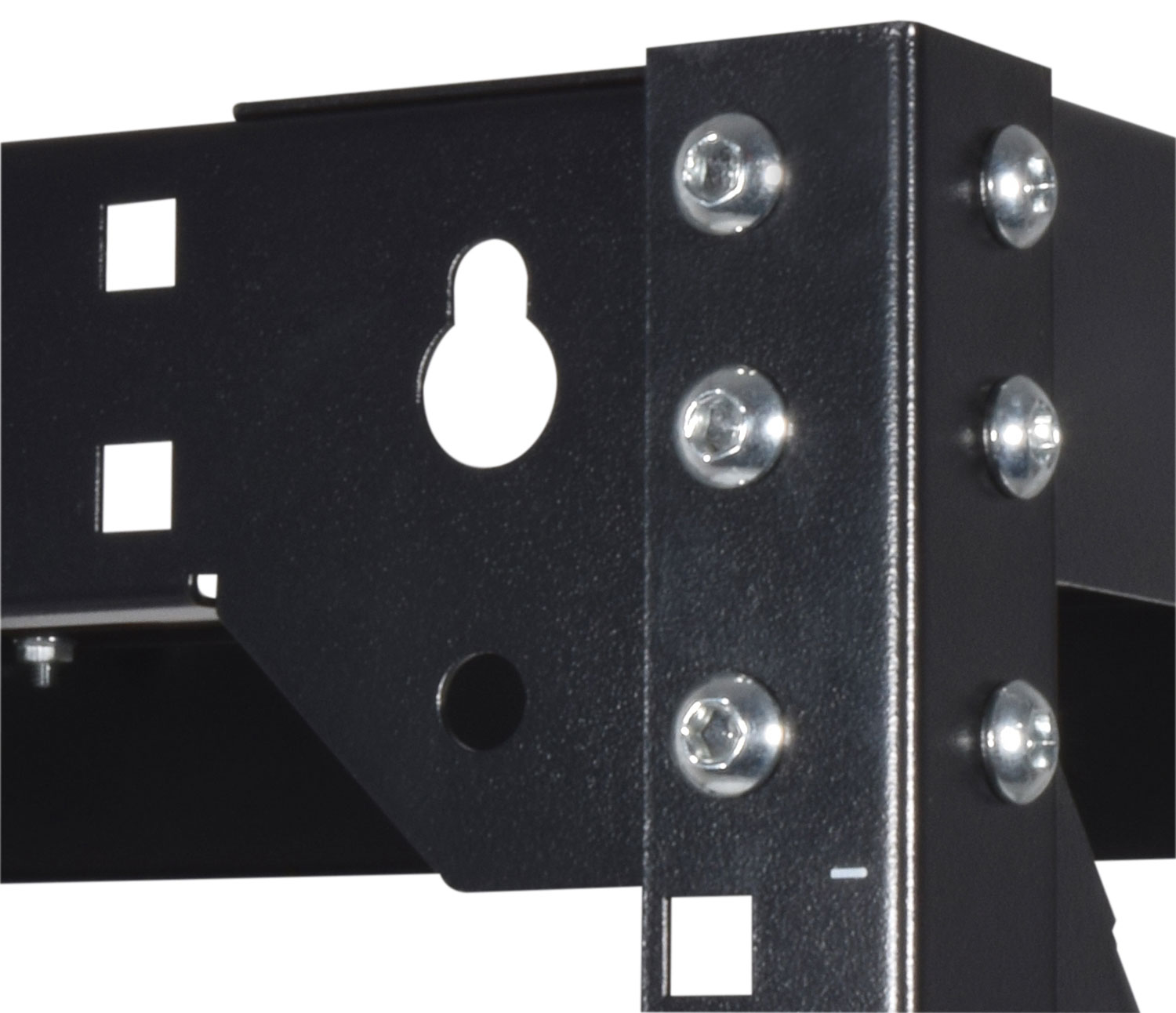

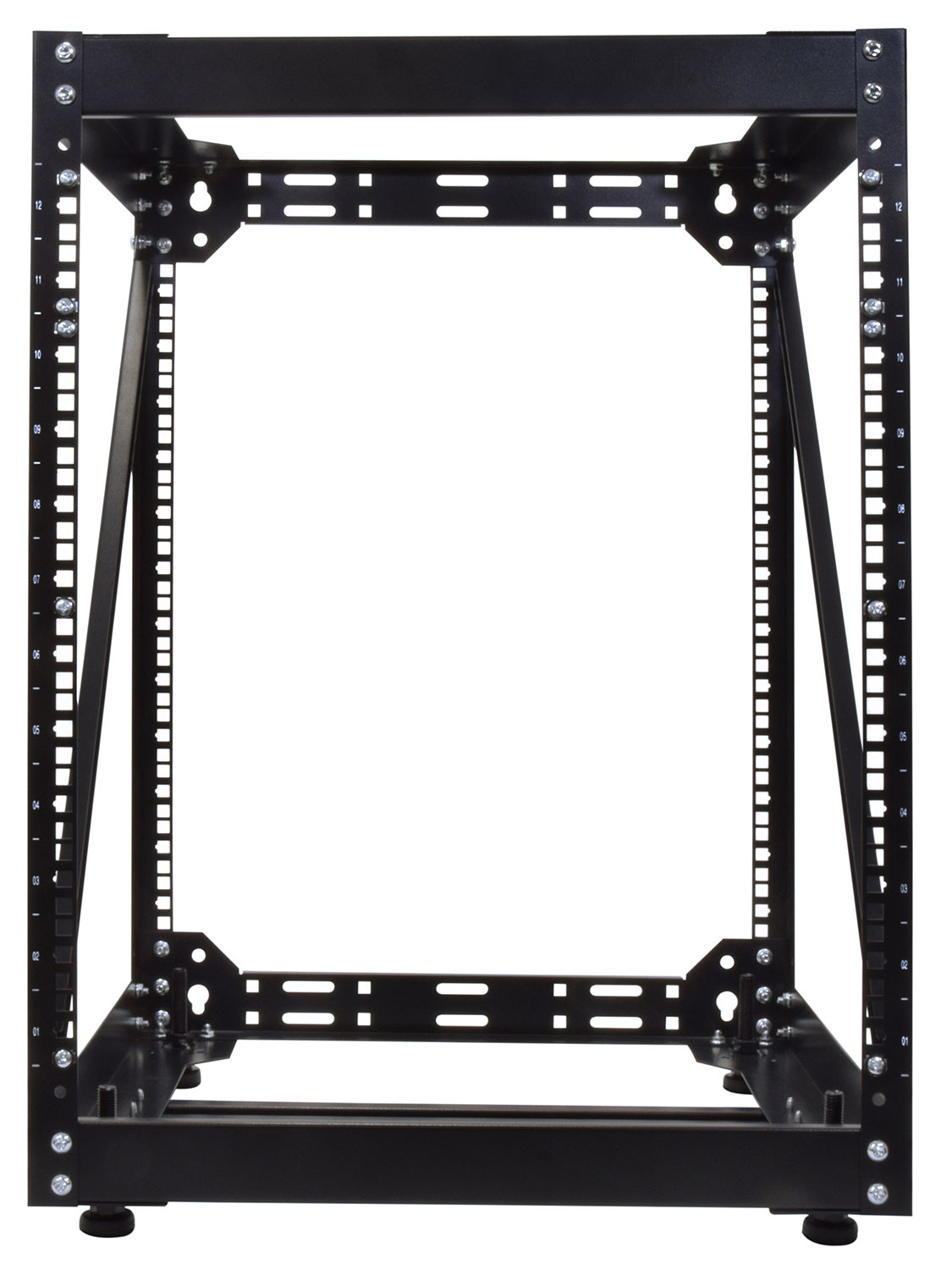

Self-assembly rack frames that can accommodate 19" rack equipment up to 500mm depth. Rear sections have keyhole and round punchings for wall-mounting. Four heavy duty threaded feet are provided for free standing use and are adjustable to allow for clearance and levelling on uneven surfaces. A cost-effective and accessible solution for 19" rackmount equipment.
- Easy self-assembly kit
- Free standing or wall mounted frame
- Fully accessible and open for ventilation
- 2 diagonal side braces and mid bottom brace for stability
- Powder coated cold rolled steel construction
- Supplied with 10 cage nuts, screws and cup washers
- Height 725mm
- Rack capacity 12U (533mm)
- Weight 6.73kg
- Construction Powder coated 1.2mm cold rolled steel
- Max. load 100kg (static load)
- Width 510mm
- Depth 510mm

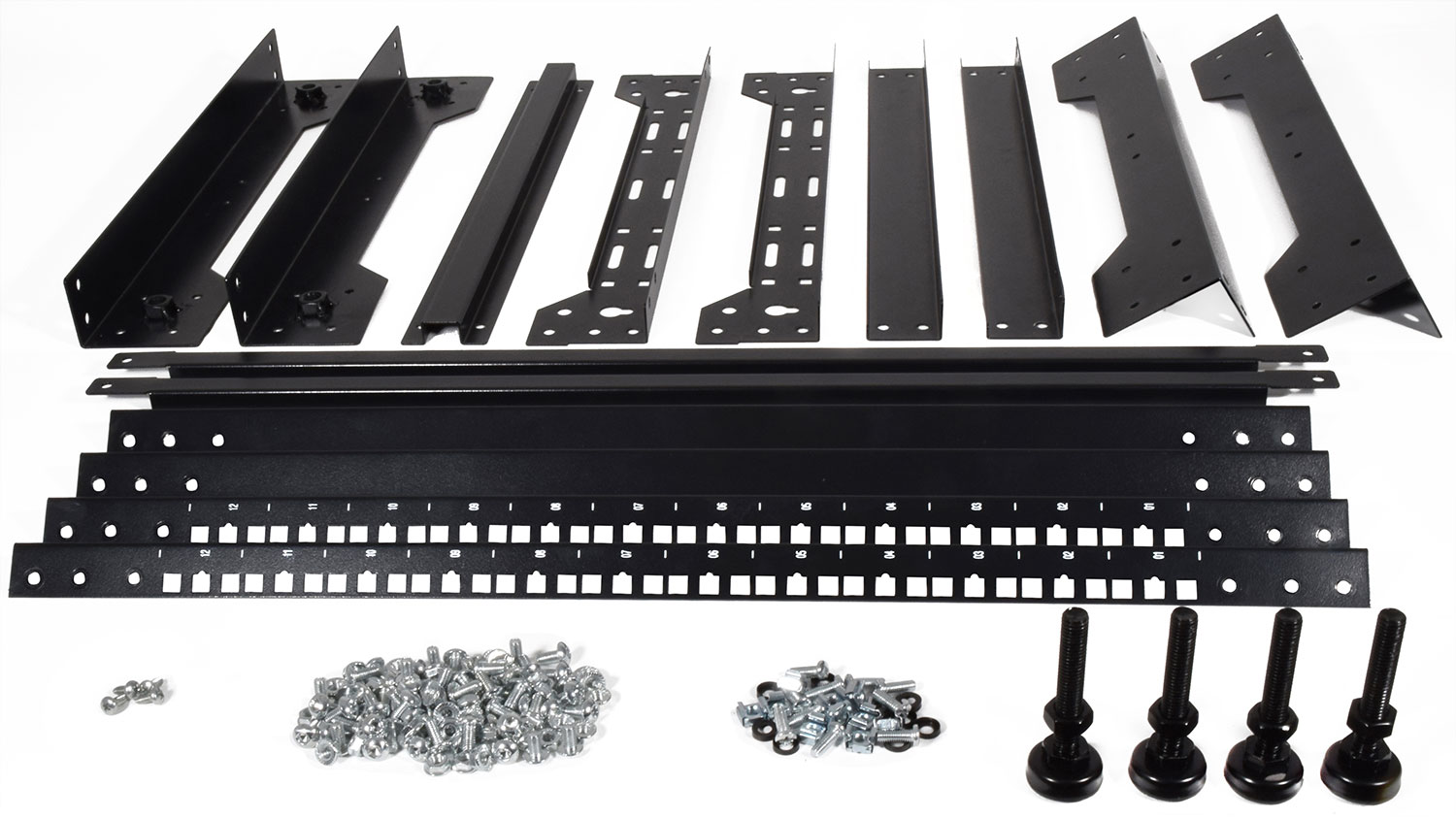

In the Box
- 2 back plates
- 2 bottom side plates
- 2 top side plates
- 2 front plates
- 1 mid bottom brace
- 2 diagonal side braces
- 4 rack strip rails
- 4 adjustable feet
- Pack of asssembly hardware
- Pack of 10 rack mounting fixings
