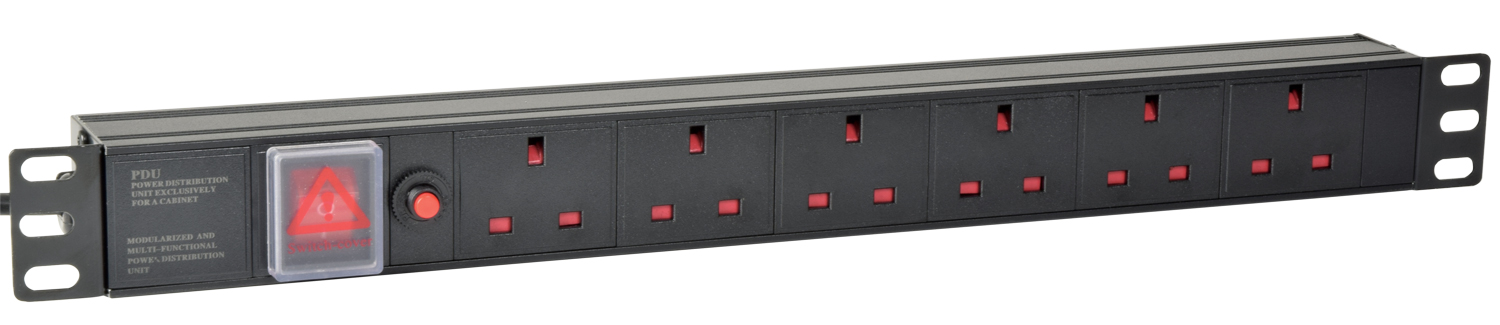

19" Rackmount Power Distribution Units
6-gang UK + breaker
776.490UK
1U-PDU-6UK
19" rack-mountable power distribution units with BS1363 or IEC socket outputs. Each occupies just 1U height for convenient access to power in rack cabinets or cases. more
- Re-settable 10A fuse (776.490UK only)
- 1U rack-mountable
- Hard-wired 1.8m lead with UK plug
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
776.490UK
1U Rackmount 6-Gang UK Power Distribution Unit + Breaker + 1.8m Lead |
6-gang UK + breaker | Box Label |
|
776.491UK
1U Rackmount 8-Gang UK Power Distribution Unit + 1.8m Lead |
8-gang UK | Box Label |
|
776.495UK
1U Rack 10-Gang IEC (C13) Power Distribution Unit Switched 1.8m |
10-gang IEC + switch | Box Label |
|
776.497UK
1U Rackmount 2 UK + 8 IEC Power Distribution Unit + 1.8m Lead |
2 UK + 8 IEC | Box Label |
19" Rackmount Power Distribution Units
19" rack-mountable power distribution units with BS1363 or IEC socket outputs. Each occupies just 1U height for convenient access to power in rack cabinets or cases.
- Re-settable 10A fuse (776.490UK only)
- 1U rack-mountable
- Hard-wired 1.8m lead with UK plug
- Weight 720g
- Max. current 10A total
- Socket 6 x UK (BS1363)
- Circuit protection Resettable 10A circuit breaker + master switch
- Lead length 1.8m
- Dimensions 483 x 53 x 44mm
In the Box
- 19" 1U PDU with IEC or UK mains sockets and hard-wired 1.8m power lead (UK plug)
