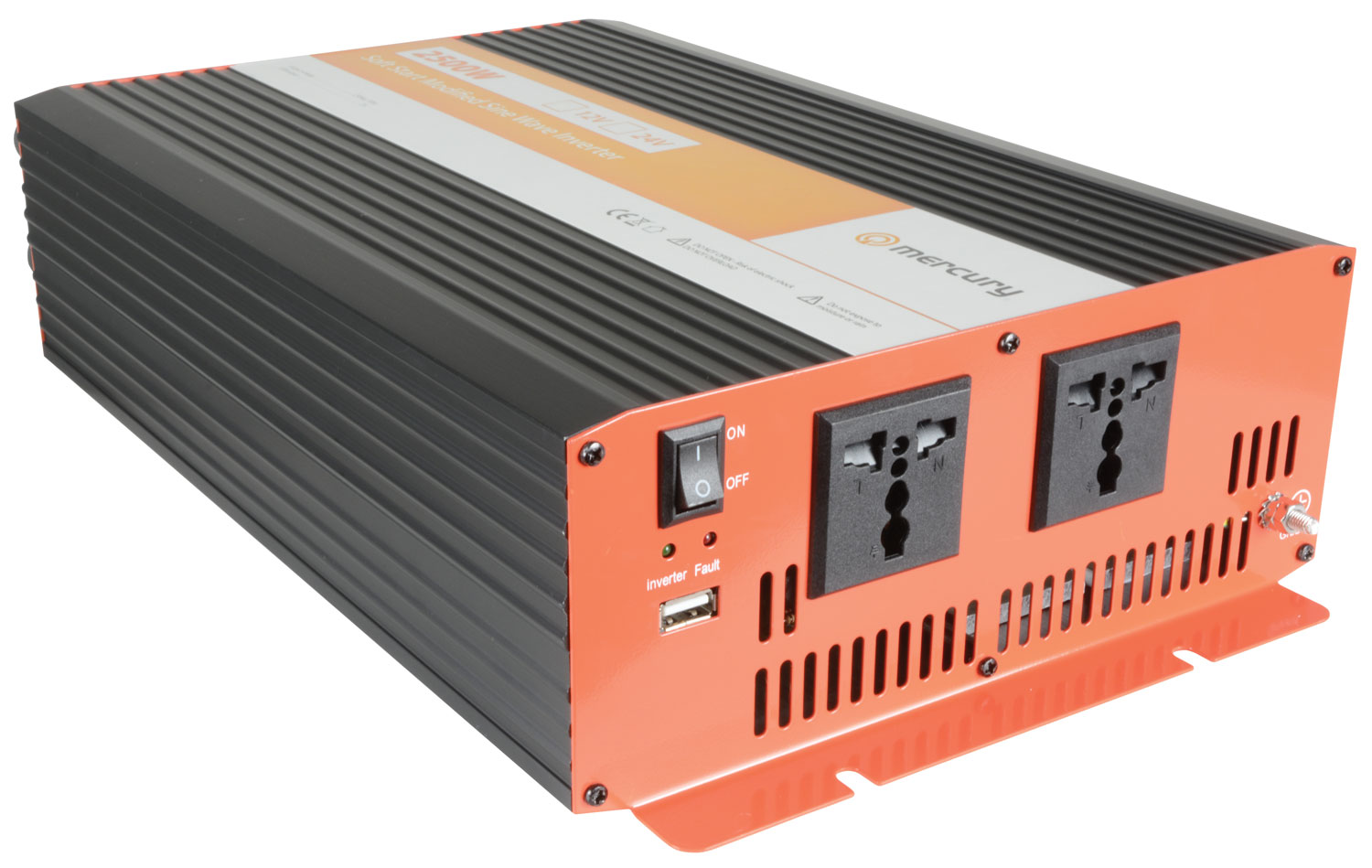

Soft Start Modified Sine Wave Inverters

12Vdc 2500W

652.010UK
IMS2500-12

These high efficiency power inverters use a modified sine wave to power 230V mains equipment from a 12V or 24V battery or DC power supply. Perfect for use while camping, in commercial vans/lorries, or… more

  • Over 85% efficiency
  • Soft start minimises inverter shutdown when using large inductive loads
  • Low/over voltage input protection
DESCRIPTION VERSION PACKED
652.000UK

12Vdc 150W Modified Sine Wave Inverter

12Vdc 150W Box Label
652.002UK

12Vdc 300W Modified Sine Wave Inverter

12Vdc 300W Box Label
652.004UK

12Vdc 600W Modified Sine Wave Inverter

12Vdc 600W Box Label
652.006UK

12Vdc 1000W Modified Sine Wave Inverter

12Vdc 1000W Sleeve
652.008UK

12Vdc 1500W Modified Sine Wave Inverter

12Vdc 1500W Box Label
652.010UK

12Vdc 2500W Modified Sine Wave Inverter

12Vdc 2500W Sleeve
652.005UK

24Vdc 600W Modified Sine Wave Inverter

24Vdc 600W Box Label
652.009UK

24Vdc 1500W Modified Sine Wave Inverter

24Vdc 1500W Box Label
652.011UK

24Vdc 2500W Modified Sine Wave Inverter

24Vdc 2500W Box Label

Soft Start Modified Sine Wave Inverters

These high efficiency power inverters use a modified sine wave to power 230V mains equipment from a 12V or 24V battery or DC power supply. Perfect for use while camping, in commercial vans/lorries, or as a means to convert charged batteries for back-up power in case of a blackout. Ideal for use with TVs, lighting, fans, kettles and many other everyday appliances.

  • Over 85% efficiency
  • Soft start minimises inverter shutdown when using large inductive loads
  • Low/over voltage input protection
  • Short circuit, overload and overheat protection

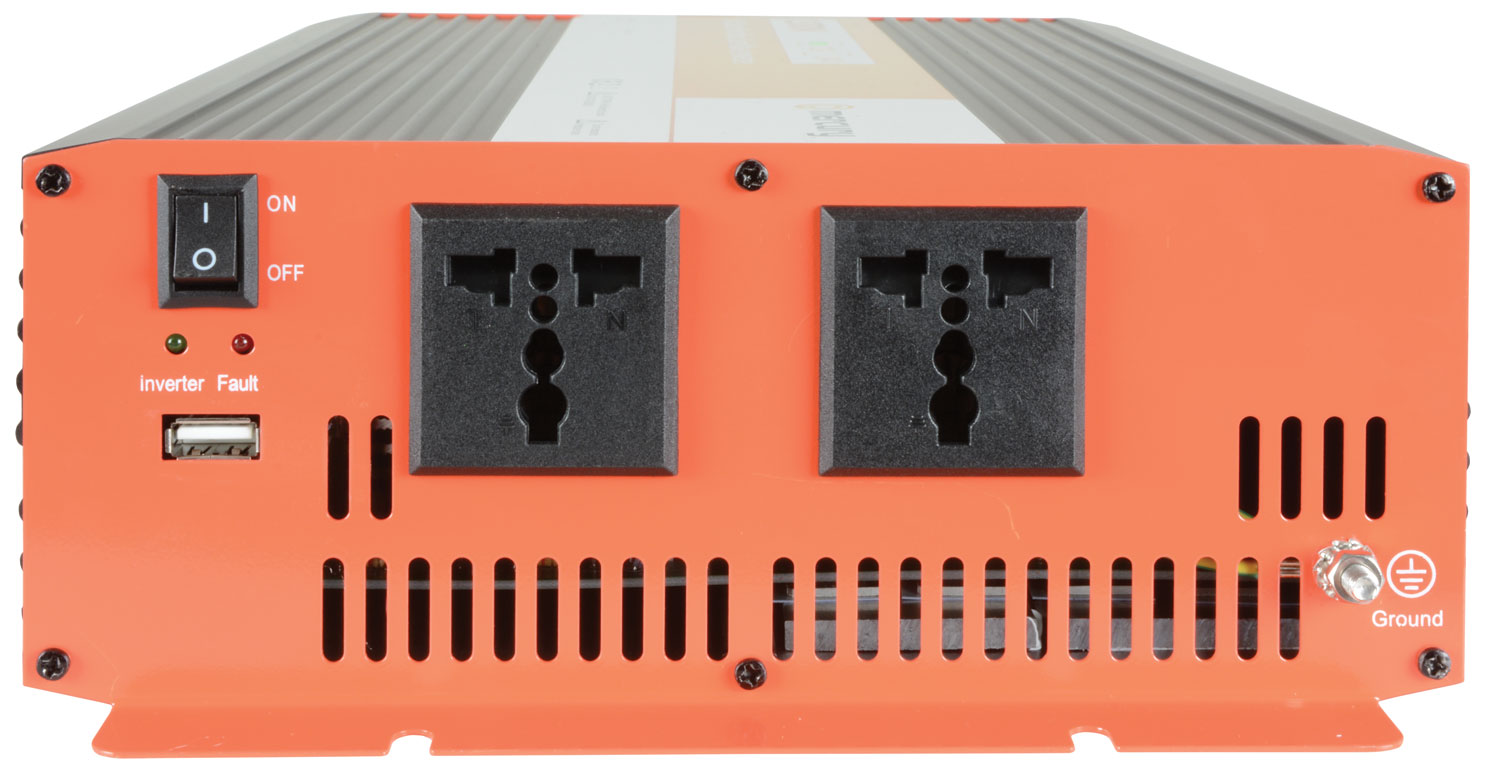

  • Built in 2.1A USB socket
  • LED and audible fault indicator

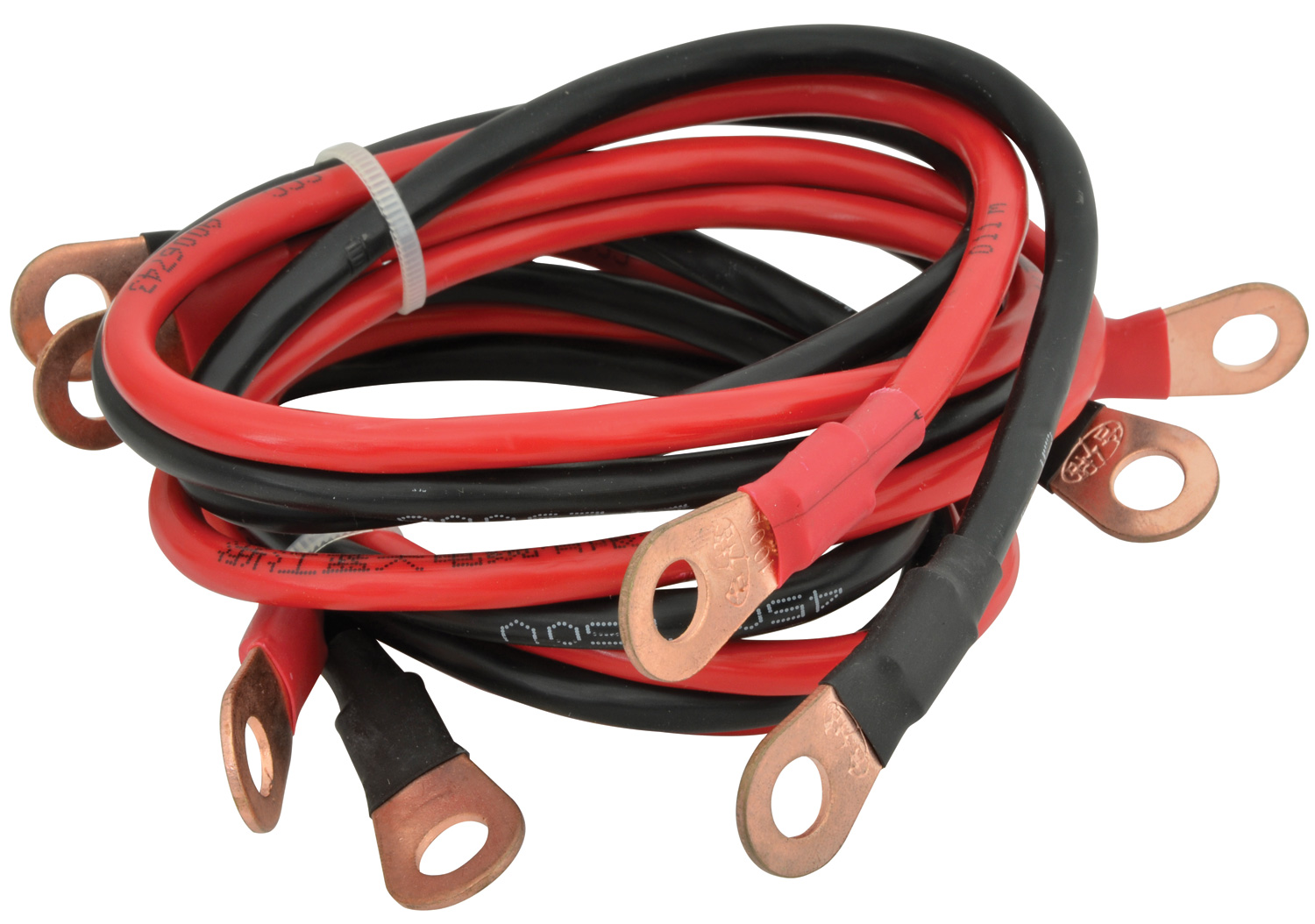

  • Supplied with 1 pair of 800mm DC power cables and a spare blade fuse (2 pairs for 1500W and 2500W)
  • 12V or 24V input versions available, please ensure the correct version is selected for the input power to be used
  • Please note: Ensure the device is well within the inverter output power rating. We recommend using an inverter capable of supplying a minimum of 3 times the device's rated power to avoid damage to the inverter by any current surge
  • Please note: For equipment with inductive loads, voltage sensitive devices or audio equipment we recommend using pure sine wave inverters which are more suitable for these devices
  • Weight 4.8kg
  • Dimensions 375 x 220 x 83mm
  • Output sockets 2

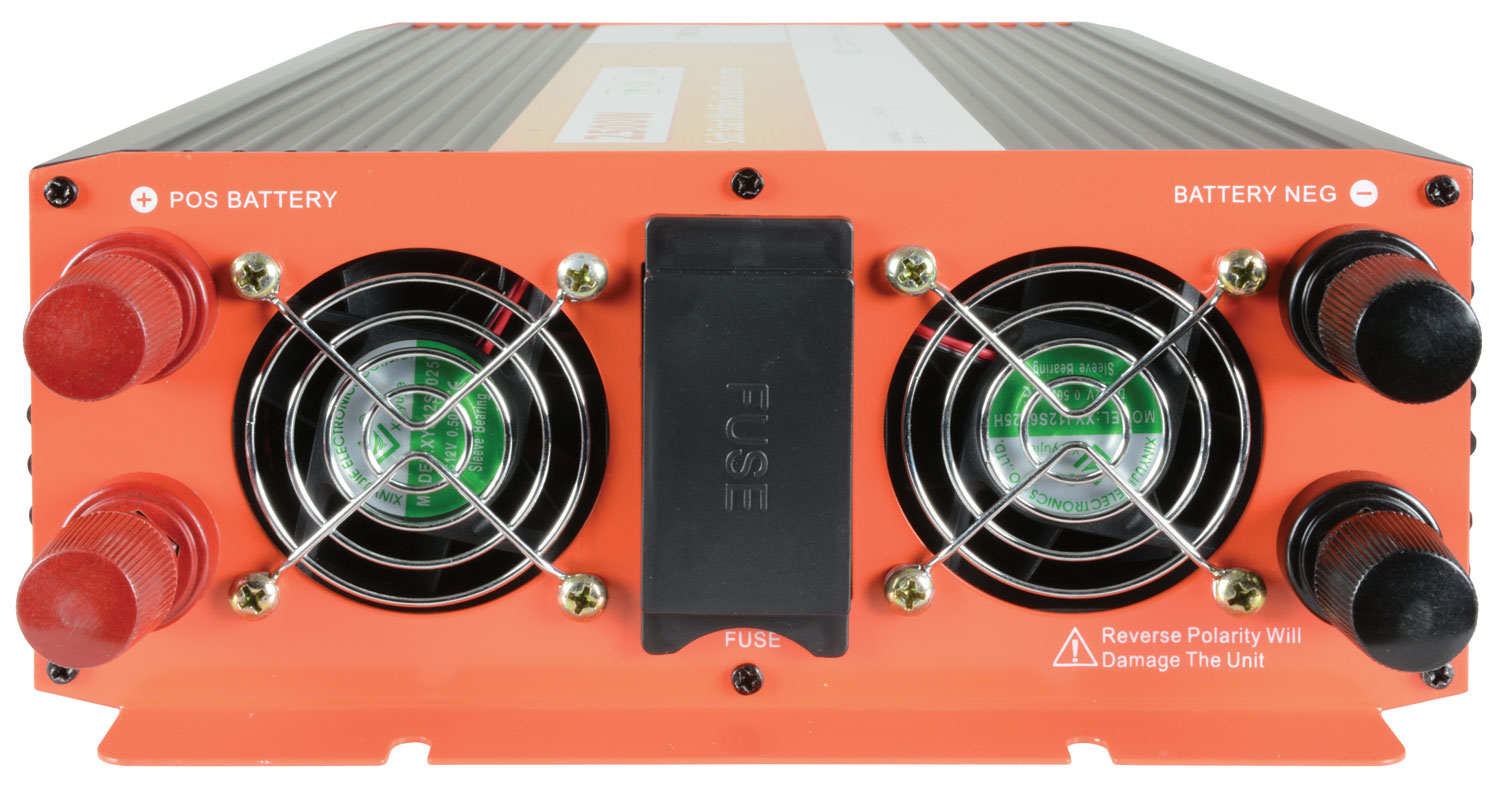

  • Inverter terminals M8 screws
  • Cable terminals 8.5/16.5mm ring
  • Cable type Ring terminal
  • Standby no load current <0.9A
  • Input voltage 10.8 - 15.5Vdc
  • Voltage 12V
  • Continuous power 2500W
  • Output voltage 230Vac, 50Hz
  • USB output current 2.1A
