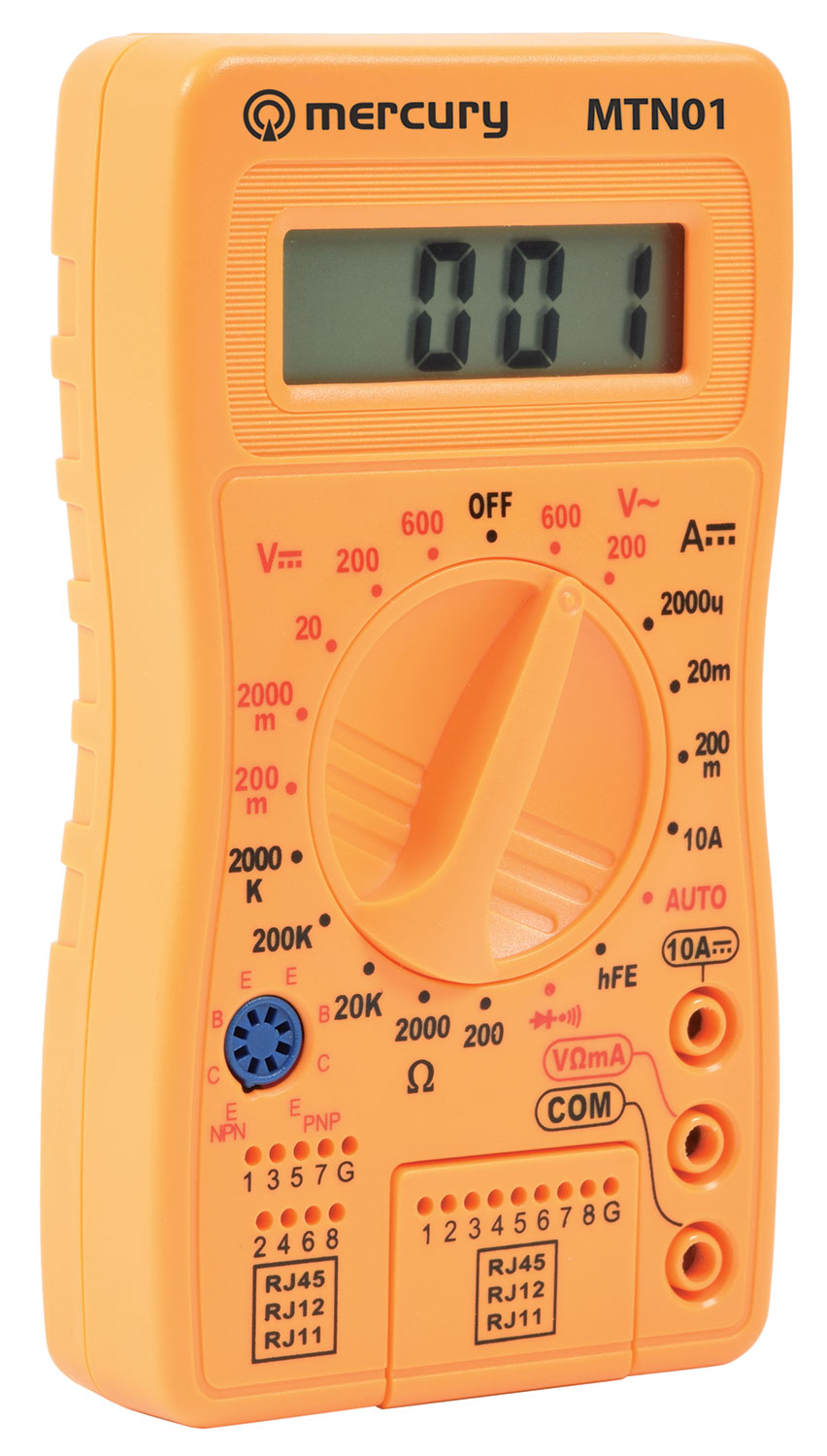

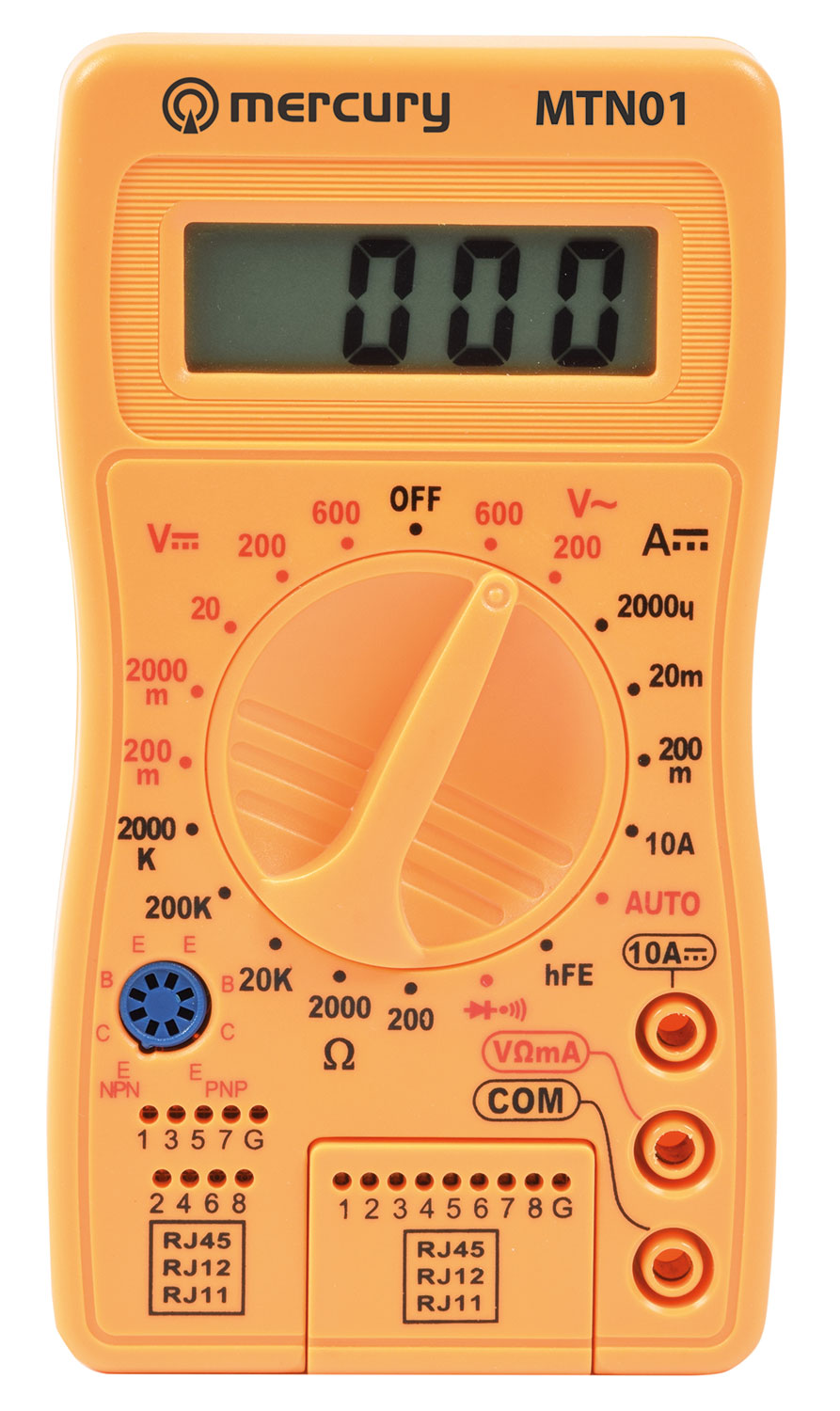

Digital Network Multimeter

A handy digital multimeter with network tester that offers 19 testing ranges and 5 functions and comes supplied ready to use with shrouded testing probes and battery. The cable testing function uses a sequence of LED's on the main unit and remote unit to test lengths of RJ11, RJ12 or RJ45 cables for continuity and wire/pin-related faults.

• Network cable test function with remote unit for RJ11, RJ12, and RJ45
• 3.5 Digit, 1999 count 0.5" LCD display
• 200-600V AC/DC Voltage, 10A DC current and resistance ranges
• Diode, transistor and continuity test functions
• Low battery indication
• Complies with EN61010 - 1:2010
• Supplied with shrouded testing probes and 9Vdc PP3 battery

• Power supply 9Vdc (1 x PP3 supplied)
• AC voltage 200-600V
• DC voltage 200mV - 600V
• DC current 2000uA - 10A
• Resistance 200 Ohms - 2000K Ohms
• Test lead length 680mm
• Dimensions 126 x 70 x 26mm
• Weight 108g (including battery)
