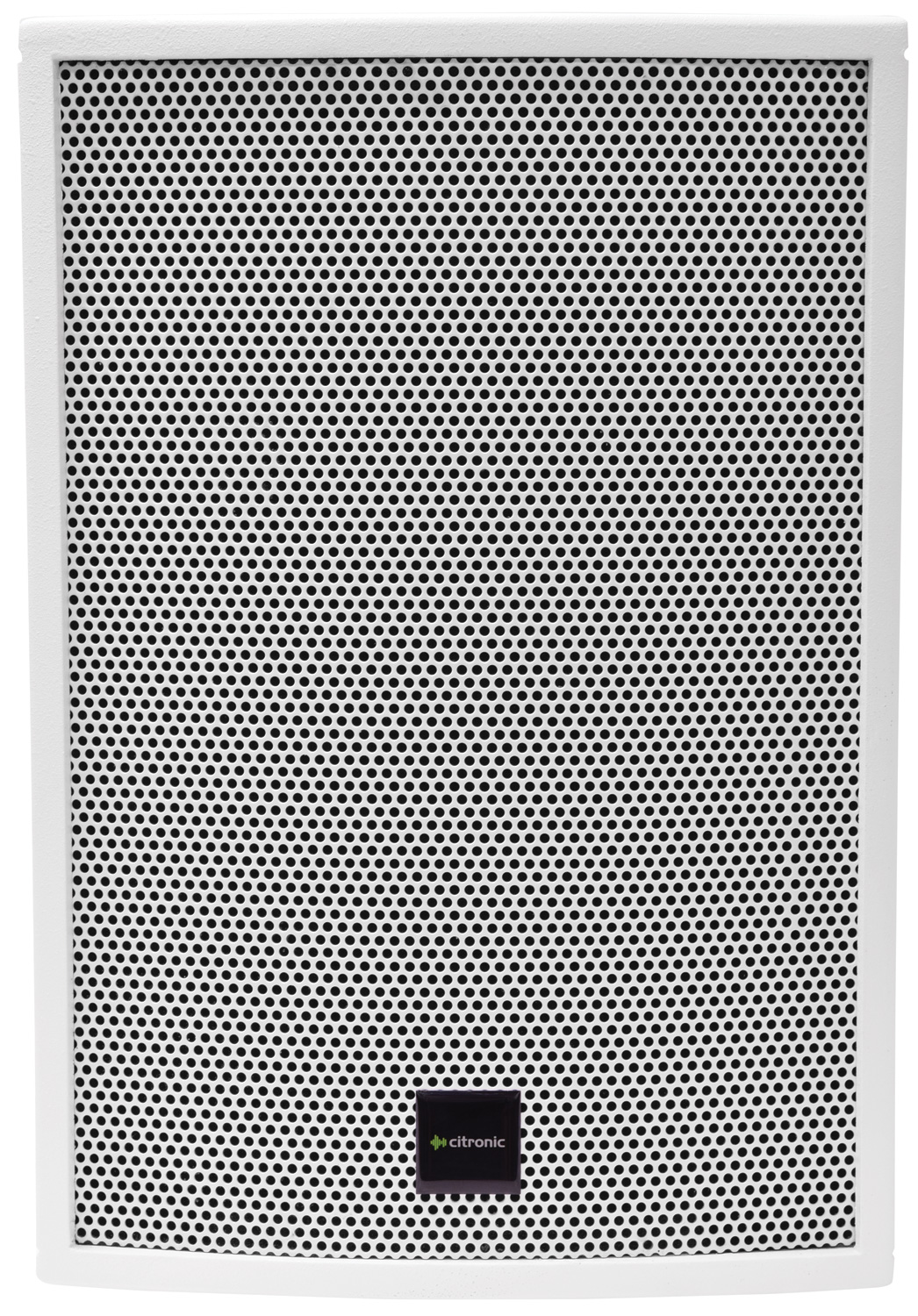

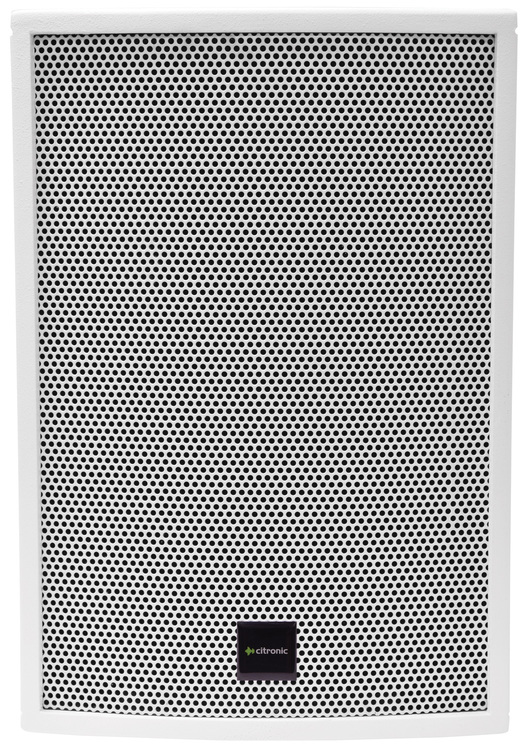

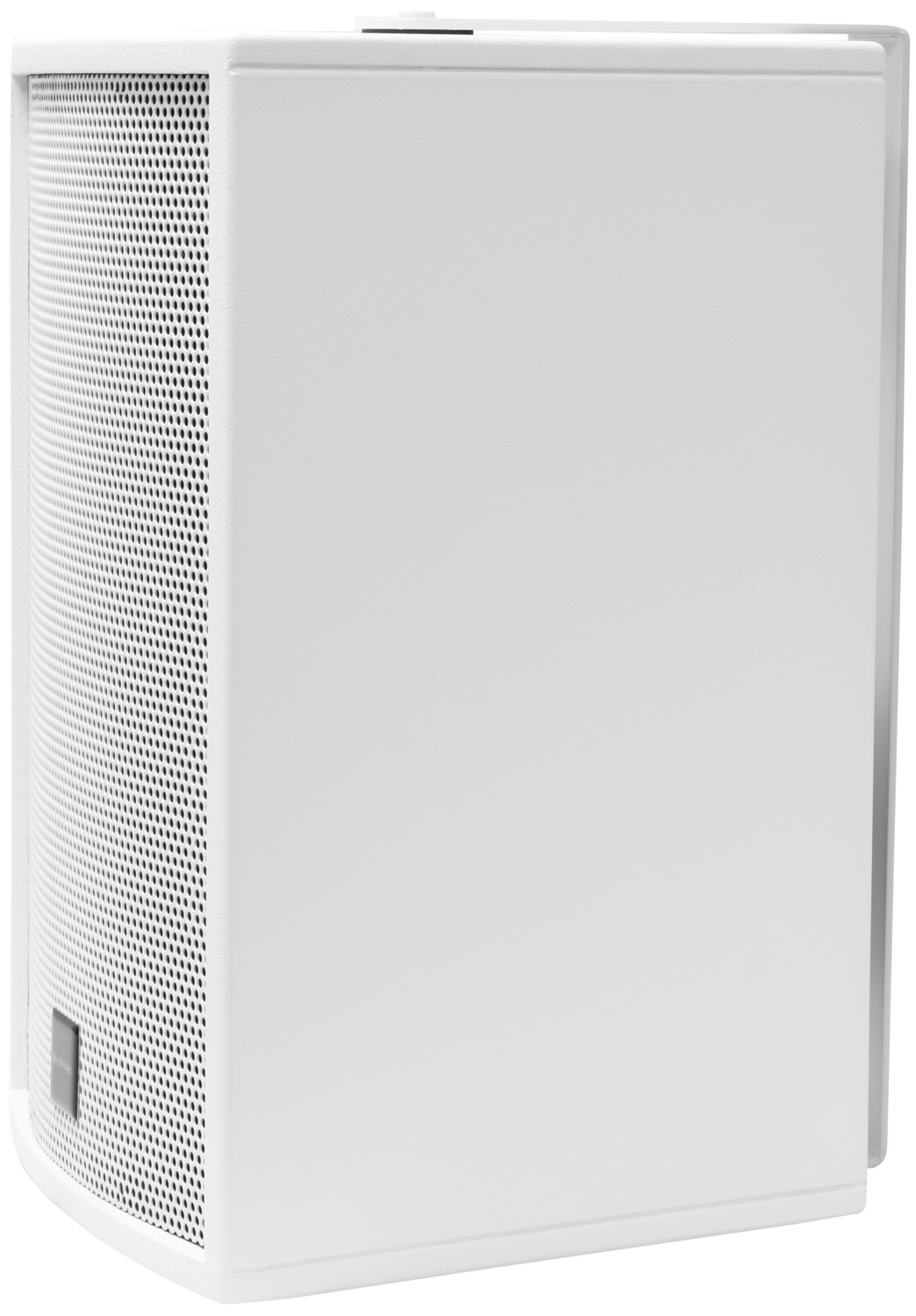

CS Series Wooden Installation Speakers

10" White

178.678UK
CS-1035W

Passive speaker cabinets with smooth and even frequency response for accurate delivery of music and vocal material. Birch plywood cabinets with polyurethane texture coated finish and acoustic foam… more

  • Premium birch plywood construction
  • Titanium diaphragm HF compression driver
  • Balanced full-range sound reproduction
DESCRIPTION VERSION PACKED
178.674UK

CS-810B Passive Speaker Black

8" Black Box Label
178.675UK

CS-810W Passive Speaker White

8" White Box Label
178.677UK

CS-1035B Passive Speaker Black

10" Black Gift Box
178.678UK

CS-1035W Passive Speaker White

10" White Gift Box

CS Series Wooden Installation Speakers

Passive speaker cabinets with smooth and even frequency response for accurate delivery of music and vocal material. Birch plywood cabinets with polyurethane texture coated finish and acoustic foam backed steel grilles. Fitted with steel U brackets and mounting hardware for convenient and neat installation. Understated minimalist design with premium quality performance.

  • Premium birch plywood construction
  • Titanium diaphragm HF compression driver
  • Balanced full-range sound reproduction

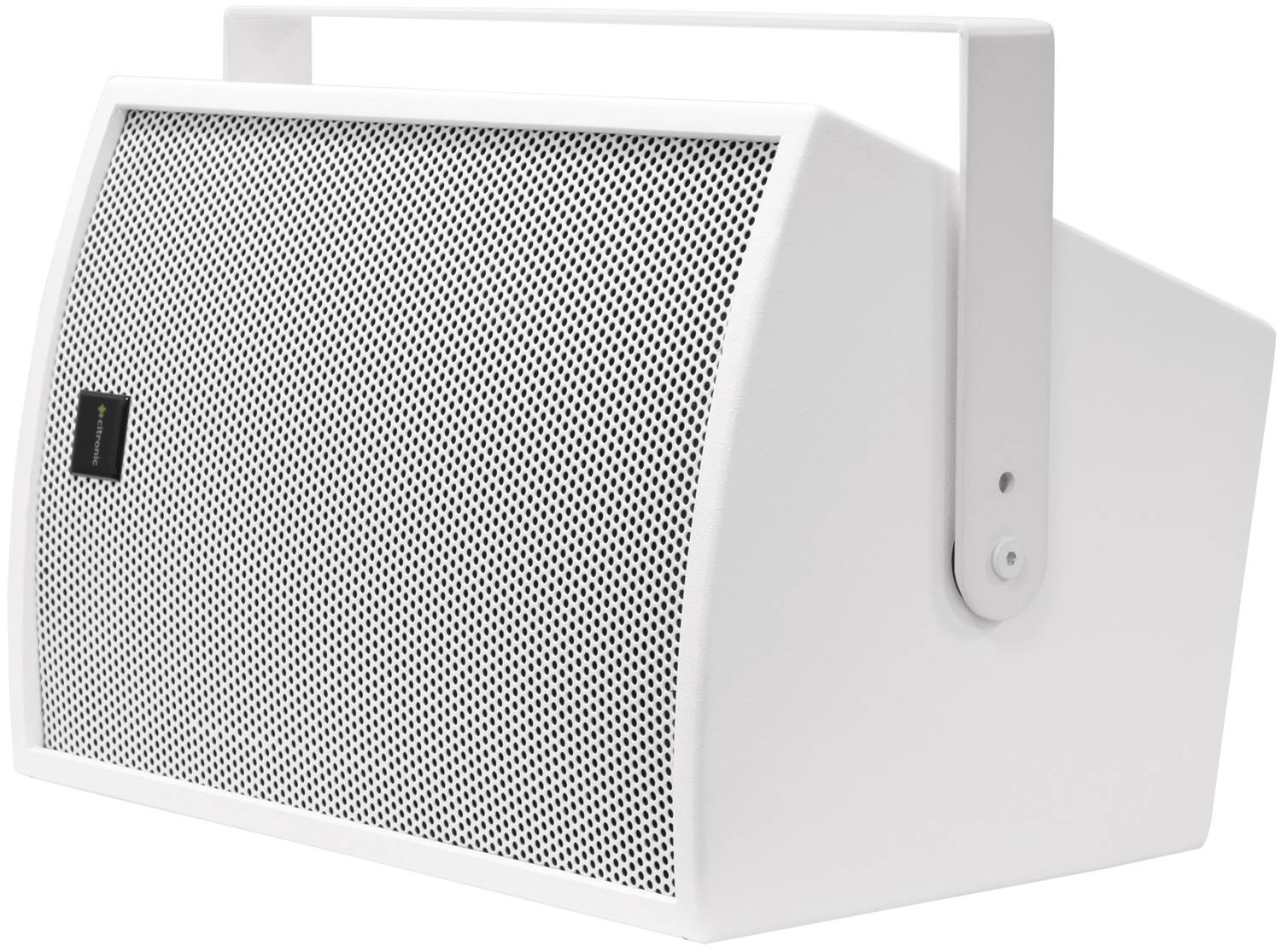

  • Supplied with adjustable U-brackets
  • CS-610 and CS-810 VESA mount compatible
  • 10", 12" and 15" models fitted with 35mm pole mount socket
  • Supplied singly
  • Weight 15.6kg

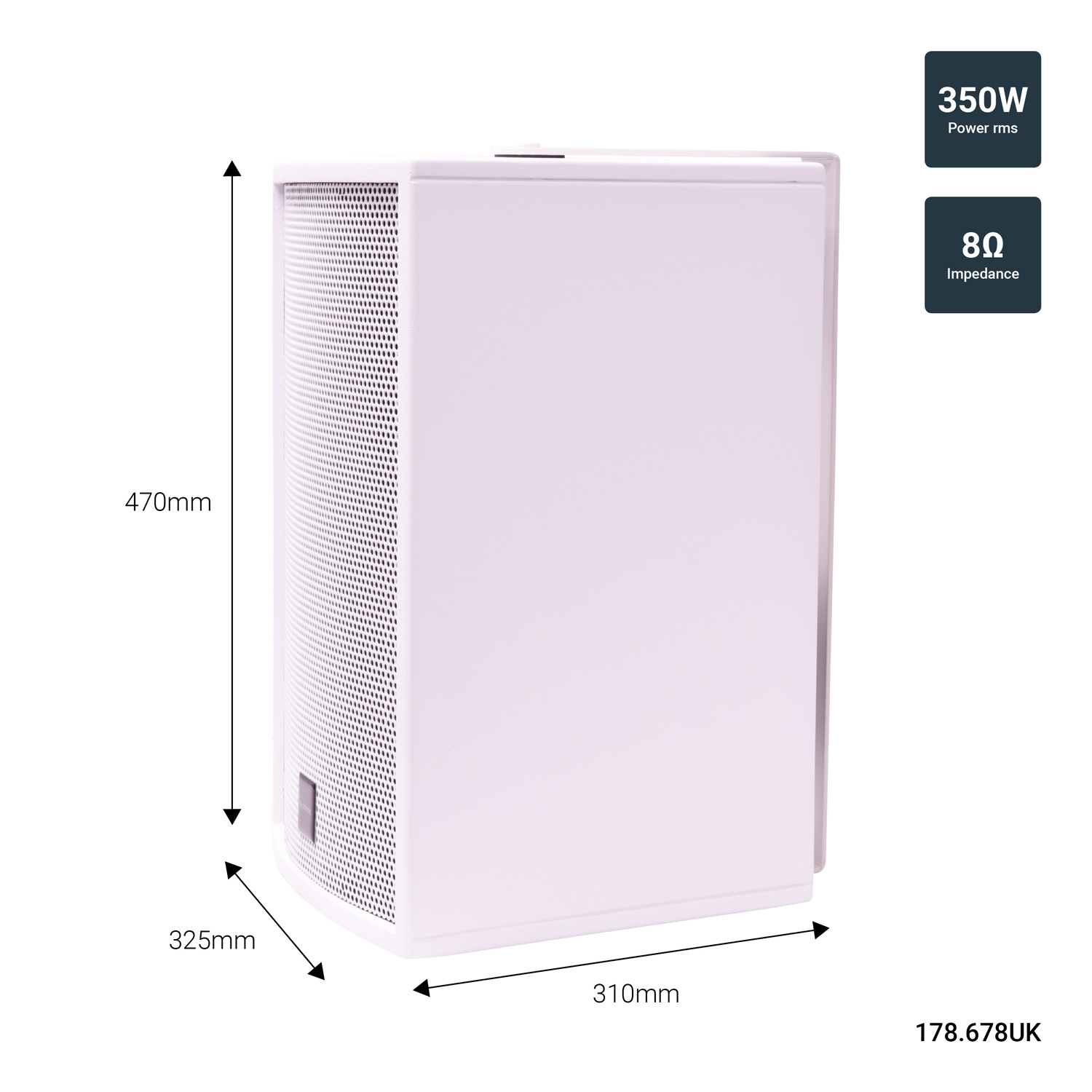

  • Dimensions 470 x 325 x 310mm
  • SPL @ 1W/1m 95dB
  • Frequency response 75Hz - 20kHz
  • Hardware U bracket + 35mm pole mount socket
  • Finish White
  • Dispersion 120° x 120° (H x V)
  • Configuration 250mm (10") & CD horn
  • Power : rms 350W
  • Model CS-1035W
  • Crossover frequency 3.5kHz (12dB/oct)

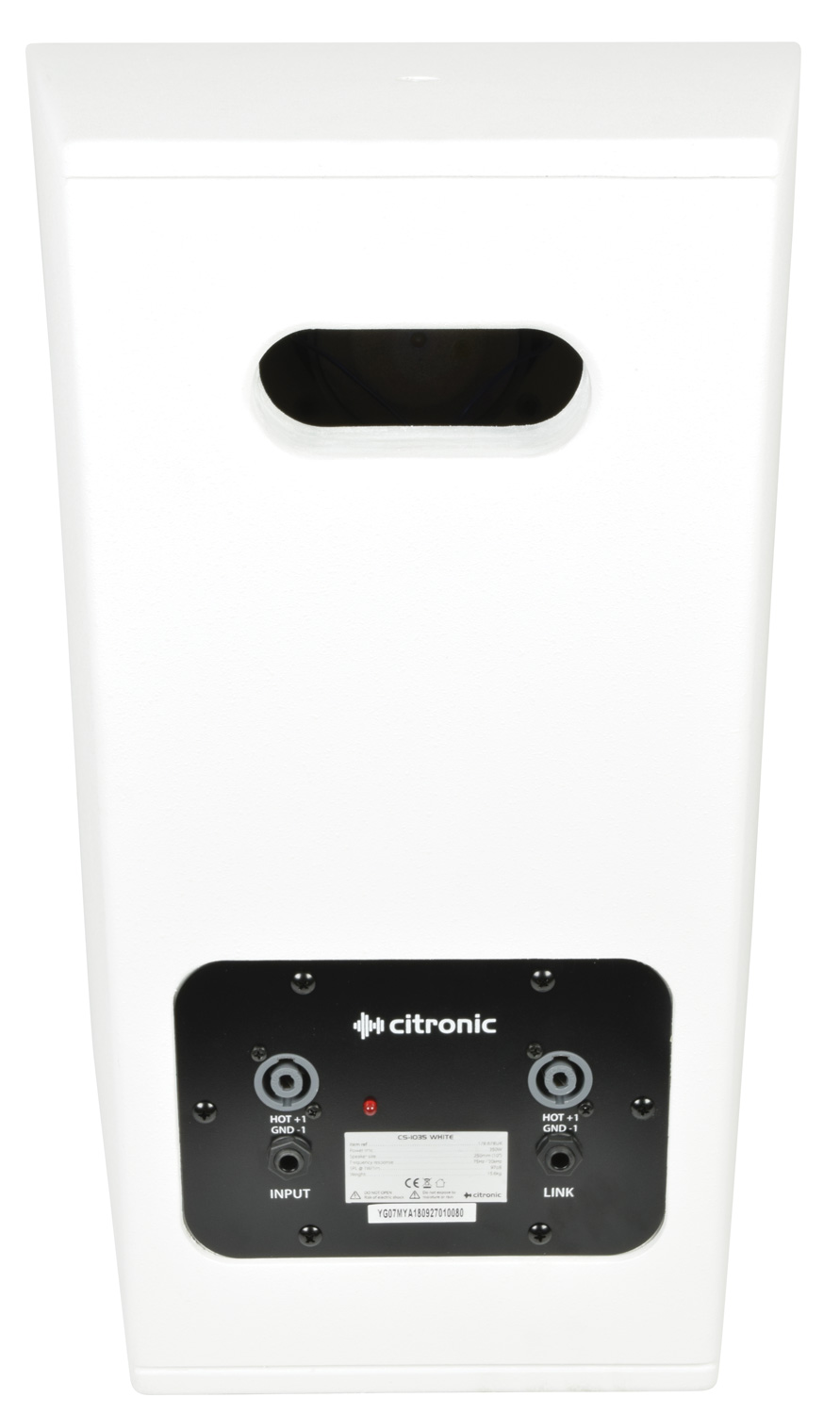

  • Input connections 2 x SPK sockets
  • Impedance 8 Ohms
  • Housing material Birch Plywood
