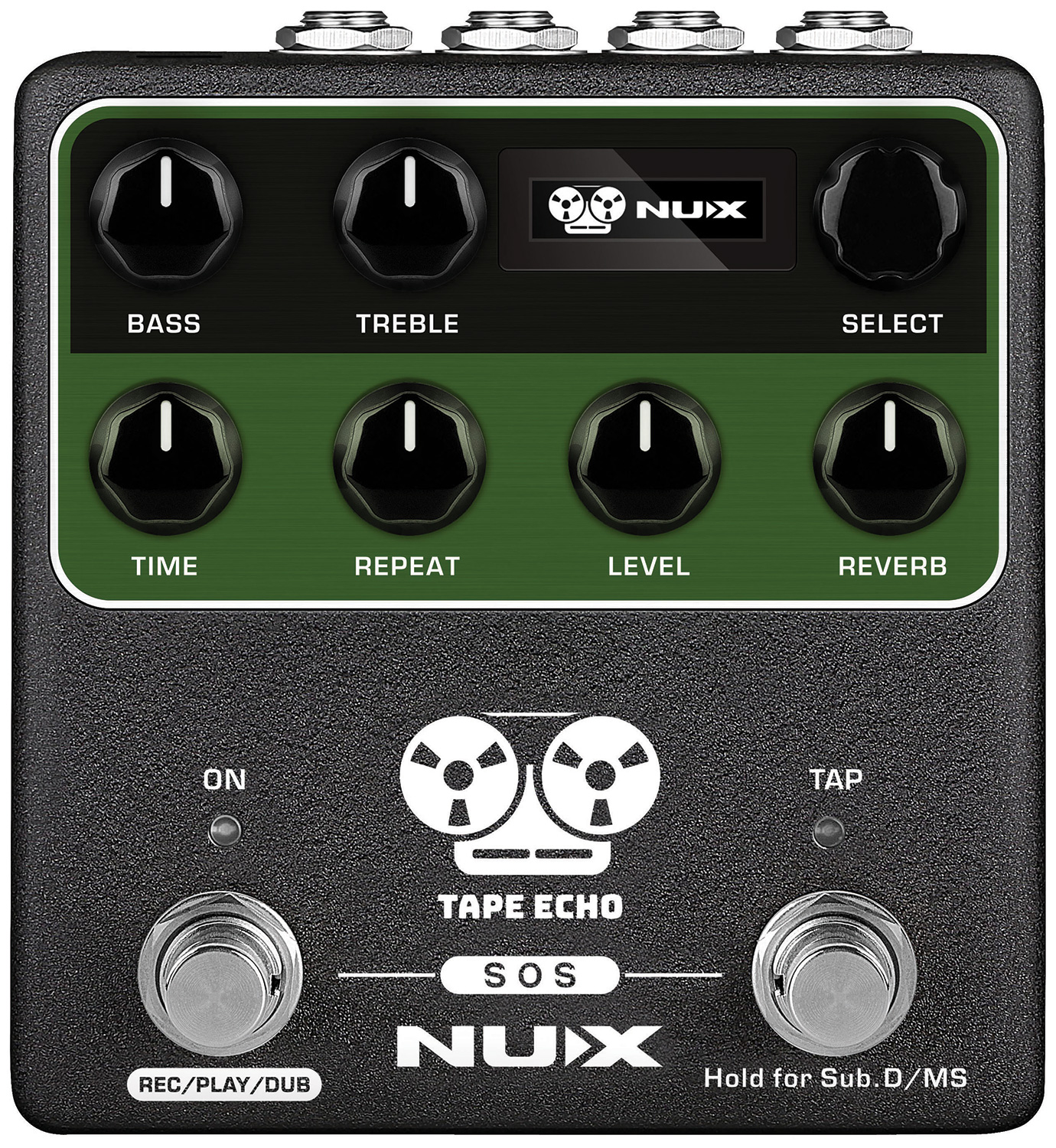

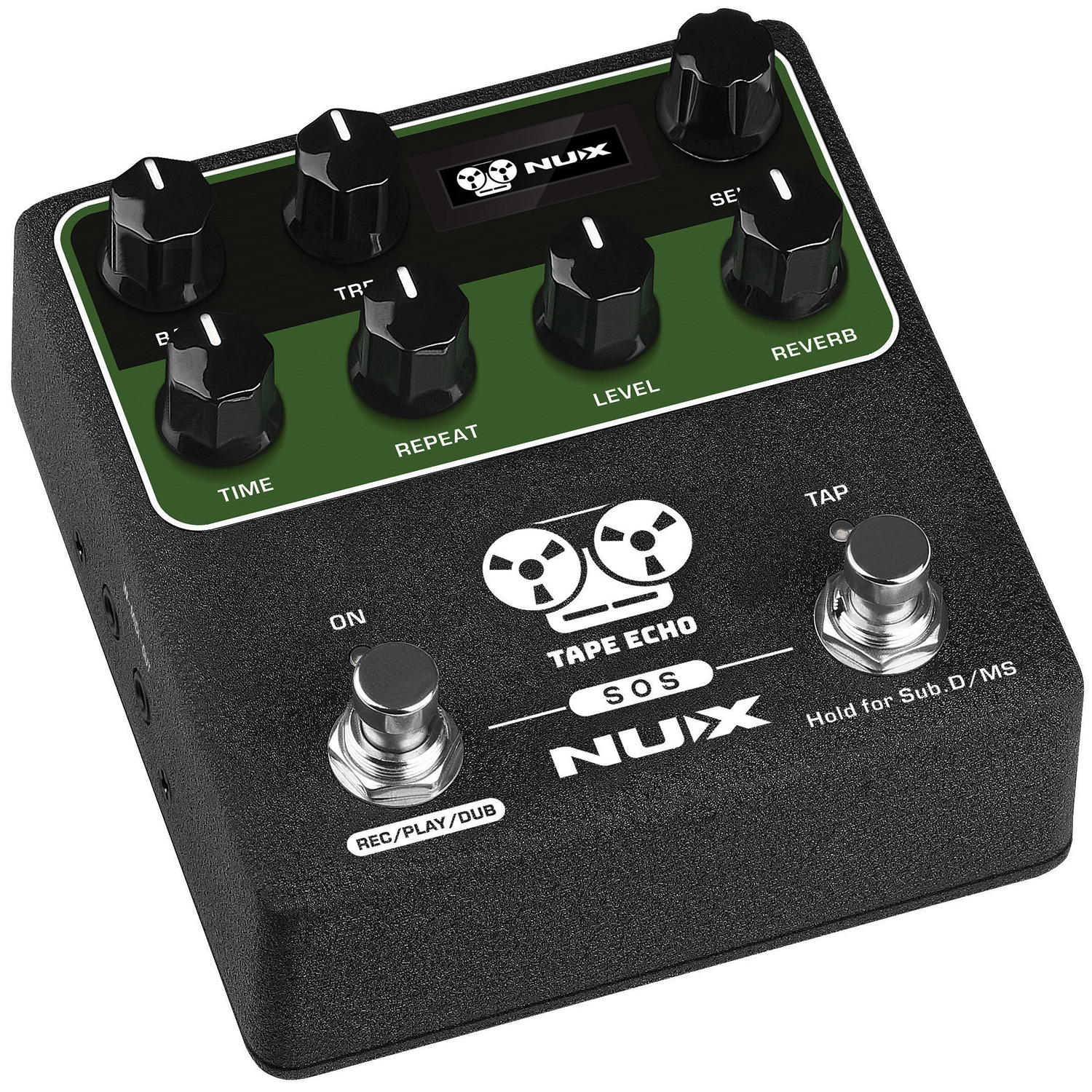

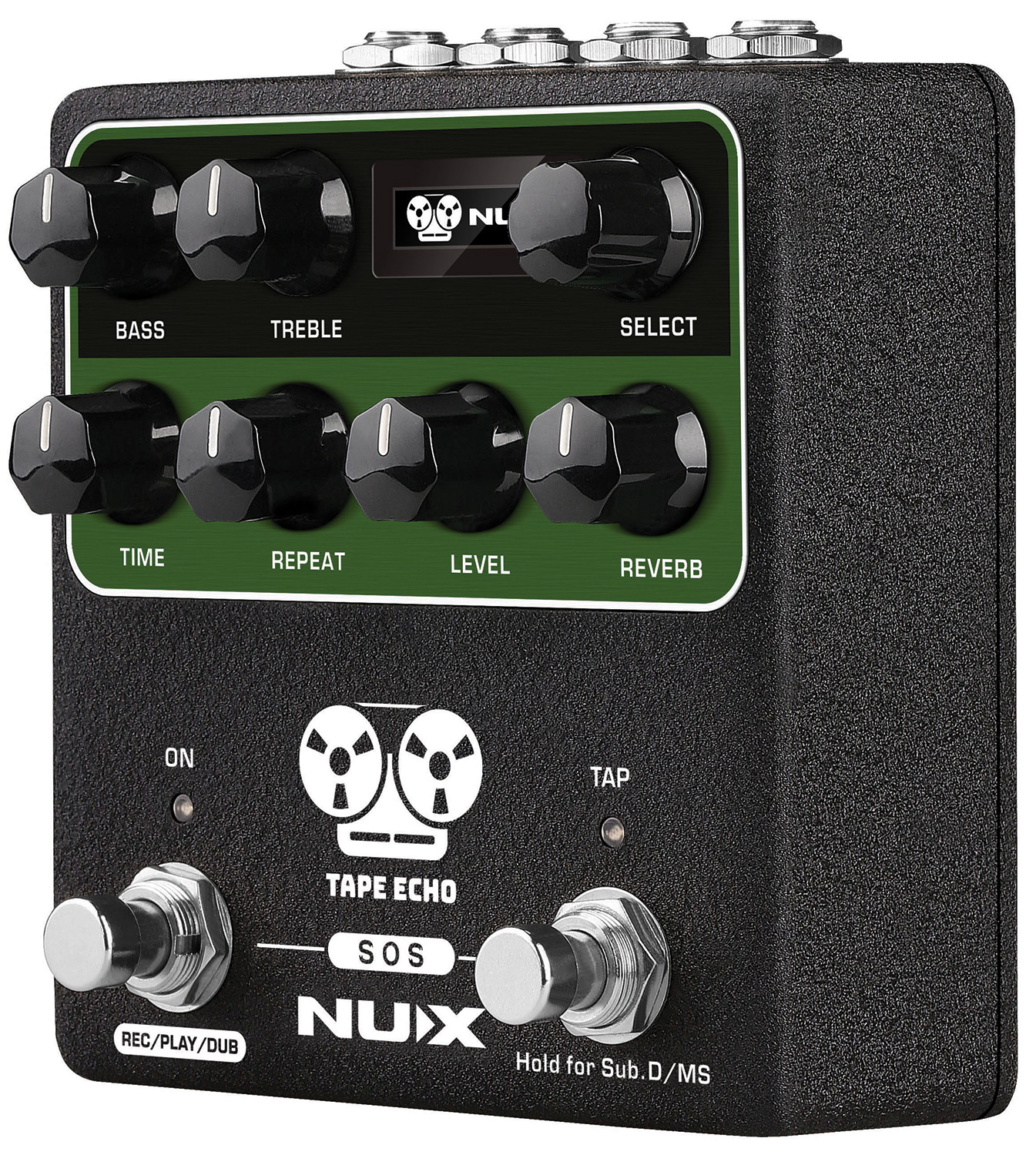

Tape Echo Pedal

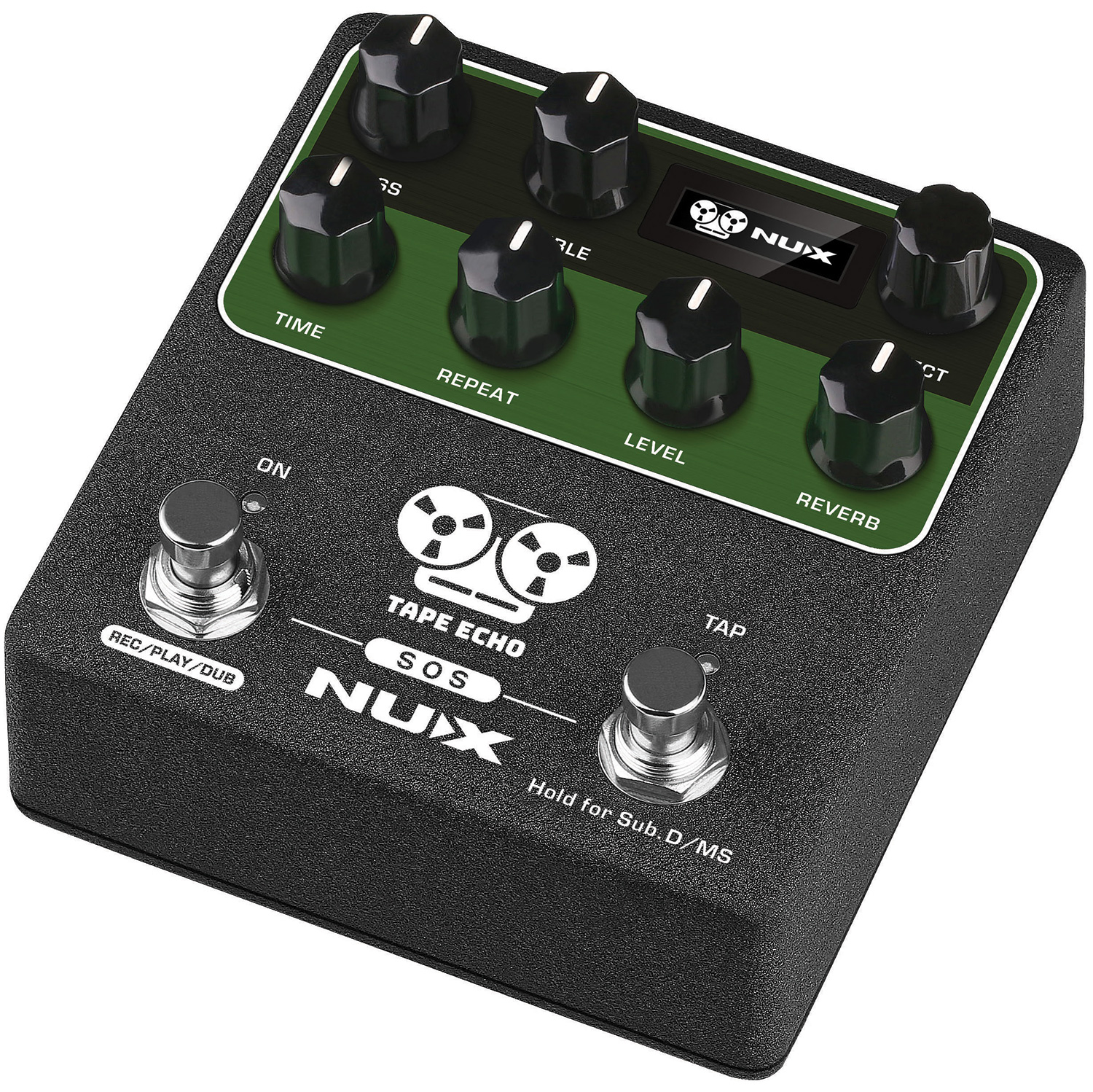

Tape Echo is an echo and delay processor with 7 different types of simulation to recreate the sound of vintage echo units. In addition to classic tape echo simulation, the NDD-7 has a separate spring reverb effect, sound-on-sound (SOS) for operation as a 40 second looper, and up to 1600ms of delay. For authenticity, the NDD-7 also has Wow & Flutter settings and Saturation adds natural compression and degradation, which can even drive into self-oscillation, like a true tape echo. Two foot switches operate as effect on/off and tap tempo and they double as looper and display controls. Above the foot switches are Time, Repeat, Level and Reverb controls and 2-band EQ governs the tone of repeats. USB connectivity and MIDI compatibility give further possibilities for deep control and integration with DAW and project studio setups. A full vintage echo collection in a single compact pedal for those seeking the genuine retro echo sound.

• Authentic tape echo machine simulation
• Independent spring reverb effect

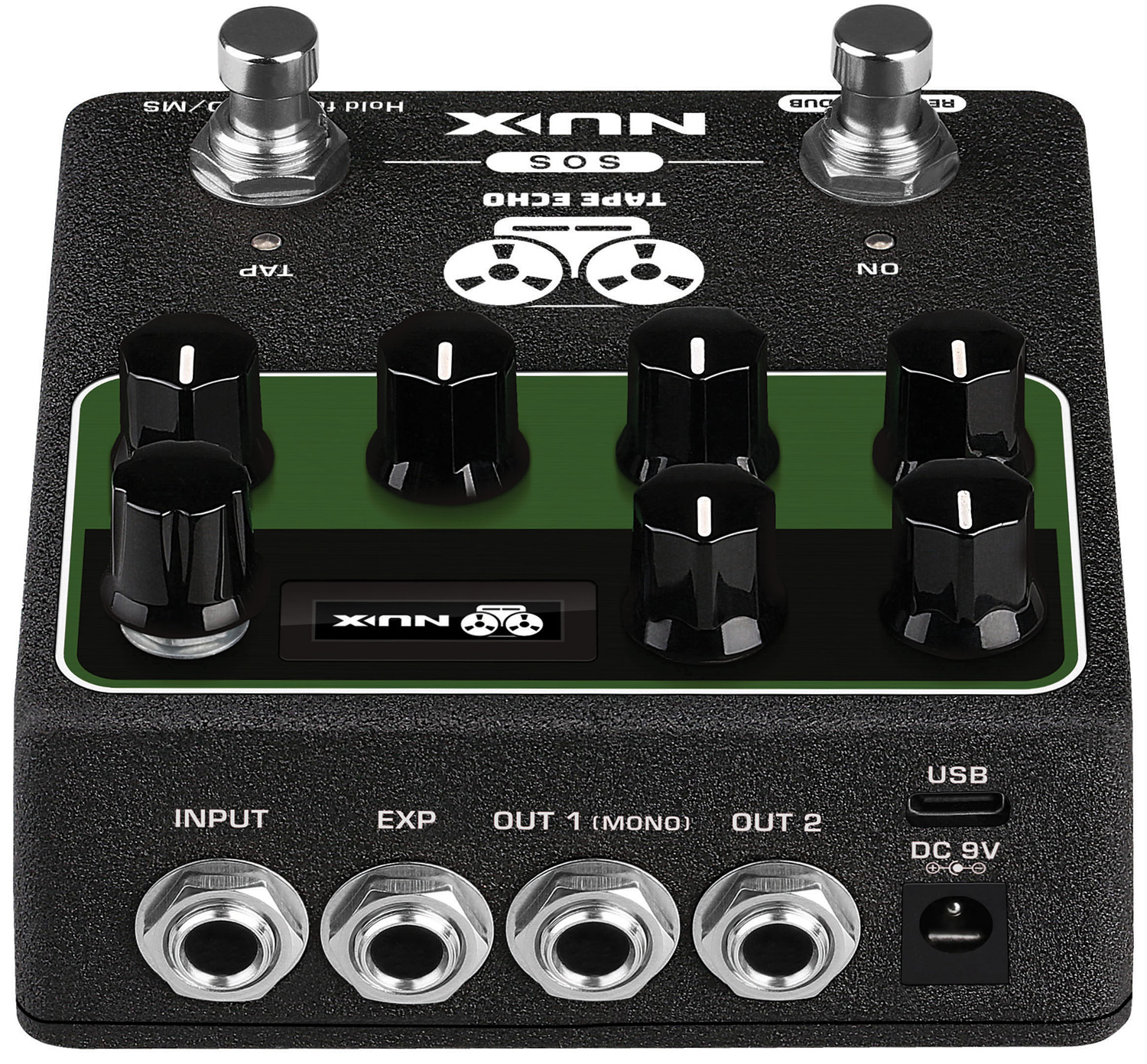

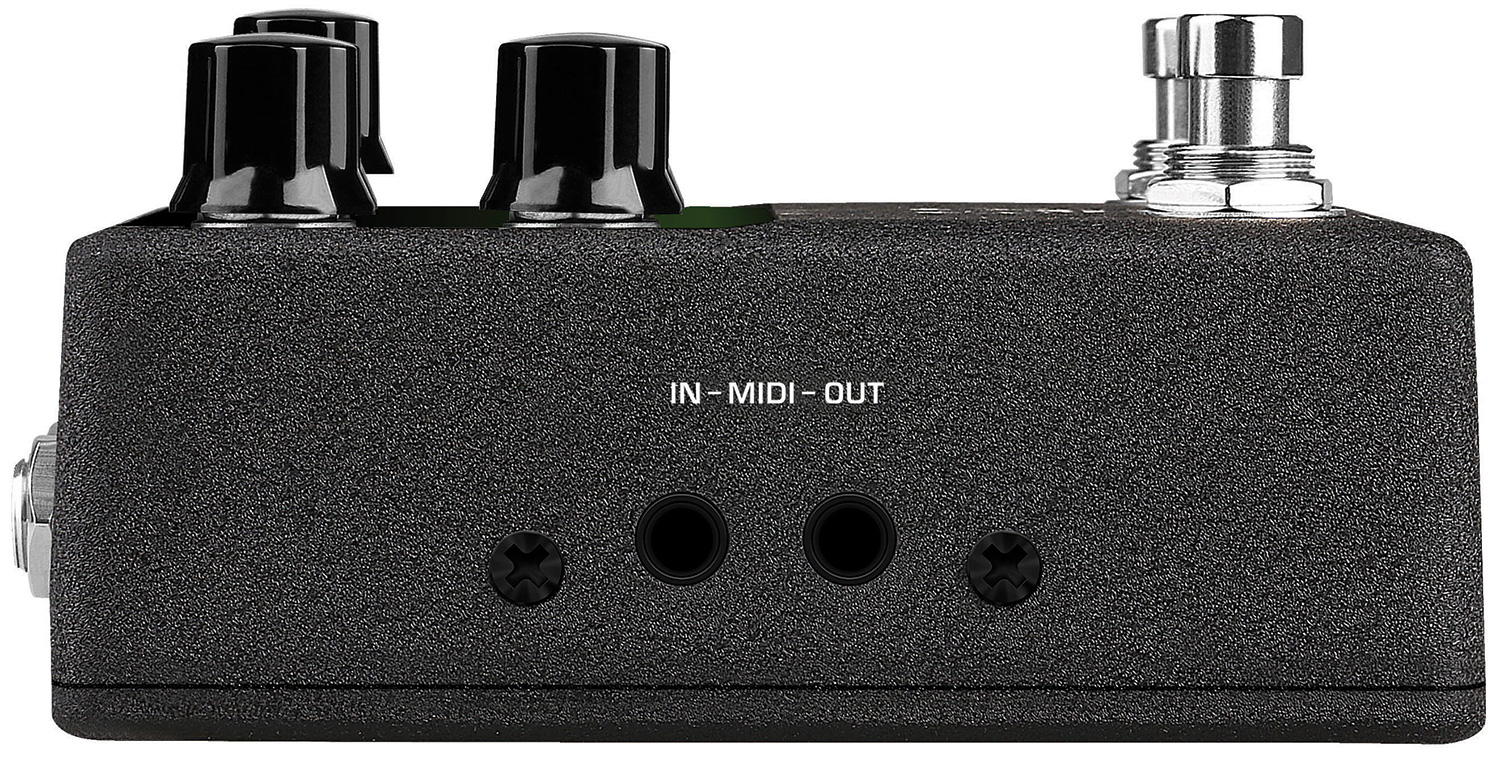

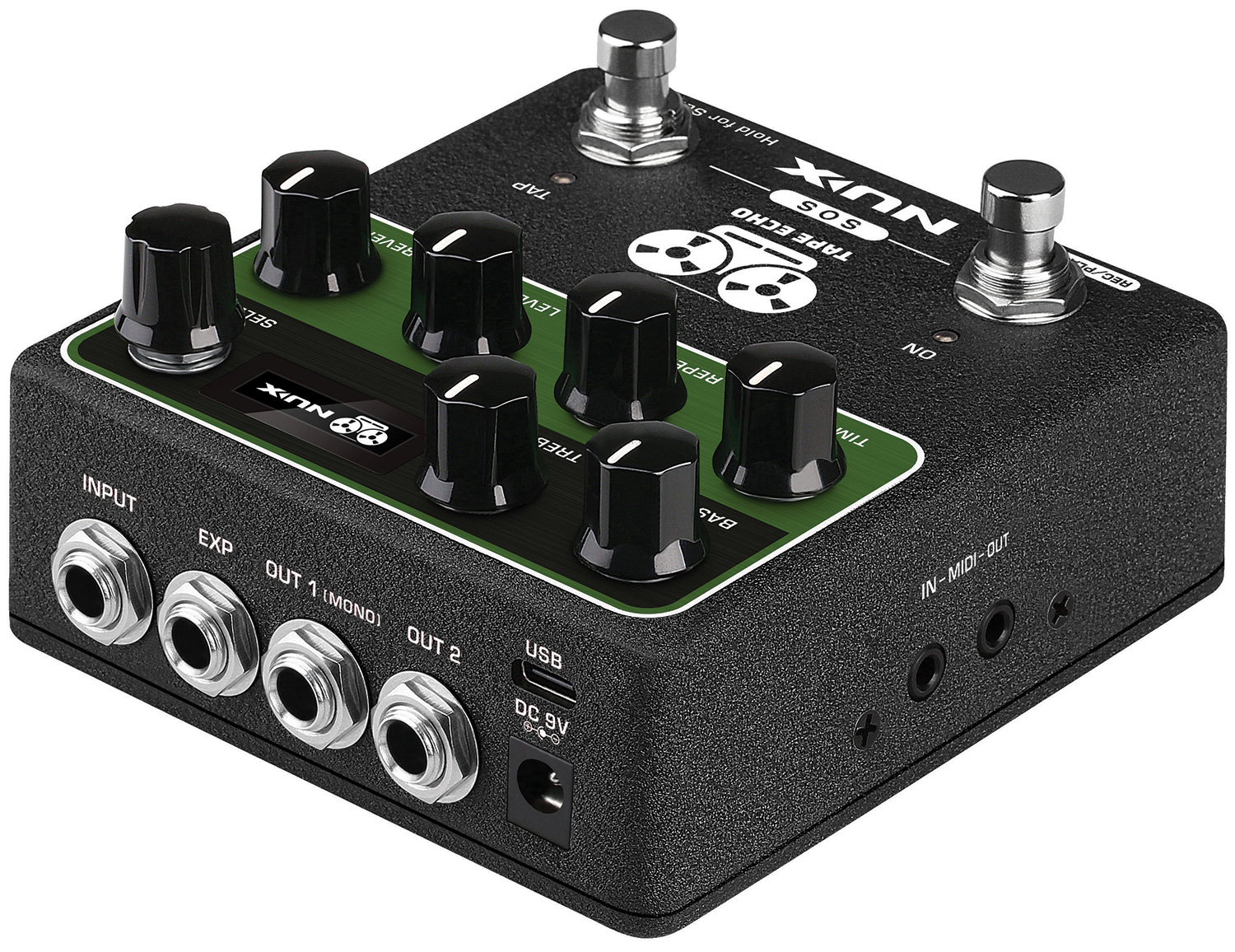

• MIDI in and out

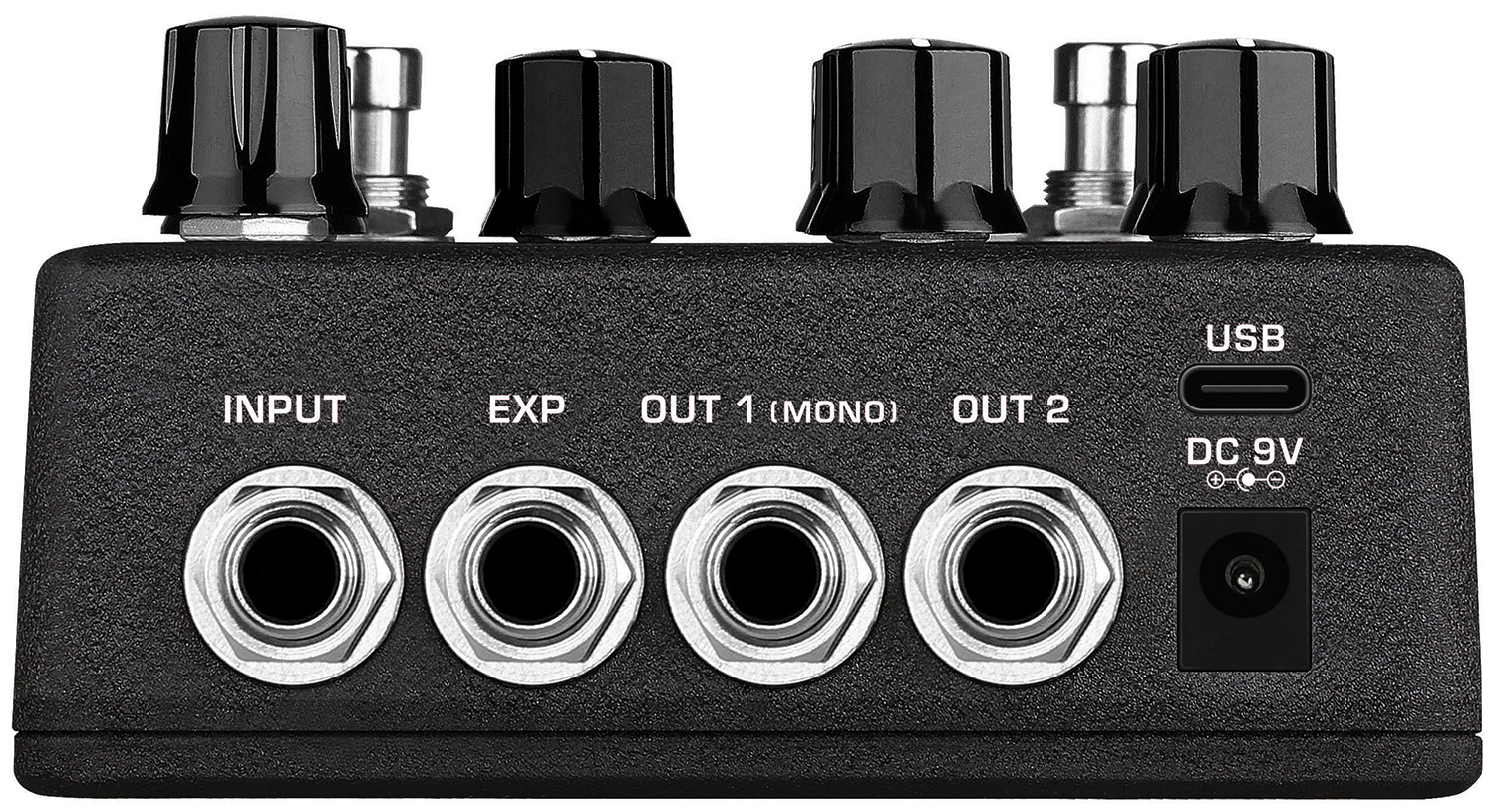

• External expression pedal input

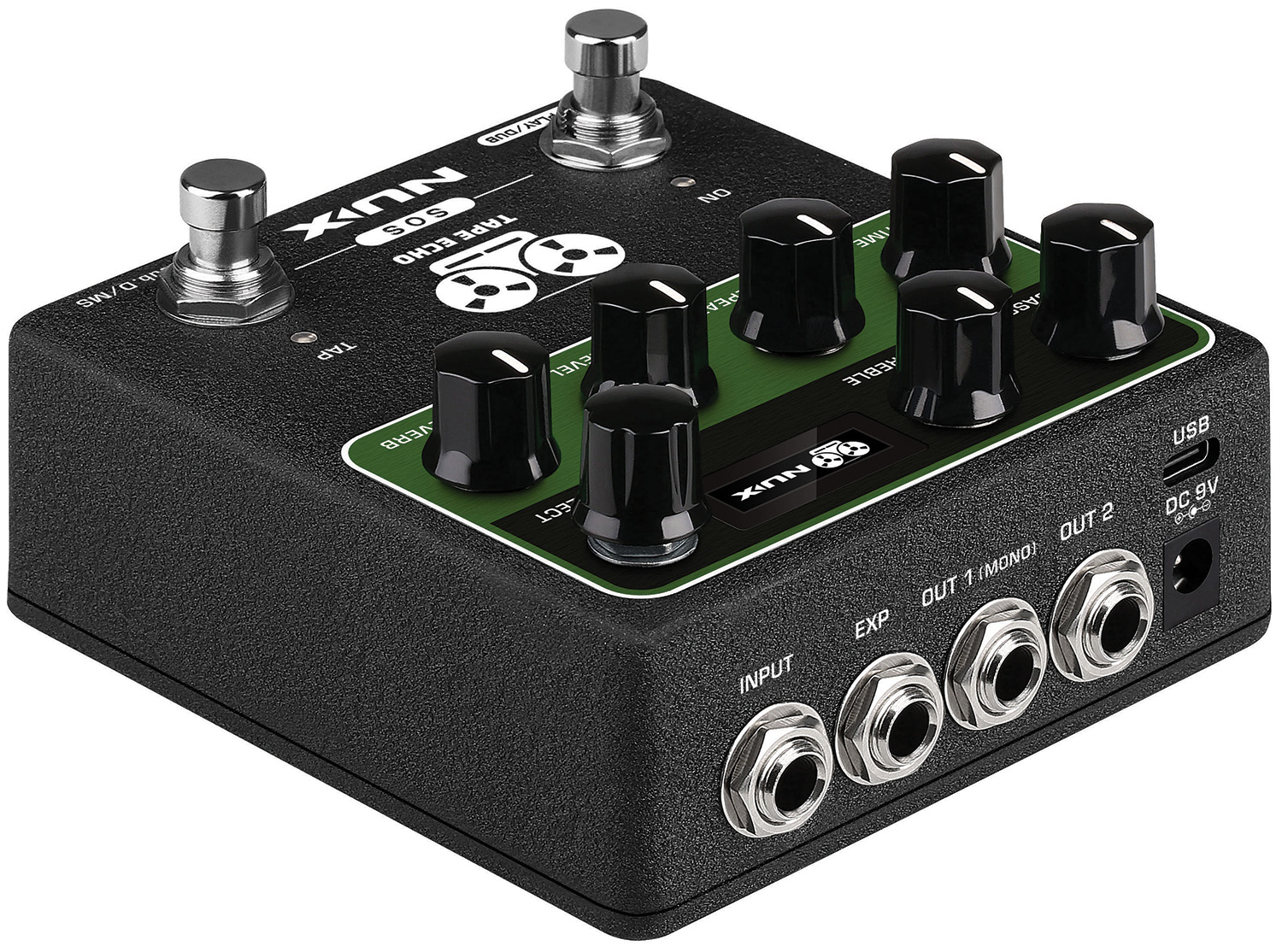

• Stereo or mono output

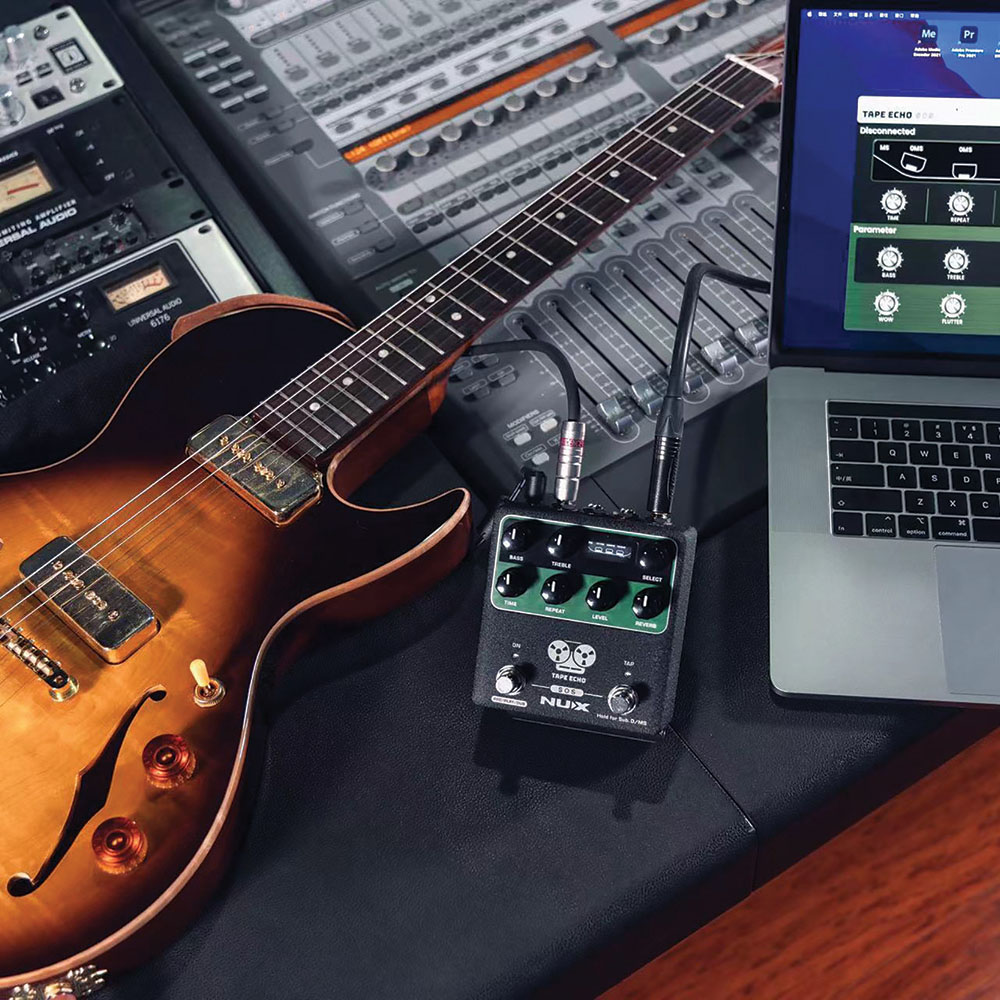

• USB port for PC editor and firmware upgrades

• Power supply 9Vdc, 300mA (min) pin-negative (not included)

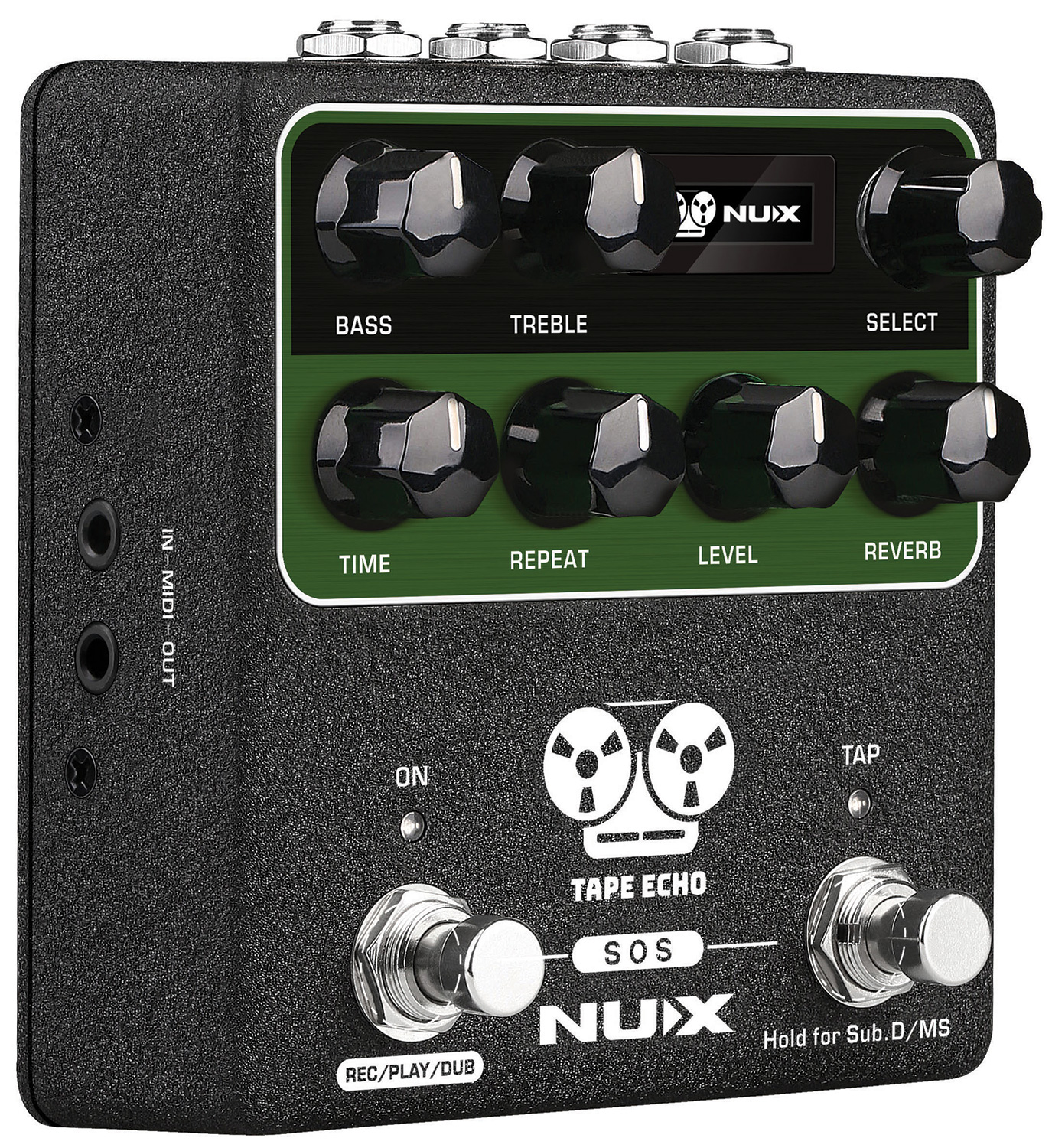

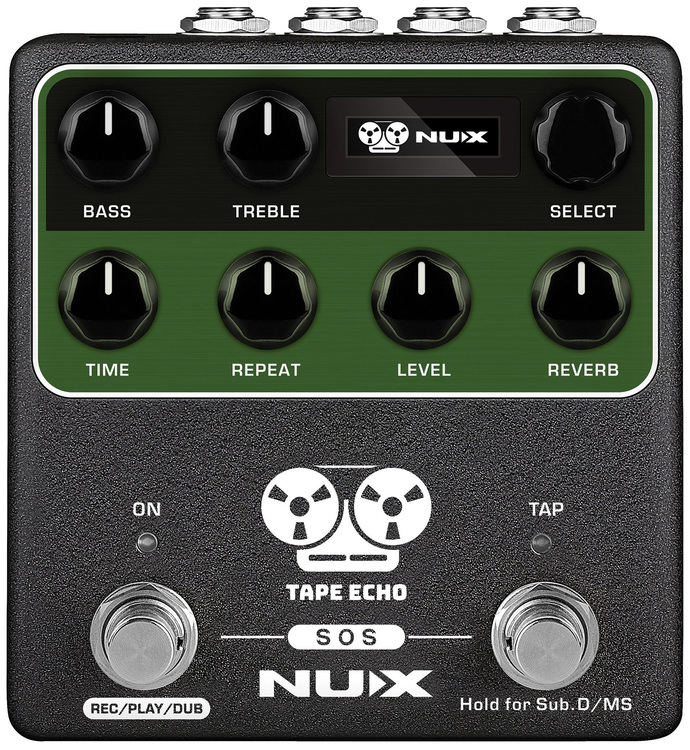

• Controls Time, Repeat, Level, Reverb, Bass, Treble, Select
• Current consumption <150mA
• Sampling Frequency 48kHz
• Sampling format 32-bit
• Frequency response 20Hz - 20kHz (-1dB)
• Input impedance 5M Ohms
• Input level 1.5V max
• Output impedance 100 Ohms
• Output level 1.5V max
• Latency 1ms
• Dynamic range 103dBu / 105dBu (A-weighted)
• THD +N 0.0038% (1Vrms, 1kHz) / 0.01% (1Vrms, 1kHz)
• Dimensions 115 x 105 x 58mm
• Weight 440g
