Zeus Jr. Guitar Pedal Power Supply
Zeus Jr PSU
Following on from the success of the Zeus pedal power supply, NU-X have developed the Zeus Jr. for multi-pedal users with more compact effect setups. Zeus Jr. retains the same double isolated power… more
- Extremely low noise circuitry
- Fully isolated outputs
- Multiple voltage options
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
173.088UK
Zeus Jr. Guitar Pedal Power Supply |
Zeus Jr PSU | Gift Box |

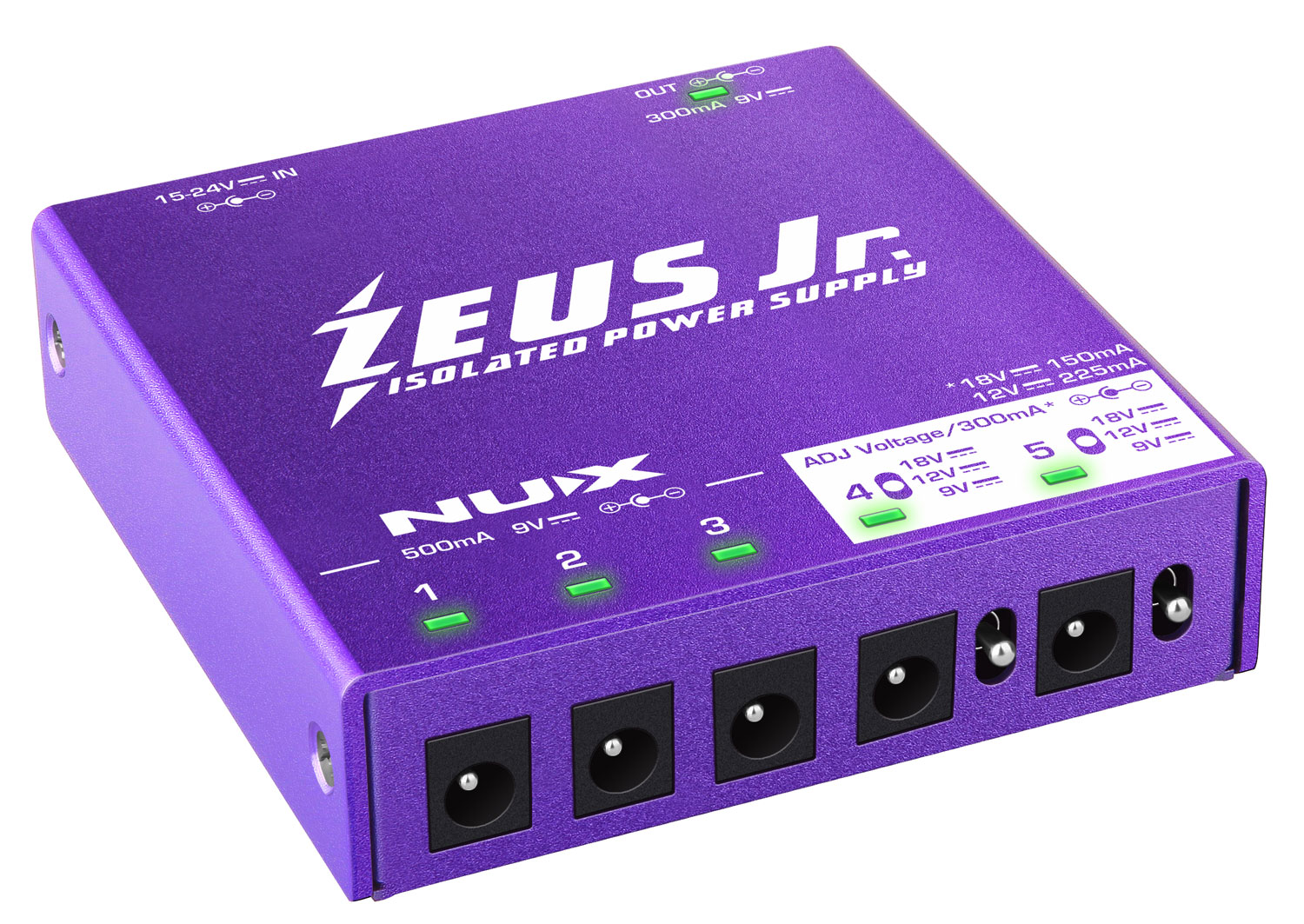

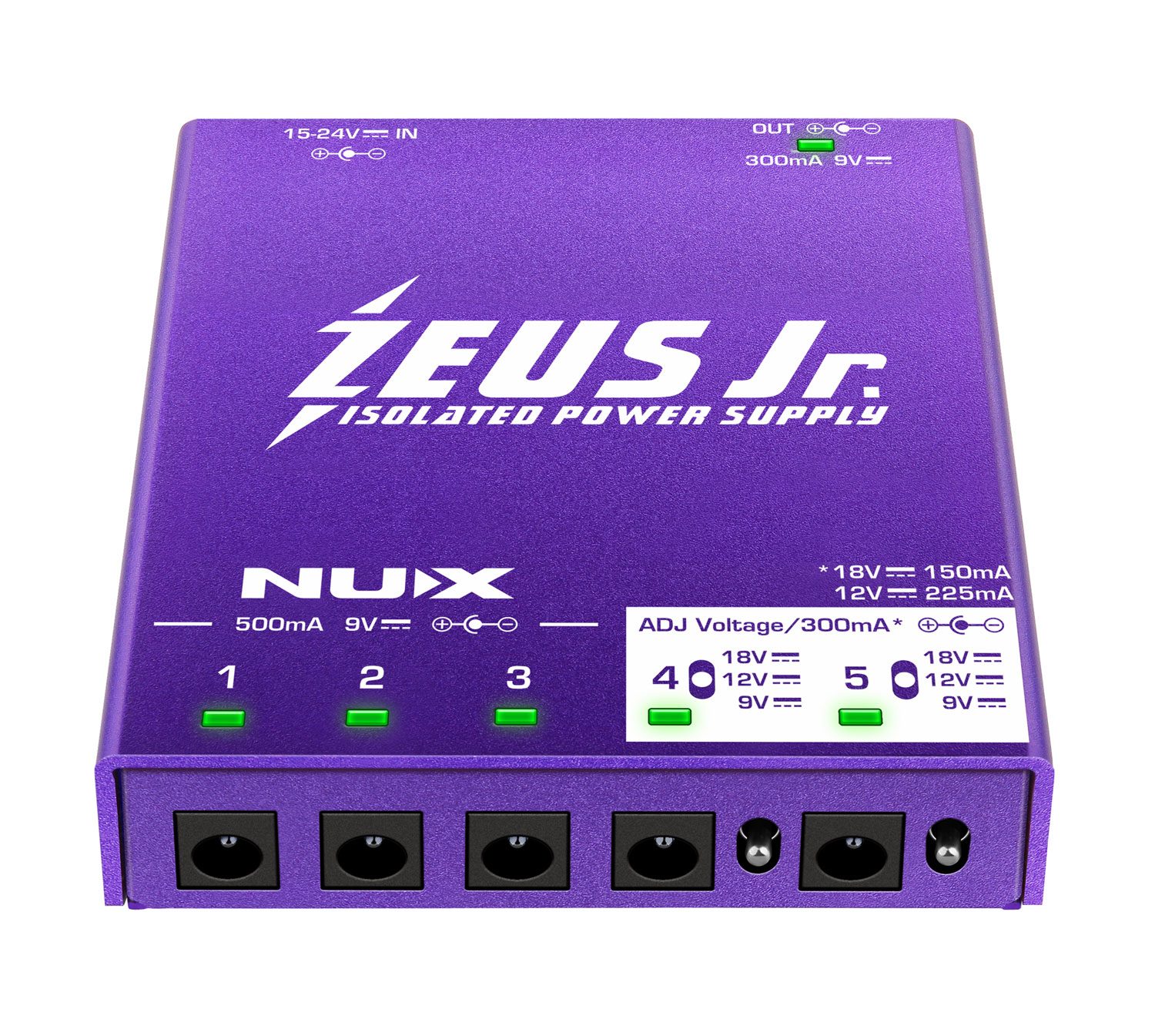

Zeus Jr. Guitar Pedal Power Supply
Following on from the success of the Zeus pedal power supply, NU-X have developed the Zeus Jr. for multi-pedal users with more compact effect setups. Zeus Jr. retains the same double isolated power circuit to help eliminate noise and keep the power chain clean. 3 outputs deliver 9Vdc up to 500mA each and a fourth can provide 9Vdc at 300mA. 2 additional outputs have selectable 9/12/18V outputs for pedals that require or can handle different voltages. Supplied with 6 x DC5521 angle power leads and a further reverse polarity and DC minijack lead. Powered from the mains via its in-line DC switching power supply, this is the ideal solution for players that use multi-pedal rigs where noise issues could otherwise be problematic.
- Extremely low noise circuitry
- Fully isolated outputs
- Multiple voltage options
- High current capacity
- Supplied with various DC link cables to handle most pedal input types

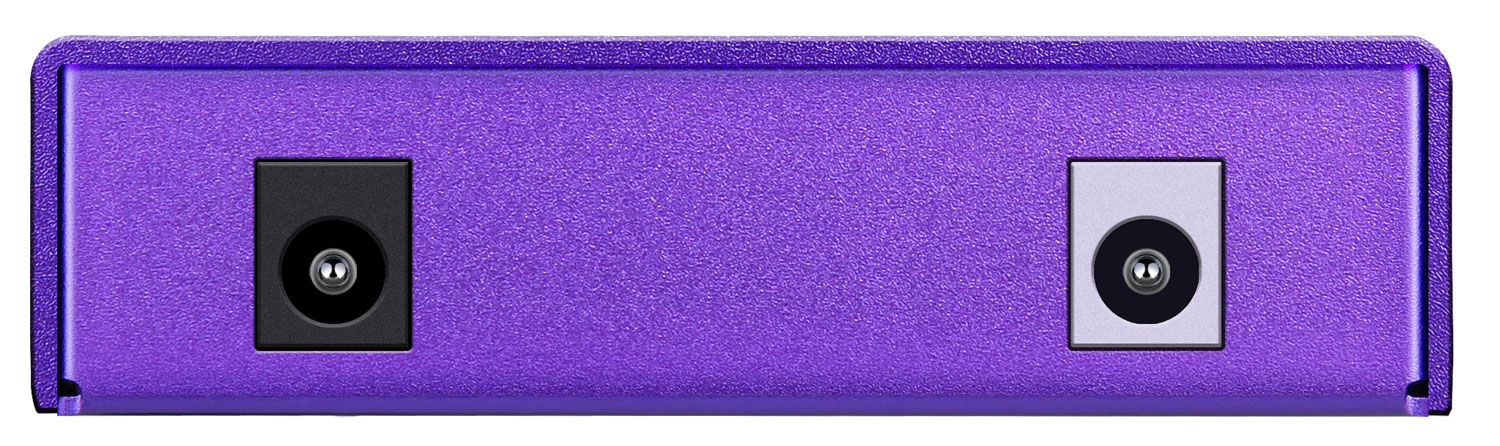

- Power supply 100-240Vac, 50/60Hz (IEC with 15Vdc in-line adaptor)

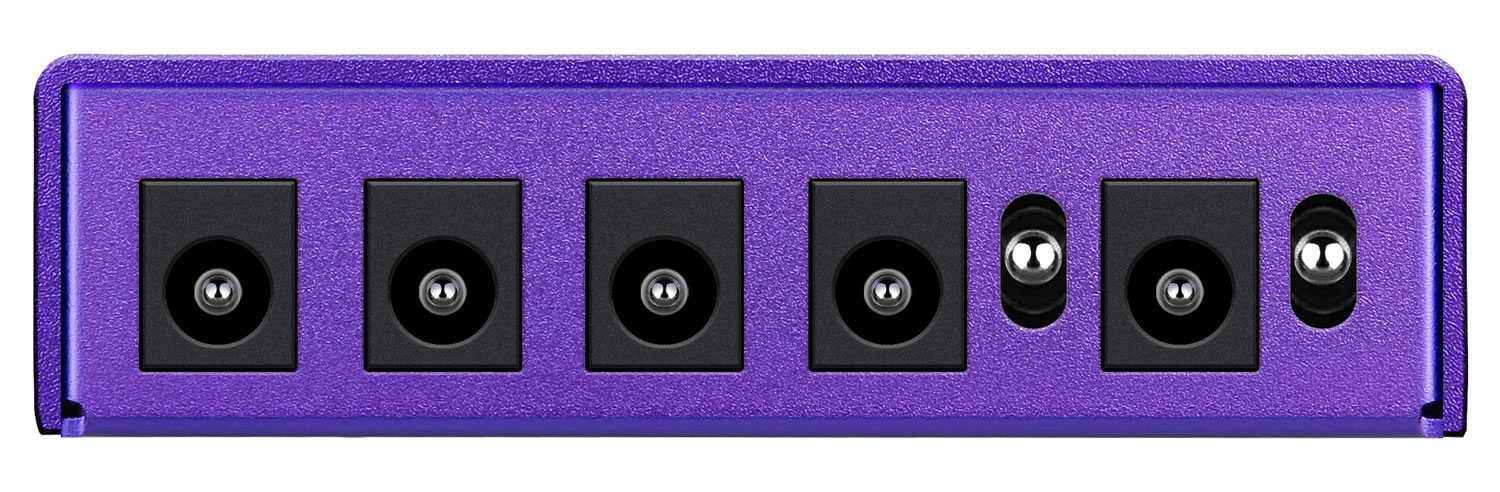

- Outputs 4 x 9Vdc, 2 x 9/12/18Vdc (DC5521 jack)
- Power output 21.6W max
- Dimensions 90 x 88 x 24mm
- Weight 184g
In the Box
- Zeus Jr. guitar pedal power supply
- In-line 24V power adaptor & IEC lead
- 3 x 50cm DC5521 link leads
- 3 x 30cm DC5521 link leads
- 1 x 50cm reverse polarity DC5521 link lead
- 1 x 50cm DC5521 to minijack link lead
