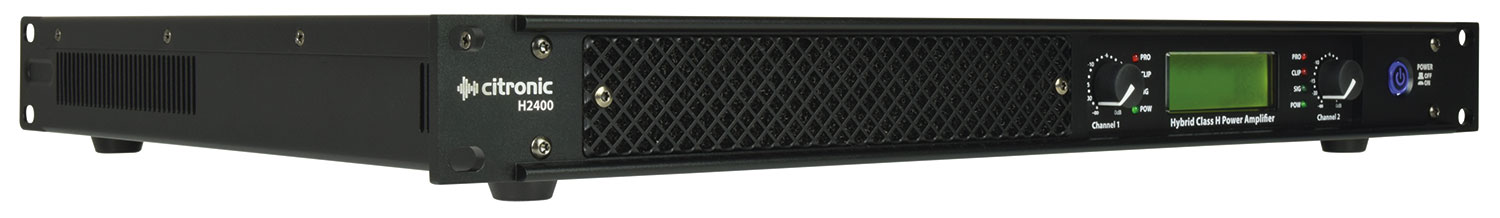

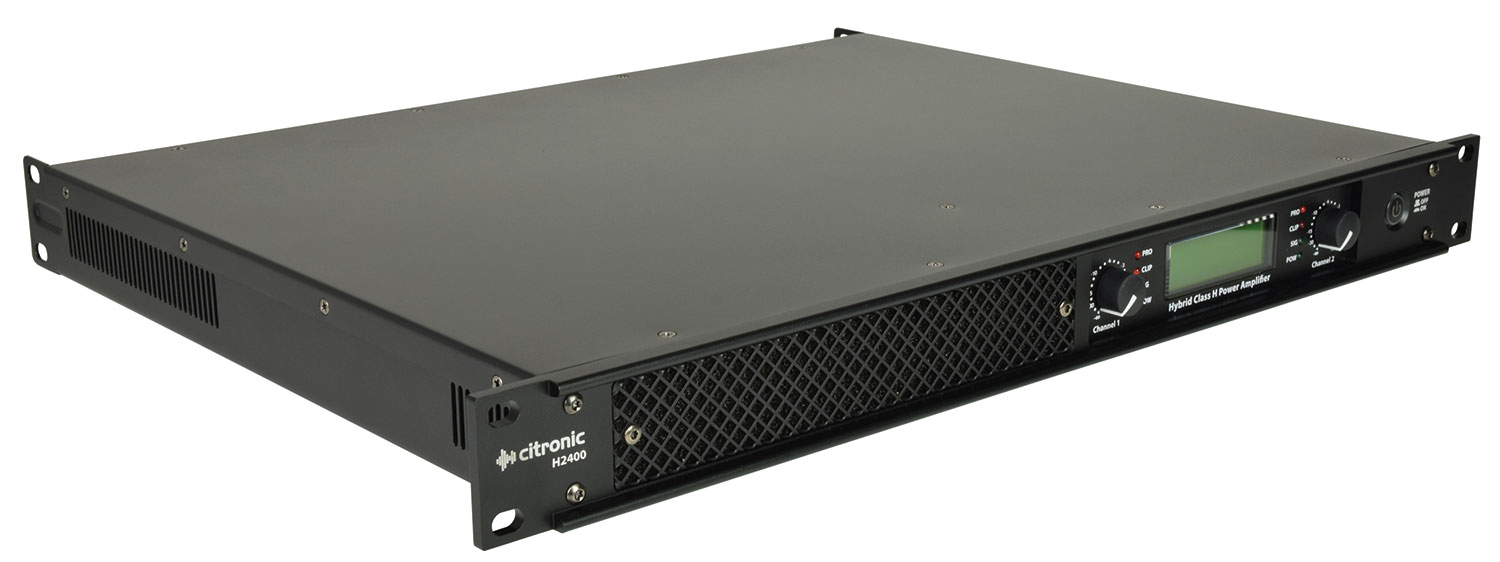

Hybrid Class-H Power Amplifiers

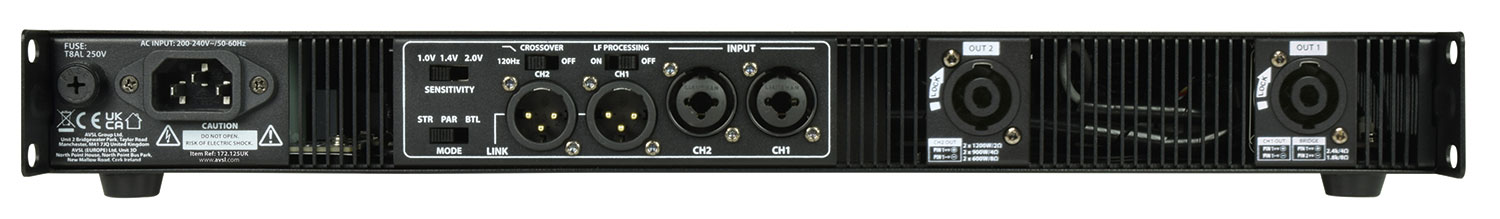

Lightweight power amplifiers in a 19" rack-mountable housing for generating high sound pressure levels in medium to large sound reinforcement systems. H-series amplifiers employ a new hybrid class-H architecture, which combines the streamlined efficiency of a digitally controlled power section design with the power delivery and stability of a professional class-H output stage. Comprehensive internal protection monitors any thermal or overload conditions, automatically mutes at power on/off and provides active inrush limiting. A digital display continually shows the supply voltage, internal temperature and output level. A fully balanced signal path has 3 switchable input sensitivity levels to match different audio sources and the amplifier section can be set to operate in Stereo, Parallel or Bridge modes. A switchable 120Hz low-pass filter can be selected for use with subwoofers, avoiding the need for a separate crossover and saving additional expense and rack space. Speaker outputs can be connected using 1 or 2 Speakon leads as required. H-series amplifiers provide immediate and dynamic power on demand for sound contractors and PA installers that need dependable service with optimum sound quality.

• Hybrid class-H circuit design
• Digitally controlled and monitored power section
• Switchable 120Hz low-pass crossover

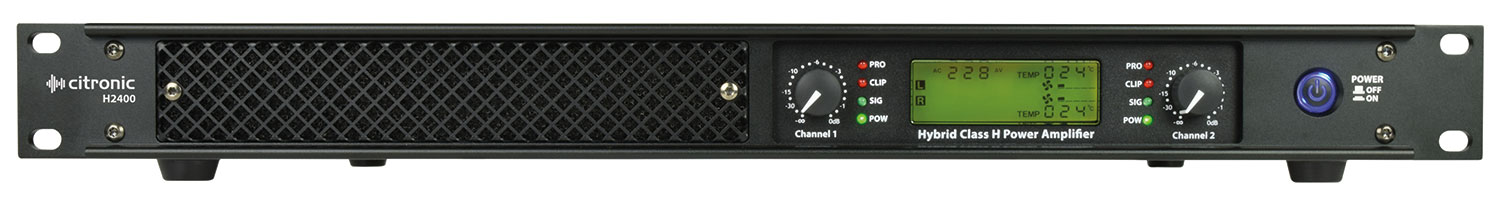

• Backlit LCD status display
• Full internal thermal and overload protection
• Stable down to 2 Ohms (4 Ohms bridged)

• Weight 7.0kg
• Power rms bridge @ 4 Ohms 2400W (40ms burst 1kHz sine)
• Power rms bridge @ 8 Ohms 1800W
• Power rms @ 2 Ohms 2 x 1200W (40ms burst 1kHz sine)
• Power rms @ 4 Ohms 2 x 900W
• Power rms @ 8 Ohms 2 x 600W
• Fuse T8AL 250V
• Dimensions 483 x 361 x 44 mm (1U)
• Power supply 200-240Vac, 50Hz (IEC)
• Amplifier : construction Hybrid Class-H
• Protection Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush
• Frequency response 20Hz-20KHz ±0.5dB
• Crossover Switchable full range or fixed 120Hz low-pass filter
• THD +N 0.2%
• S/N ratio -95dB
• Damping factor >700
• Input sensitivity 1.0V - 1.4V - 2.0V switchable
• Input impedance 20KΩ (balanced),10KΩ (unbalanced)
