PLX Series Power Amplifiers

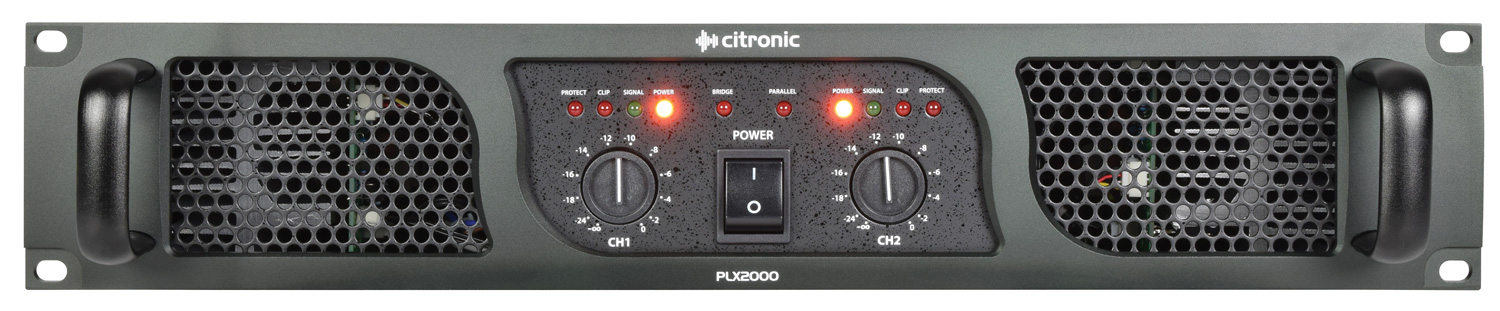

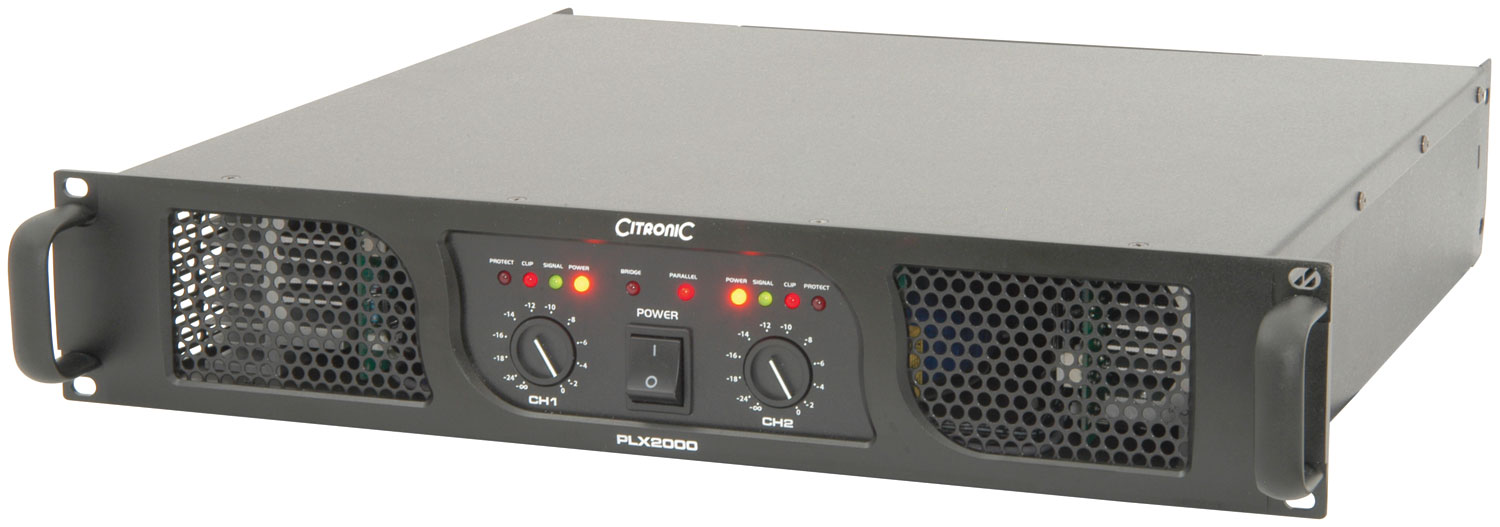

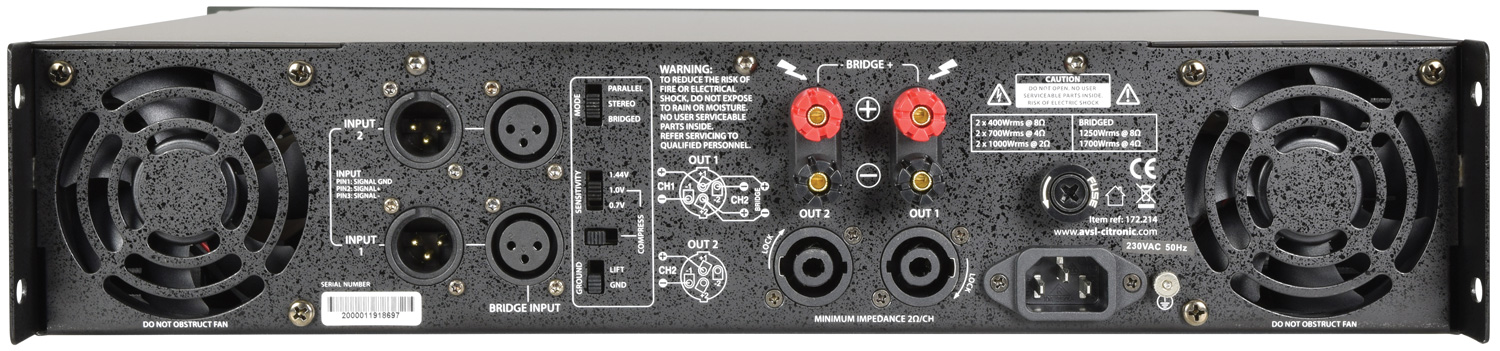

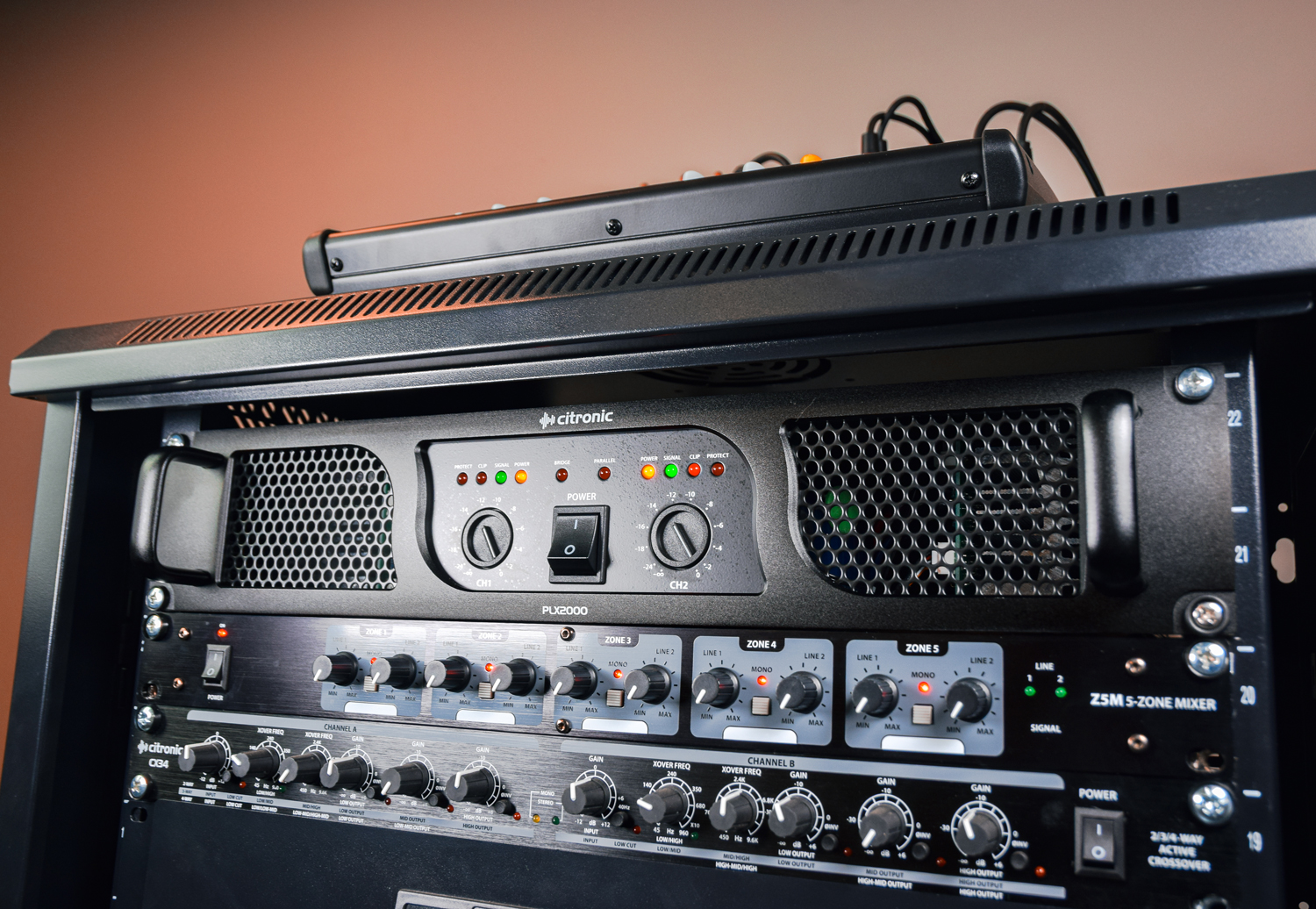

19" rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.

• Bridge mode for high power mono operation
• Output stable down to 2 Ohms
• Switchable clip limiter

• Weight 22.5kg
• Power rms bridge @ 8 Ohms 1250W
• Power rms bridge @ 4 Ohms 1700W
• Power rms @ 8 Ohms 2 x 400W
• Power rms @ 4 Ohms 2 x 700W
• Power rms @ 2 Ohms 2 x 1000W
• Amplifier : construction Class-AB
• Fuse F8A (6 x 32mm)
• Power supply 230Vac, 50Hz (IEC)

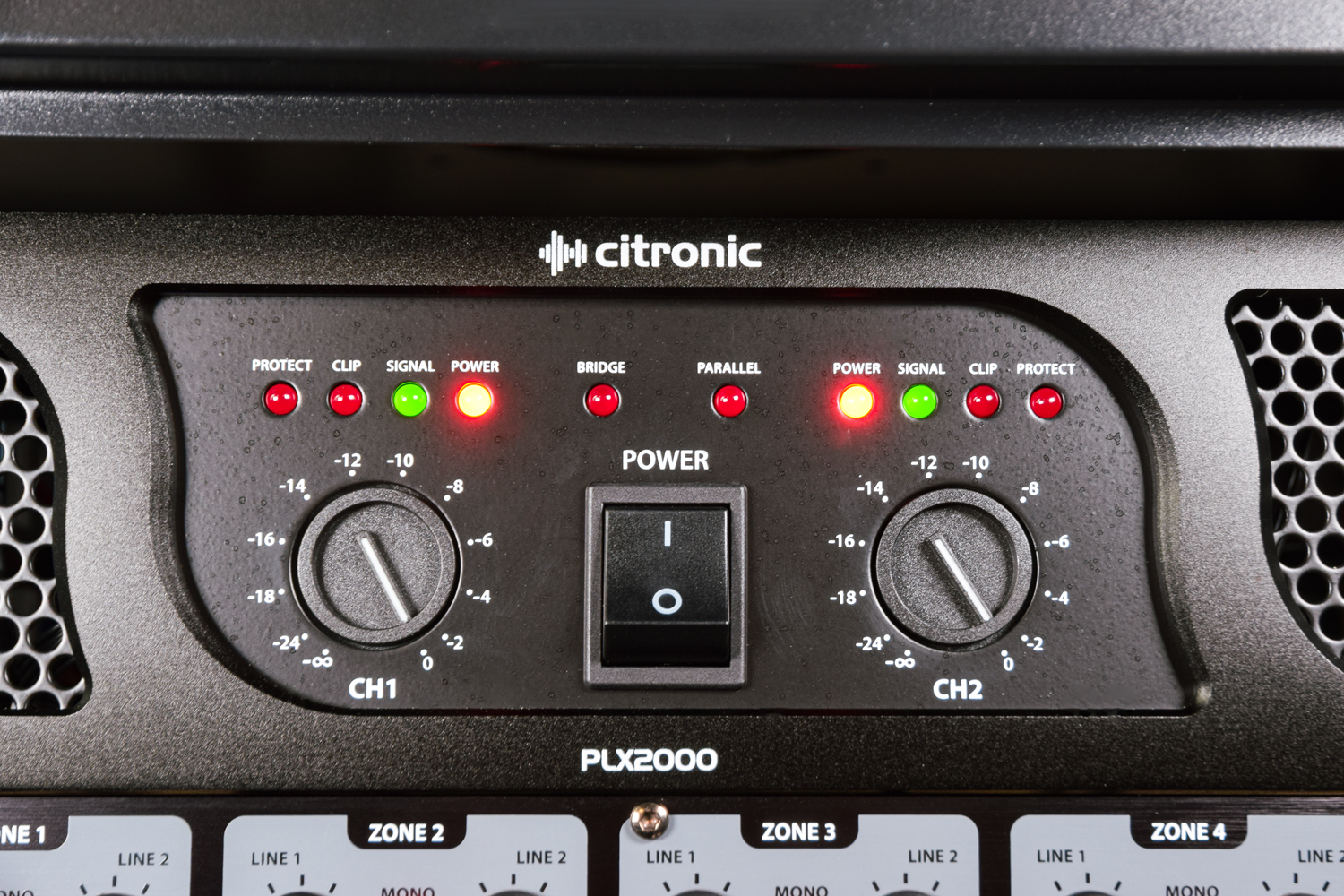

• Controls Level channel 1, level channel 2, ground, mode, clip limiter
• Input impedance 20k ohms
• Frequency response 5Hz - 50kHz
• Total harmonic distortion 0.05%
• Slew rate 40V/us
• Damping factor >400
• Protection Short-circuit, overload, D.C. and thermal protect
• Dimensions 482 x 453 x 88mm (2U)
