Active Crossover - 2 / 3 / 4 Way
170.932UK

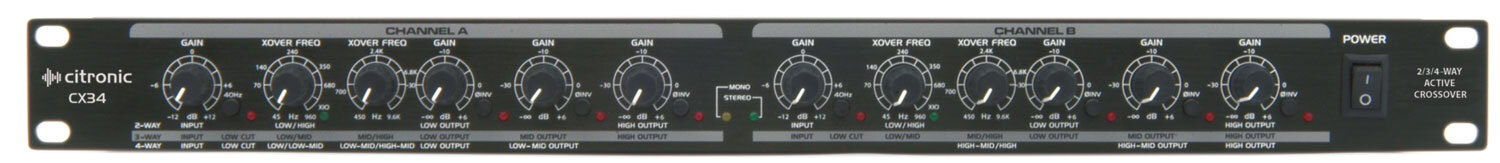

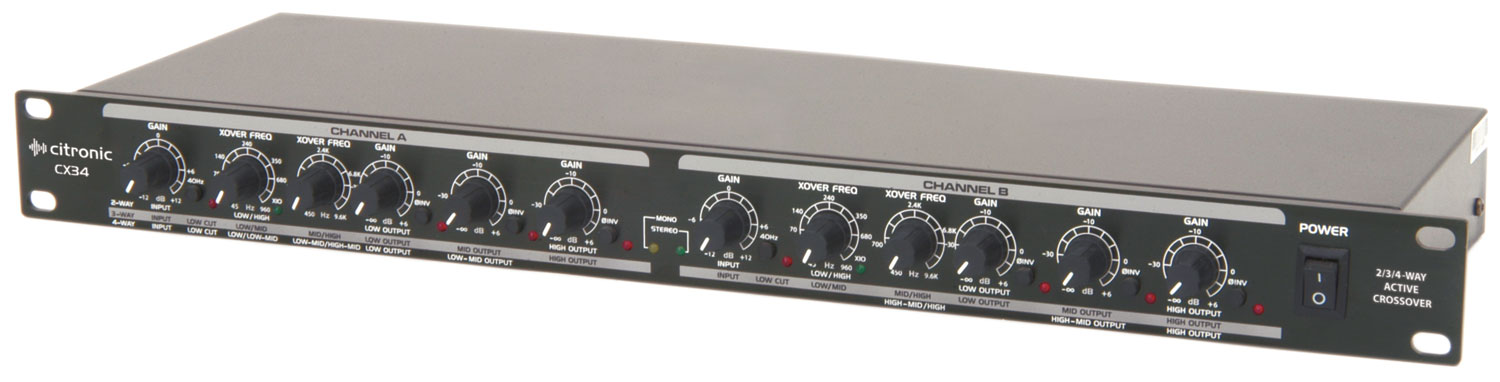

CX34
The CX34 is a 2 or 3-way stereo or 4-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies areā¦ more
- 2 or 3-way stereo, 4-way mono crossover
- 19" rack mountable
- Linkwitz-Riley 24dB/octave, state variable
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
170.932UK
CX34 active crossover 2 / 3 / 4-way |
Gift Box |
Active Crossover - 2 / 3 / 4 Way
The CX34 is a 2 or 3-way stereo or 4-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs. This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.
- 2 or 3-way stereo, 4-way mono crossover
- 19" rack mountable
- Linkwitz-Riley 24dB/octave, state variable
- Continuously adjustable cutoff frequencies
- 40Hz ultra-low frequency cut
- Phase invert function

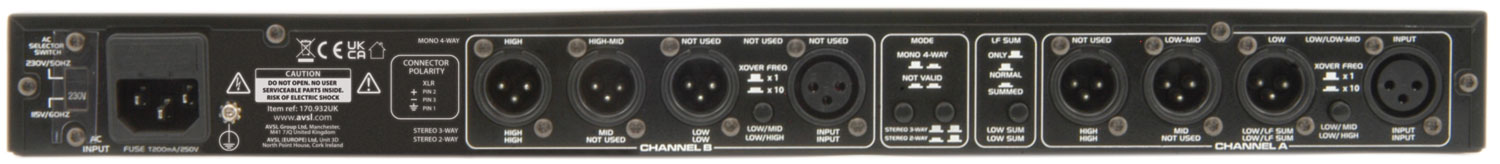

- Inputs and outputs via XLR
- Power supply 115/230Vac, 50/60Hz (IEC)
- Input impedance : balanced 50k ohms
- Input impedance : unbalanced 25k ohms
- Output impedance 200 ohms
- Crossover ranges 45-960Hz (switchable 10x) or 450Hz-9.6kHz
- Filter slope 24dB/octave
- Frequency response 20Hz - 20KHz, +0/-0.5dB
- Signal to noise ratio >90dB
- THD <0.004% @ +4dBu, 1kHz
- Dimensions 482 x 44 x 170mm
- Weight 2.5kg
