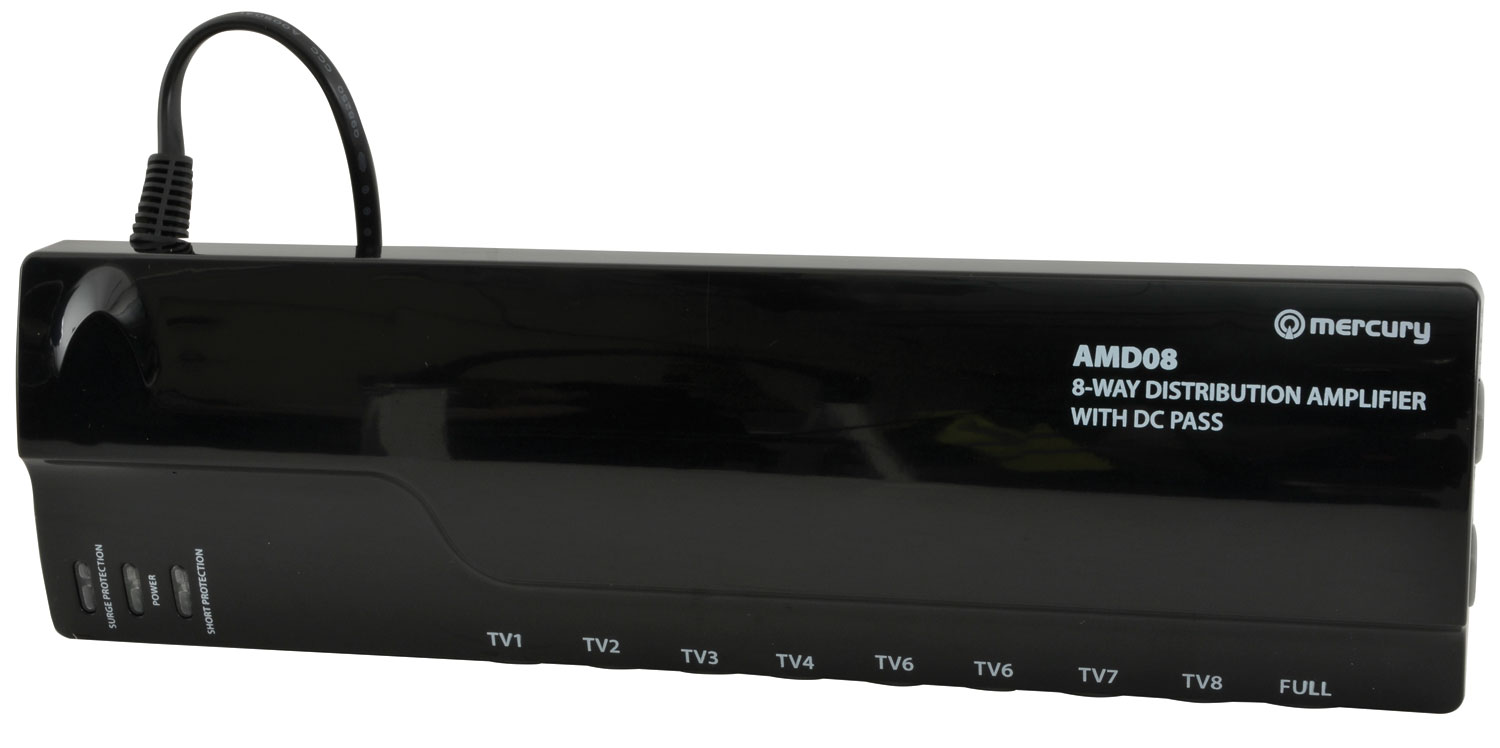

UHF/VHF Distribution Amplifiers with 5G/4G Filter and DC Pass

8 Way 5G

130.033UK
AMD08

Distribution amplifiers with built in 5G/4G LTE filter, designed to improve the quality of audio and video by amplifying weak VHF/UHF signals and distributing them across a designated area. Suitableā€¦ more

  • Fully screened amplifier compatible with Digital Terrestrial/Satellite/Cable TV and DAB/FM radio signals
  • Integrated LTE signal filter avoids interference and channel loss from 5G & 4G mobile signals
  • Coaxial socket connection, F socket adaptors included to allow F-Type connection
DESCRIPTION VERSION PACKED
130.030UK

2 Way VHF/UHF Distribution Amplifier

2 Way 5G Gift Box
130.031UK

4 Way VHF/UHF Distribution Amplifier

4 Way 5G Gift Box
130.032UK

6 Way VHF/UHF Distribution Amplifier

6 Way 5G Gift Box
130.033UK

8 Way VHF/UHF Distribution Amplifier

8 Way 5G Gift Box

UHF/VHF Distribution Amplifiers with 5G/4G Filter and DC Pass

Distribution amplifiers with built in 5G/4G LTE filter, designed to improve the quality of audio and video by amplifying weak VHF/UHF signals and distributing them across a designated area. Suitable for both professional and domestic installations and fully compatible with Digital Terrestrial/Satellite/Cable TV and DAB/FM radio signals.

  • Fully screened amplifier compatible with Digital Terrestrial/Satellite/Cable TV and DAB/FM radio signals
  • Integrated LTE signal filter avoids interference and channel loss from 5G & 4G mobile signals
  • Coaxial socket connection, F socket adaptors included to allow F-Type connection
  • Built in low noise amplifier with wideband output
  • Built in surge and short circuit protection, and maximum output limiter prevents overload
  • High gain output for additional distribution connection
  • Separate inputs for VHF and UHF
  • DC pass allows the control of satellite via Magic Eye remote extender
  • Side mounted terminals allow easy cable management
  • Weight 500g
  • Dimensions 270 x 70 x 45mm
  • Supplied with 4pcs F-Type Adaptor
  • No. of outputs 8 + Full (8 x coax sockets)
  • Gain per split 8dB
  • Max. output level 87dBuV
  • Frequency range : VHF 47 - 230MHz
  • Frequency range : UHF 470-694MHz(5G)
  • Full gain output 20dB
  • Impedance 75 Ohms
  • Isolation 22dB
  • Noise <3.8dB
  • Input 2 x coax sockets
  • Cable : length 1.0m
  • Power 230Vac, 50Hz
