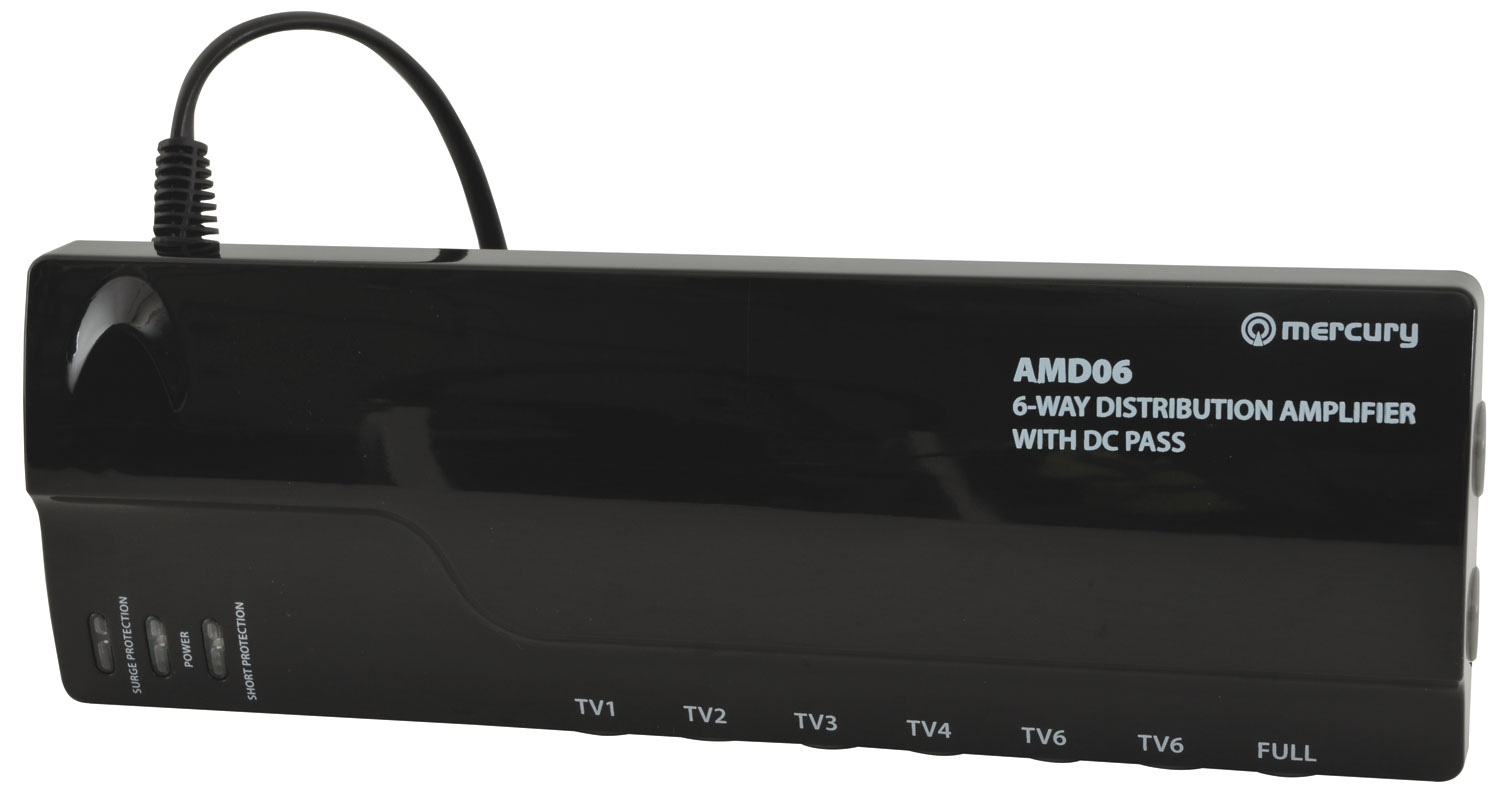

UHF/VHF Distribution Amplifiers with 5G/4G Filter and DC Pass

Distribution amplifiers with built in 5G/4G LTE filter, designed to improve the quality of audio and video by amplifying weak VHF/UHF signals and distributing them across a designated area. Suitable for both professional and domestic installations and fully compatible with Digital Terrestrial/Satellite/Cable TV and DAB/FM radio signals.

• Fully screened amplifier compatible with Digital Terrestrial/Satellite/Cable TV and DAB/FM radio signals
• Integrated LTE signal filter avoids interference and channel loss from 5G & 4G mobile signals
• Coaxial socket connection, F socket adaptors included to allow F-Type connection
• Built in low noise amplifier with wideband output
• Built in surge and short circuit protection, and maximum output limiter prevents overload
• High gain output for additional distribution connection
• Separate inputs for VHF and UHF
• DC pass allows the control of satellite via Magic Eye remote extender
• Side mounted terminals allow easy cable management

• Weight 420g
• Dimensions 225 x 70 x 45mm
• Supplied with 4pcs F-Type Adaptor
• No. of outputs 6 + Full (7 x coax sockets)
• Gain per split 8dB
• Max. output level 87dBuV
• Frequency range : VHF 47 - 230MHz
• Frequency range : UHF 470-694MHz(5G)
• Full gain output 20dB
• Impedance 75 Ohms
• Isolation 22dB
• Noise <3.8dB
• Input 2 x coax sockets
• Cable : length 1.0m
• Power 230Vac, 50Hz
