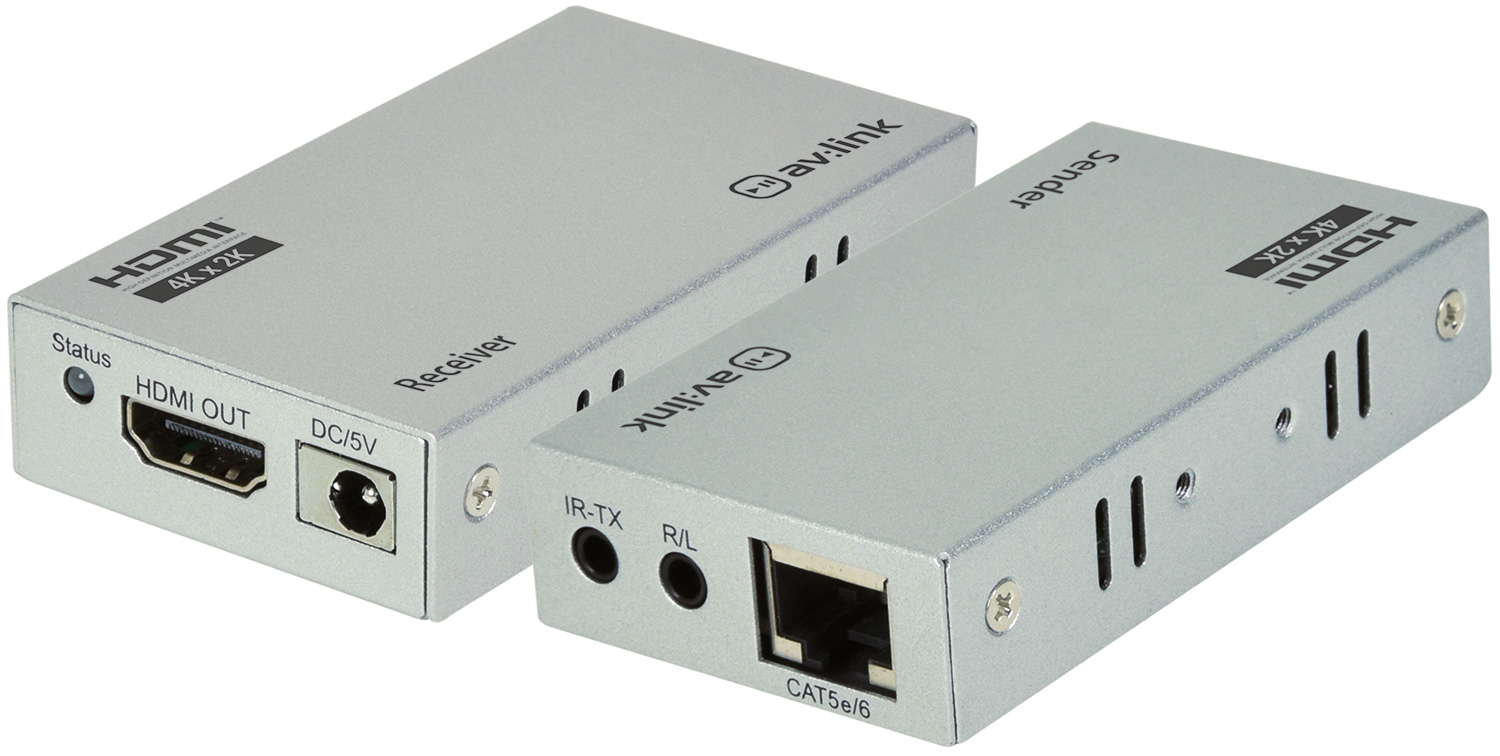

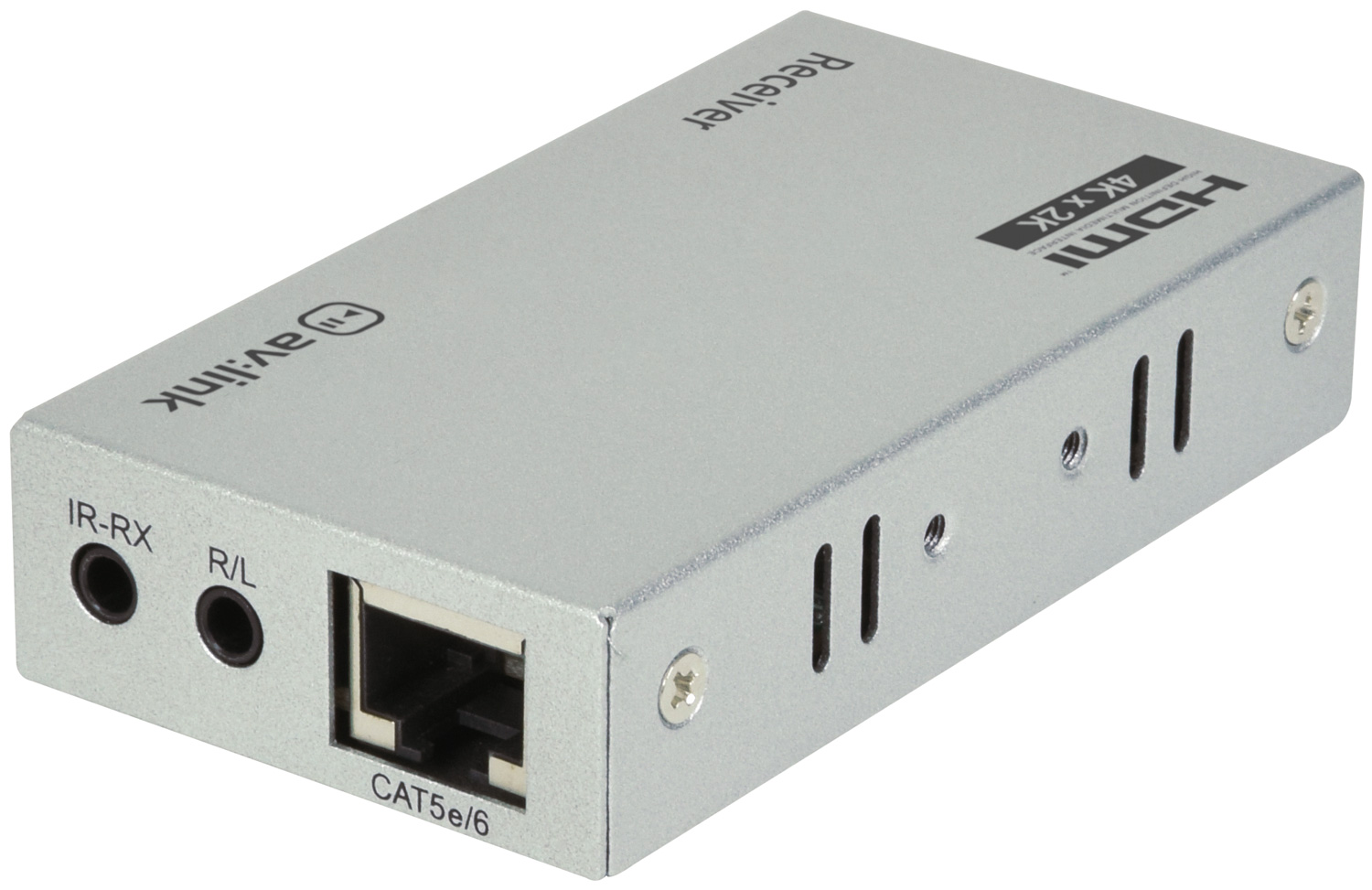

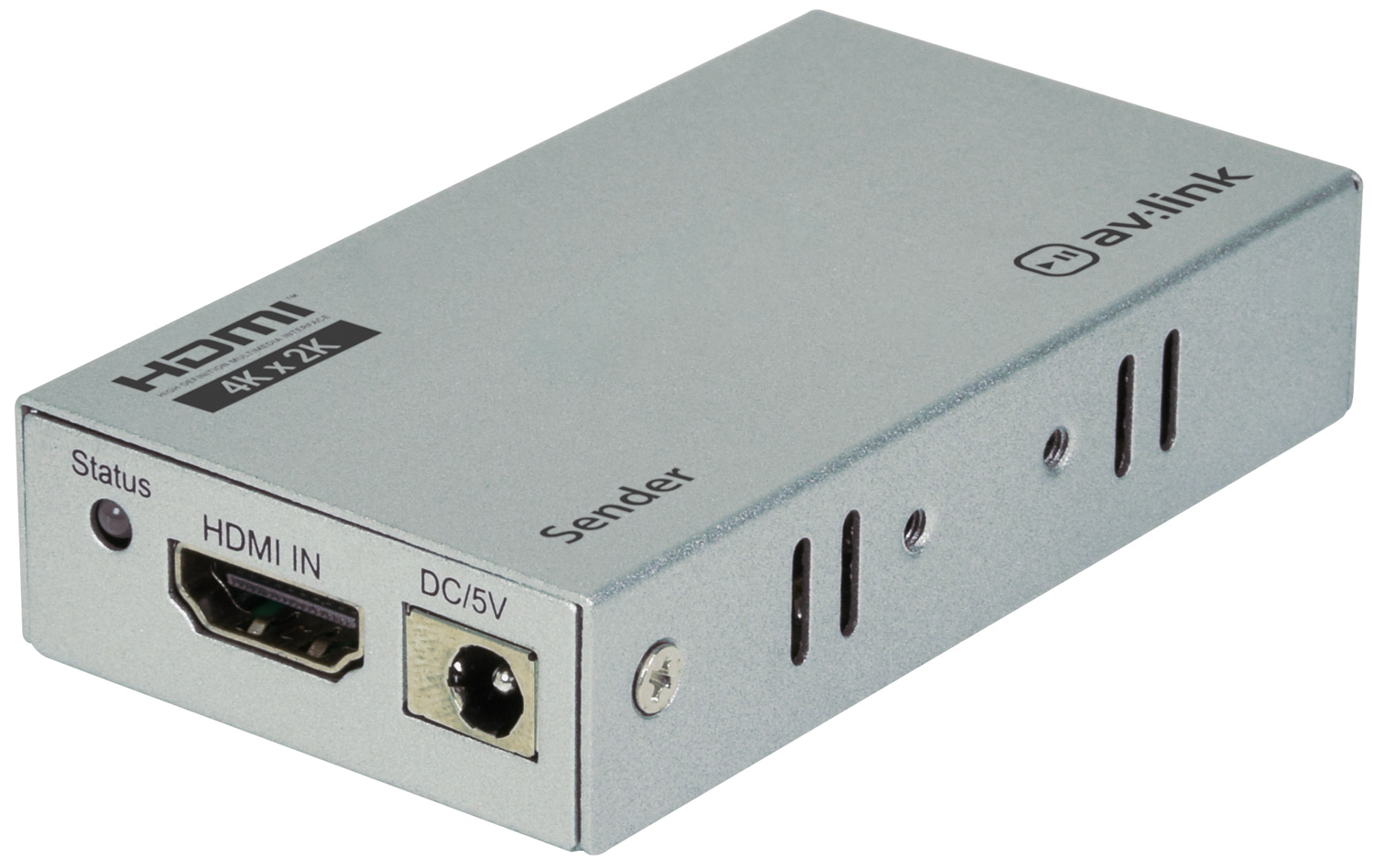

100m Range 4K HDMI Extender Over Ethernet Kit

An extender kit that allows 4K and FHD HDMI signals to be sent between devices at distances of up to 100m using a single shielded network cable. The Extender kit works using a single cat5e or cat6 (recommended) cable instead of HDMI cable to transmit high-definition signals over a long distance, vastly reducing your costs but without reducing your picture quality. The built in IR function enables simple control of transmission devices remotely and an audio extraction function allows connection to headphones, speakers and amplifiers using a 3.5mm audio cable (not supplied).

• Easy transmission of 4K and FHD signals up to 100m using a single Ethernet cable
• Simple plug and play connection and installation

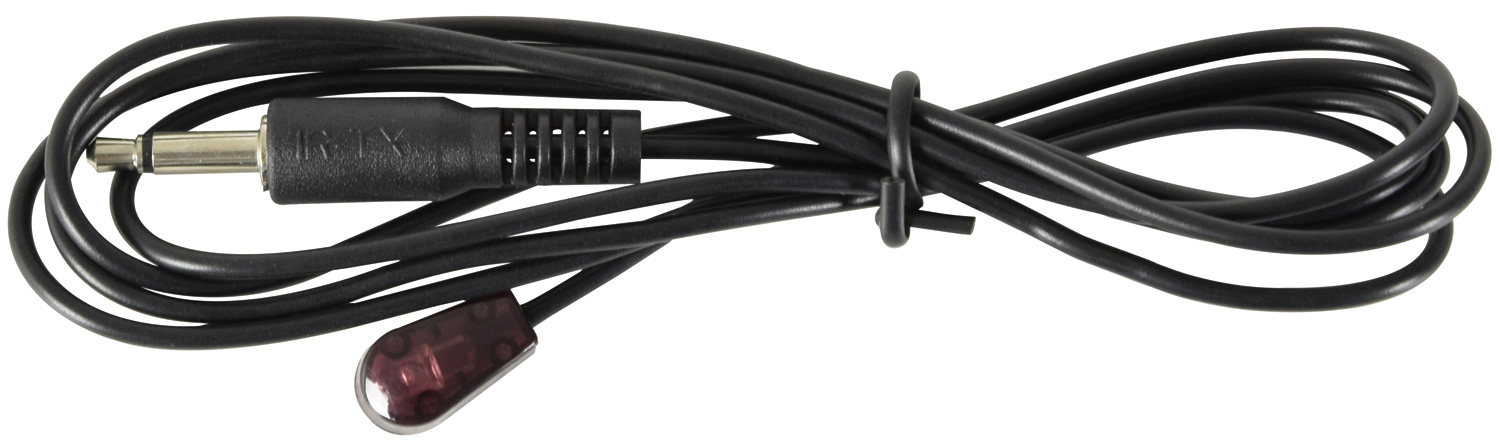

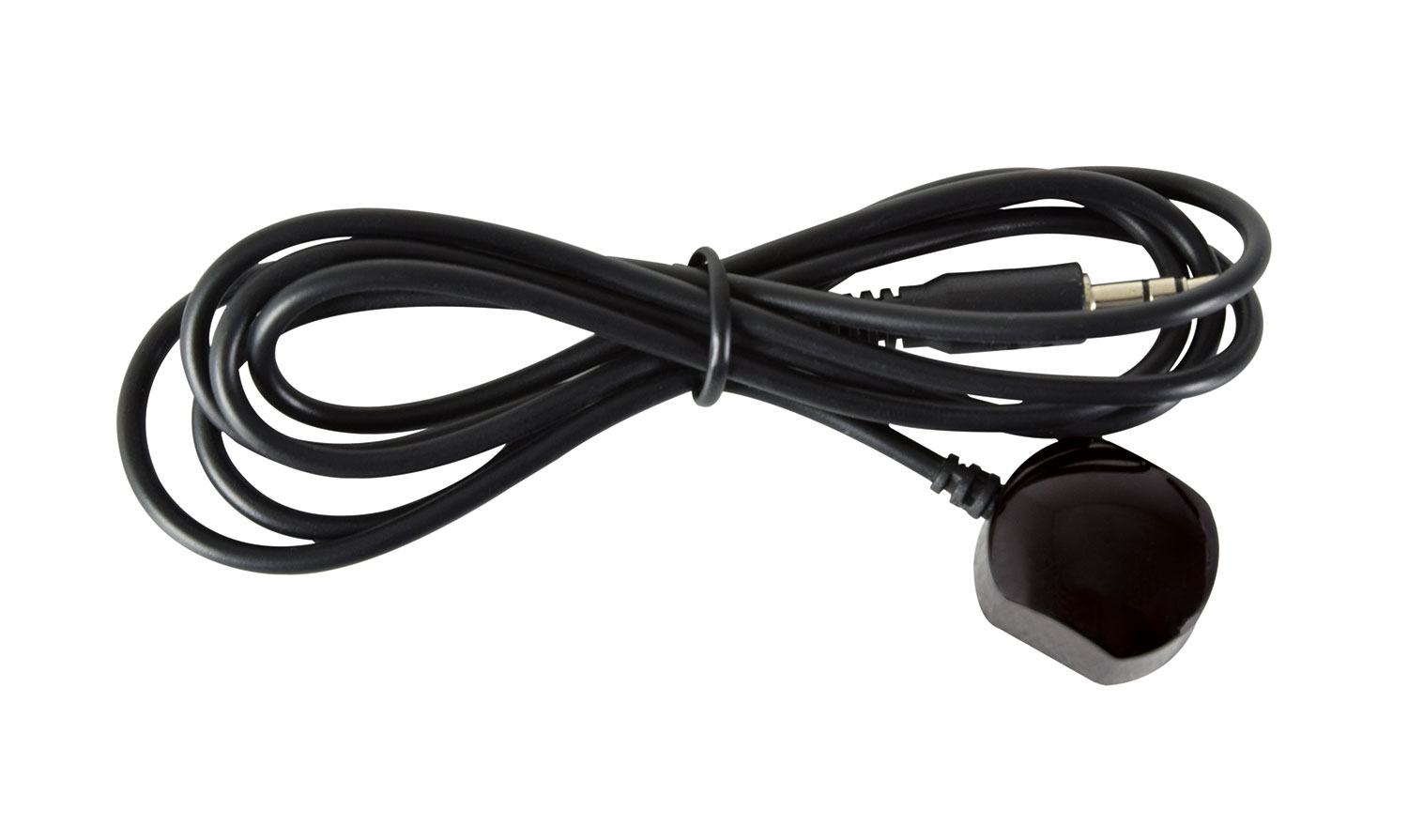

• Built in IR function enables control of transmission devices remotely
• Audio extraction function for connection to speakers and amplifiers
• Gold plated HDMI connectors for optimum signal transfer
• HDCP2.2 Compliant
• Supports DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD audio formats
• Requires Cat5e/6 STP/FTP cable (not supplied)
• Supplied with fixing brackets for rack mounting

• HDMI version 1.4a
• Max. range 100m
• Video format Up to 3840 x 2160 @ 30Hz
• Audio format Supports DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
• Max. cable length HDMI (input & output) ≤15m AWG26 standard cable
• Max. bandwidth 340MHz
• Max. baud rate 3x3.4Gbps
• Max. working current 350mA (TX) and 200mA (RX)
• Power supply 5Vdc, 1000mA
• Dimensions 82x45x18mm (each unit)
• Weight 120g (each unit)
