HDNK2
100m Range 4K HDMI Extender Over Ethernet Kit
128.839UK
Introduction

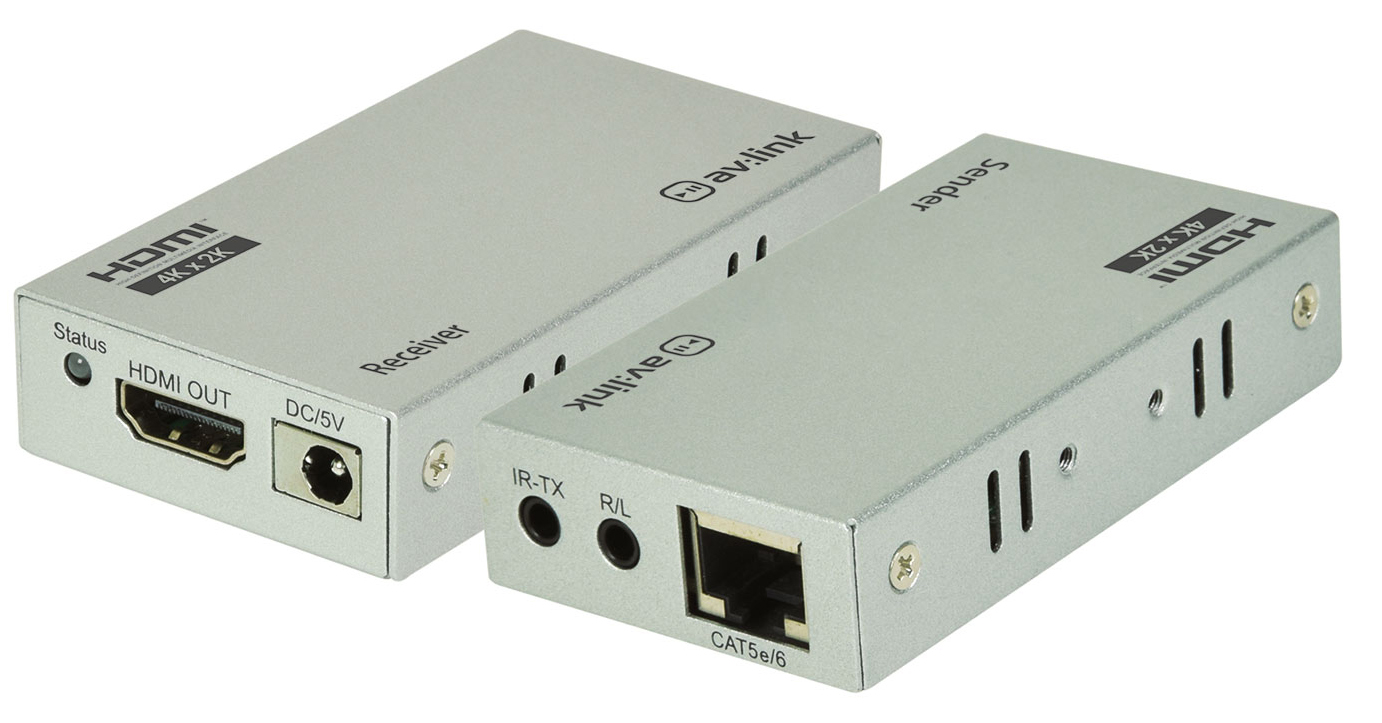

An extender kit that allows 4K and FHD HDMI signals to be sent between devices at distances of up to 100m using a single shielded network cable. The Extender kit works using a single cat5e or cat6 (recommended) cable instead of HDMI cable to transmit high-definition signals over a long distance, vastly reducing your costs but without reducing your picture quality. The built in IR function enables simple control of transmission devices remotely and an audio extraction function allows connection to headphones, speakers and amplifiers using a 3.5mm audio cable (not supplied).
Connection Instructions

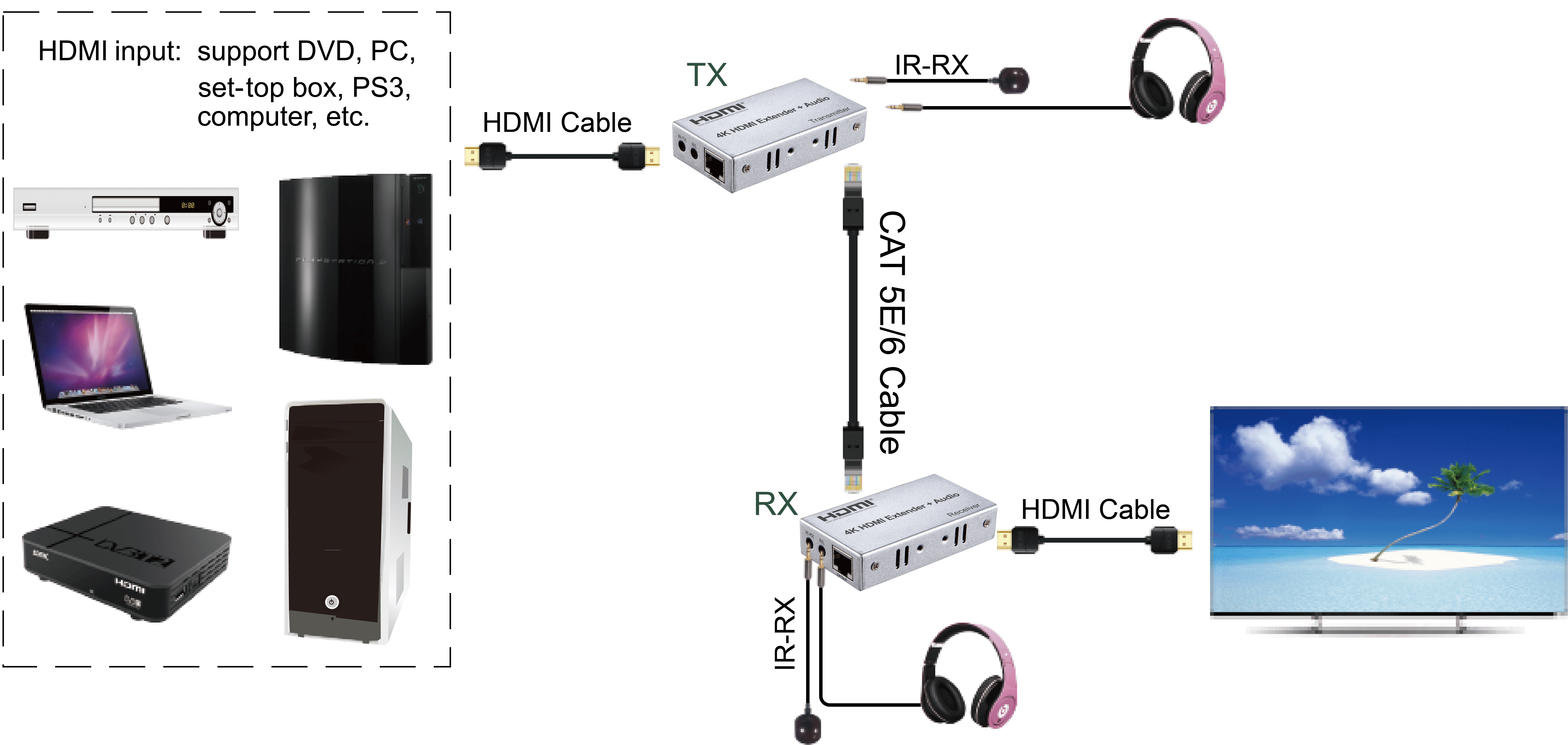

Connect one HDMI cable between your source device and the TX Extender (Sender), the max cable length is 15 meters.
Connect one HDMI cable between display device and the RX Extender (Receiver), the max cable length is 15 meters.
Connect a single CAT5e or CAT6 (recommended) cable between the TX and RX extender units, the max cable distance is 100 meters.
Connect the 5V power supplies to both the TX and RX units and power on.

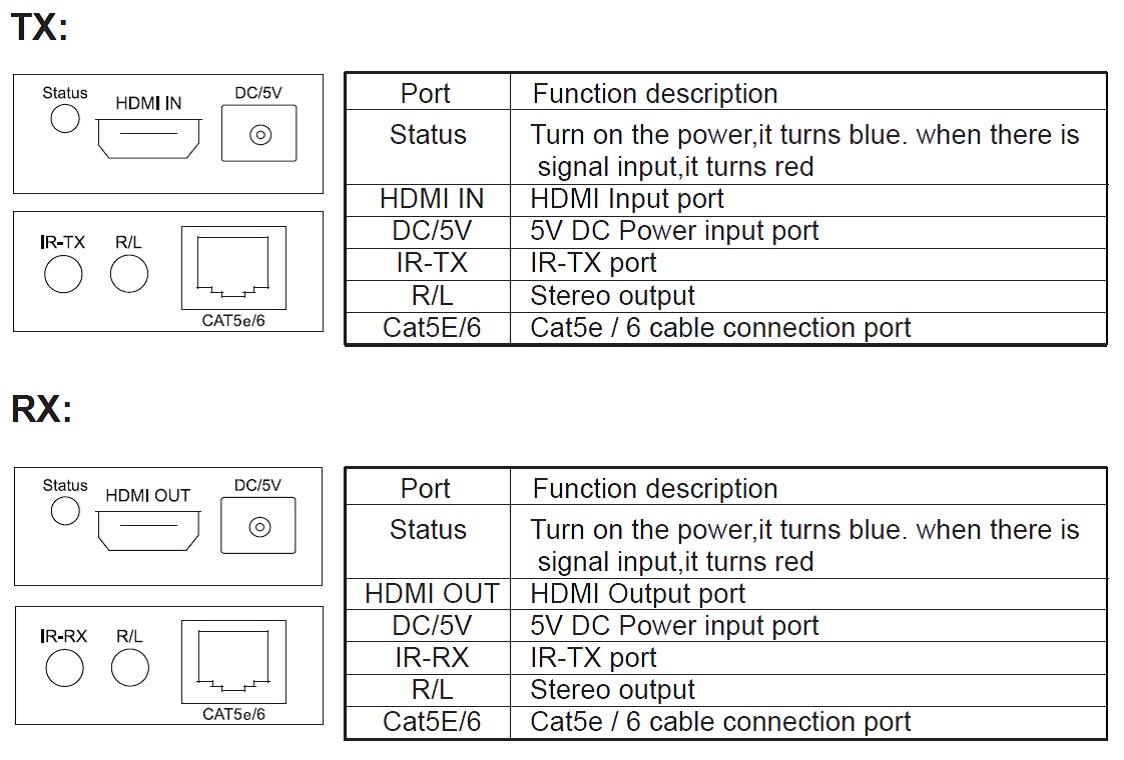

TX LED indicator light: When there is no signal input, it turns blue; when there is signal input, it turns red.
RX LED indicator light: When there is no signal input, it turns blue; when there is signal input, it turns red.
If required, connect the IR extender cable set to the relevant 3.5mm sockets on the TX and RX units. This set will allow control of the source device at the output display end of the network.
There are also 3.5mm audio sockets (R/L) on both the TX and RX units, making it possible to connect headphones, amplifiers or speakers at both the source and output display ends of the network.
Specification
| Specification | Value |
|---|---|
| HDMI version | 1.4a |
| Max. range | 100m |
| Video format | Up to 3840 x 2160 @ 30Hz |
| Audio format | Supports DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max. cable length | HDMI (input & output) ≤15m AWG26 standard cable |
| Max. bandwidth | 340MHz |
| Max. baud rate | 3x3.4Gbps |
| Max. working current | 350mA (TX) and 200mA (RX) |
| Power supply | 5Vdc, 1000mA |
| Dimensions | 82x45x18mm (each unit) |
| Weight | 120g (each unit) |
