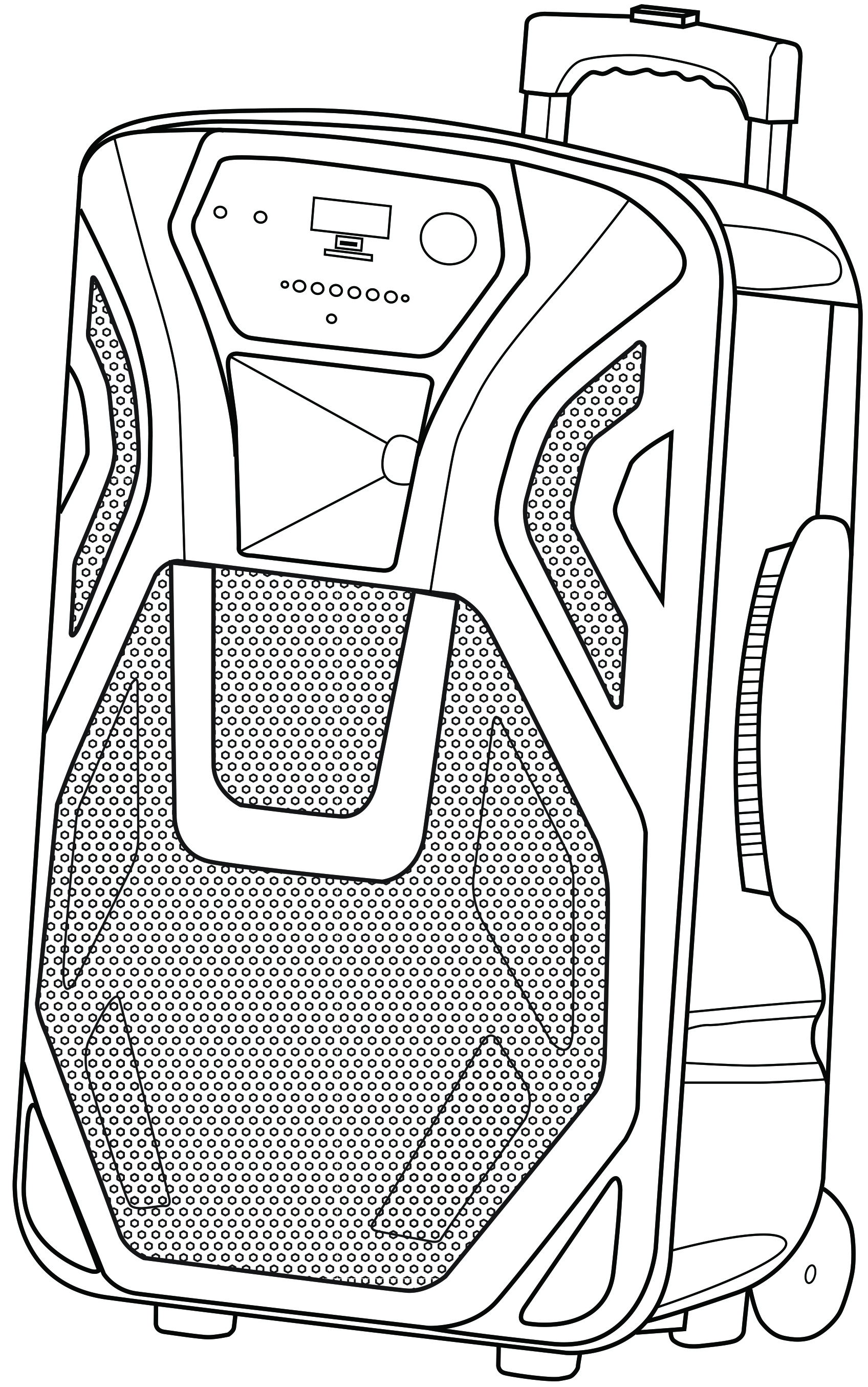

BUSKER-12
Busker PA with VHF Mics & Media Player
178.866UK
Introduction
Thank you for choosing a Busker portable PA unit. This versatile portable PA unit is packed with features in a compact, manageable enclosure and is suitable for a wide array of applications ranging from public address for presentations to outdoor karaoke.
Order ref:
BUSKER-12 (178.866UK)
BUSKER-15 (178.868UK)
VERSION 2.2
Caution: Please read this manual carefully before operating |
---|
Damage caused by misuse is not covered by the warranty |
Package Contents
Please check the contents to ensure that the product has been received in good condition.
If you find any accessory is missing or the product has arrived with any problems, please contact your retailer at once.
|
|
---|---|
|
This product contains no user-serviceable parts so make no attempt to try to fix or modify this item yourself as this will invalidate the warranty. We recommend you keep the original package and proof of purchase for any possible replacement or returned demand.
Warning
To prevent the risk of fire or electric shock, do not expose this appliance to rain or moisture. To prevent electric shock do not remove the cover. No user serviceable parts inside. Refer servicing to qualified service personnel.
Safety
Prior to connecting mains, check the supply voltage is correct and the IEC mains lead is OK.
Avoid ingress of water or particles into the enclosure.
If the internal IEC fuse blows, refer the unit to qualified service personnel
If the VHF microphones are to be unused for a long period of time, remove the batteries and store for later use.
Placement
Keep the unit out of direct sunlight and away from heat sources.
Place the unit in an upright position during use and storage.
Keep the unit away from moisture or dusty environments.
Cleaning
Use a soft cloth with a neutral detergent to clean the cabinet, panel and controls.
To avoid damage, do not use solvents to clean this equipment.

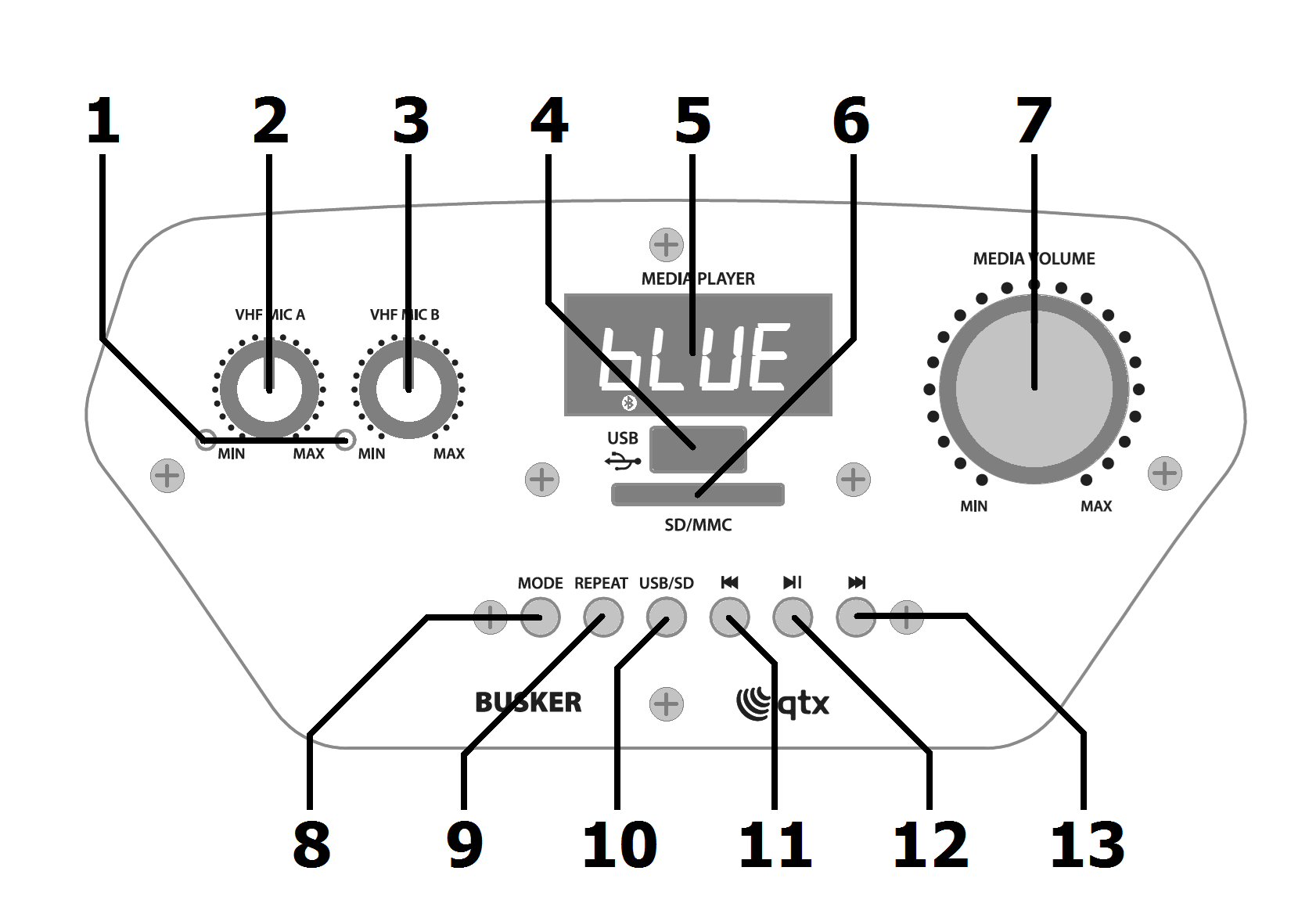

Front Panel
No | Function |
---|---|
1 | VHF microphone indicators |
2 | VHF Mic A volume |
3 | VHF Mic B volume |
4 | USB port |
5 | LED display |
6 | SD/MMC card slot |
7 | USB/SD/FM/BT volume |
8 | Media player Mode select |
9 | Playback Repeat mode select |
10 | USB/SD memory device select |
11 | Previous track (hold seek reverse) |
12 | Play/Pause |
13 | Next track (hold seek forward) |

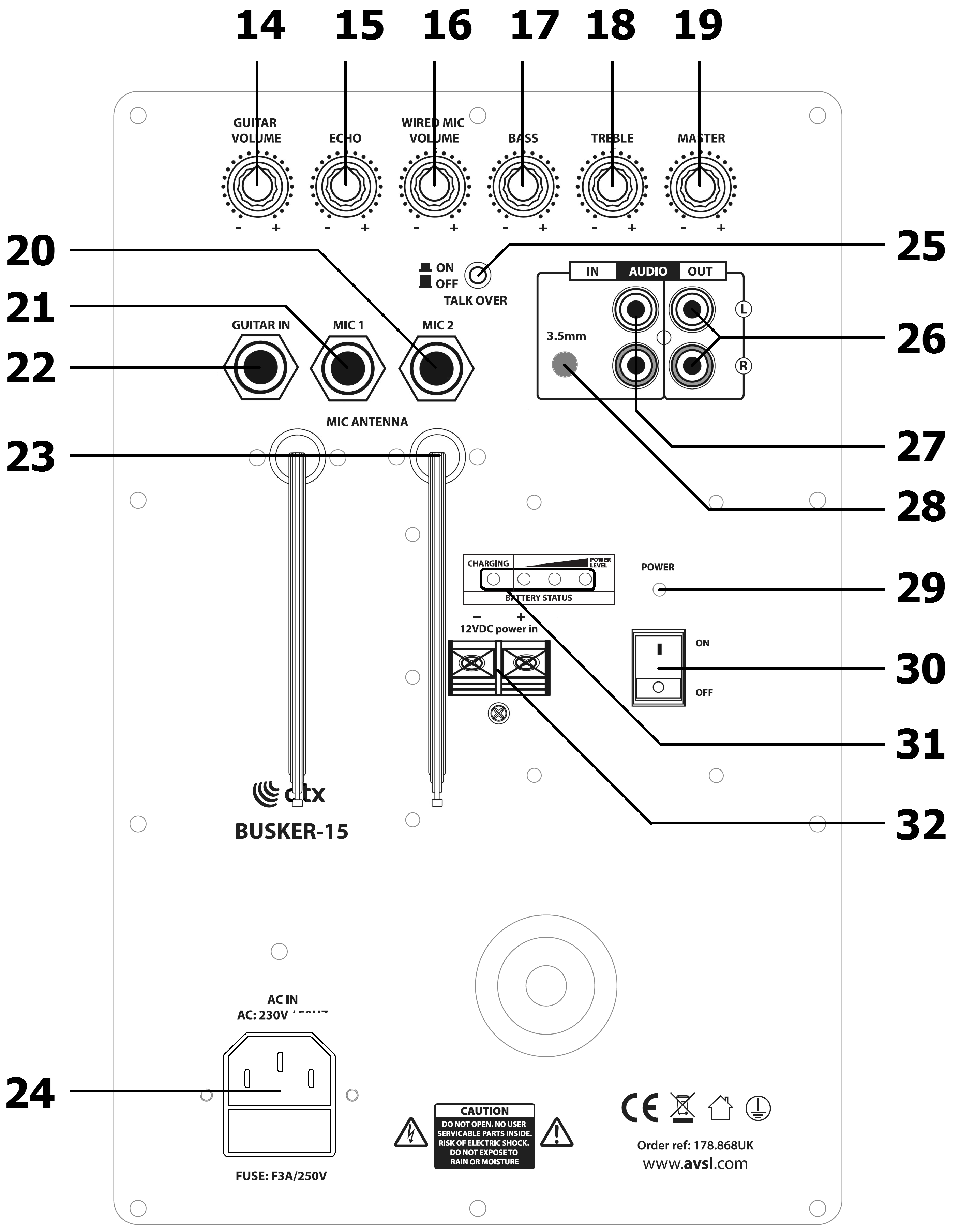

Rear Panel
No | Function |
---|---|
14 | Guitar input volume |
15 | Echo level |
16 | Wired mics volume |
17 | Bass EQ control |
18 | Treble EQ control |
19 | Master volume |
20 | Microphone 2 input jack |
21 | Microphone 1 input jack |
22 | Guitar input jack |
23 | VHF microphone antennas |
24 | IEC mains inlet & fuse |
25 | Microphone talk-over select |
26 | Line output L+R RCA |
27 | Line input L+R RCA |
28 | Line input stereo 3.5mm jack |
29 | Power indicator LED |
30 | Power on/off switch |
31 | Battery charging & level LEDs |
32 | D.C. power input terminals |
Powering Up
Your new Busker portable PA unit may arrive with you with the internal battery charged.
Before connecting to the mains, turn down all volume controls and switch the unit on (30) and see if the power LED lights (29). If not, you will need to charge the battery before use away from mains power.
Connect the Busker unit to the mains using the appropriate IEC power lead supplied (24).
When not in use but connected to the mains, if the POWER switch is in the OFF position, the internal battery will be re-charged from the mains supply, indicated by a CHARGING LED (31) which lights when charging.
Note: it is recommended to store the PA unit at an ambient temperature and not with the battery fully discharged.
You may otherwise opt to connect the DC input at the rear (32) to an external 12-15Vdc supply (e.g car battery) or use the internal battery if charged.
When powered up, BASS and TREBLE controls (17, 18) should remain pointing vertically
(i.e. 12-o-clock position). Turn up the MASTER VOLUME control (19) part way and switch TALKOVER (25) off.
Your Busker unit should now be ready to operate.
VHF Wireless Microphones
Extend the 2 VHF antennas (23) at the rear of the unit. Insert batteries into the handheld microphones by carefully unscrewing the base of each and connecting the “+” and “-” terminals of the batteries to the corresponding contacts inside the mic body, taking care to observe the correct polarity. Turn the VHF MIC controls (2, 3) up part way for checking.
Switch on each wireless mic in turn – the signal indicator LEDs (1) on the front of the unit should light as a result. If the LED on the transmitter lights dimly, change the battery. Gradually increase the VHF VOL controls, testing each microphone in turn for output through the speaker.
Take care not to incur “feedback” (howling or screeching sound through the speaker) by keeping the microphone a sensible distance from the speaker and pointing away from the speaker so that it doesn’t hear the speaker output.
Turning the ECHO control (15) clockwise adds an echo function for singing or special effects.
The BASS or TREBLE tone of the RCA and Guitar inputs can be cut by turning the relevant control anti-clockwise or boosted by turning clockwise.
When not in use, switch the wireless microphones off and remove batteries if not being used for long periods.
External Inputs
In addition to the Busker’s own VHF microphones, two 6.3mm jack inputs (20, 21) are provided to connect external wired or wireless microphones, which are both governed by the WIRED MIC VOL control (16). If required, the music level can be automatically muted when speaking into a microphone by switching in the TALKOVER feature on (25)
A further 6.3mm jack input is provided for an electric or electro-acoustic guitar (22)
Also, twin RCA and 3.5mm stereo jack input are provided for line input sources such as a CD player or smart phone. These are both independent of the media player.
Adjacent to the twin RCA input is a twin RCA line output carrying the overall main mix. This can be fed on to further active speakers or portable PA units via a twin RCA lead.
Internal media player
Each Busker portable PA unit has an internal media player for digital audio playback from USB or SD/MMC media, FM tuner or via B/T wireless connection.
Press ‘Mode’ (9) to select the function required - USB, SD, FM radio (89-107) or B/T wireless.
USb – Use this mode for both USB and SD/MMC cards
FM Radio – (the last chosen frequency will appear)
bLUE – Use this mode for B/T wireless connection
Playback from USB Device or SD/MMC Card
Inserting a USB memory device into the USB connector or SD/MMC card into the SD/MMC card slot will automatically load up and begin playback of mp3 or wma audio tracks stored on the media.
If playback does not start, press the Play/Pause button (12) or remove the memory device and check that the stored files are the correct compressed audio format before re-connecting.
PLAY/PAUSE (12) will alternately play or pause the selected track
PREVIOUS TRACK (11) will step backwards through tracks
Holding the PREVIOUS TRACK button will reverse seek through the current track
NEXT TRACK (13) will step forwards through tracks
Holding the NEXT TRACK button will forward seek through the current track
USB/SD will toggle between USB or SD/MMC card media playback
REPEAT will select between repeating OnE track or ALL tracks
FM Tuner
In FM tuner mode, the station frequency (in MHz) will be displayed.
For initial setup, press PLAY/PAUSE to begin the auto-tuning process.
The tuner will seek through all frequencies for strong signal reception (i.e. radio stations)
These will be stored into memory as P01, P02, P03, P04… etc.
Stored stations can then be selected using the PREVIOUS or NEXT buttons
Note: Pressing PLAY/PAUSE during auto-tune will allow manual tuning via PREVIOUS/NEXT
B/T Wireless Connection
Select ‘bLUE’ using the mode button (9). The B/T wireless symbol will be flashing if it is NOT paired with an audio device.
Scan for B/T wireless devices on your phone or other B/T wireless enabled audio player and check for a device called ‘bt-speaker’. Select this device and opt to connect your B/T wireless device, which should then state that it is connected to “bt-speaker” for audio output.
The B/T wireless symbol on the Busker unit should stop flashing to confirm the connection.
Play audio from your B/T wireless device and check for output through the Busker unit.
If there is no output, check if there is more than one device within range called “bt-speaker”
In the eventuality that more than one device is called “bt-speaker”, try each device in turn until the Busker is found. Check also that the volume level is turned up on the sending device.
Once audio is playing through the Busker from B/T wireless, adjust the MEDIA volume control (7) to the required volume.
B/T wireless on the Busker can only pair to a single device at any one time and should be operable over a range of 5 to 8 metres.
Troubleshooting
Issue | Solution |
---|---|
No output and no LEDs lit | Check POWER switch is on |
Check battery is not drained fully | |
Check mains lead is connected | |
Check mains or D.C. fuse hasn’t blown | |
Power LED lit but no VHF output | Check 9V batteries in wireless transmitters |
Check wireless transmitters are switched on | |
Check that handheld transmitters are not switched to MUTE | |
Check VHF VOLUME is not turned down | |
Check RF A and RF B LEDs for radio signal | |
Music level cutting out | Check TALKOVER is not switched on (will mute on mic. signal) |
Power LED lit but no media player output | Check USB/SD/MMC has mp3 or wma audio file format |
Check MEDIA VOLUME is not turned down | |
No B/T wireless output | Check volume output level on sending device |
Check sending device is connected to the receiver correctly | |
No sound from external inputs | Check leads are OK and connected properly |
Check MASTER, GUITAR or MIC VOL controls are turned up |
Specification
Specification | Value |
---|---|
Battery type | 12V 7Ah rechargeable sealed lead-acid |
Wireless microphone frequencies | 174.1MHz + 175.0MHz |
Weight | 12.00kg |
Dimensions | 590 x 375 x 325mm |
Main driver | 300mmØ (12") |
SPL @ 1W/1m | 94dB |
Frequency response | 50Hz - 16kHz |
Power : output | 80W |
Power supply | 230Vac, 50Hz (IEC), 12Vdc or internal battery |
Impedance : loudspeaker | 4 Ohms |
HF driver : type | Compression driver |
Battery life | Up to 6 hours |
Recharge time | 8 hours |
Controls : front panel | VHF mic volume(s), Media volume, Media transport controls |
Controls : rear panel | Guitar volume, Echo, Wired mic volume, Bass, Treble, Master |
Inputs | Wired mic (jack), Guitar (jack), Aux (RCA & mini jack) |
Line output | RCA |
B/T wireless version | 2.3 |
Precautions
CAUTION | ||
RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL |
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
AVSL Group Ltd, Unit 2 Bridgewater Park, Taylor Road, Manchester, M41 7JQ, Unitied Kingdom
AVSL (EUROPE) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, Ireland
