MM41
Mini Microphone Mixers
170.202UK
Introduction
| MM & ML SERIES | Item ref: MM41 170.202UK MM81 170.203UK LM41 170.204UK LM82 170.205UK |
|---|---|
| Mini Mixers | User Manual |
Thank you for choosing the QTX mini mixer series as part of your audio system. These convenient, compact units are designed to provide a useful solution for combining several mic or line signals into a single sound system.
Please read and keep this guide to help get the best results and avoid damage to your mini mixer.
Operation
The QTX mini mixers can be powered by a 9V battery or optional 12Vdc power adaptor.
To insert a 9V PP3 battery, unscrew the cover on the base of the mixer, connect the battery clip and replace cover.
Alternatively, connect a 12Vdc 200mA (min) adaptor to the rear DC input, ensuring the correct polarity.

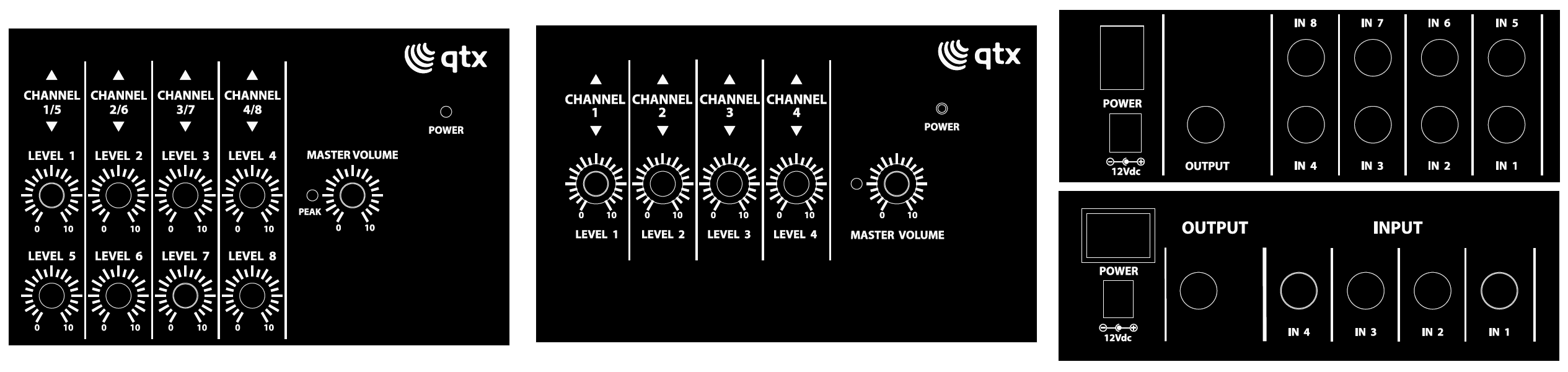

With the power switched off at the rear and all volume controls turned down, connect all inputs via 6.3mm jack.
MM41 and MM81 models have inputs to match microphone level. LM41 and LM82 models require line level inputs.
All inputs will be mixed to a single output except the LM82 mixer, which feeds 4 inputs to each of 2 outs for stereo.
Connect the output jack(s) to the sound system or recording device.
Switch the power on and turn up Master Volume part way. The power LED will illuminate.
Increase each input channel volume in turn, checking the level through the connected equipment.
When all inputs are balanced as required, adjust the Master Volume to the required level.
Ensure that the red LED beside the Master Volume control does not light other than momentarily.
If this LED stays on longer than this, reduce the Master volume.
Specification
| Specification | Value |
|---|---|
| Inputs : Mic | 4 x 6.3mm jack |
| Weight | 533g (no battery) |
| Battery | 9V battery (PP3 - not supplied) |
| Power adaptor | 12Vdc, 200mA (optional) |
| Input impedance | 3.3k Ohms |
| Output impedance | 600 Ohms |
| Output : master | 1 x 6.3mm jack |
| Dimensions | 150 x 108 x 64 |
Precautions
 |
CAUTION |  |
| RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
| CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL | ||
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
