Hinged 19" Rack Cabinets

Easy-access cabinets for 19" rack-mount equipment with removable side panels and lockable front door. A lockable rear section is hinged to allow the cabinet to swing out when wall-mounted, revealing the rear panels of installed equipment for access to connections and wiring. Constructed from cold-rolled steel with folded edges for strength and stability. Front and rear rack strip is supplied for mounting to rails inside the cabinet, enabling the mounting depth to be adjusted to accommodate equipment with overhanging fittings or to support the rear of heavy units. The front door is removable and has a pane of 5mm tempered glass flanked by folded steel edge panels which can be mounted to open to either the left or right. Secure and convenient containment for professional rack installations.

• Durable epoxy powder coated finish
• Supplied with glass door, lock and 2 keys

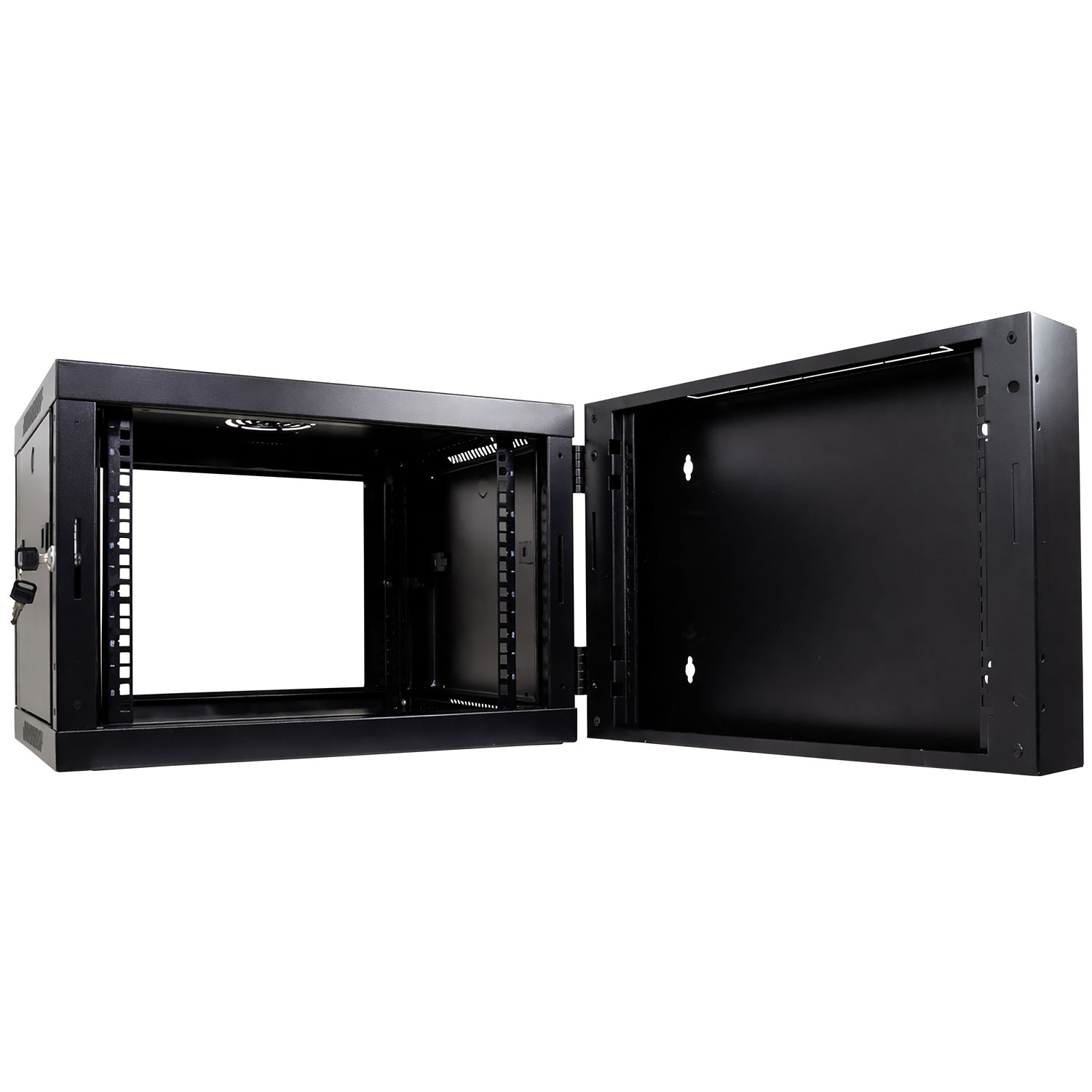

• Hinged rear section with lock and 2 keys
• Easy to assemble with adjustable front & rear rack strips
• Top and bottom knock-outs for cable feeds

• Rack height 267mm (6U)
• Height 367mm
• Mounting depth 370mm
• Depth 550mm
• Material 1.2mm cold rolled steel & 5mm tempered glass
• Finish Epoxy powder coated RAL9004
• Maximum load 60kg static (total)
• Standard ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI compliant
• Width 600mm
