Shallow Rack Wall Cabinets
12U
Wall mountable powder-coated steel cabinets for rack-mounting 19" equipment in light duy applications. A choice of 2 mounting positions for the front rack-mounting rails can accommodate a mounting… more
- Wall-mounting keyhole punch-outs on the rear panels
- Knock-out apertures top and bottom for cable entry
- Front and rear rack rails for securing equipment or shelves
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
953.582UK
12U Shallow Rack Wall Cabinet |
12U | Box Label |
Shallow Rack Wall Cabinets

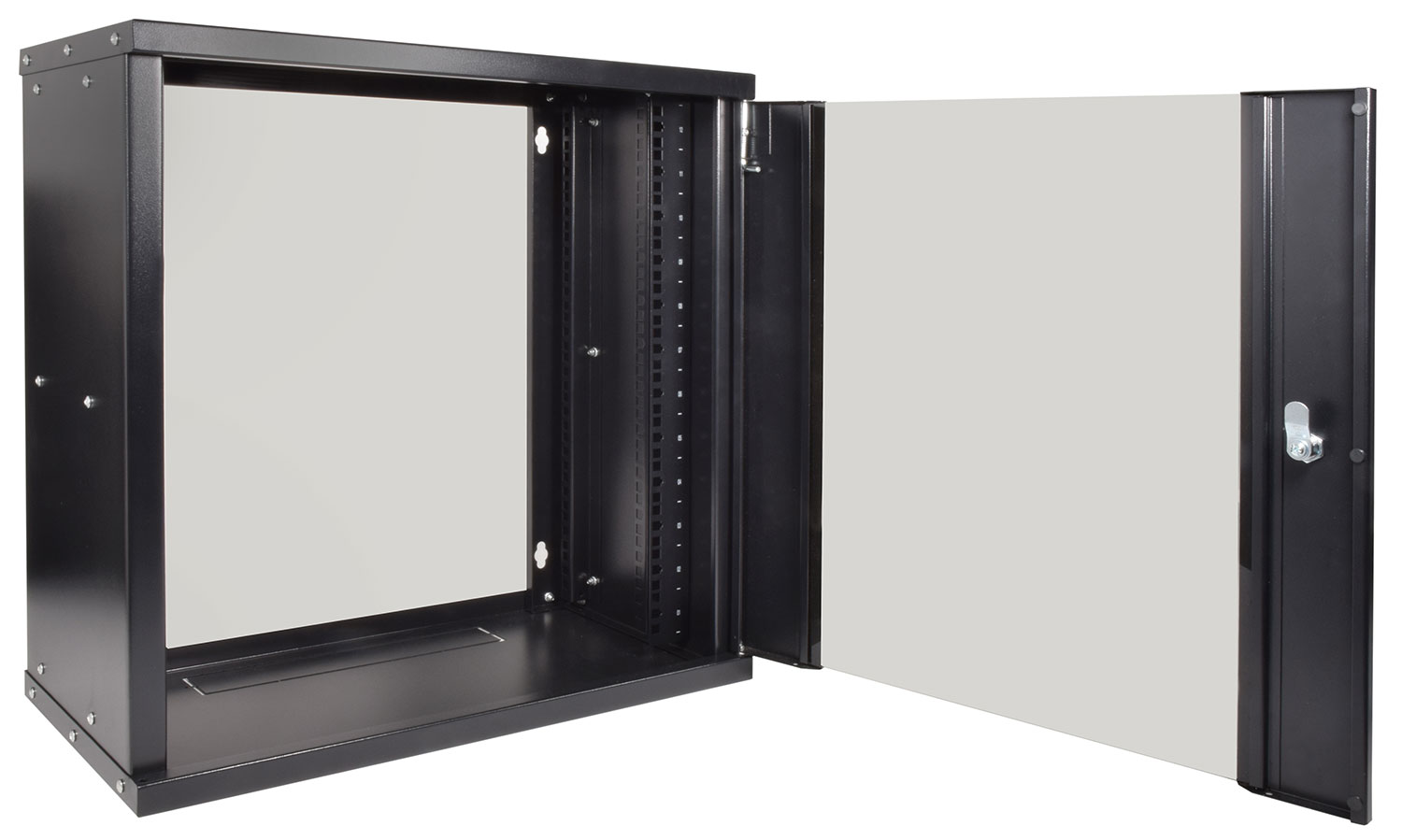

Wall mountable powder-coated steel cabinets for rack-mounting 19" equipment in light duy applications. A choice of 2 mounting positions for the front rack-mounting rails can accommodate a mounting depth of up to 280mm, or a shallower 220mm depth with space for protruding connectors in front. A glass window front door can be hinged either side and is fitted with a lock for security. A low profile solution for shallower rack equipment such as patch panels, wireless microphone receivers, mixers and smaller amplifiers.

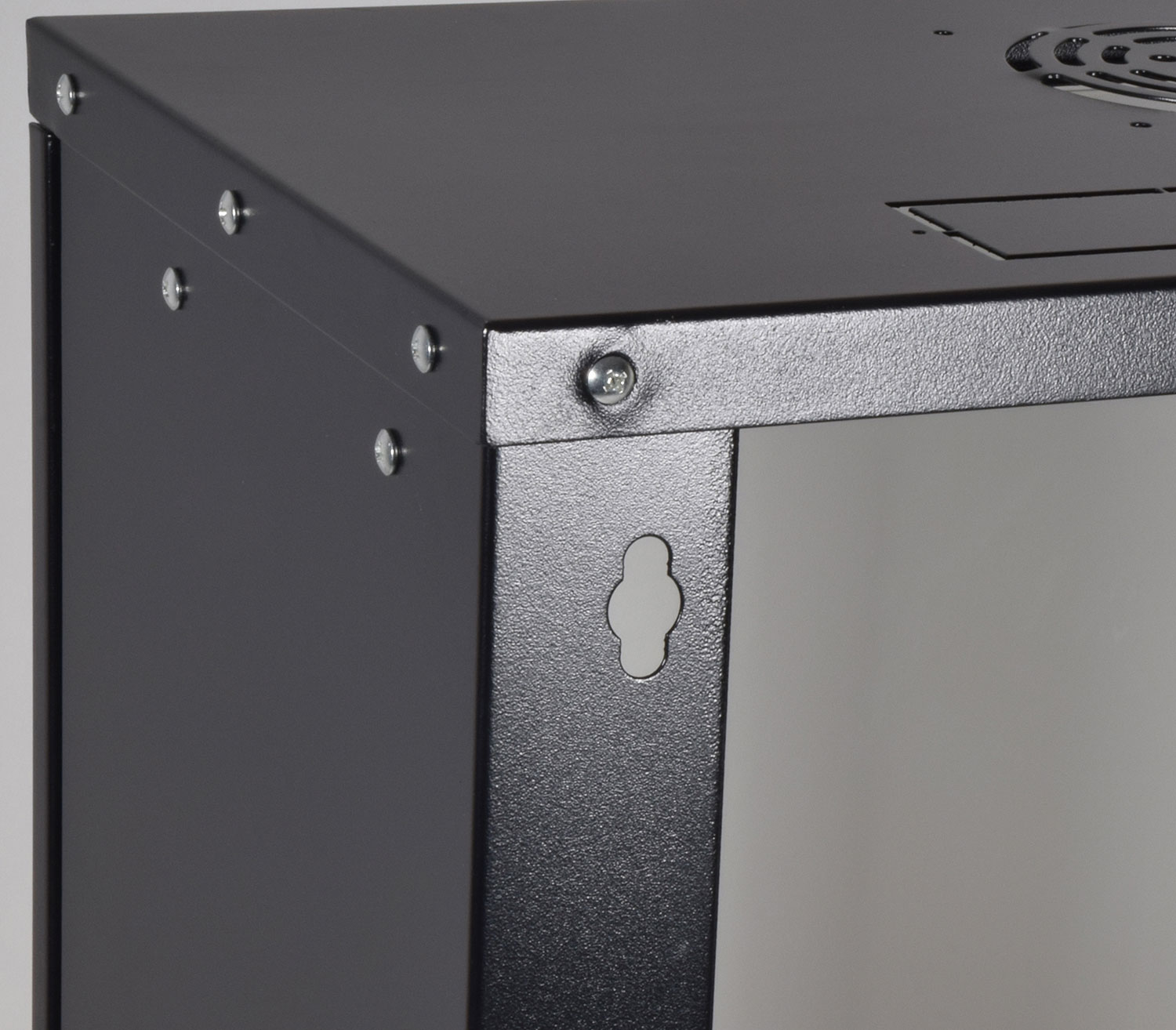

- Wall-mounting keyhole punch-outs on the rear panels
- Knock-out apertures top and bottom for cable entry
- Front and rear rack rails for securing equipment or shelves
- Rack-mounting hardware supplied
- Lockable toughened glass front door
- Weight 12.56kg
- Height 590mm
- Rack capacity 12U
- Construction 1.2mm cold-rolled steel + tempered glass door
- Max. load 30kg (static)
- Width 550mm
- Depth 300mm
- Mounting depth 200mm (255mm front rail to wall)
In the Box
- Top panel
- Base panel
- 2 x side panels
- 2 x front rackmount rails
- 2 rear rackmount rails
- Glazed front door
- Assembly hardware
- Rackmount screws, cup washers and cage nuts
