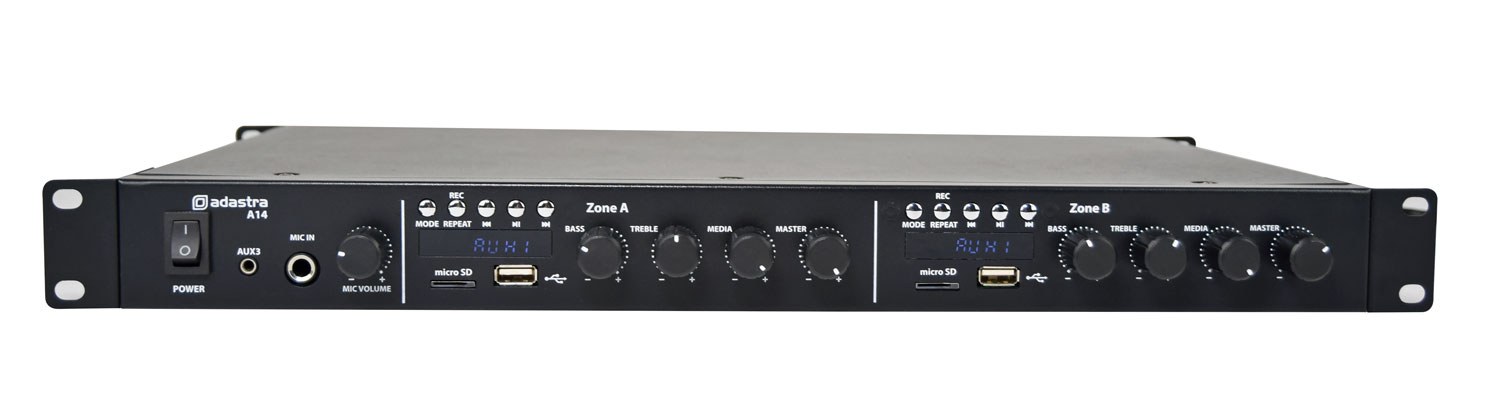

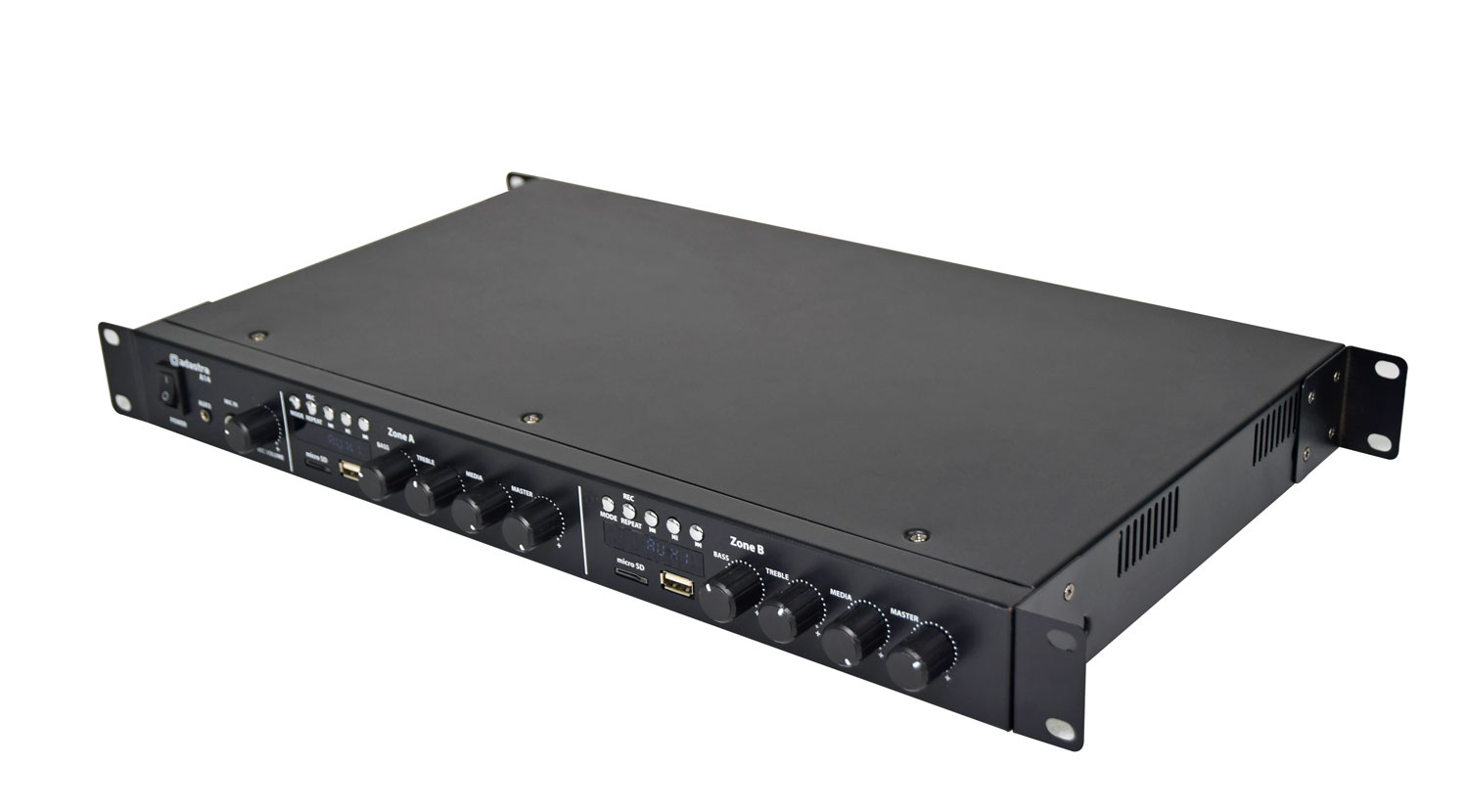

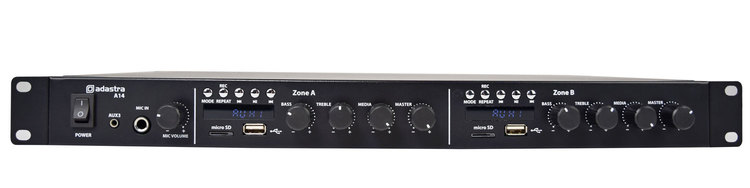

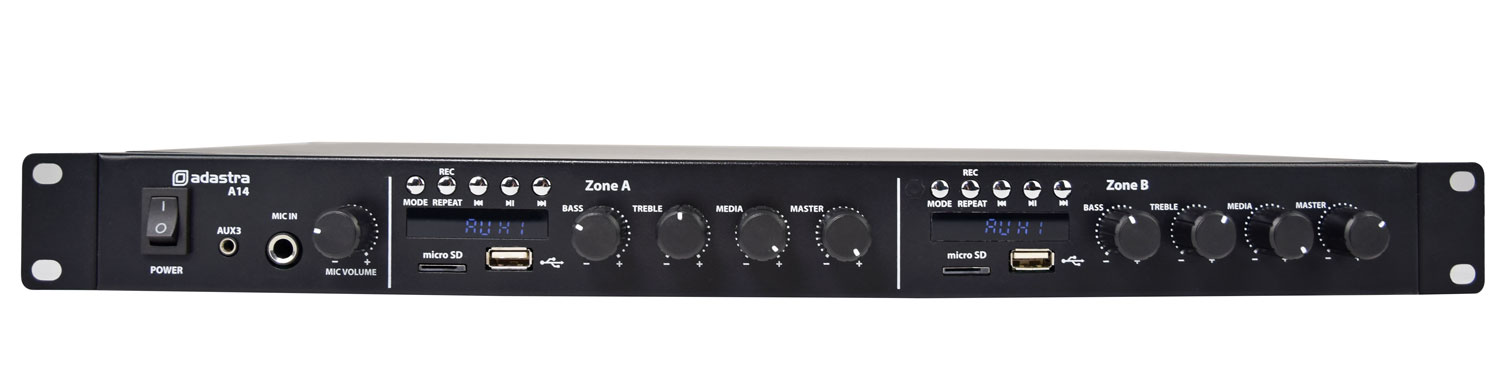

A14 Dual Stereo Mixer-Amplifier 4 x 160W

Designed for commercial venues, hospitality spaces, education, leisure and AV installations, it combines two independent source players, two Bluetooth receivers and four channels of Class-D amplification in one compact 1U unit. <p> Unlike many dual-zone amplifiers that focus on mono 100V distribution or shared source control, the A14 is designed as a true dual-zone stereo solution, with independent amplification, source selection, media playback and Bluetooth connectivity for each zone. <p> Where many multi-zone systems require multiple amplifiers, external players or additional source-switching equipment, the A14 keeps the system simple. Each zone has its own dedicated stereo amplifier, delivering 2 x 160W RMS per zone at 4 Ohms, with independent source selection and playback control. This makes it ideal for venues that need different music, volume levels or input sources in separate areas. <p> Each zone can select from USB or microSD MP3 playback, FM radio, Bluetooth, rear-panel RCA line inputs and a front-panel 3.5mm input. With two separate Bluetooth receivers, users can pair different devices to different areas, making the A14 especially useful for bars, restaurants, fitness studios, retail spaces and multi-room commercial audio installations. Playback can be controlled from the front panel or via the supplied IR remote controls. <p> The A14 also includes an Aux 4 link mode, allowing one player module to feed both zones when required. This gives installers the option to run completely separate audio in each area or quickly link both zones from a single source. A global microphone input is live to both output zones, making the unit suitable for voice announcements, paging and general PA use. <p> For installation flexibility, the A14 is housed in a 1U 19-inch rack-mountable chassis and is supplied with brackets that can also be rotated for mounting flat against a wall. Rear Euroblock speaker connections allow connection of up to two 8 Ohm speakers on each of the four channels, making it a strong match for dual-zone low-impedance speaker systems using Adastra BH6 or BH8 speakers. <p> For installers who need a powerful, practical and cost-effective dual-zone stereo amplifier, the A14 is a highly capable solution that reduces hardware, saves rack space and keeps operation straightforward for the end user.

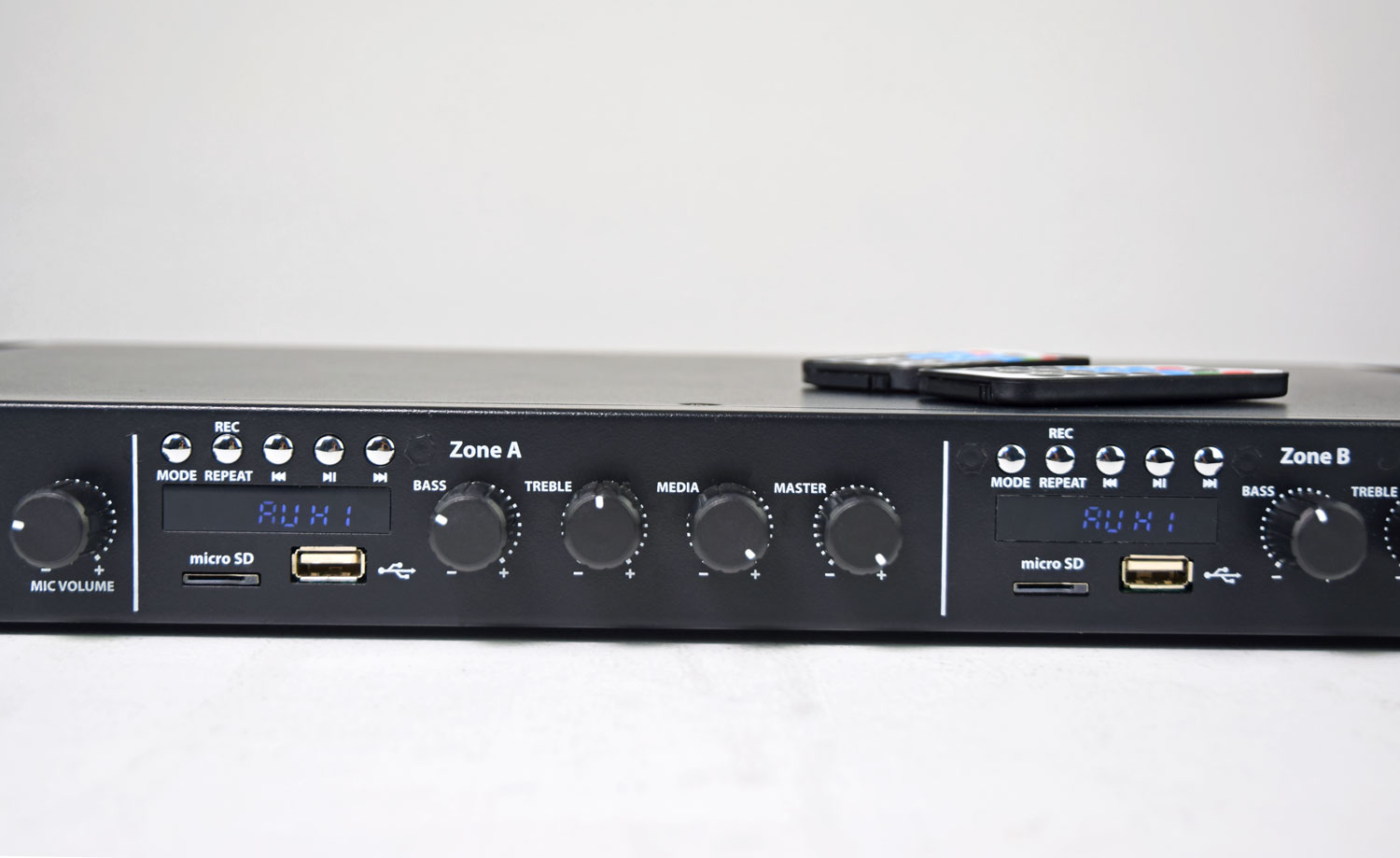

• Two fully independent stereo zones, A and B
• Each zone powered by a dedicated 2 x 160W RMS Class-D amplifier at 4 Ohms
• Independent audio player for each zone
• Two separate Bluetooth receivers
• USB and microSD MP3 playback on each player
• Built-in FM radio tuners
• Rear RCA Aux inputs plus front-panel 3.5mm input
• Aux 4 link mode allows both zones to run from Player A or Player B
• Global microphone input for announcements to both zones

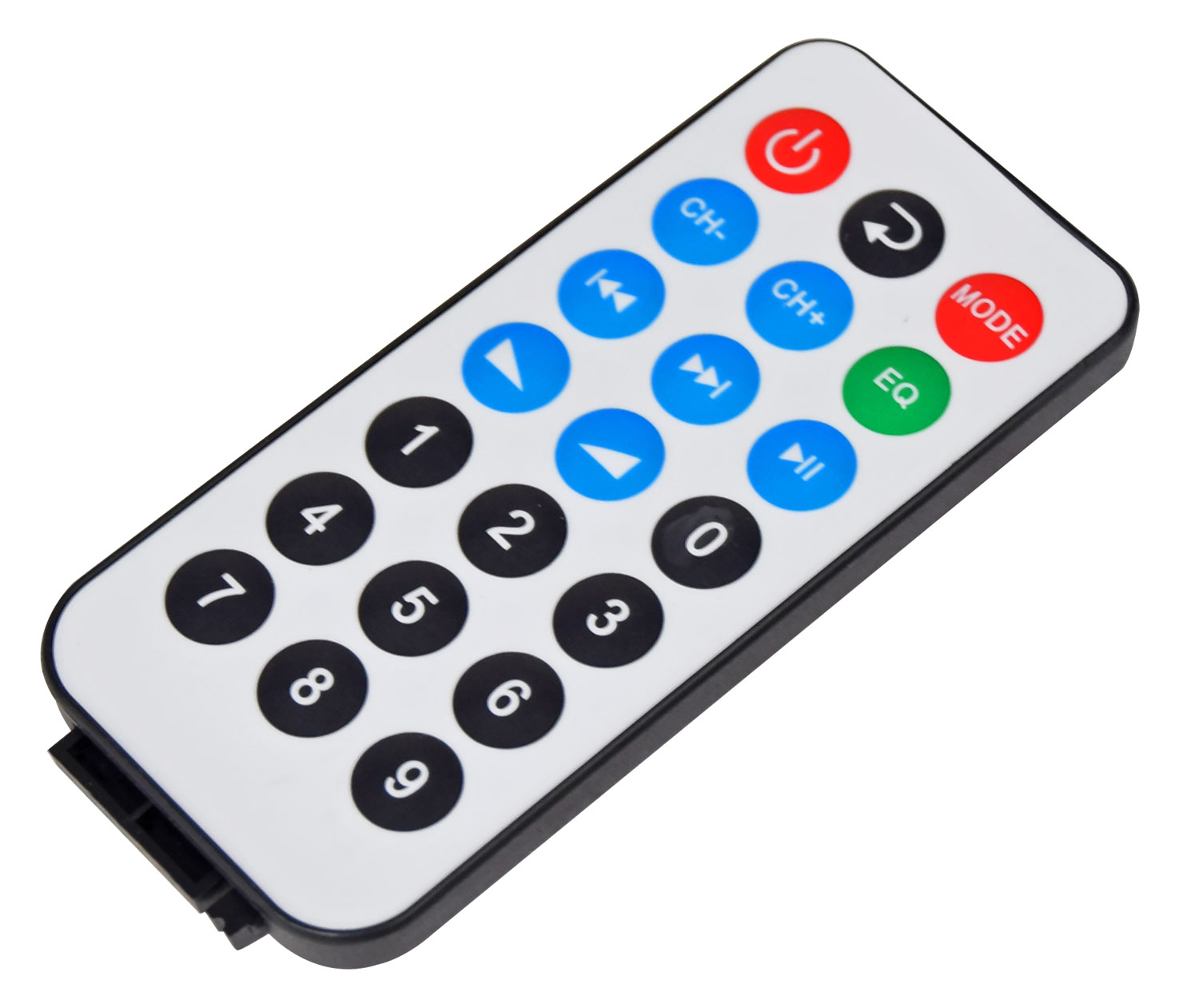

• Front-panel and IR remote control operation
• 1U 19-inch rack-mountable chassis
• Suitable for commercial dual-zone background music, AV and paging systems

• Power supply 230Vac, 50Hz (IEC)
• Output power : 4 Ohms 2 x 2 x 160Wrms
• Output power : 8 Ohms 2 x 2 x 80Wrms

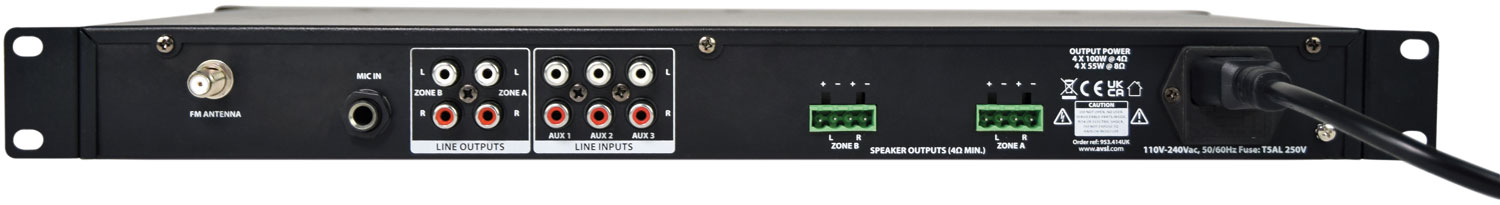

• Inputs : Mic 6.3mm (front and rear panel in parallel)
• Inputs : Aux Aux 1-3 (L+R RCA rear panel) + Aux 3 also 3.5mm on front panel
• Audio source Dual internal USB/microSD player / FM tuner / Bluetooth receiver
• Antenna connection F-type (FM tuner)
• Dimensions 482 x 285 x 44mm (1U)
• Weight 2.933kg
