A-series Multi Zone Stereo Amplifiers

Multi-zone amplifiers with 2 microphone inputs and a switchable stereo input for each zone. An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a B/T wireless receiver and FM radio tuner. A rotary switch for each output zone selects the stereo playback audio from a choice of 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Mic inputs 1 and 2 are live to all output zones at all times. Speakers are connected from the rear panel Euroblock terminals to deliver up to 200W per output at 4 Ohms. Designed for installations requiring high quality stereo sound in multiple rooms or listening areas.

• Available with 3 or 4 independent stereo outputs
• Media player with USB/SD playback
• FM radio tuner with external aerial connection
• B/T wireless receiver

• Weight 8.26kg
• Output controls 3 x source select, Ch1 - Ch6 level

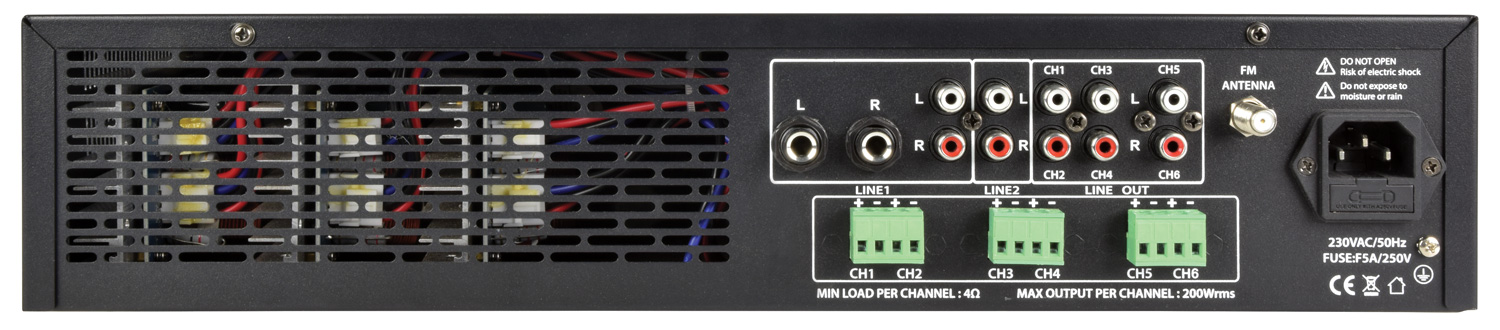

• Speaker outputs 3 x 4-terminal Euroblock
• Output power rms @ 8 Ohms 6 x 100W
• Output power rms @ 4 Ohms 6 x 200W
• Line output 6 x RCA
• Power supply 230Vac, 50Hz (IEC)
• Fuse F5A, 250V
• Amplifier : construction Class D
• Frequency response 20Hz - 20kHz ±0.5dB
• Microphone inputs 2 x 6.3mm jack (mono)
• Line inputs Line 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
• Input sensitivity : line 0.775Vrms
• Auxiliary input 3.5mm stereo jack
• Input sensitivity : aux 0.480Vrms
• Input impedance 20k Ohms (balanced), 10k Ohms (unbalanced)
• Audio source USB/SD mp3 playback, FM tuner, B/T receiver
• B/T wireless version 2.3
• Input controls Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
• Antenna connection F type (FM tuner)
• Dynamic range 92dB
• THD +N <0.1%
• Protection Thermal, over-current, over-voltage, short-circuit

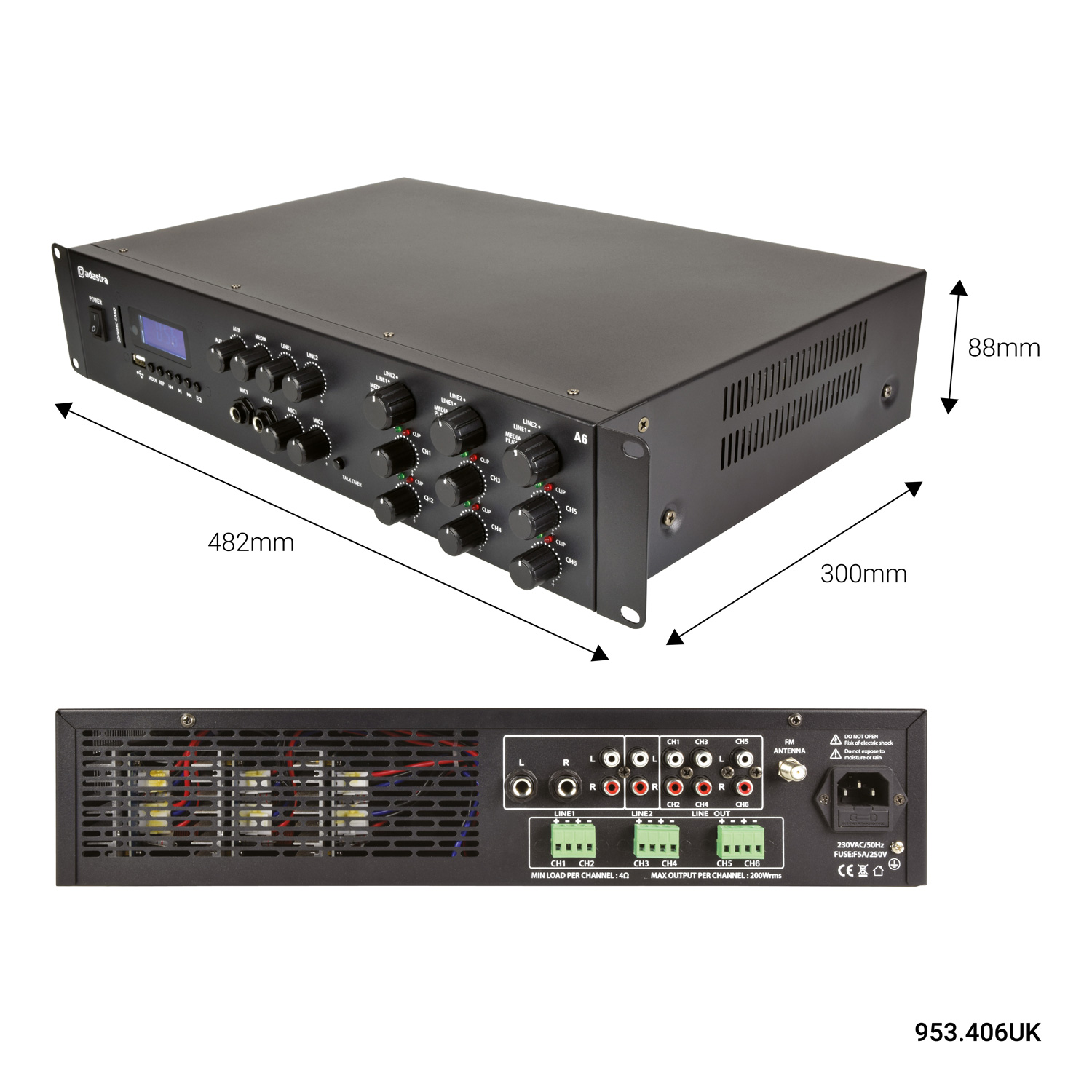

• Dimensions 482 x 300 x 88mm
