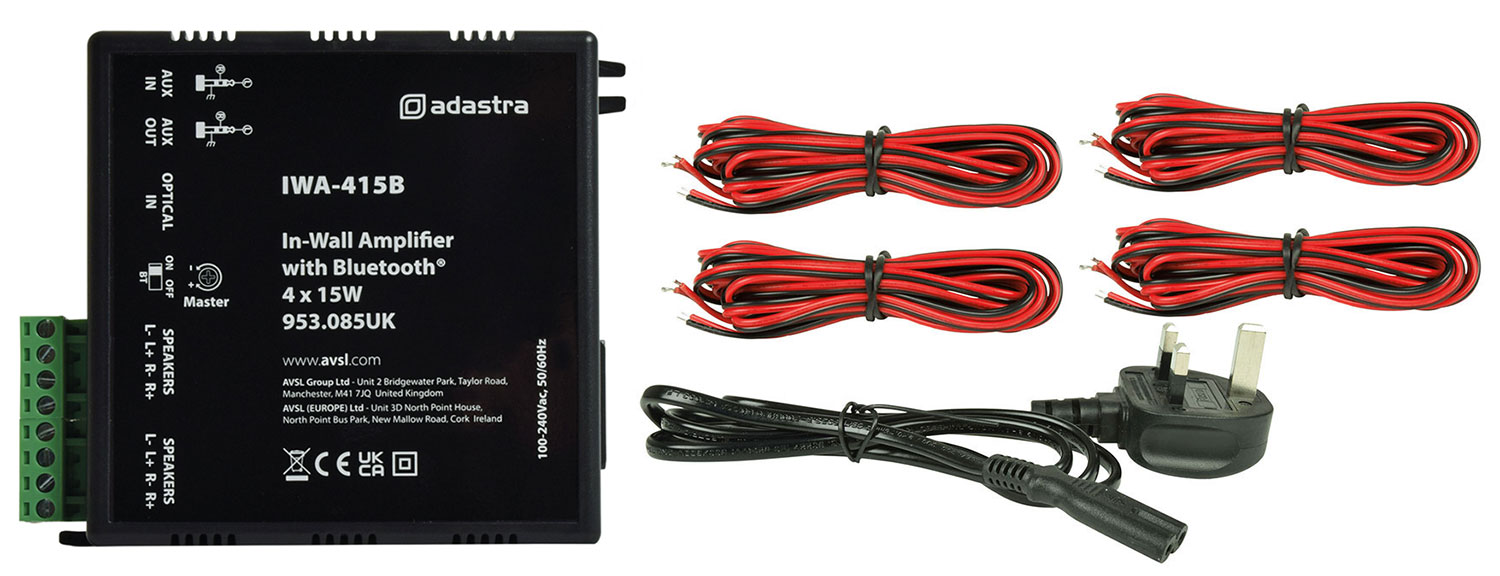

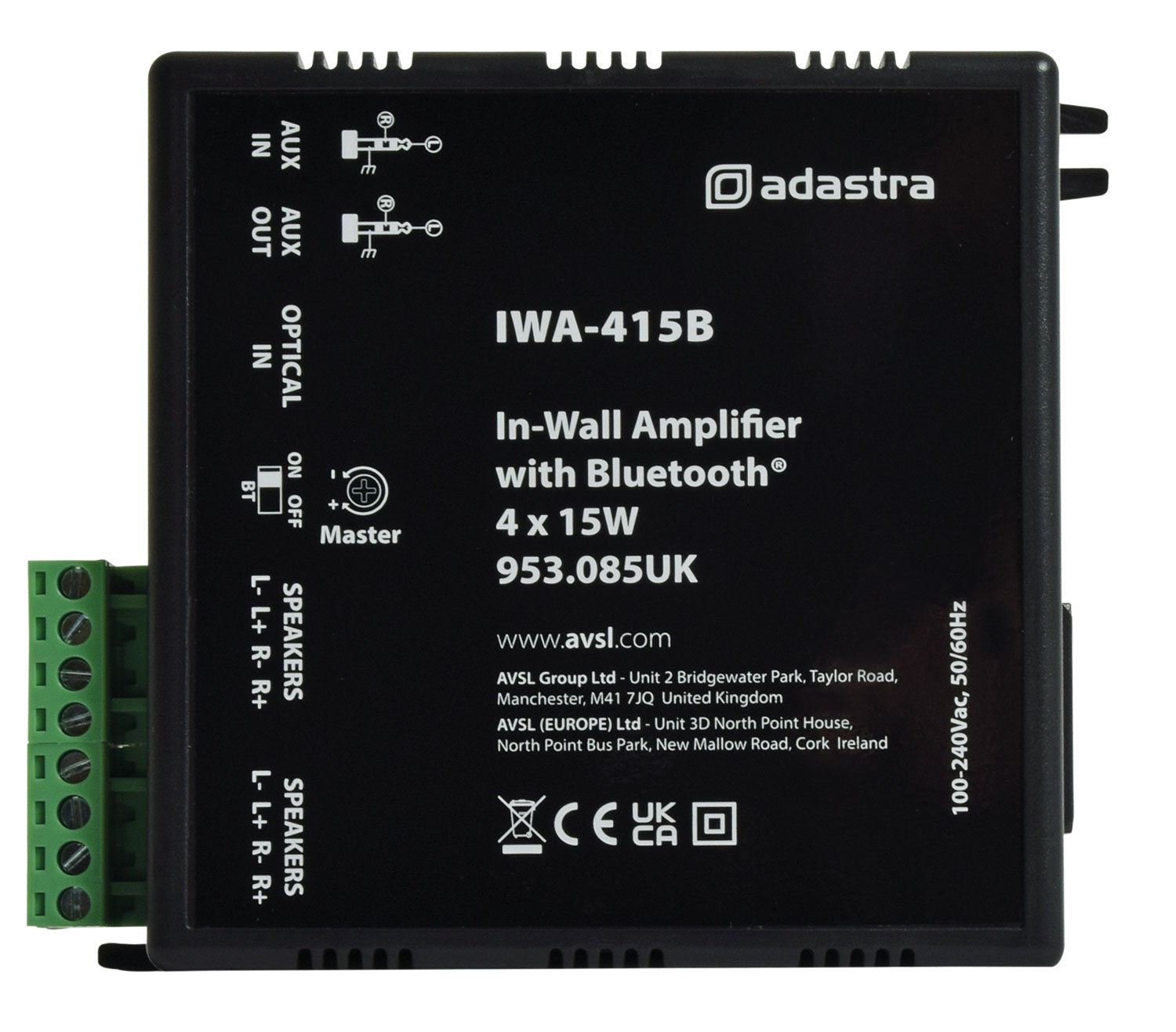

IWA In-Wall Amplifiers with Bluetooth

4 x 15W

953.085UK
IWA415B

Stereo amplifier units for background music and public address in a minimalist housing for installation into cavity walls and ceilings. Class-D amplifier design operates cleanly and efficiently with… more

  • Fig.8 mains power input
  • Bluetooth on/off defeat switch
  • Optical digital audio input
DESCRIPTION VERSION PACKED
953.081UK

IWA215B In-wall Amplifier with Bluetooth 2 x 15W

2 x 15W Box Label
953.083UK

IWA230B In-wall Amplifier with Bluetooth 2 x 30W

2 x 30W Box Label
953.085UK

IWA415B In-wall Amplifier with Bluetooth 4 x 15W

4 x 15W Box Label

IWA In-Wall Amplifiers with Bluetooth

Stereo amplifier units for background music and public address in a minimalist housing for installation into cavity walls and ceilings. Class-D amplifier design operates cleanly and efficiently with minimal heat dissipation, combined with an internal digital switch-mode power section, which enables easy connection directly from the local mains supply. Bluetooth compatibility enables wireless streaming of audio files from a smart phone or other enabled device in addition to 3.5mm Aux input and an optical digital audio input, ideal for integrating into A-V systems. For discreet and trouble-free installation without any need for table-top or cabinet installation, these amplifiers can be combined with many different speaker types to provide the ideal sound system for any small to medium space or deployed in numbers to create a wide area sound installation.

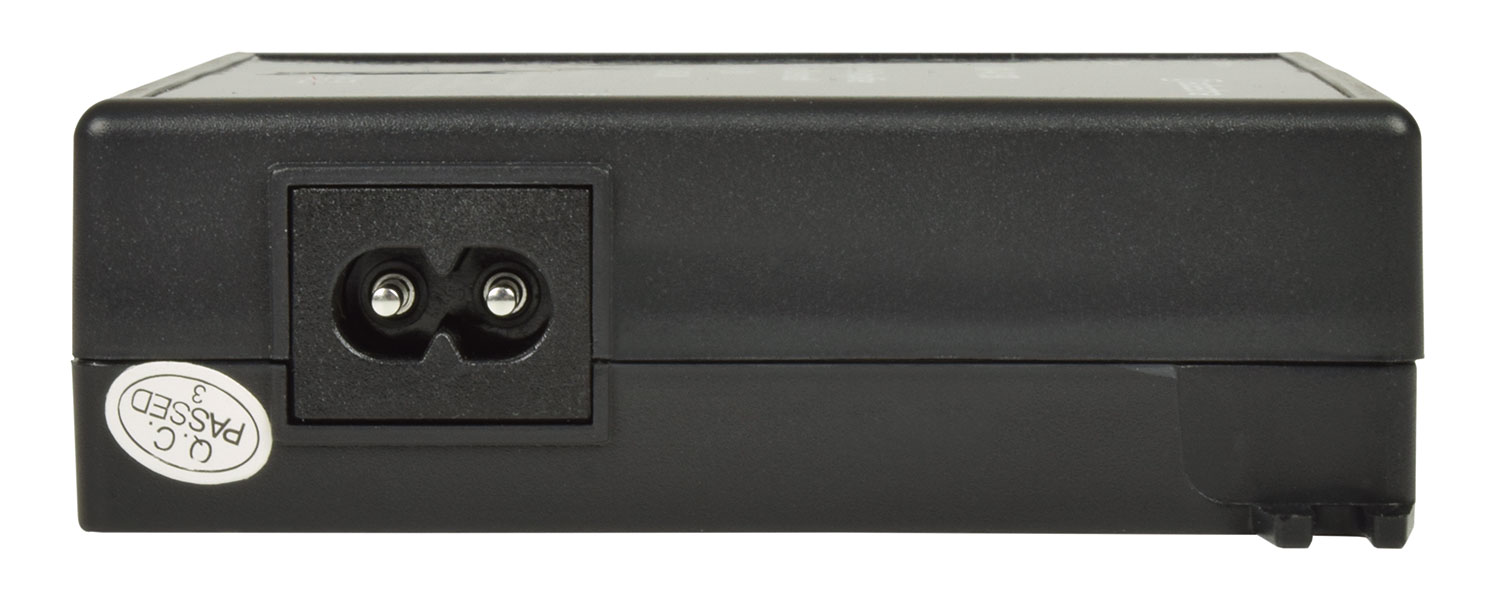

  • Fig.8 mains power input
  • Bluetooth on/off defeat switch
  • Optical digital audio input

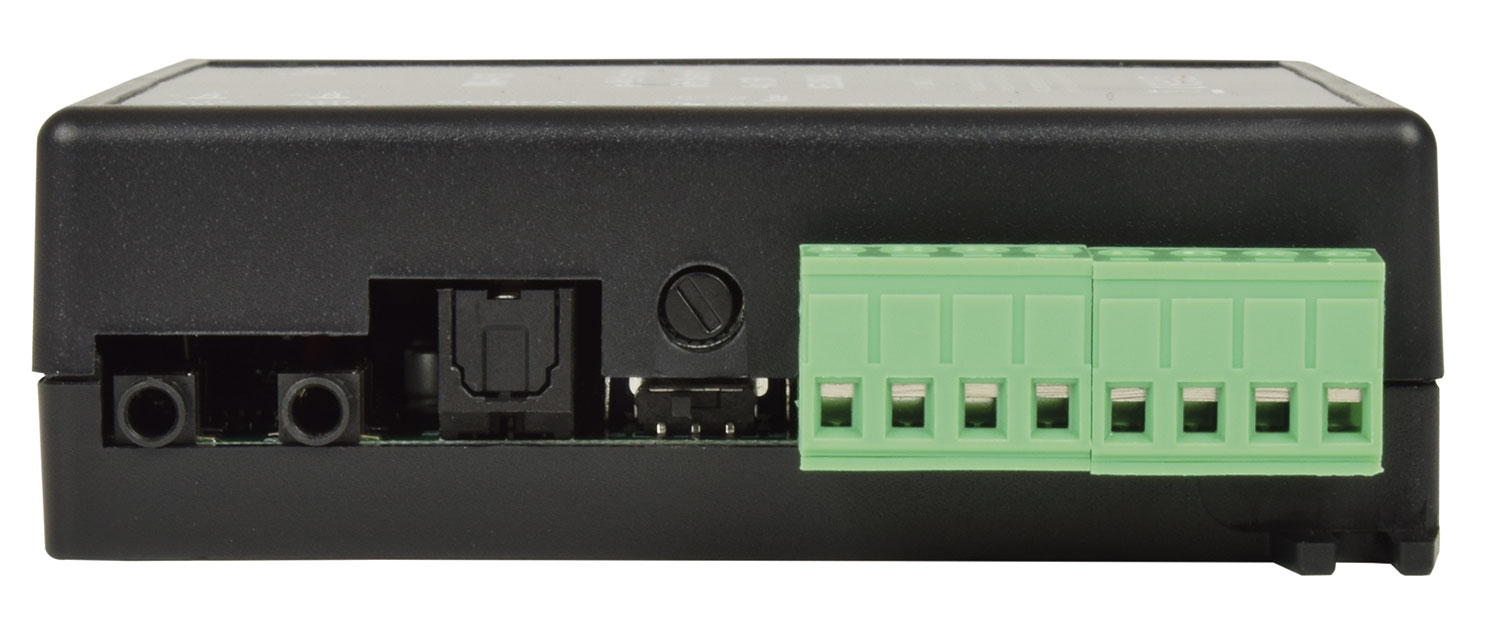

  • 3.5mm stereo Aux input and output
  • Onboard master volume control
  • Bluetooth with unique serial ID
  • Speaker outputs 2 x L-/L+/R-/R+ screw terminals (Euroblock)
  • Output power : 8 Ohms 4 x 10W
  • Output power : 4 Ohms 4 x 15W
  • Power supply 100-240Vac, 50/60Hz (fig.8)
  • Bluetooth version 5.0
  • Minimum impedance 4 Ohms per output
  • Line input 3.5mm stereo aux & optical digital audio
  • Line output 3.5mm stereo jack
  • Dimensions 122 x 89 x 33mm
  • Weight 150g
