CS-5X Call Station for RX45 Audio Matrix

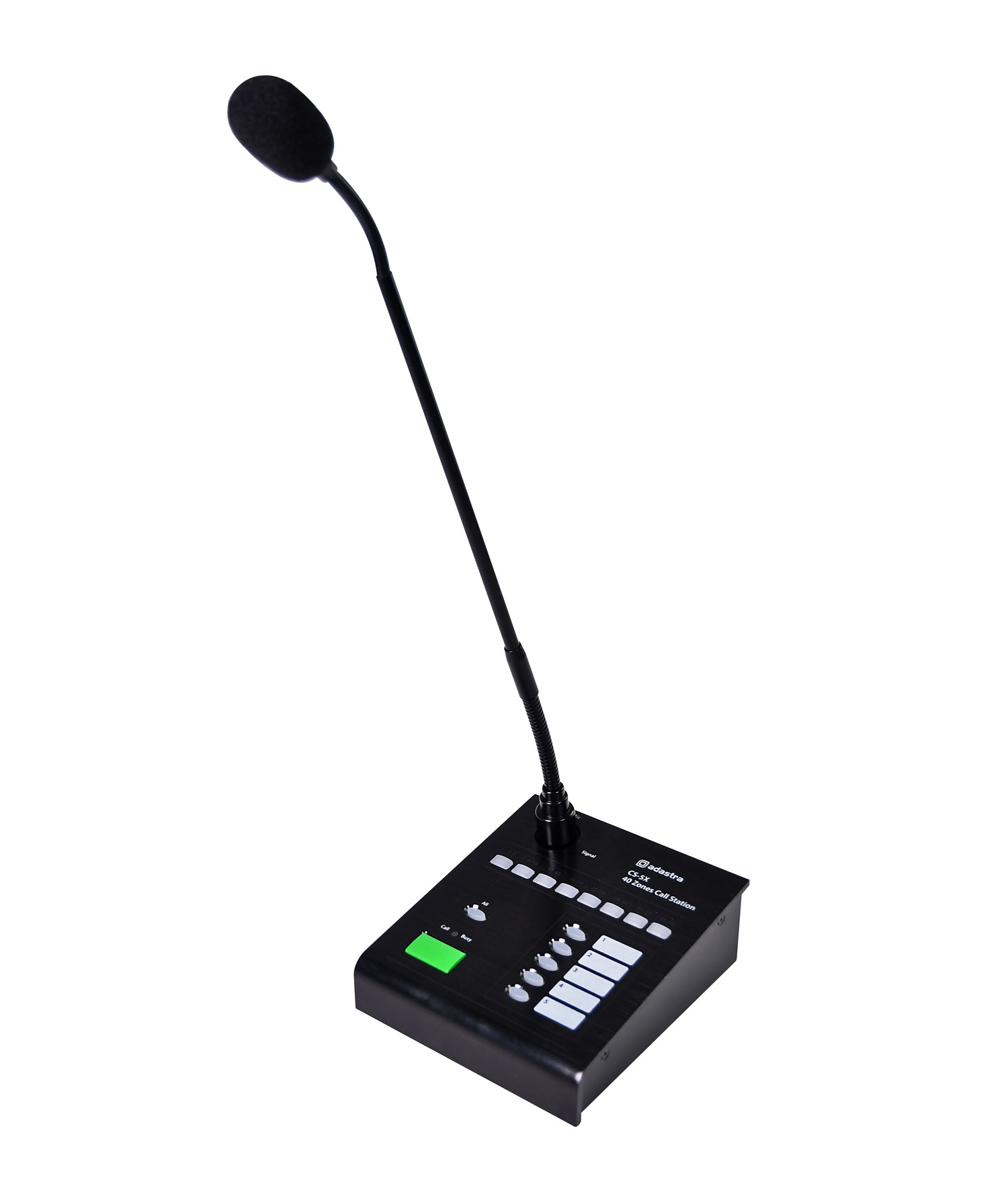

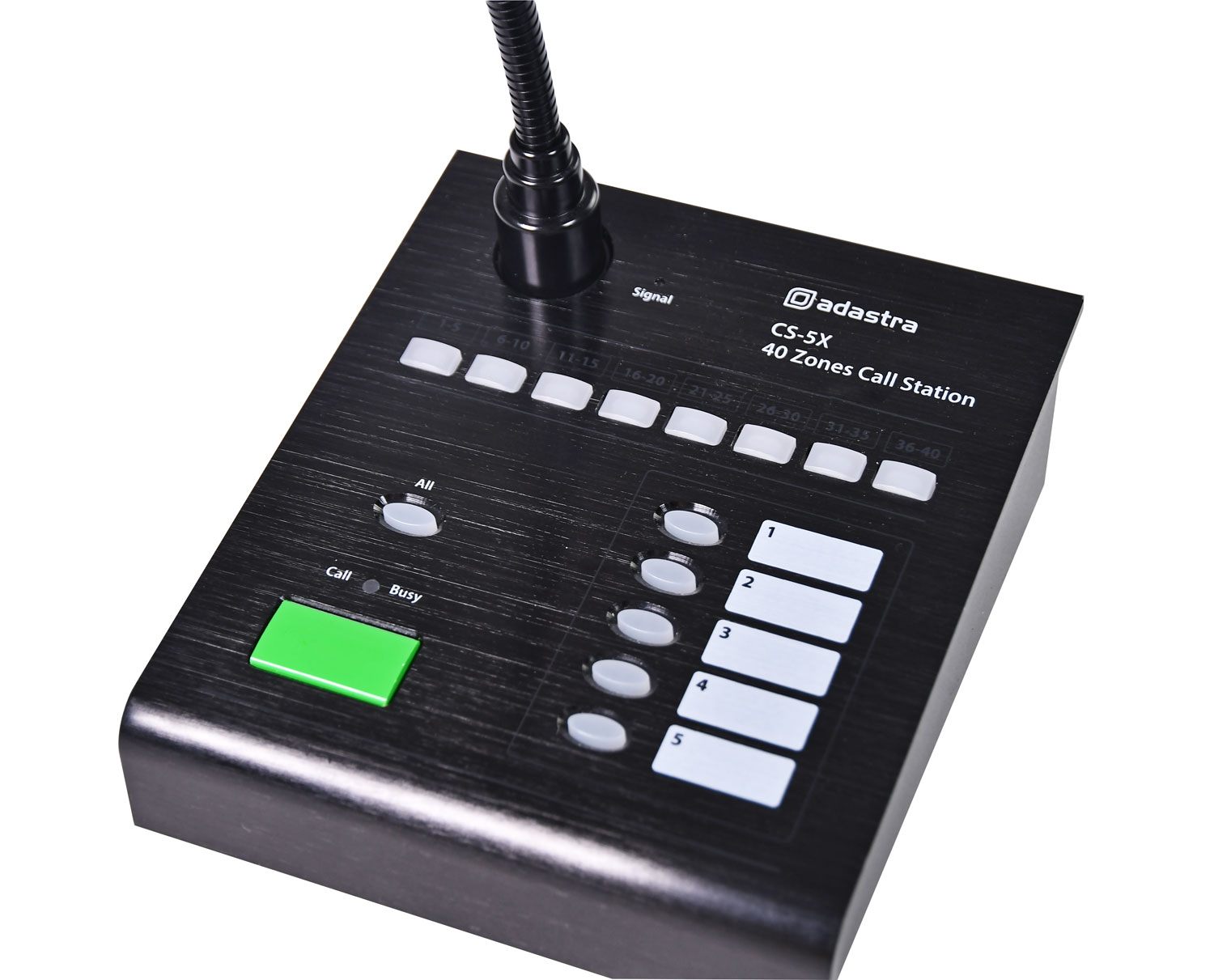

A paging microphone with call station base, to be used with the RX45 audio matrix to create a comprehensive paging system. Zone assign buttons enable intuitive calling to any combination of up to 5 zones of the RX45 unit, with the Page button accordingly muting audio playback in those areas for clear vocal announcements. There is a choice of 8 paging chimes, and an AUX audio input for pre-recorded messages and alerts. A further row of Group buttons enables the user to assign paging for up to 8 different RX45 units that are linked as an expanded system, allowing up to 40 distinct pageable zones.

• Custom designed for the RX45 Audio matrix
• Individual and multiple paging possible up to 40 zones
• Power and signal connection via the supplied RJ45 cable
• Optional 24Vdc in for connection up to 1km from RX45

• Power supply 24Vdc, 500mA from RJ45 or optional adaptor
• Max. connection length 100m (CAT5 cable) or 1km with optional 24Vdc adaptor
• Capsule Back electret condenser
• Polar pattern Cardioid
• Controls Aux/Mic/Chime levels, chime DIP switches, group/zone/page buttons

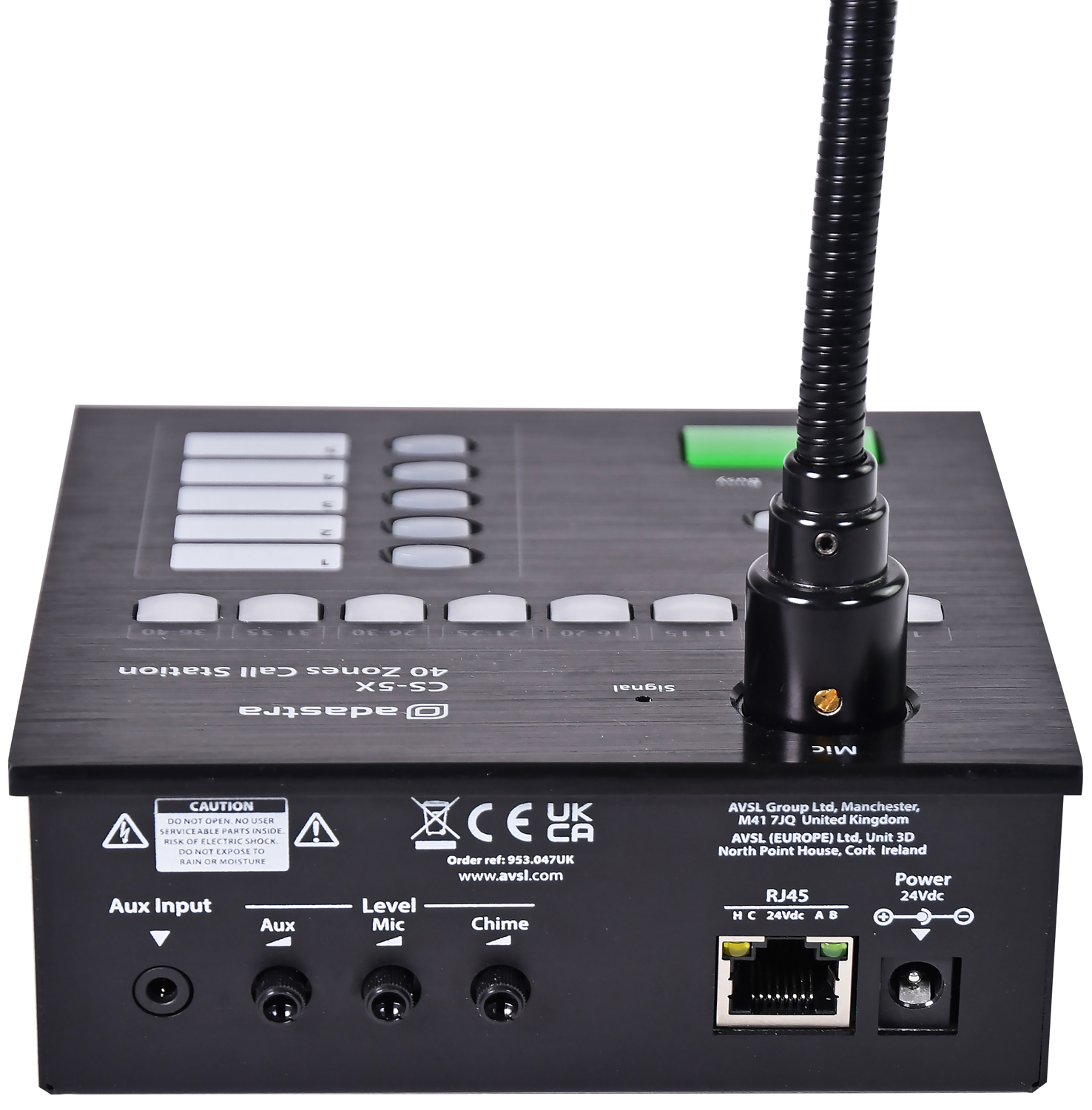

• Connectors XLR, RJ45 (to RX45), 24Vdc power jack, 3.5mm aux in
• Frequency response : -3dB 150Hz - 20kHz
• Input level Mic: -46dBV, Aux: -10dBV
• Input impedance Mic: 600 Ohms, Aux: 50k Ohms
• Output level 10dBV
• Output impedance : balanced 600 ohms
• S/N ratio -60dB (all channels selected)
• Interface RS-485 control
• Zone assign 5 zones per RX45, any combination across 8 Group IDs
• Dimensions 450 x 140 x 125mm
• Weight 653g
