BHV Series IP44 Background Speakers 100V
8" black each
Premium quality IP44 weather resistant 100V speakers with an extended low frequency driver and dome tweeter housed in an efficiently designed moulded cabinet. Spring terminals and a rotary volume… more
- 100V or 16 Ohm operation
- 2-way speaker system with crossover network
- High quality sound reproduction
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
952.611UK
BH3V-W 100V Background Speaker IP44 Black |
3" black each | Box Label |
|
952.612UK
BH4V-W 100V Background Speaker IP44 White |
4" white each | Box Label |
|
952.613UK
BH4V-B 100V Background Speaker IP44 Black |
4" black each | Box Label |
|
952.614UK
BH5V-W 100V Background Speaker IP44 White |
5" white each | Box Label |
|
952.615UK
BH5V-B 100V Background Speaker IP44 Black |
5" black each | Box Label |
|
952.616UK
BH6V-W 100V Background Speaker IP44 White |
6" white each | Box Label |
|
952.617UK
BH6V-B 100V Background Speaker IP44 Black |
6" black each | Box Label |
|
952.618UK
BH8V-W 100V Background Speaker IP44 White |
8" white each | Box Label |
|
952.619UK
BH8V-B 100V Background Speaker IP44 Black |
8" black each | Box Label |
BHV Series IP44 Background Speakers 100V

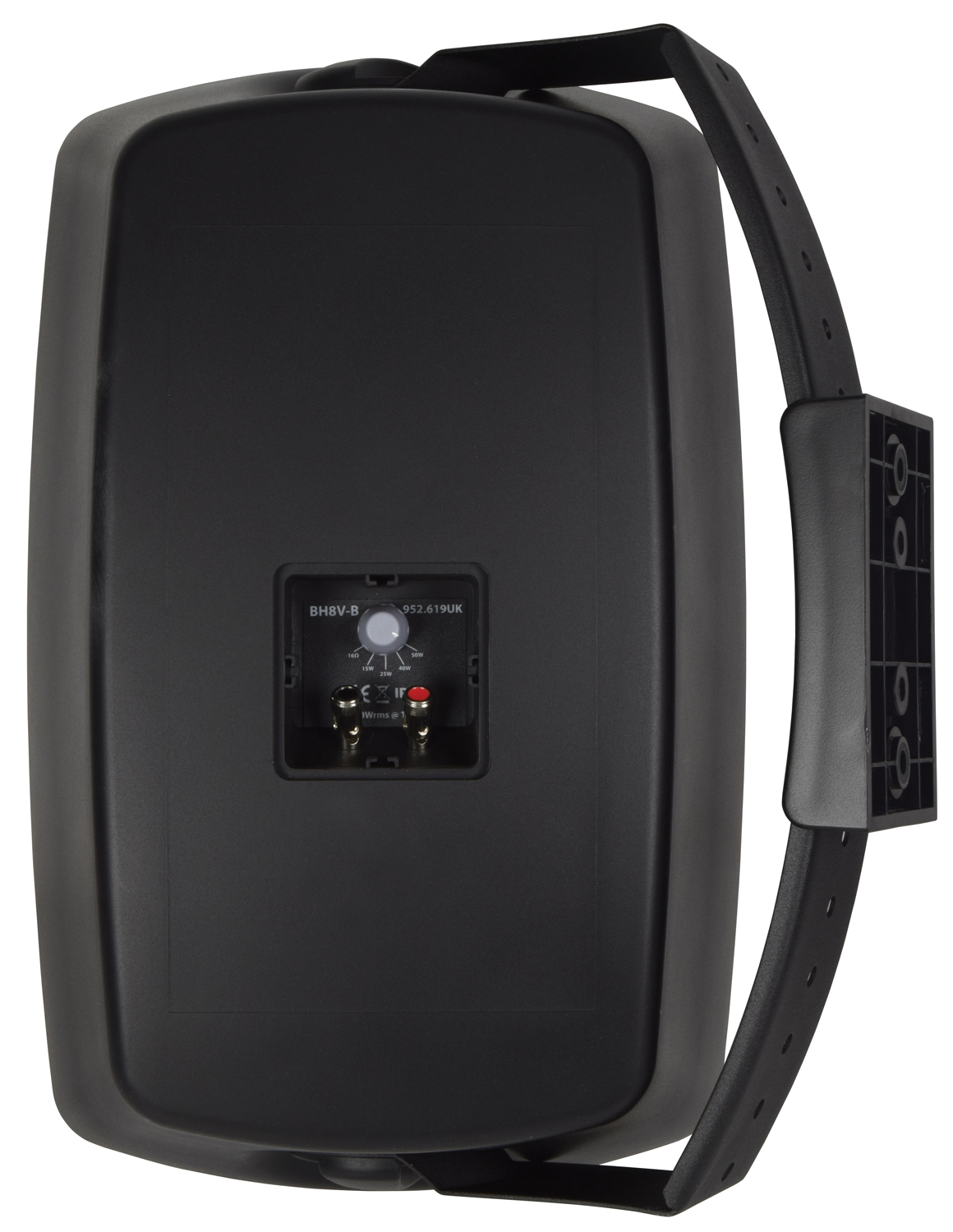

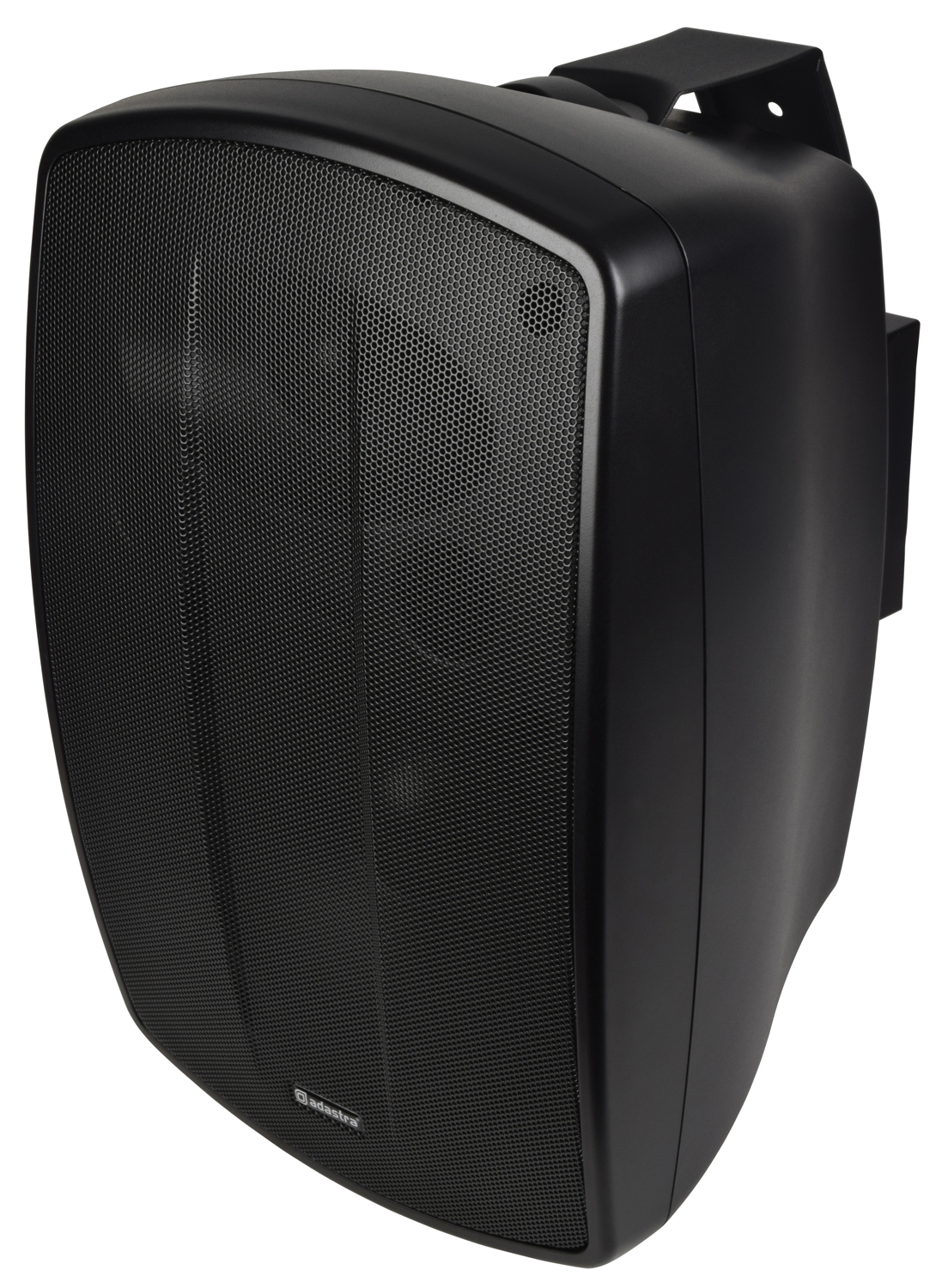

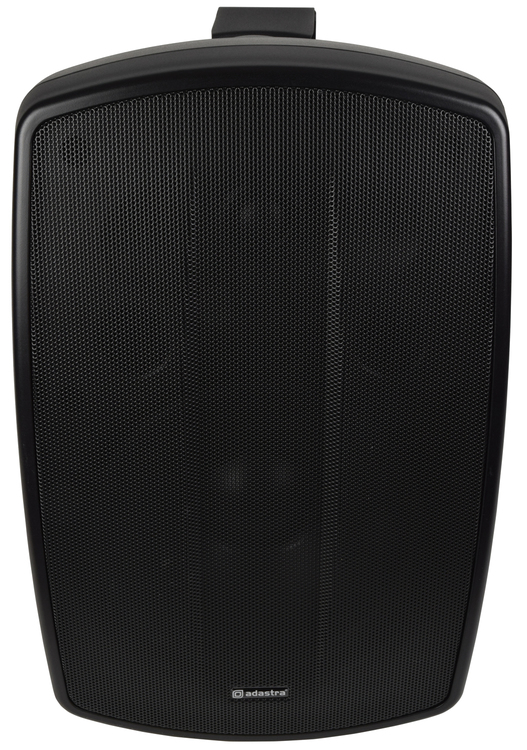

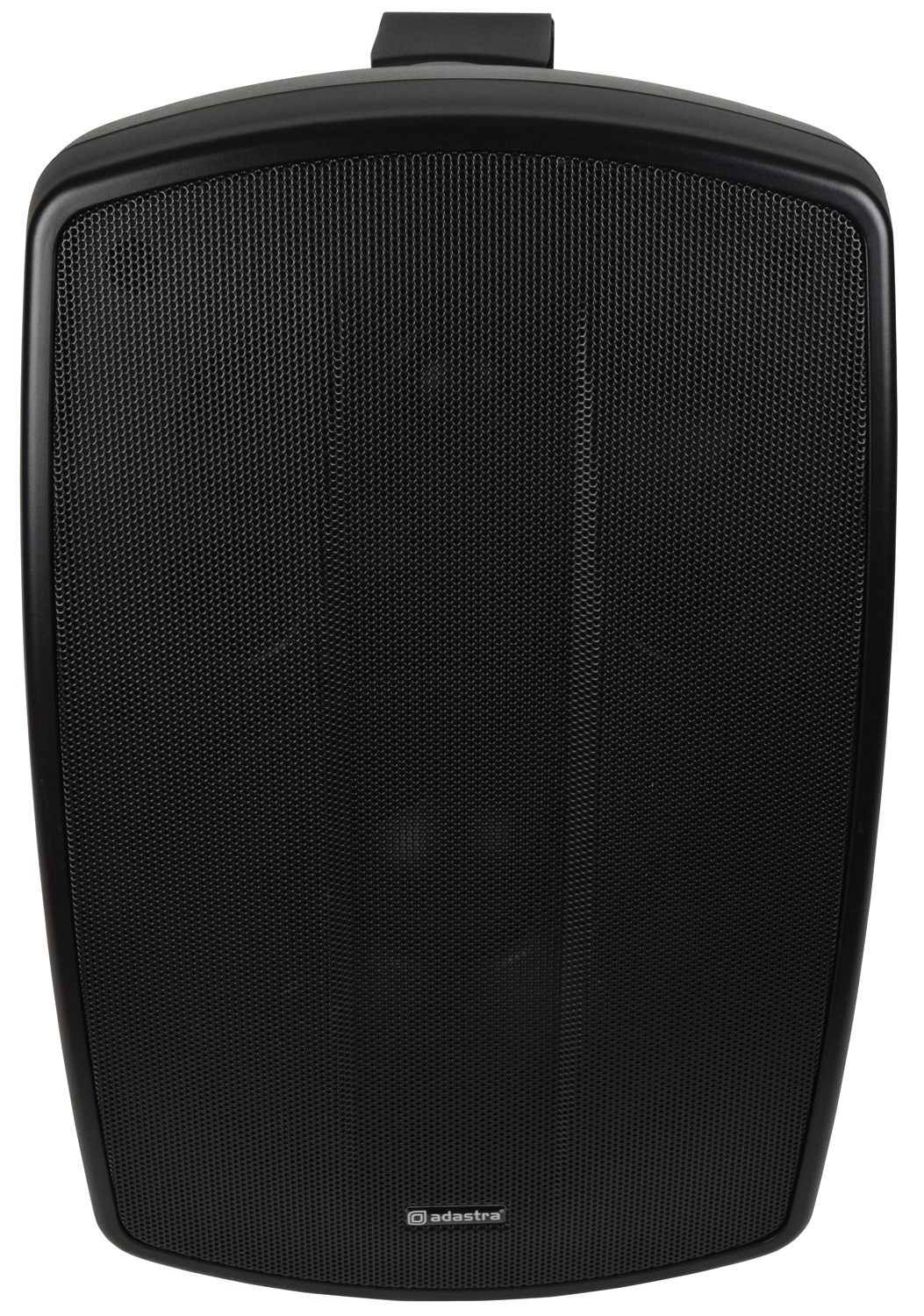

Premium quality IP44 weather resistant 100V speakers with an extended low frequency driver and dome tweeter housed in an efficiently designed moulded cabinet. Spring terminals and a rotary volume tapping switch are protected by a cover at the rear. Each speaker is supplied with a laterally adjustable wall mounting bracket that can also set to various tilt positions for efficient directivity. Designed to deliver high quality sound reproduction for indoor or outdoor background music and public address applications.
- 100V or 16 Ohm operation
- 2-way speaker system with crossover network
- High quality sound reproduction
- Protective cover for tapping switch and spring terminals
- Pan & tilt mounting brackets included
- Supplied singly
- Weight 4.67kg
- Dimensions 378 x 244 x 240mm
- Tappings 50W, 40W, 30W, 20W + 16 Ohms
- Frequency response 30Hz - 20kHz
- Sensitivity 90dB
- Power handling : max 160W
- Power handling : rms 80W
- HF driver 25mmØ (1")
- LF driver 200mmØ (8")
- Colour Black
- Construction Moulded PP cabinet with aluminium grille
- Dispersion angle 120°
- IP rating IP44
In the Box
- BHV series 100V background speaker
- Wall plate and 2-axis mounting bracket
